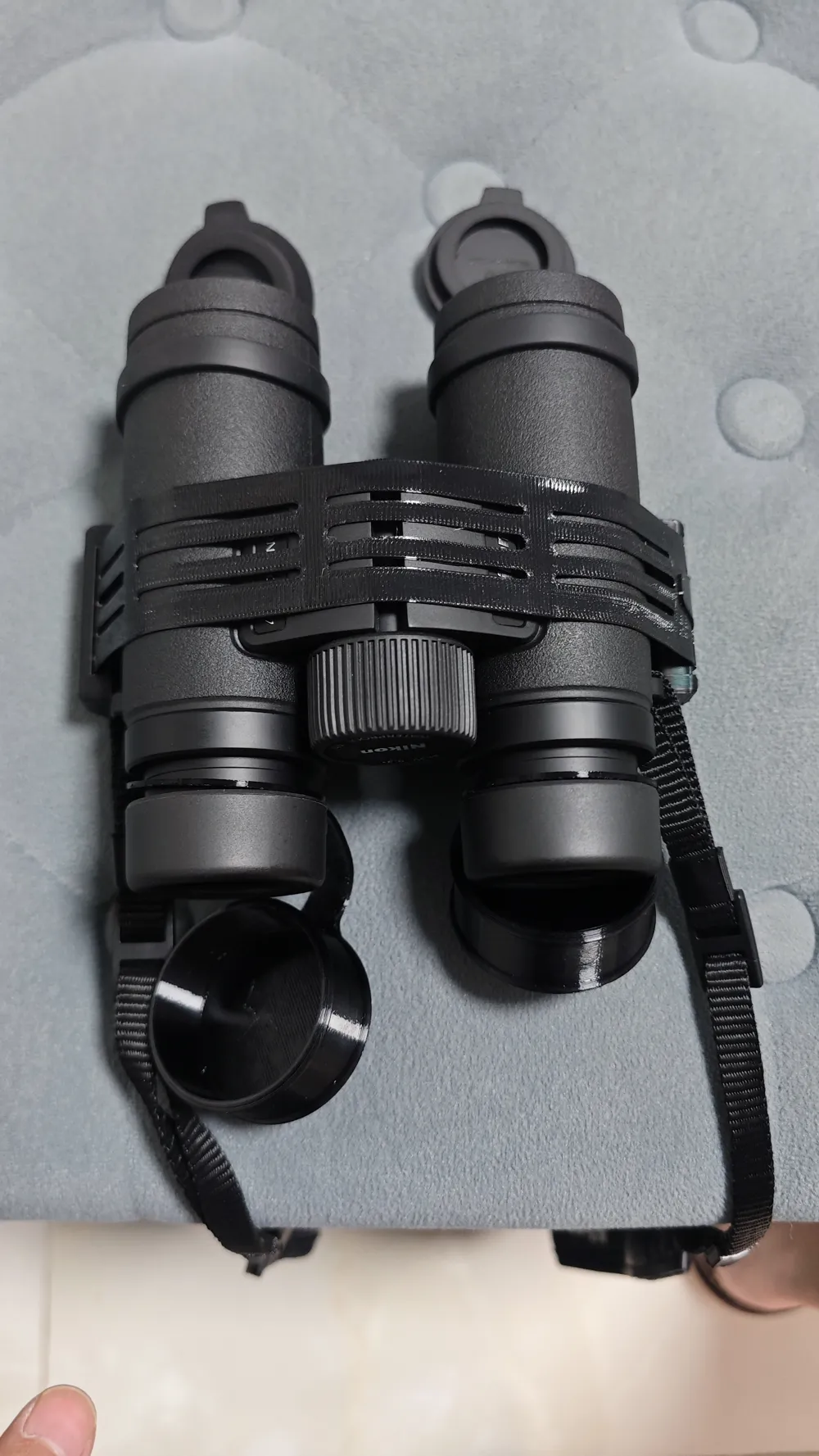

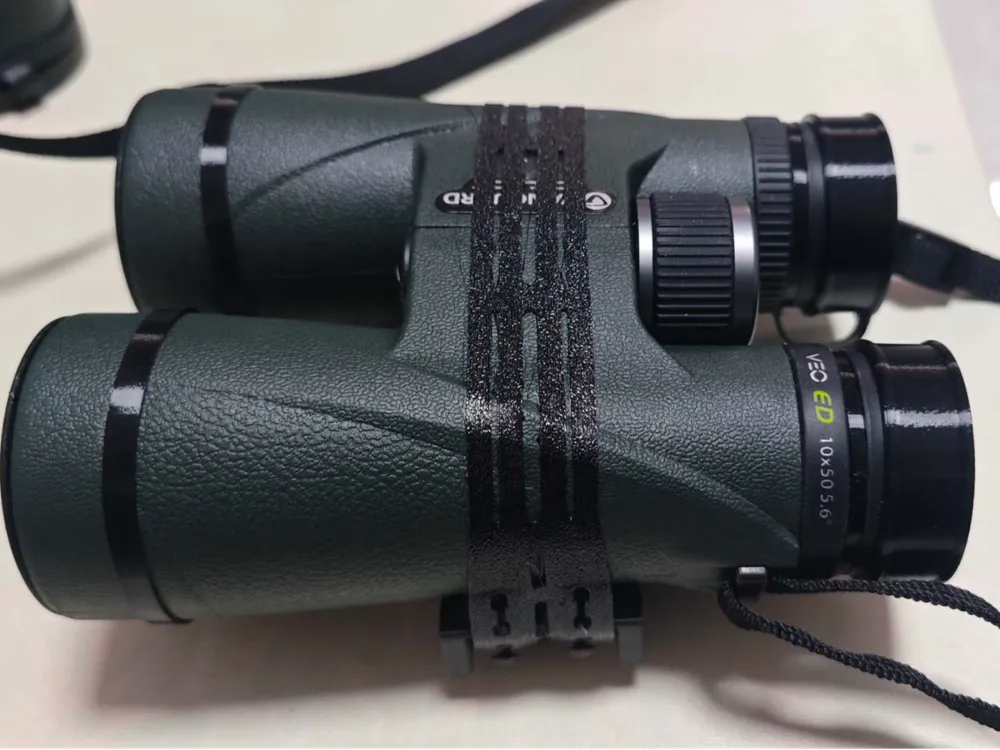

Roof Prism Binocular Strap Mount Base compatible with GoPro Tripod, multi-diameter applicable

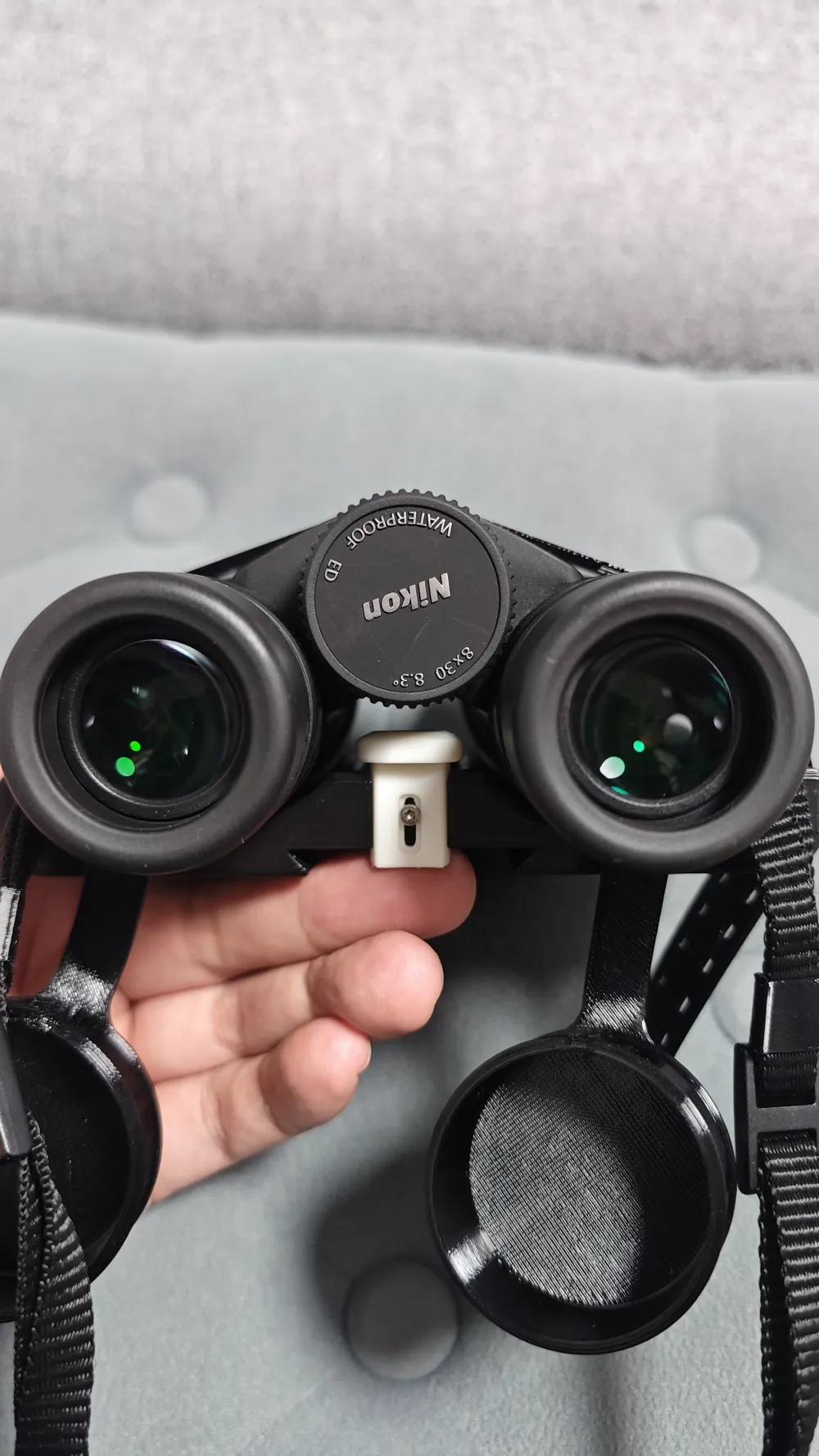

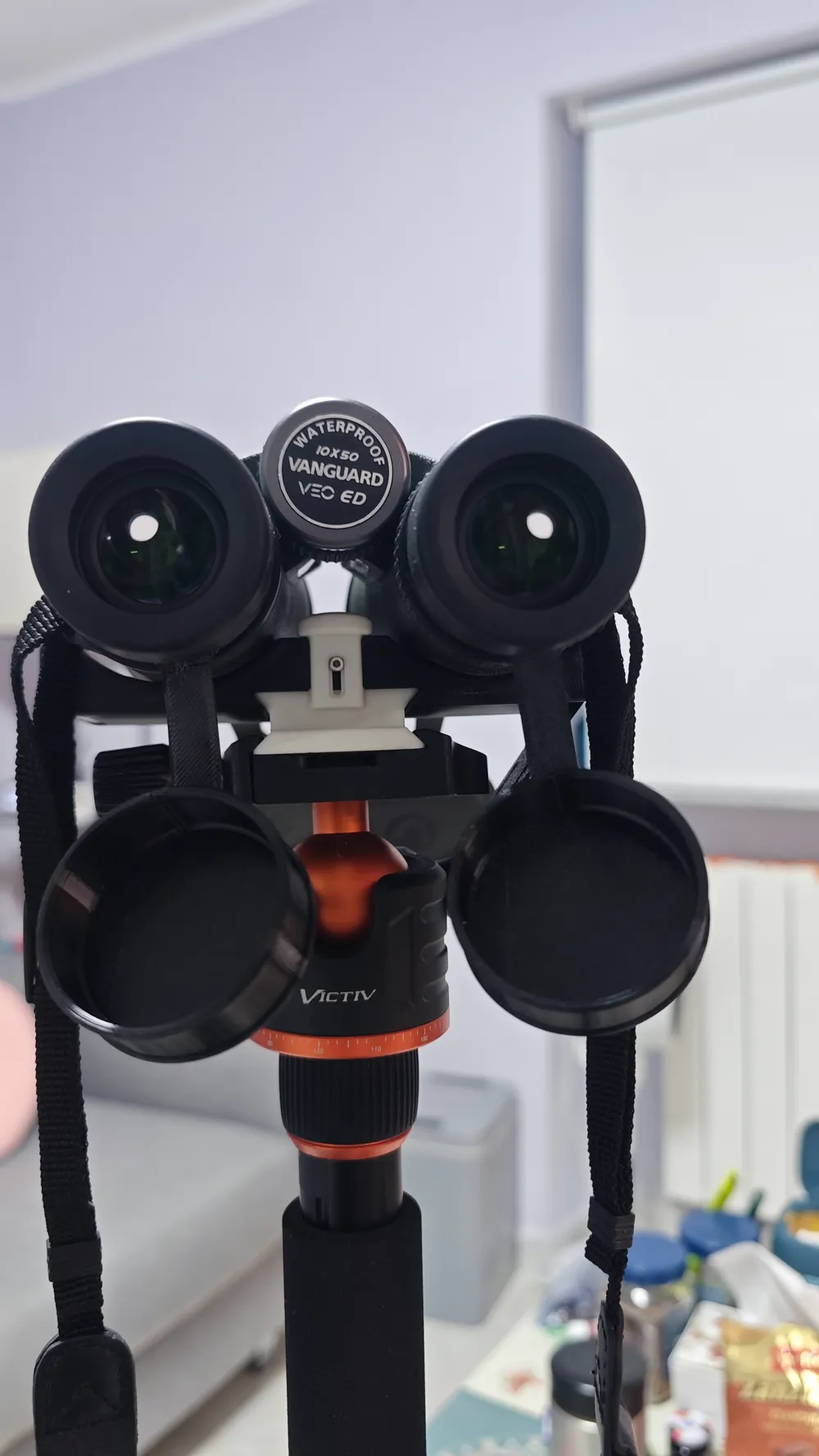

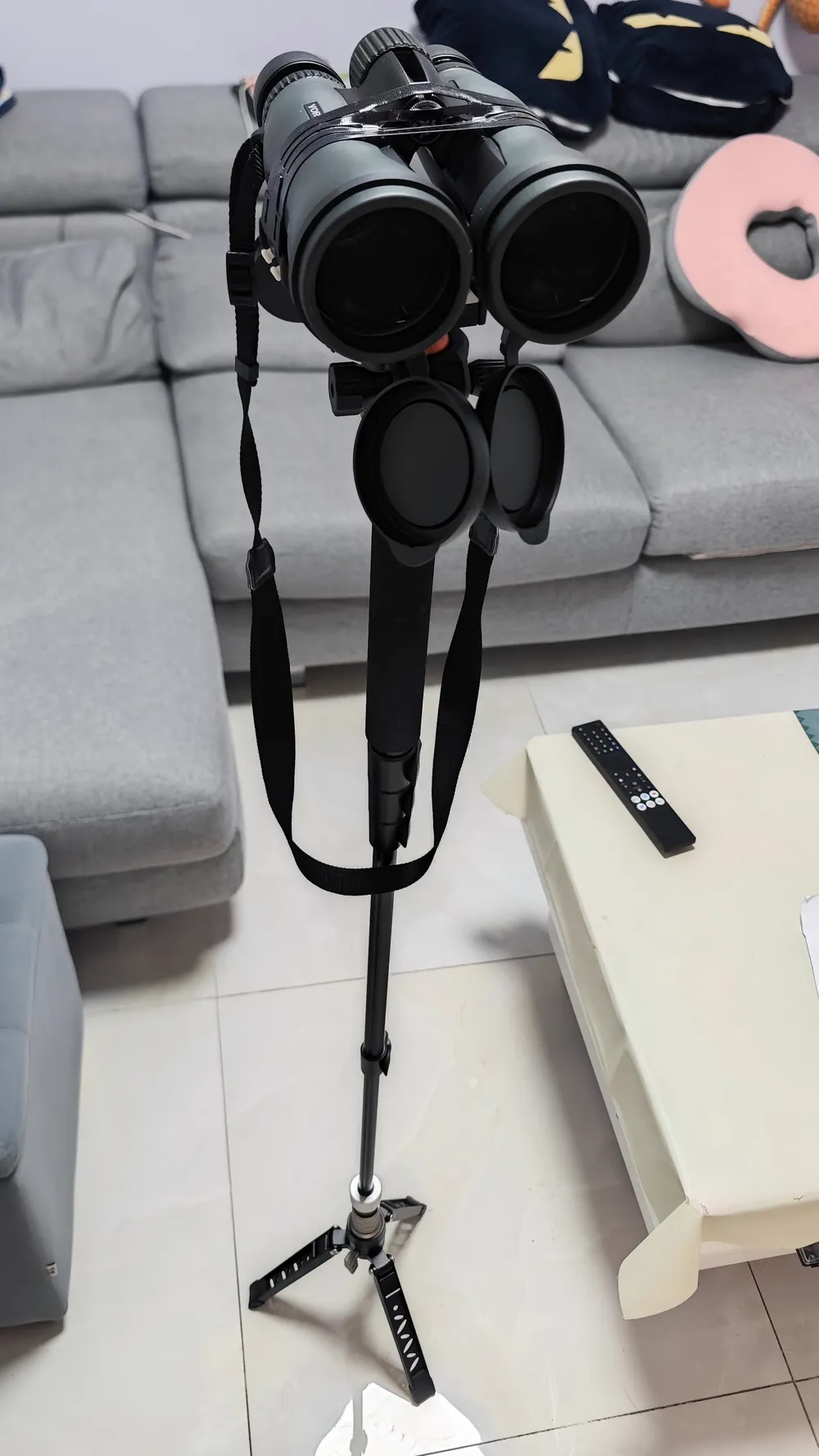

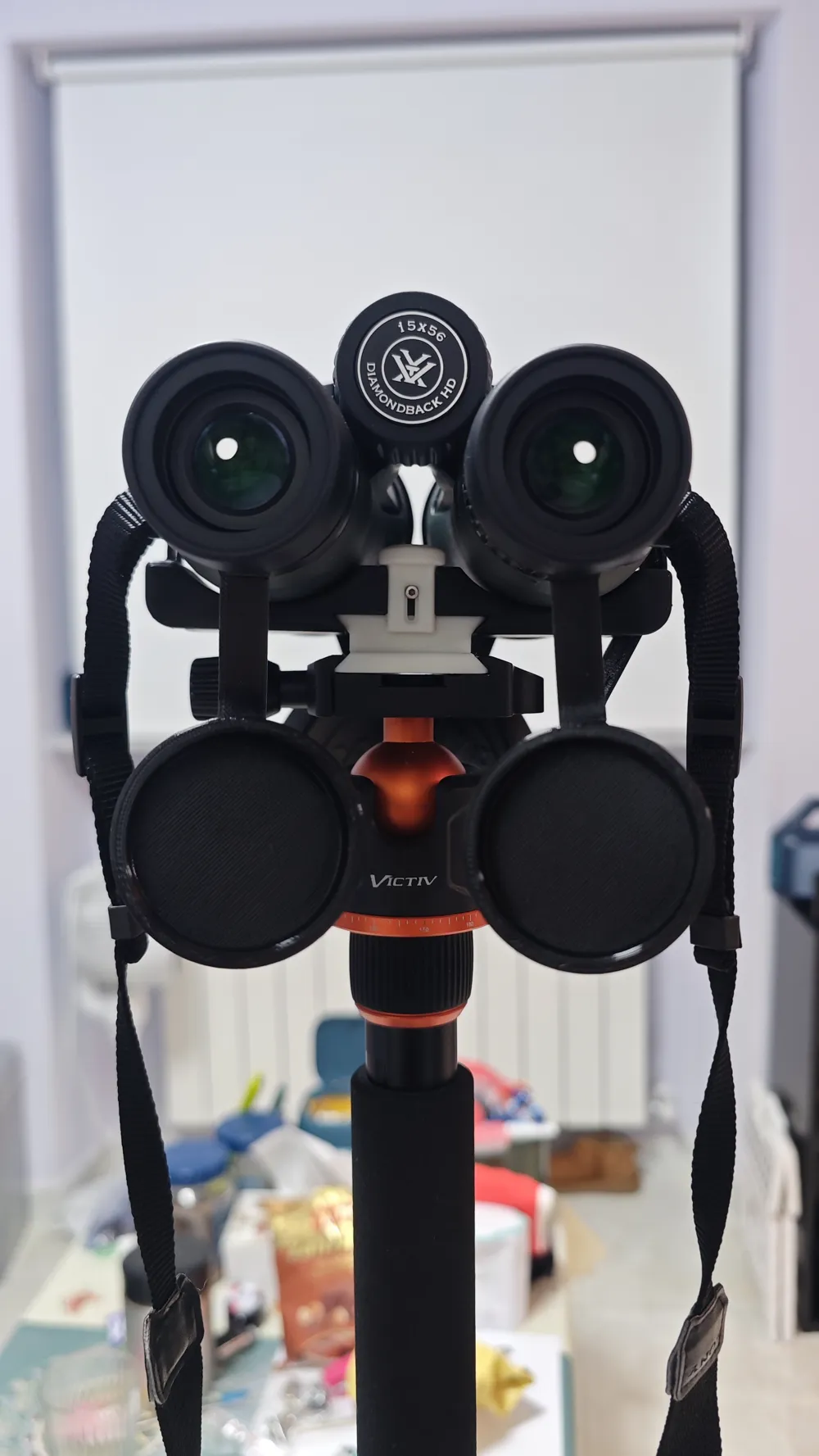

Binocular camera tripod quick release base. Dedicated telescope mounts often shake significantly due to their long lever arms, so to solve this problem, I designed and developed this perfectly compatible base. It is compatible with 20-85mm diameter roof prism binoculars... as well as straight-tube telescopes... More parts can be found on the content page, along with a GoPro adapter. Of course, it's also suitable for left-handers

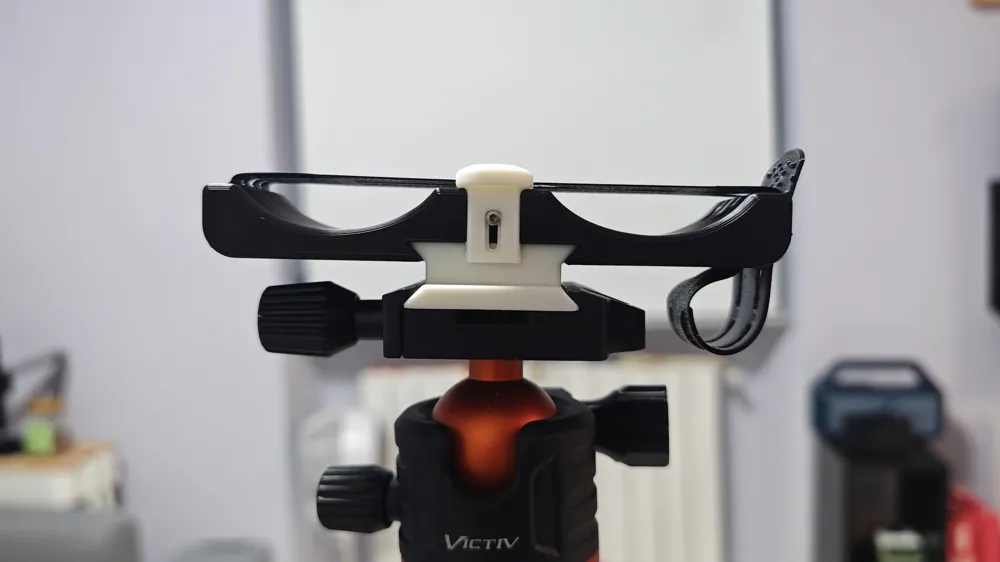

To avoid slight play, the dovetail slot accuracy is within ±0.08. Initial engagement requires the use of tools. Repeating assembly and disassembly 2-3 times will achieve a perfect state. For the latch, it is recommended to use a file to modify it to have a +2° chamfer

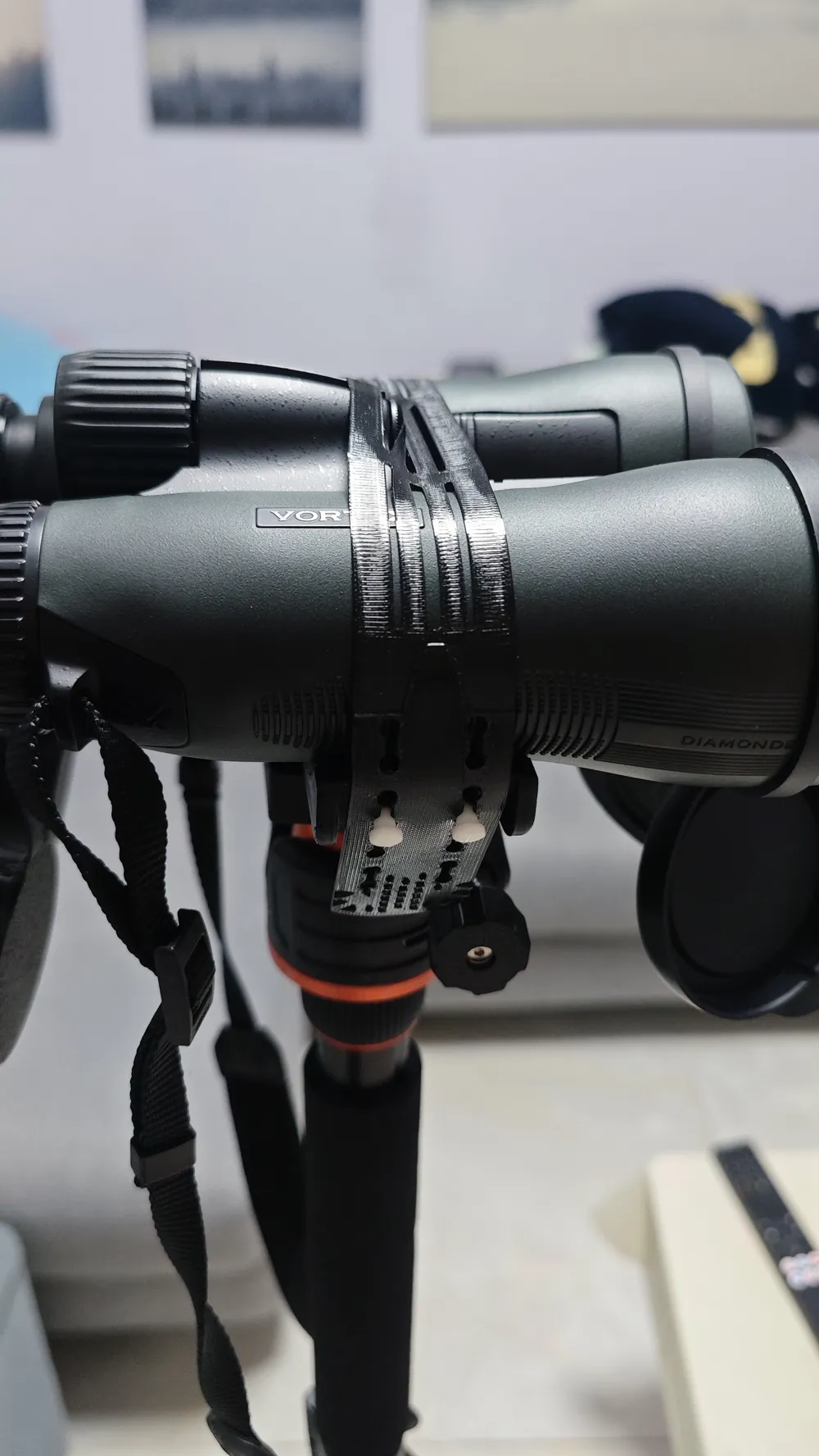

PS: Due to the structural strength of PLA, I chose to cut the anchor points in half to prevent them from coming loose when undone. It is recommended to use super glue. You will need m2.5x10-15.1pz. If you use a magic strap, please modify the thickness of the <pull cord latch - full size> part according to the strap's thickness
