Description

After the folding gift card box blew my mind for some reason, I looked around for anything similar and found nothing. I instead turned to over-engineering this very thin model for any origami lover and for anyone like me who started with a klipper or marlin printer and know that bed cleaners are a routine print. Might as well have fun with it right???

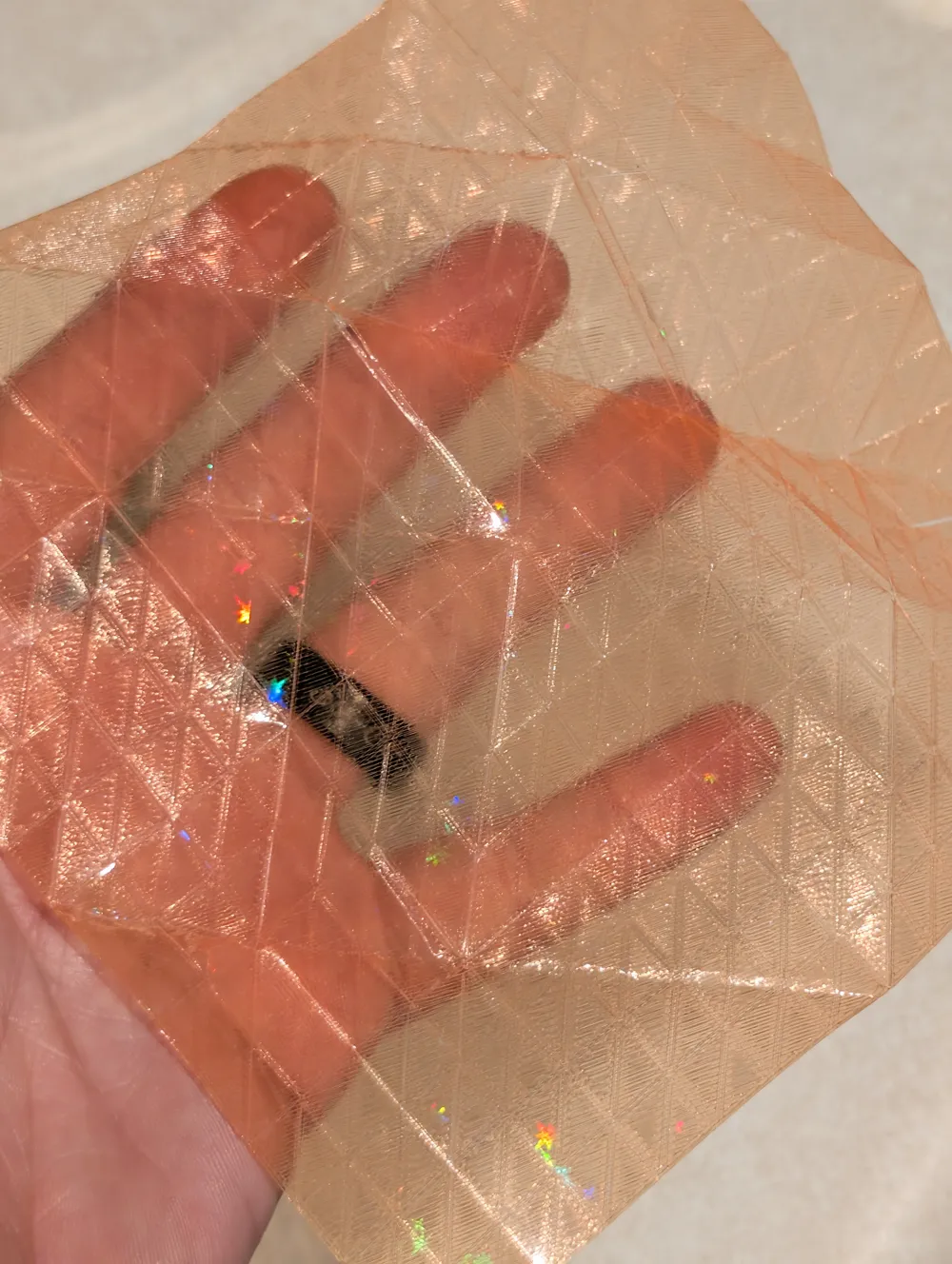

I wanted this print to be highly functional. the advanced pattern allows for a large amount of origami designs. The design has also been tested for scaling for ALMOST any bed size. I have successfully printed and folded this design from 50mmx50mm to 250mmx250mm with 250x250 using less than 5g of filament! Great for that last little bit on the spool. This was tested specifically using translucent PETG.

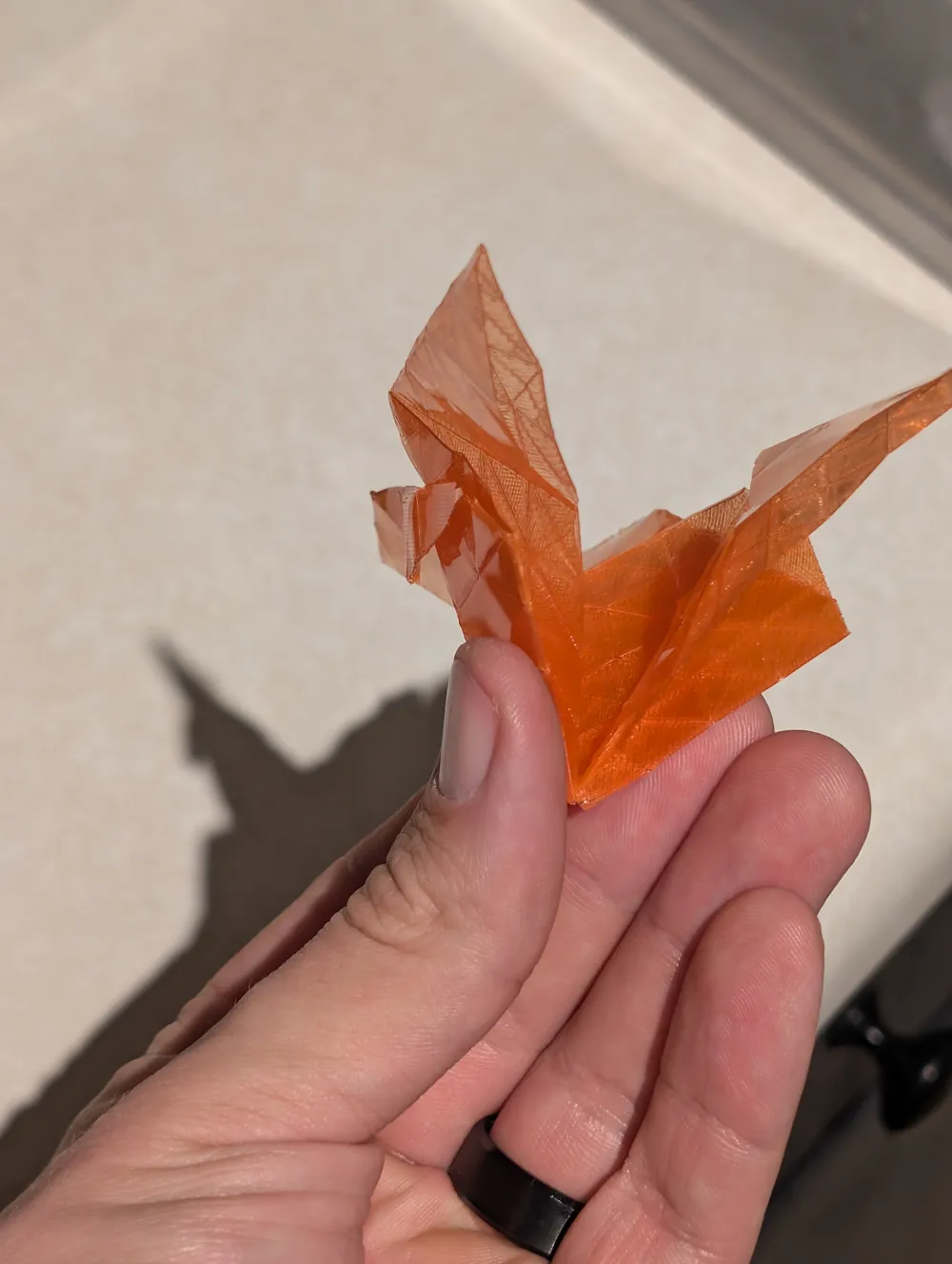

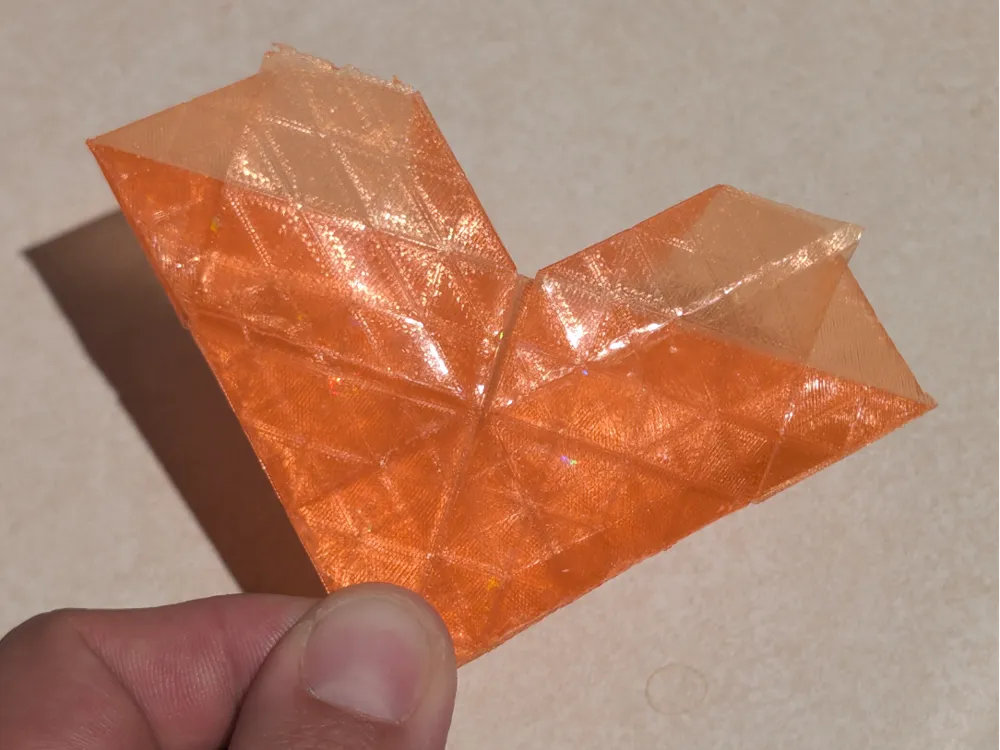

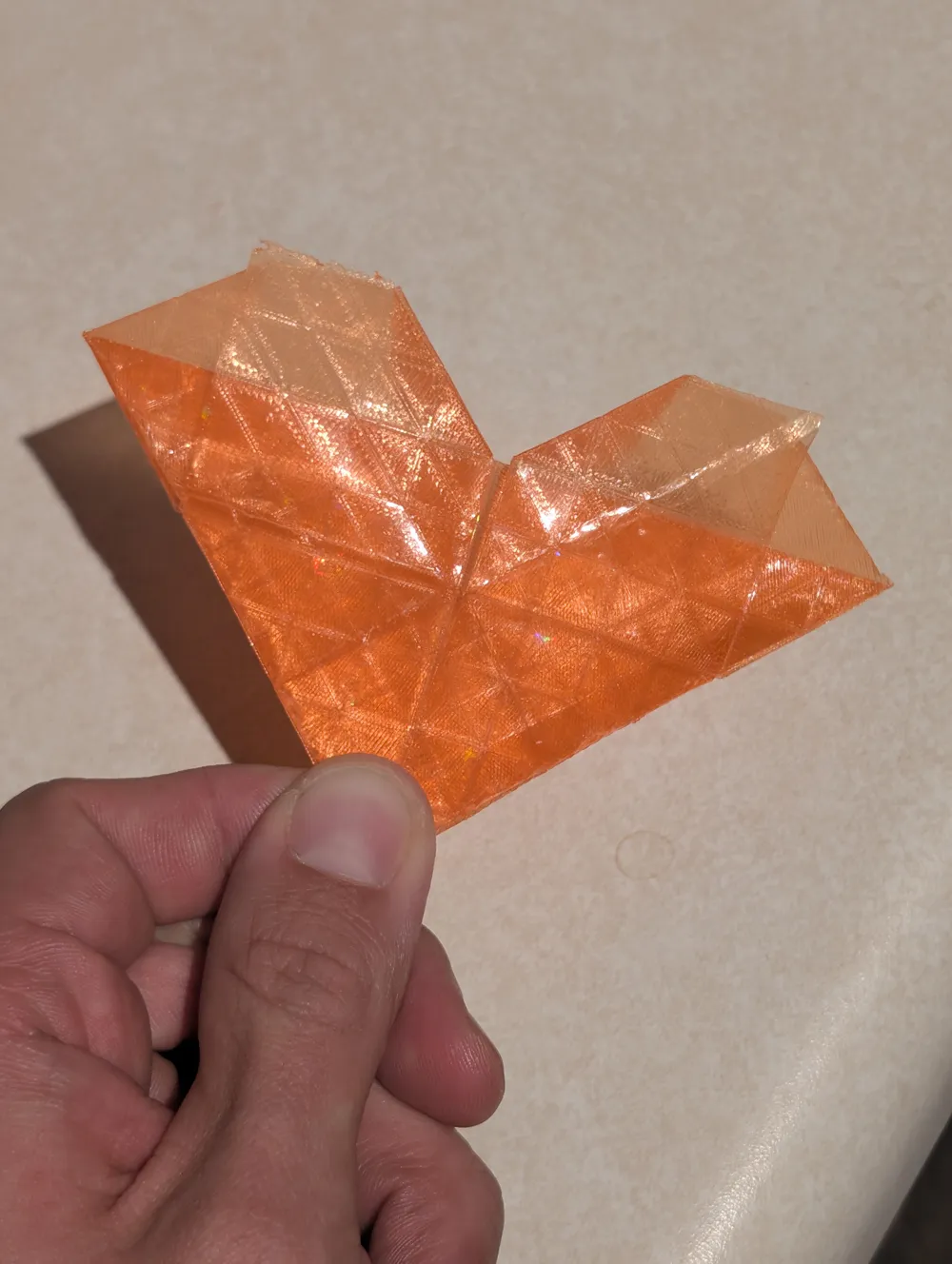

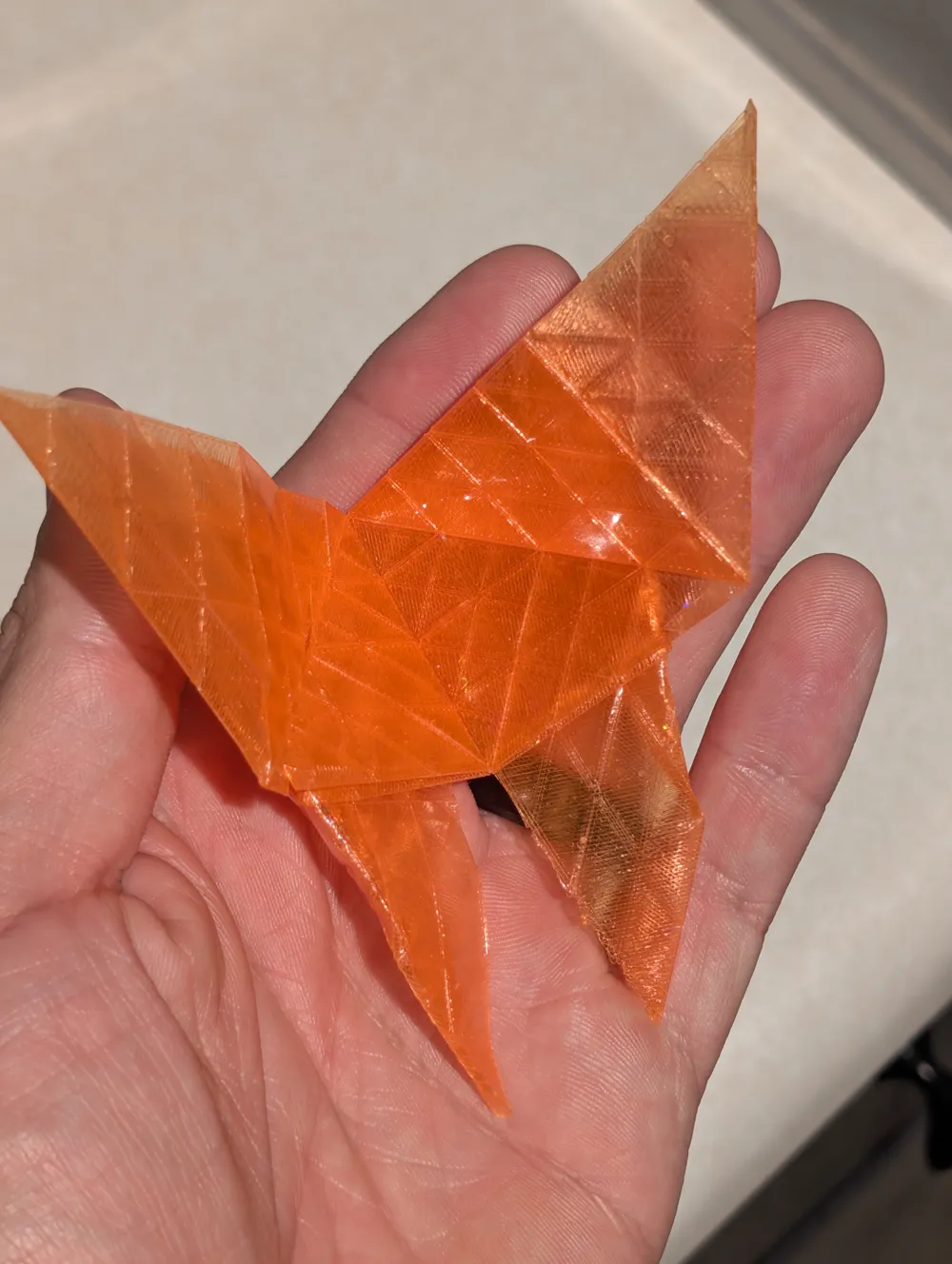

I folded multiple designs with this pattern  and I am a beginner when it comes to origami folding (I just followed step-by-steps i found online) and would LOVE to see what you come up with! If you print and fold this design, please rate and post a picture.



MAKE SURE TO TURN OFF UNIFORM SCALE AND ONLY SCALE ON THE X AND Y AXIS. Z AXIS SCALING WILL CHANGE THICKNESS AND RUIN SLICING. Also, the Infill settings should already be optimized for this print. 100% infill, aligned rectilinear, no top or bottom shell, infill angle at 22.5 degrees (to avoid lining up with fold pattern, causing cracks).
