Jeep Wj Button Box (Center Console)
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
2.8 h
1 plate
Open in Bambu Studio
Boost
14
37
0
0
11
5
Released
Description

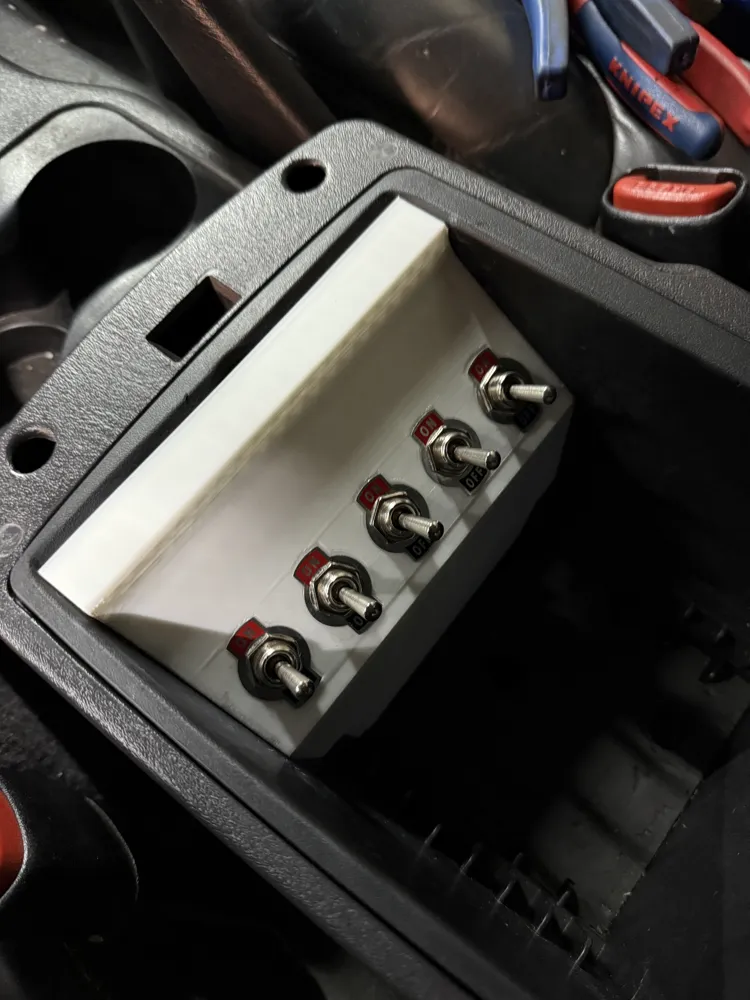

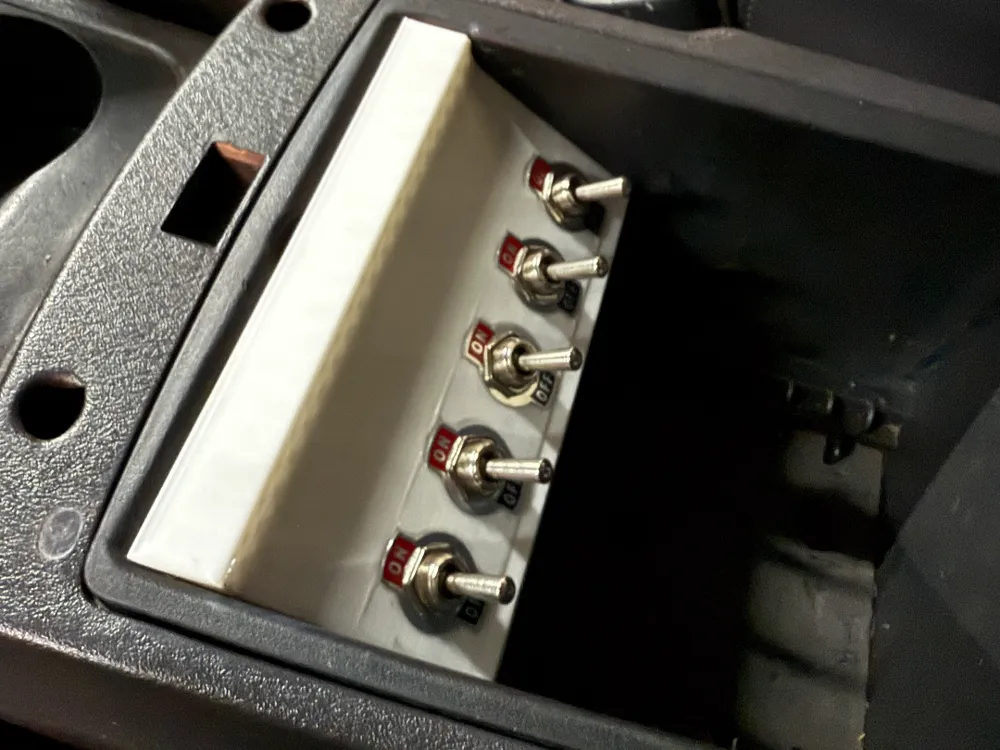

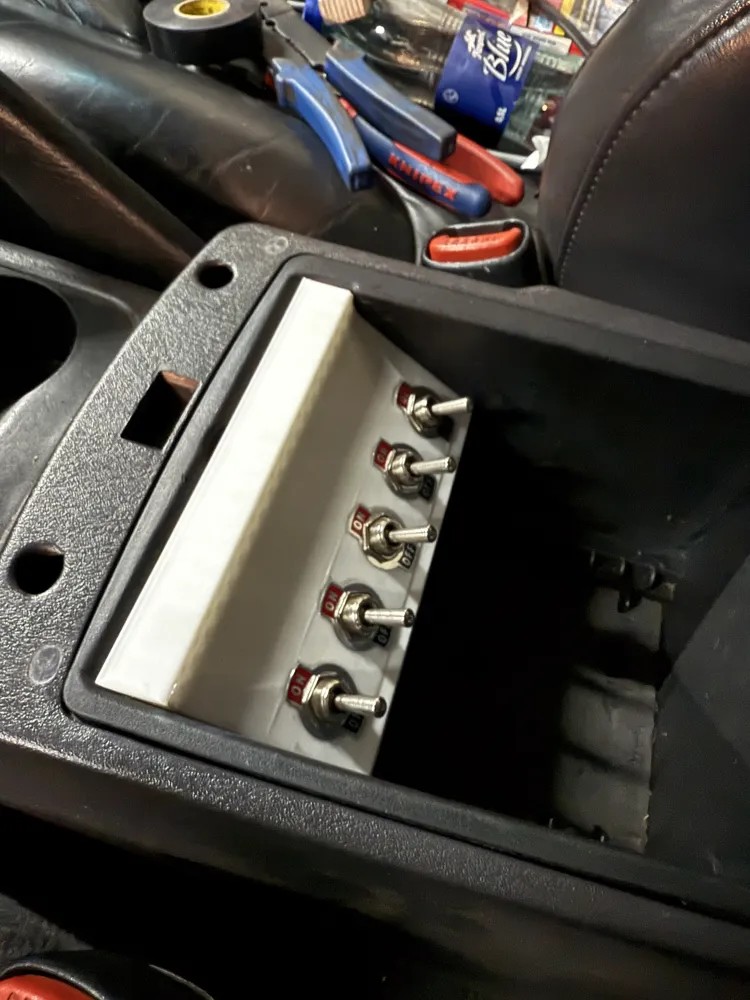

I wanted to have about 5 buttons for different lights on my Jeep Grand Cherokee WJ and wanted them to be somewhat hidden.
Like this I can also keep the ashtray.

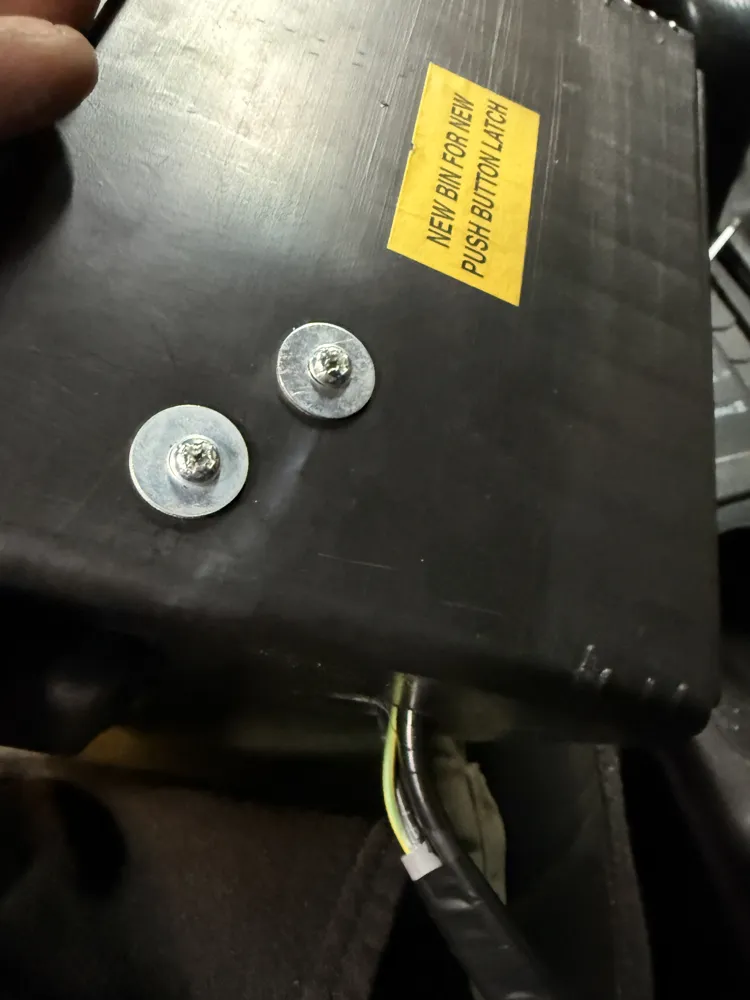

You will have to drill 4 holes, 2 on each side of the center console inlay which is a bit tricky so I measured from the inside and drilled a bit bigger and used bigger washers after.
There are 4 M4 Nuts on the inside which you may want to glue in since they might be a little bit loose.
Used M4 bolts and Nuts.

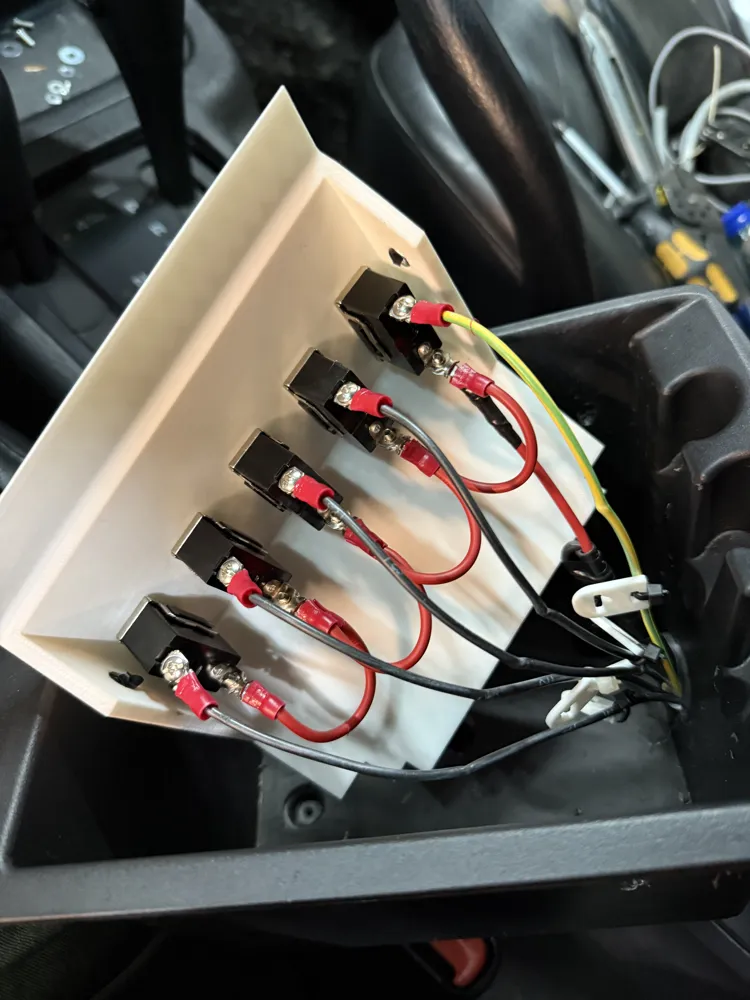

The holes for the switches are 13mm diameter.
If you have other ideas or need something changed feel free to send me a message :)
