Universal, Xiaomi Xiaobai Camera, Ezviz Camera Mount 3-in-1

Design Concept

This design combines the universal mounting requirements of modern home security cameras. It adopts a modular design, suitable for general cameras, Xiaomi Mijia or Ezviz cameras, making it convenient for users to switch between multiple brands.

Application

Mainly used in homes or offices as a camera mounting bracket, helping users securely place cameras in areas where enhanced security is needed.

Printing Recommendations

It is recommended to print with high-strength plastics such as ABS or PETG to ensure the stability and durability of the bracket.

Assembly Instructions

All necessary fixing components are included in the design; simply follow the illustrations for easy installation. The model includes three connector parts and three base parts. When using the universal connector, you need to secure the original camera connecting part to the universal connector with screws, and then attach it to the base.

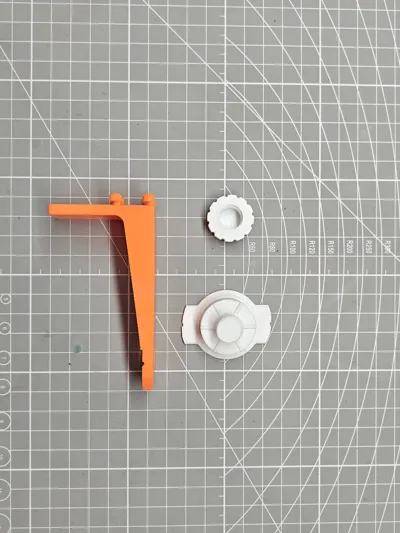

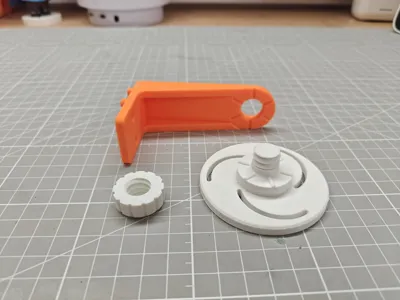

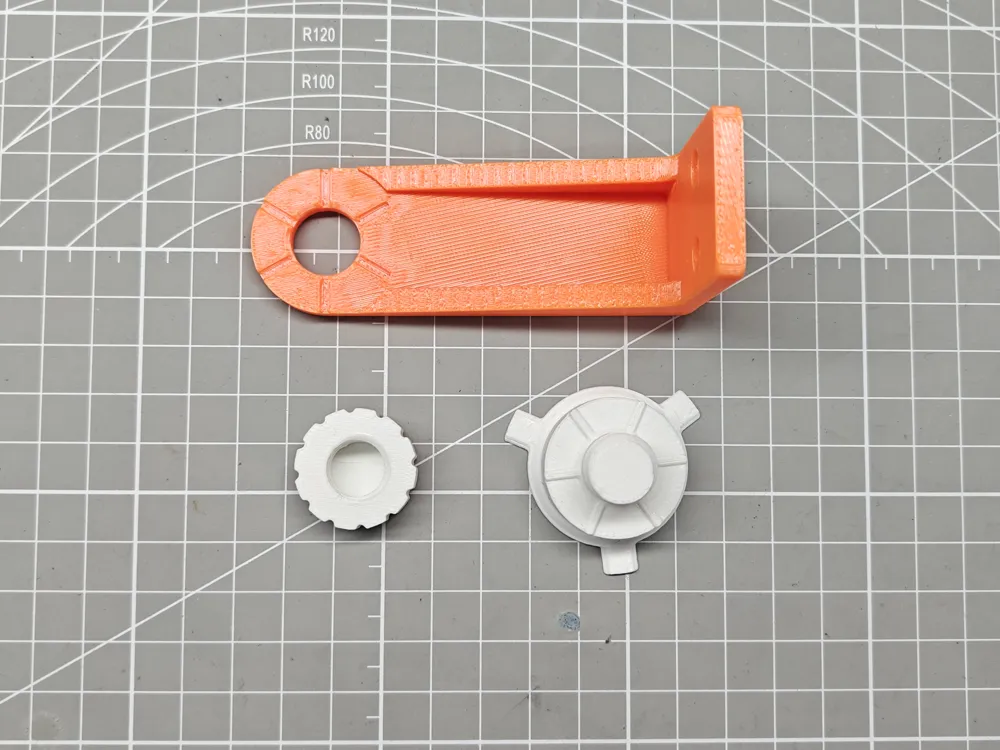

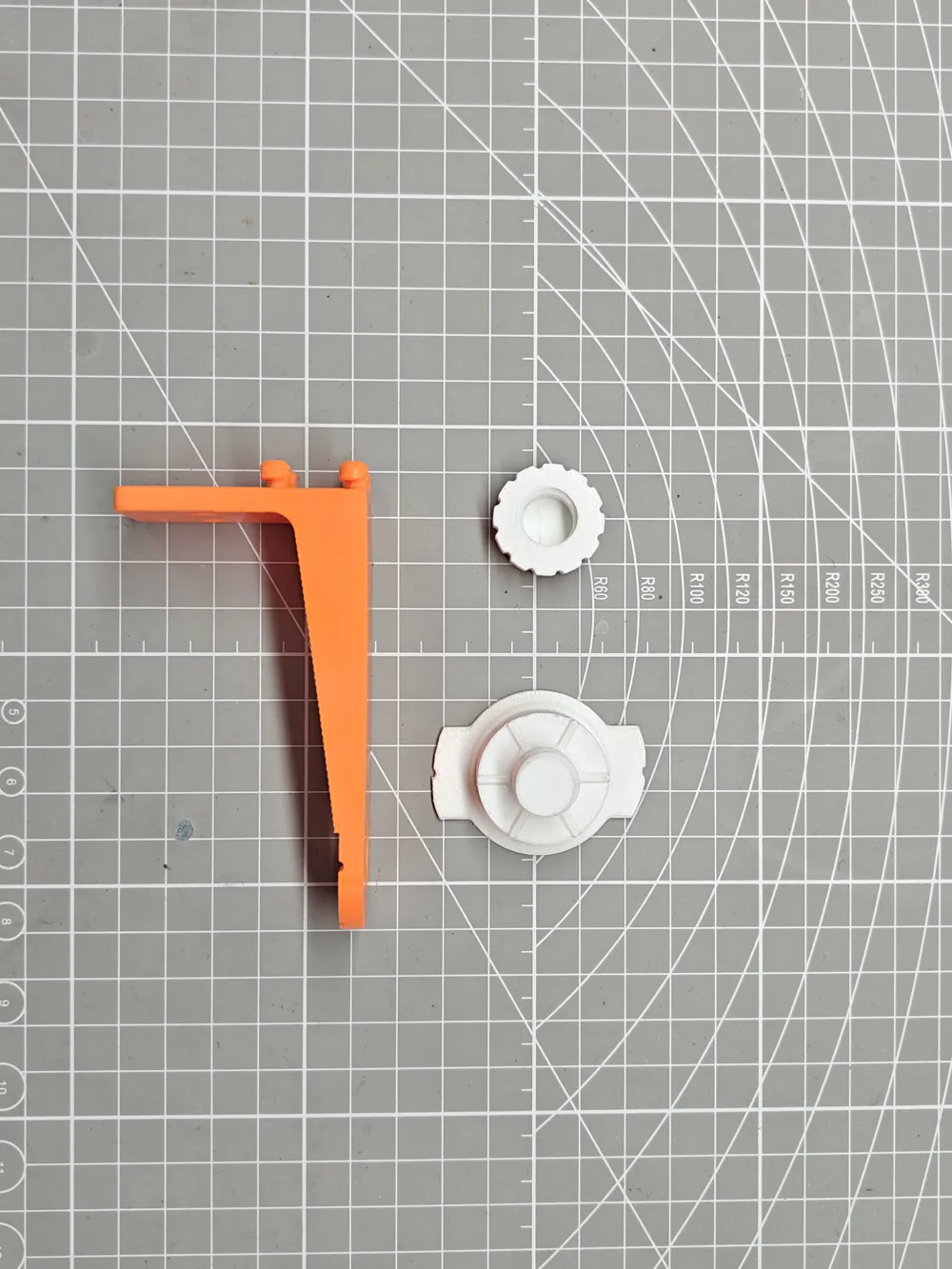

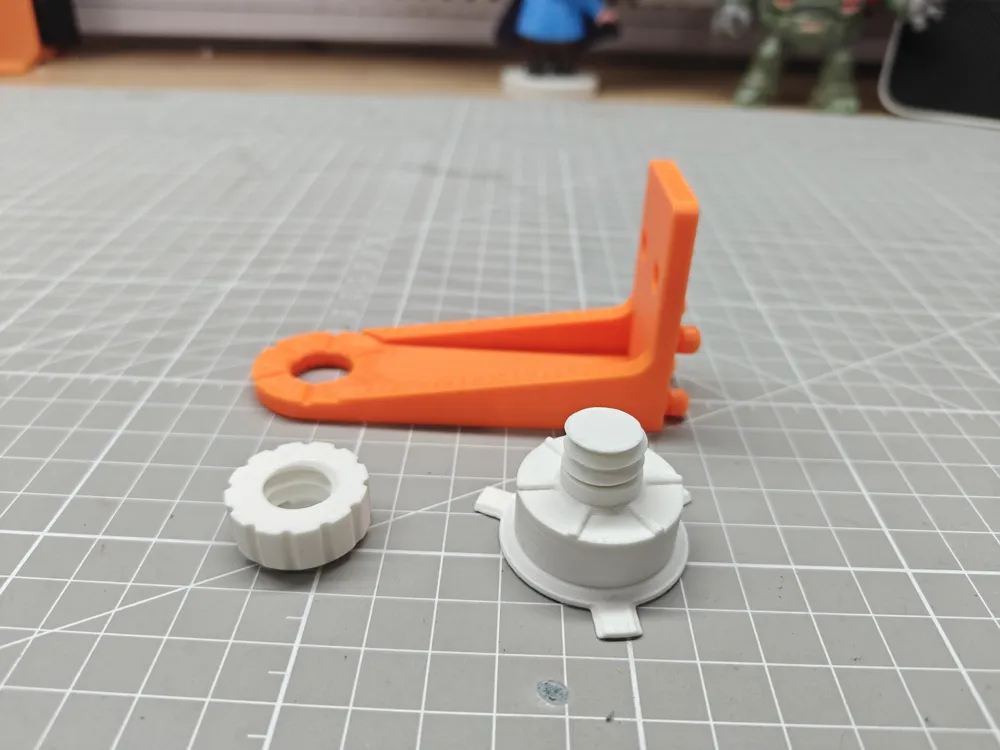

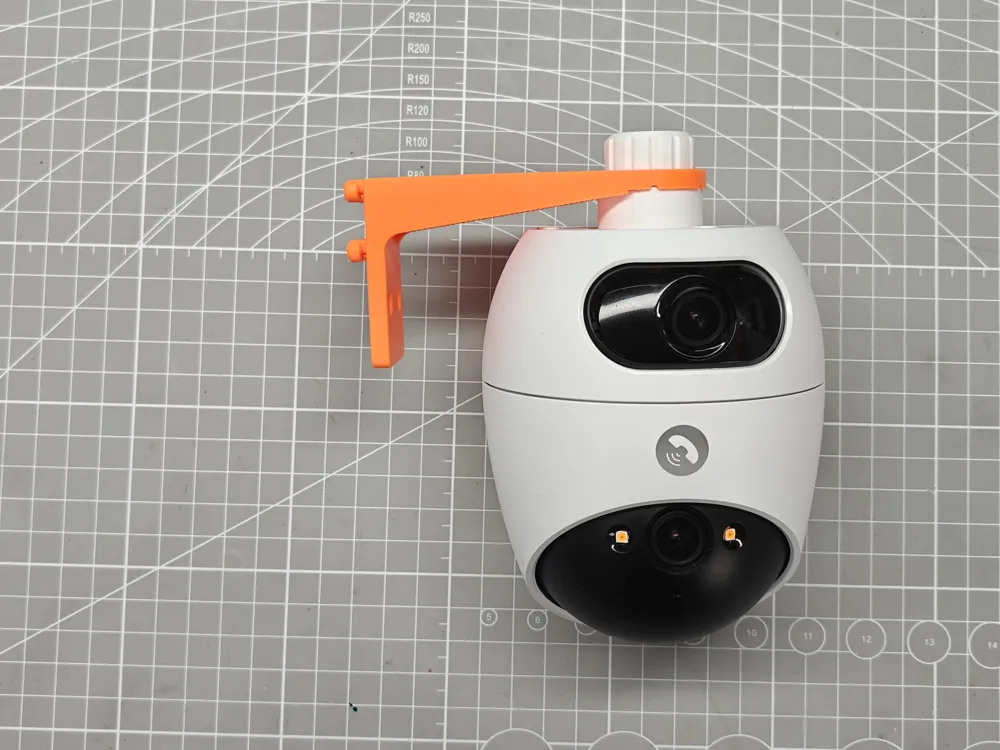

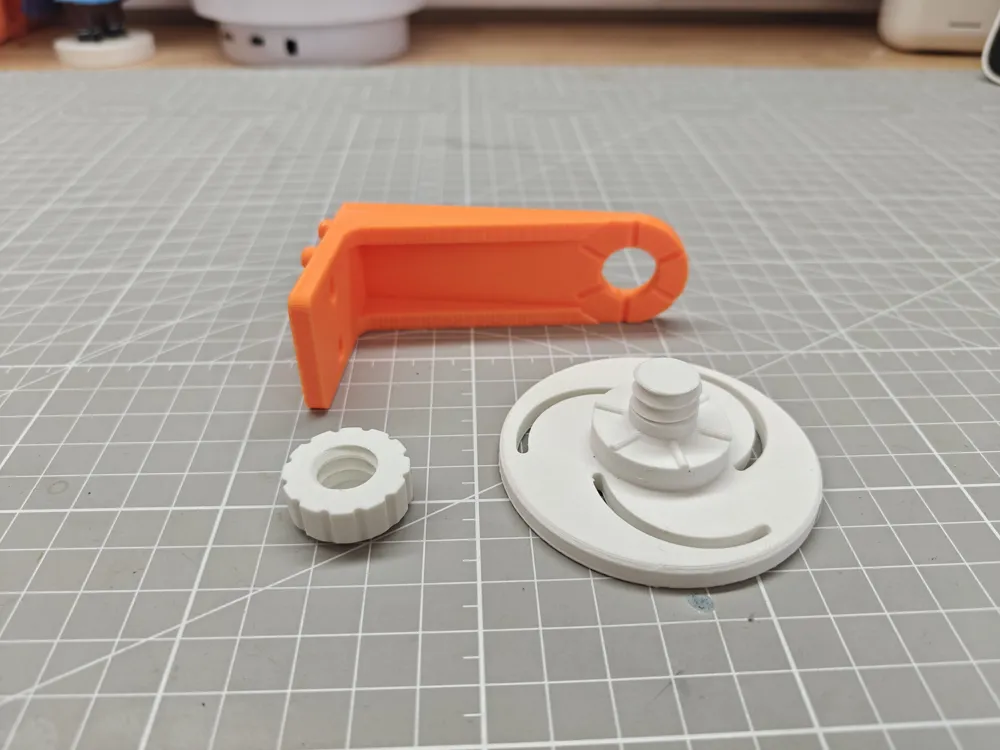

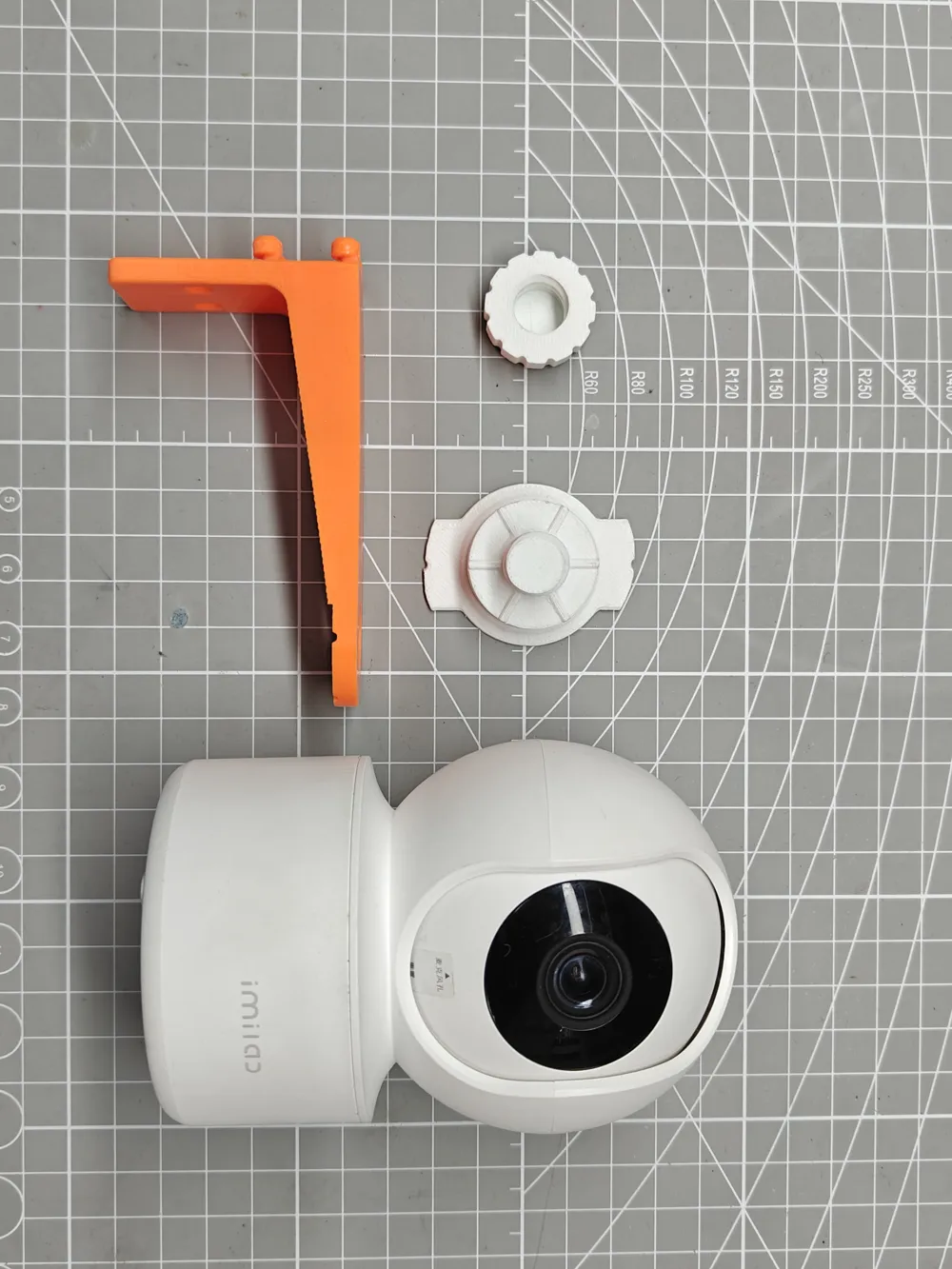

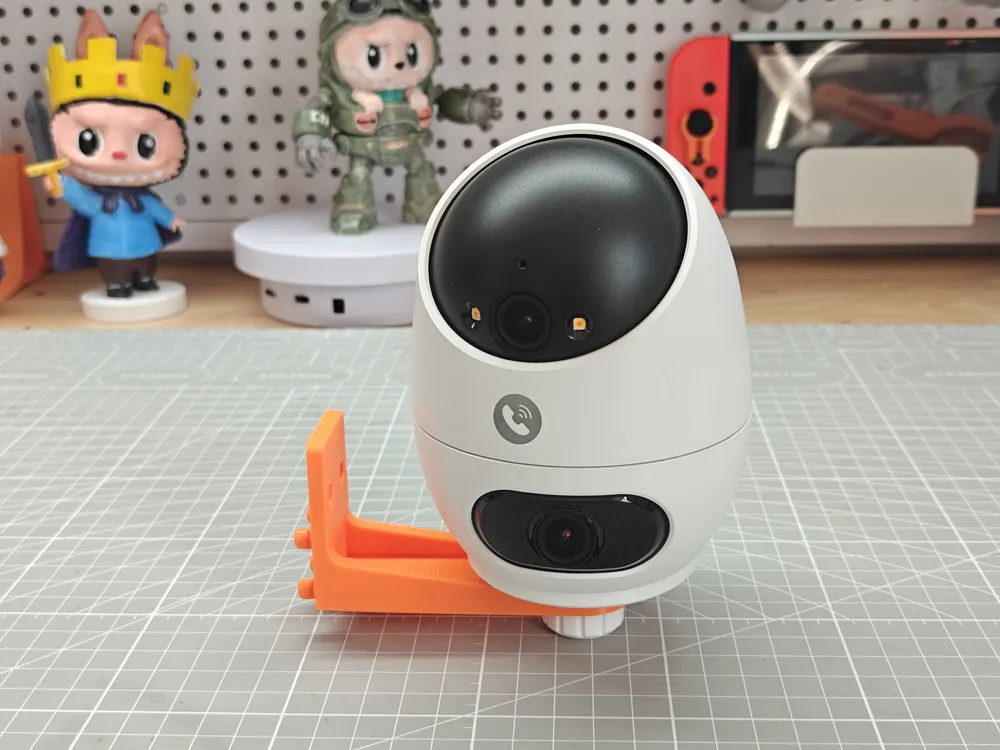

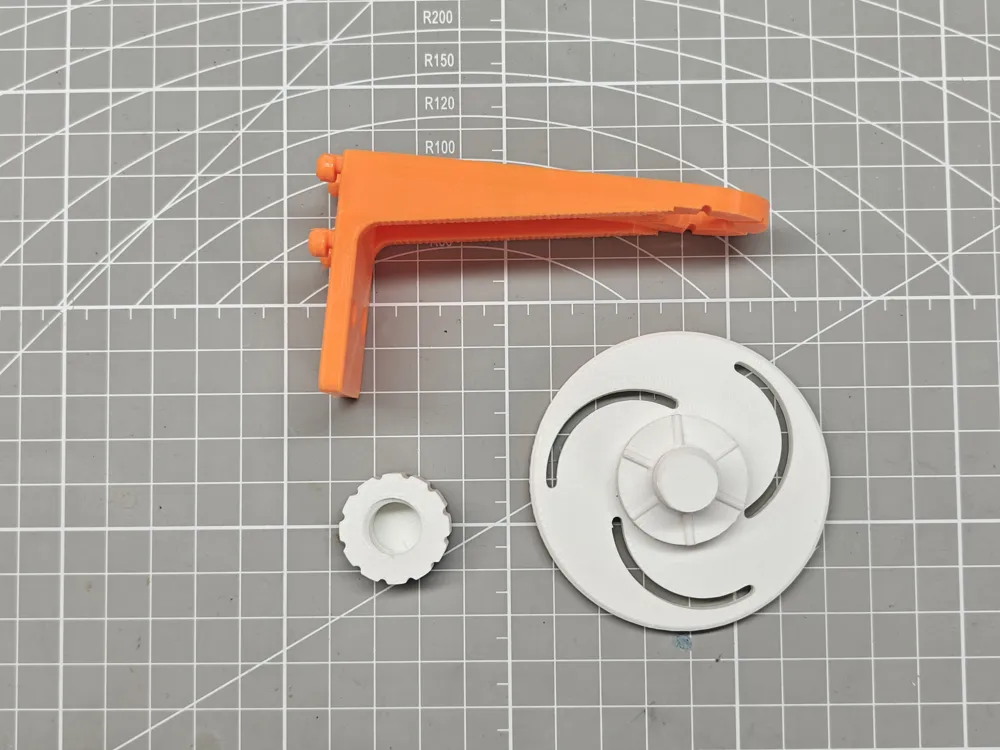

Connectors: Universal connector, Xiaomi Xiaobai dual-port connector, Ezviz 3-port connector

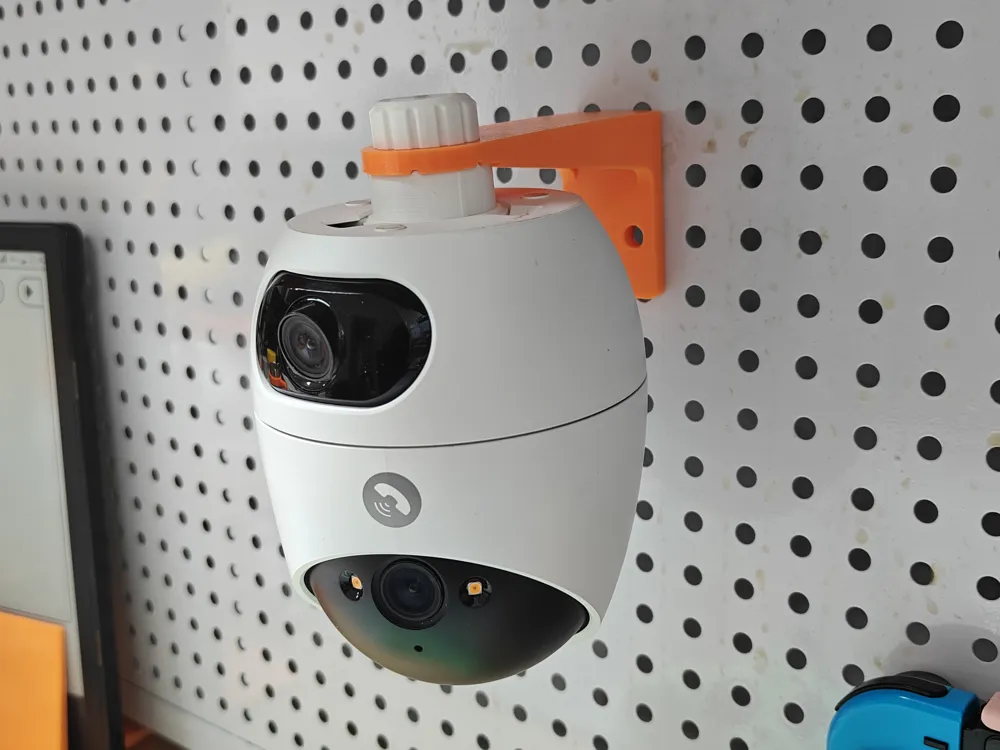

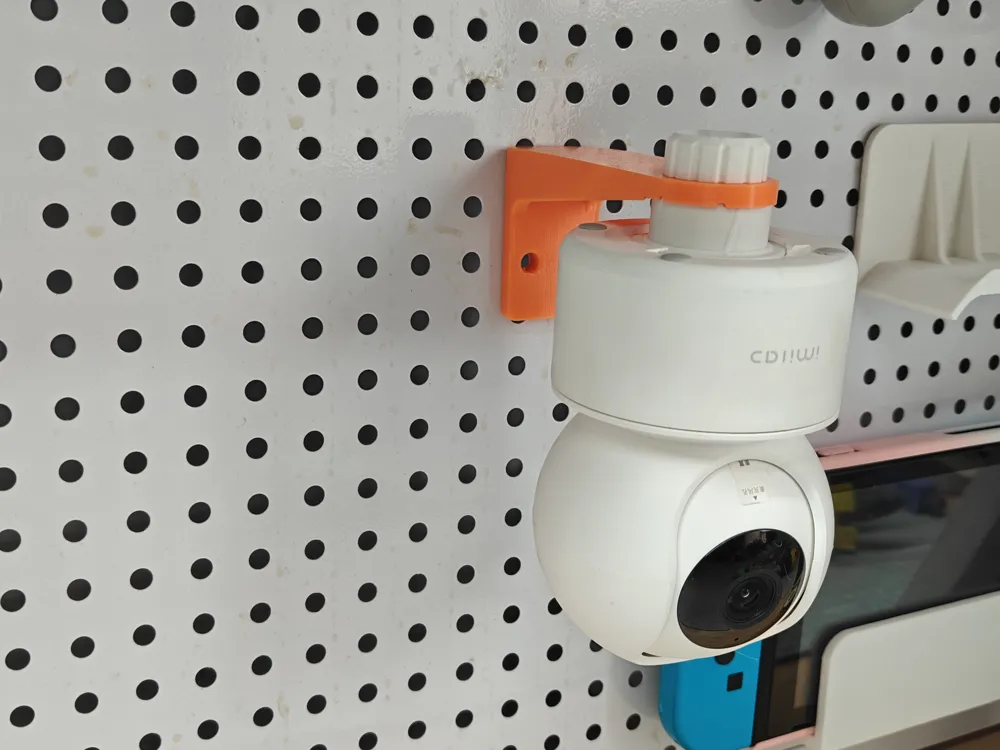

Bases: Metal pegboard base (16*16*2*6mm), screw-fixed base, double-sided tape/adhesive fixed base

When selecting, you can choose the combination you need for printing.

Due to differences in materials and printer types used, print quality and tolerances may vary. If you find the fit is too loose or too tight after printing, you can scale parts of the model accordingly.
