EGO SNT240X SnowBlower Chute Upg: 5 to 7 Positions
Print Profile(1)
Description
Boost Me (for free)
If this 3D-printed repair saved your day (and your wallet!), please consider supporting my work with a Boost. I'm just starting out on MakerWorld and every bit of support helps me create more rugged, real-world solutions. Thank you! šŖ

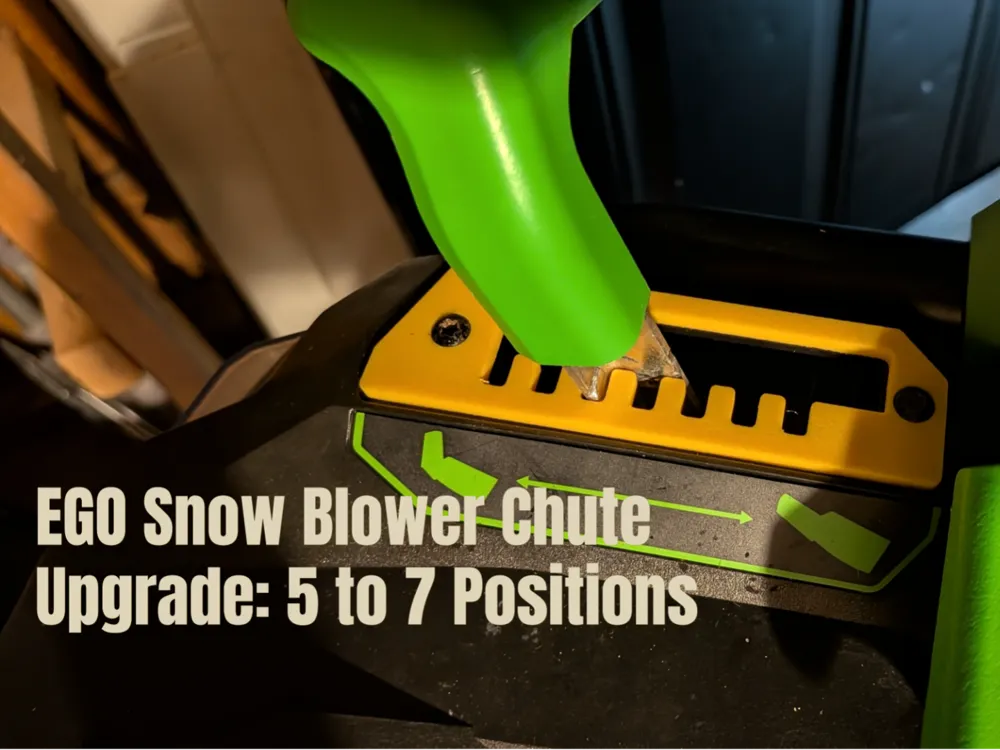

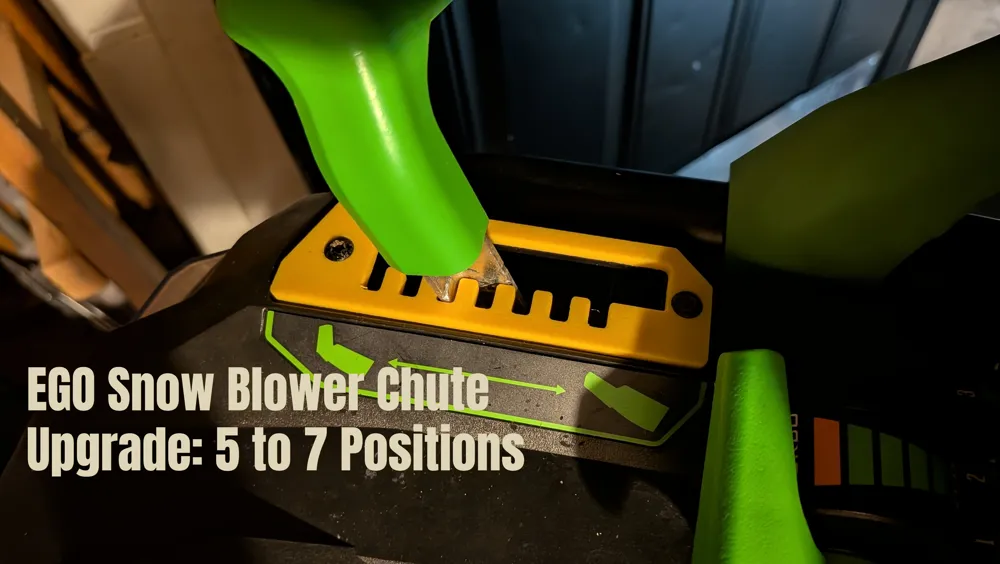

šEGO Snow Blower Chute Upgrade: 5 to 7 Positionsš
Upgrade for the chute control plate on EGO dual-stage snow blowers (SNT240X series).
Compatible for SNT2400 series (SNT2400,SNT2405,SNT2406)
If you are like me and was putting the knob between 2 notches, then this is the part for you.
- The Change: Replaces the original 5-position metal plate with a 7-position design.
- The Advantage: Provides two extra notches for much finer control of the snow discharge angle.
- Material: Printed in PA6-GF (Glass Fiber Reinforced Nylon).Ā
- Note : I would use GREEN/Lime if I had š¤·
- Durability: Extremely solid and wear-resistant, doesn't match the strength of the original metal part but with PA6-GF, I assume it will be better than PETG
- Settings: Printed at 100% infill for maximum structural integrity.
- Installation: Direct replacement using the original screws.

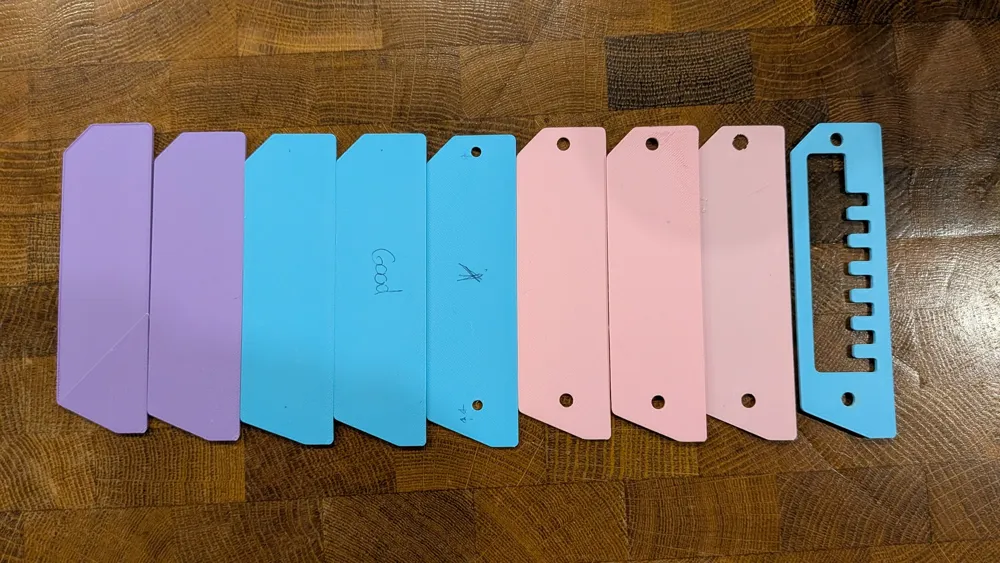

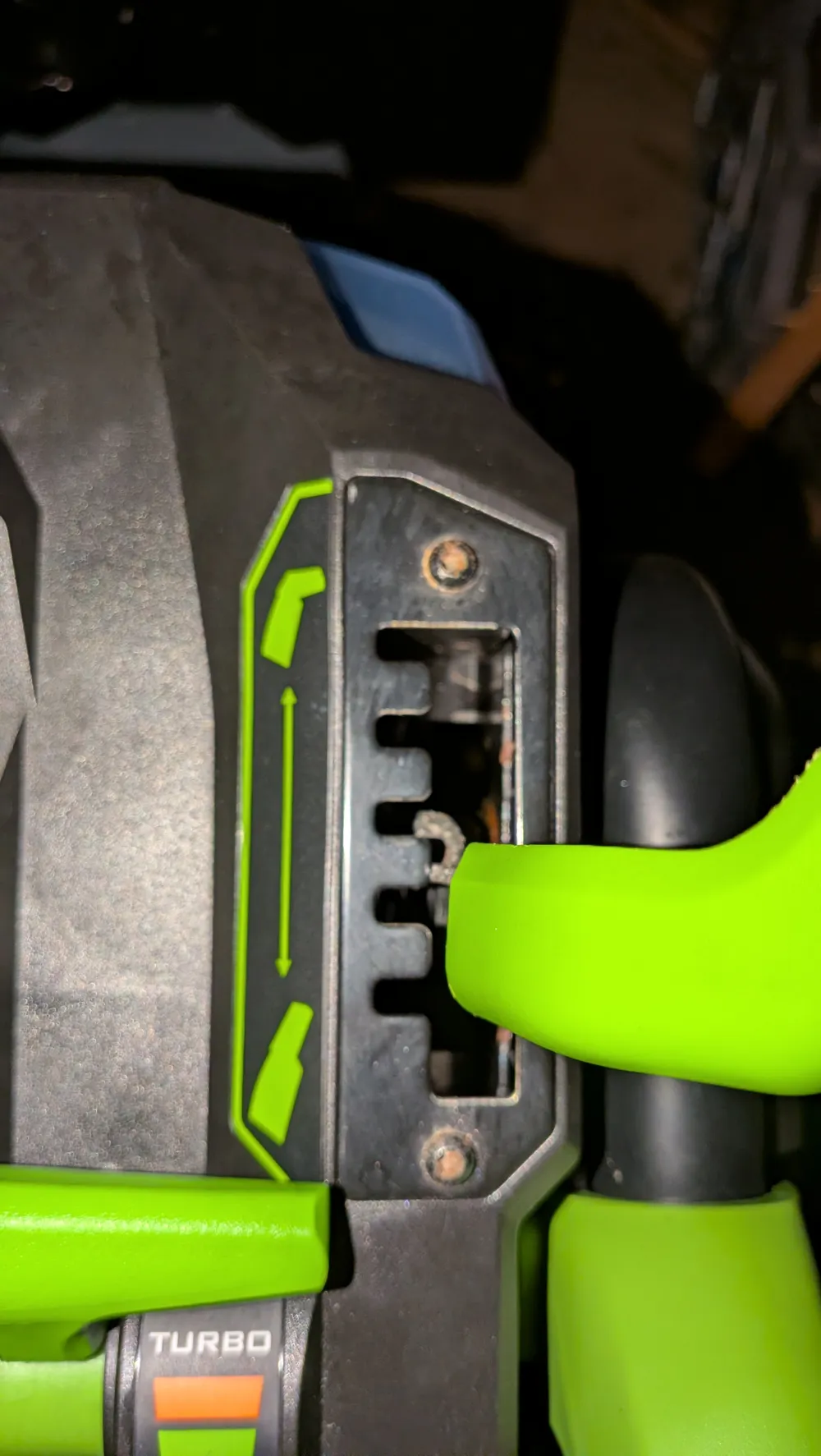

You can see the original metal part and all the test parts I did to make it fit š
Installation Instructions
The installation is a quick and direct swap:

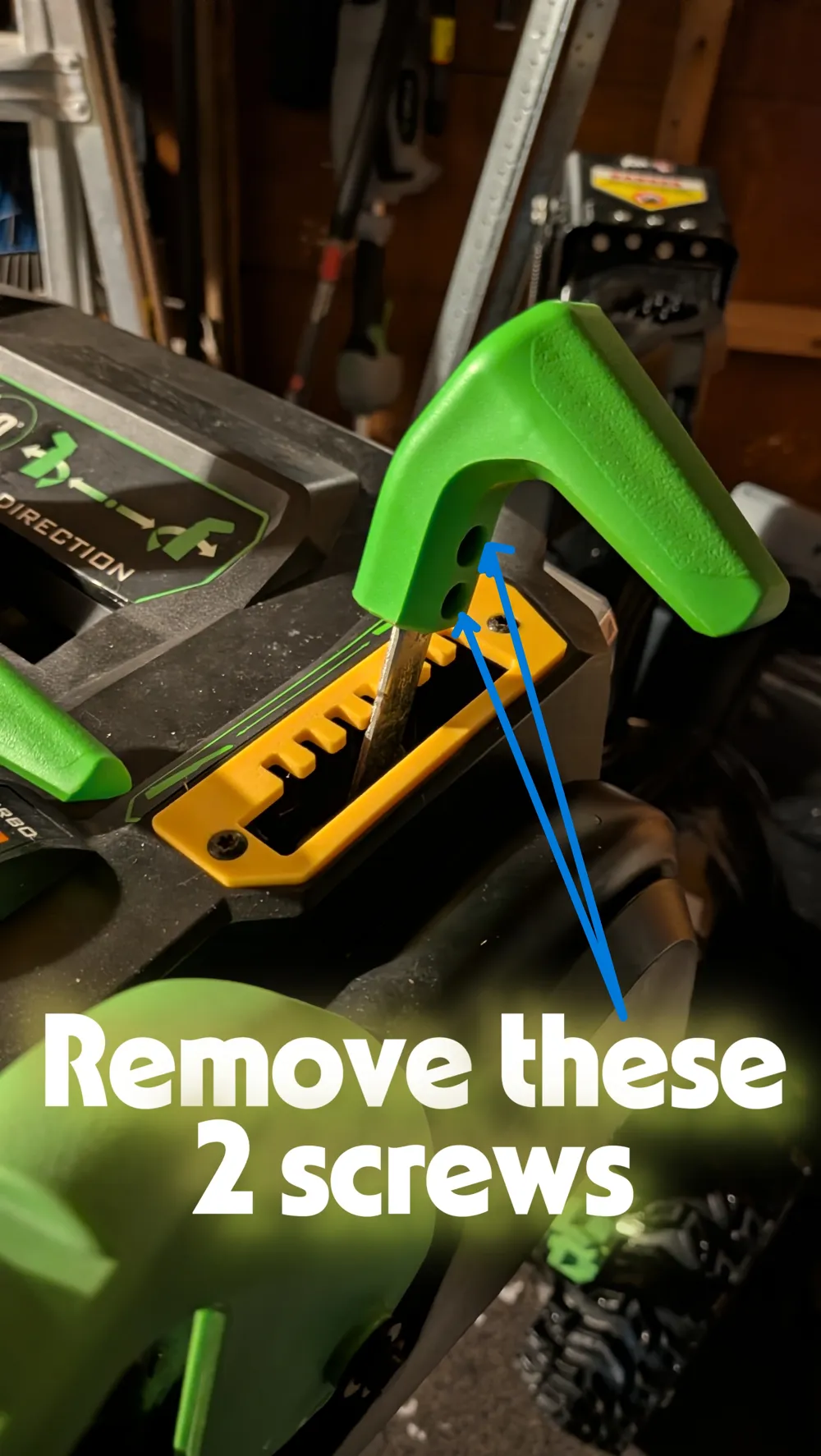

- Remove the Handle: Remove the 2 screws located on the side of the green handle to slide it off the metal lever.

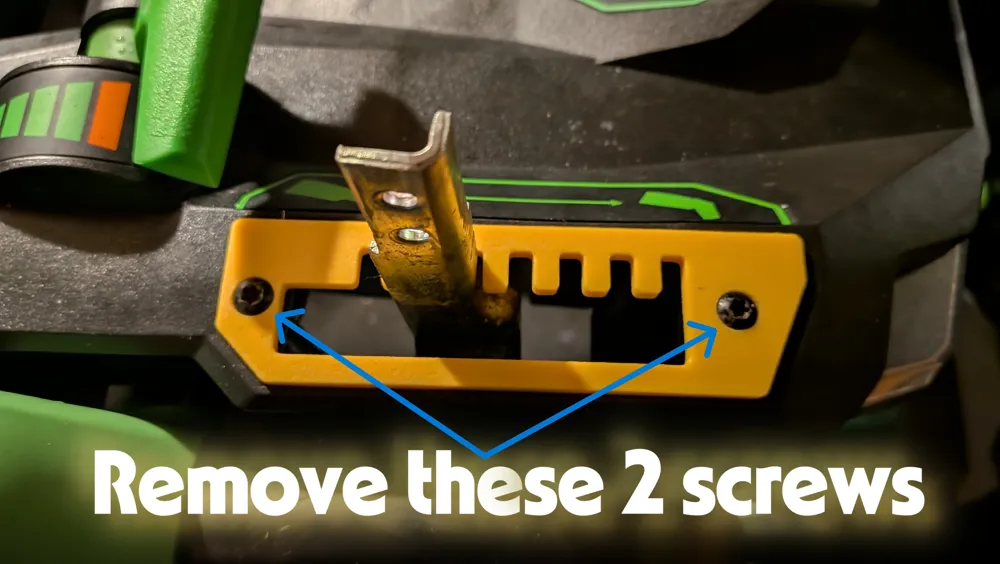

- Remove the Plate: Remove the 2 screws holding the original metal plate in place.
- Swap & Reassemble: Place your new 7-position plate, reinstall the plate screws, slide the handle back on, and secure it with its 2 screws.
- Tool Required: A Torx T20 screwdriver is typically required for these screws.
