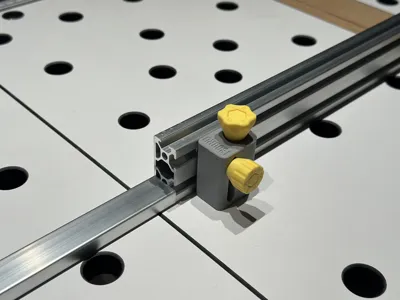

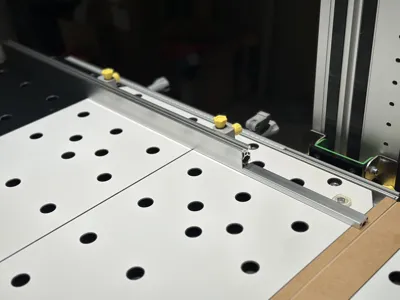

MFT 2040 Profile Fence and Adaptive Locking Dog 180BRO FenceDog
Print Profile(1)
Description
For specific usage methods, please refer to the video I posted:
Disclaimer: The fence system logic is not my original design. It is shared for DIY enthusiasts to learn from, and commercial use is prohibited. If there is any dispute, please contact me for removal. The original product is by BENCHDOG TOOLS, check the link https://benchdogs.co.uk/products/950mm-metric-fence-system-ver2-1?_pos=2&_sid=84649ec45&_ss=r&variant=39724773310567

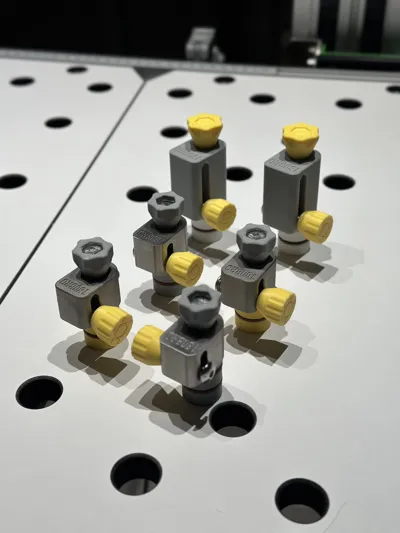

FenceDog for 2020 aluminum profile: M6*55 (hex screw & M6 nut)
FenceDog for 2020：M6*55（hex screw & M6 nut）
FenceDog for 2040 aluminum profile: M6*75 (hex screw & M6 nut)
FenceDog for 2040：M6*75（hex screw & M6 nut）
Dog and profile fixing knob: M5*35 (button head screw & M5 nut)
Fix to extrusion : M5*35（button head screw & M5 nut）

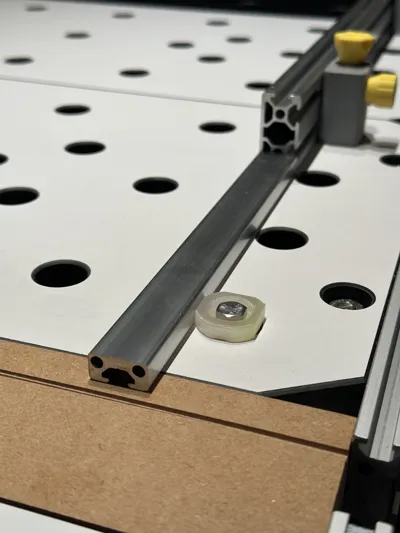

Under-Rail Dog: M6*30 (hex screw & M6 nut)
Under-Rail Dog : M6*30（hex screw & M6 nut）
Rubber ring: 20*2.5
Boost Me (for free)
Hope it helps!
Hope it helps!
