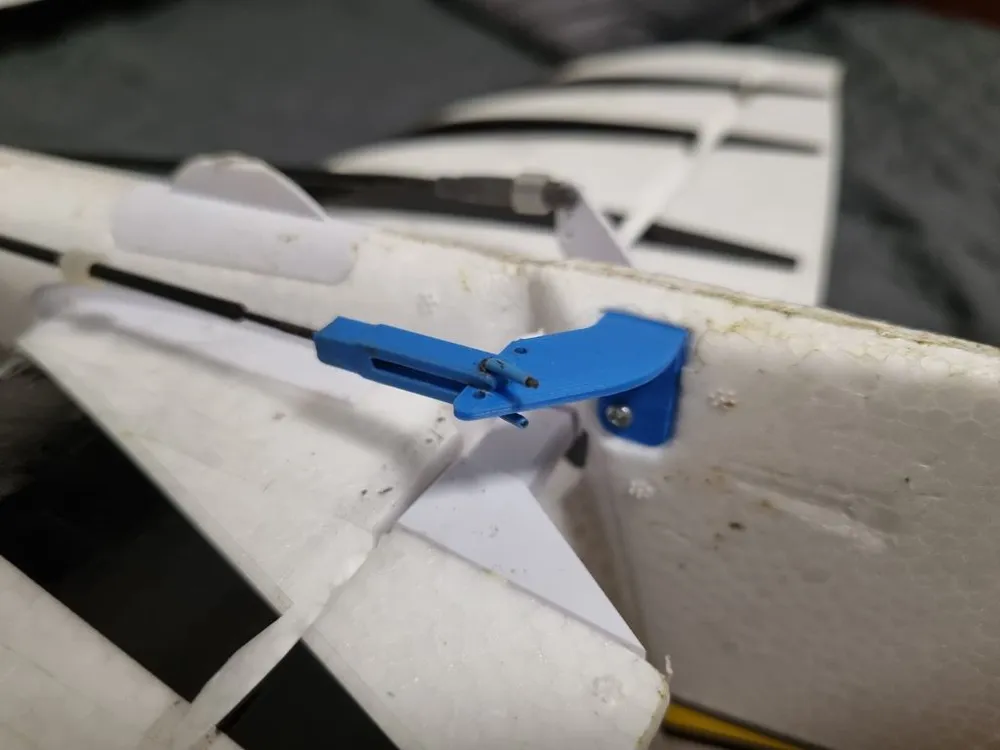

Replacement for the original rudder control horn on the E-flight Conscendo Evolution.

The hole position should exactly match the original.
The reinforcement triangle is made a bit larger to be stronger.

There are two versions, one with standard size holes (matching the original diam), one with larger holes if your printer overextrudes a bit.

If you need to clevis for push rod too, it's here: https://makerworld.com/en/models/2246391-rc-plane-e-flight-clevis-for-push-rod
