Description

Summary

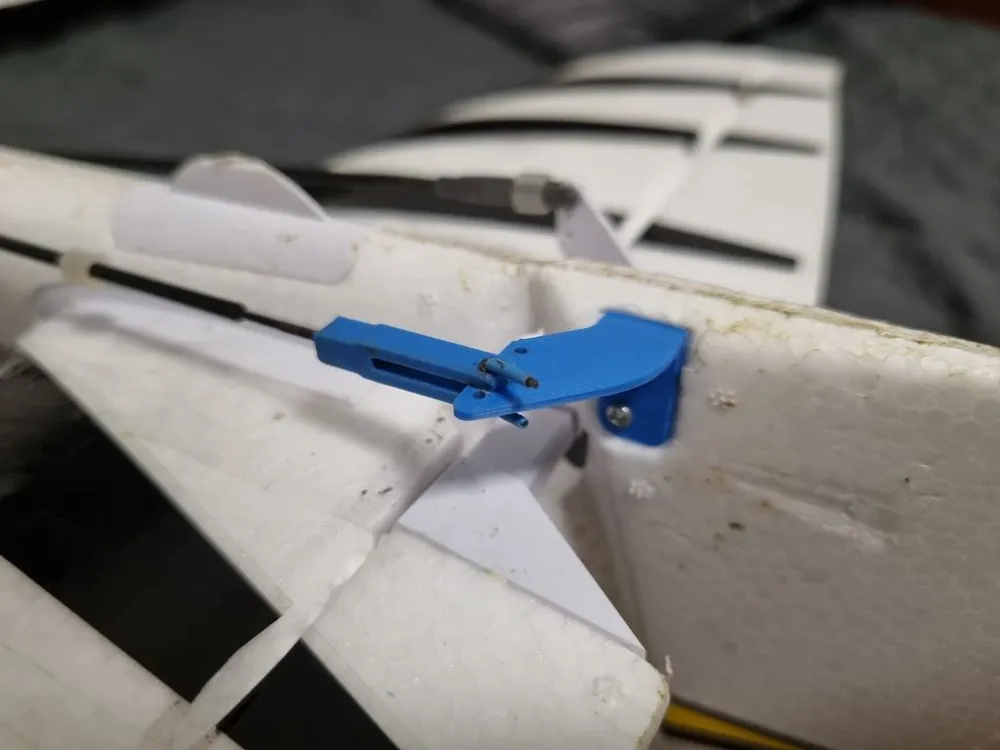

Simple replacement for the original E-flight clevis for the 1.3mm threaded push rod.
I use it on my Conscendo Evolution, but should be same for other planes too.

I included multiple hole sizes to make it work with your printer, it should snugly thread onto the rod.

Instead of the built-in pin as is on the original, which would probably snap right away if 3D printed, I used just a matching size paper clip which I cut to length and bent on both sides.

If you need the control horn, it's here: https://makerworld.com/en/models/2246448-e-flight-conscendo-evolution-rudder-control-horn



Notes:

Print it slow to make the part stronger
