Sliff

Fantastic little bracket! Prints cleanly, feels very sturdy, and fits perfectly for a wide range of assembly tasks. A simple, reliable design that delivers great results — highly recommended!

Mr_Creepy

0.2mm layer, 2 walls, 15% infill

AntLab1

Nützlicher Helfer in der Werkstatt so etwas kann man immer brauchen. Er ist perfekt im 90° Winkel. Damit lässt sich sehr gut arbeiten. Der Druck ist einwandfrei. Danke dafür.

Useful helper in the workshop, one can always use something like this. It is perfect at a 90° angle. It works very well with it. The print is flawless. Thanks for it

user_421276963

RSJC

Thank you very much I am very happy with it

DasSchild

Printed really nice. Printed two of them. Going to come in handy for a long time

user_1455799801

very nice fit for my clamps and very sturdy!

TomRob11

Papi’s 3D Machine

Tolles Teil, mir fehlt jetzt noch die halbe Größe für kleinere Teile

Great part, now I'm missing the half size for smaller parts

wedelin

cover






<ul><li>0,2mm Schichthöhe</li><li>Standardeinstellungen</li><li>ohne Support</li><li>PLA ausreichend</li><li>15% Infill zur Stabilität</li></ul>

<ul><li>0.2mm layer height</li><li>Standard settings</li><li>no support</li><li>PLA sufficient</li><li>15% infill for stability</li></ul>

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>wenn dir der Montagewinkel zusagt und er deinen Erwartungen entspricht, würde ich mich sehr über einen Boost freuen. Danke</boostcontent></boostme><p>Universaler Montagewinkel, der einem das Verschrauben bzw. Verleimen im rechten Winkel erleichtert. Die Öffnungen passen für Federzwingen verschiedener Hersteller sowie auch größere Zwingen durch die Ausschnitte am Rücken. 90° mit einer Kantenlänge von ca. 250mm. Da die meisten vernünftigen Montagewinkel meist nur relativ teuer zu kaufen sind, habe ich dieses Modell selbst entworfen und an meine Zwingen angepasst, daher kann natürlich nicht jede Zwinge passen, aber der Winkel ist aus meiner Sicht äußerst flexibel einsetzbar.</p>

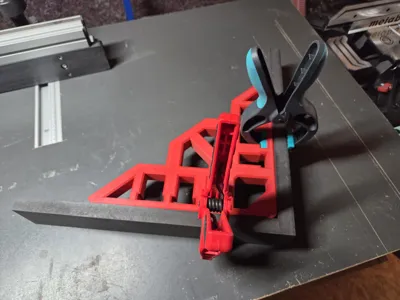

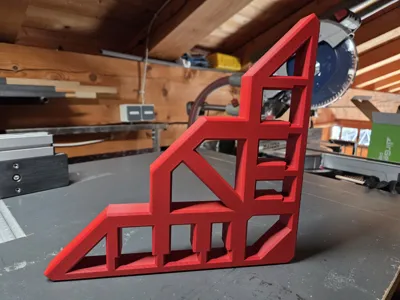

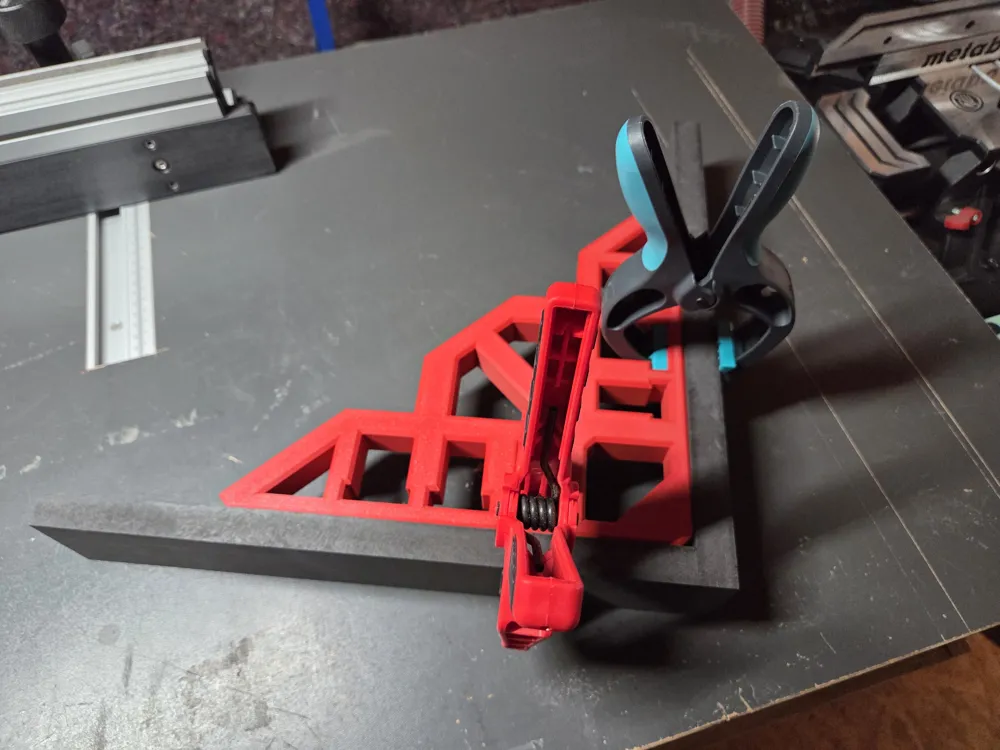

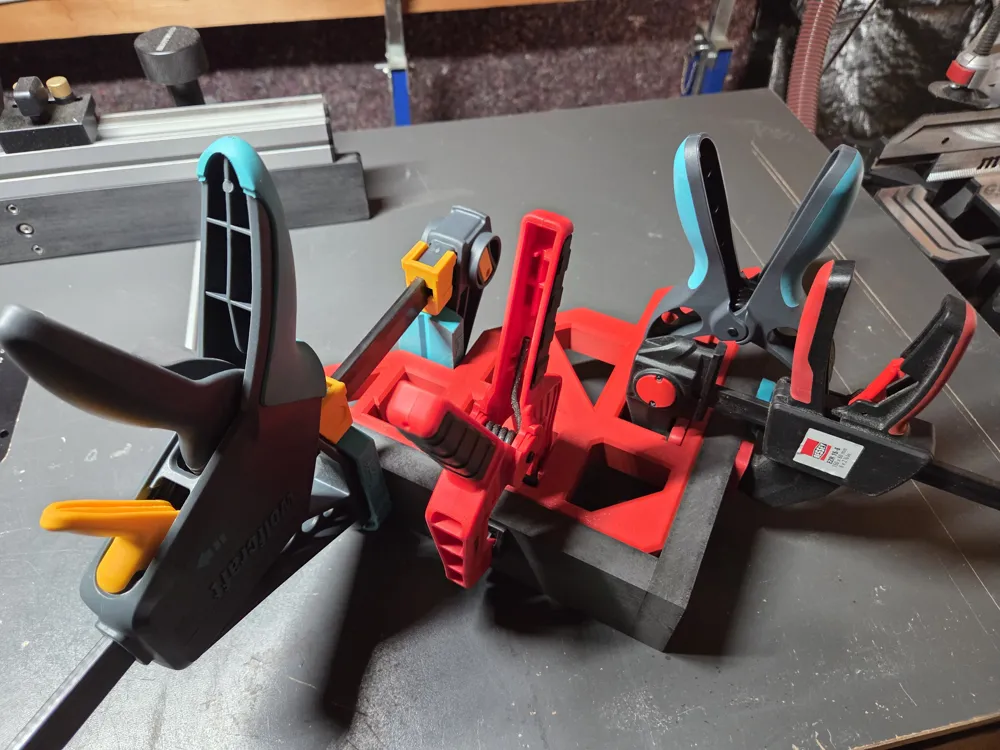

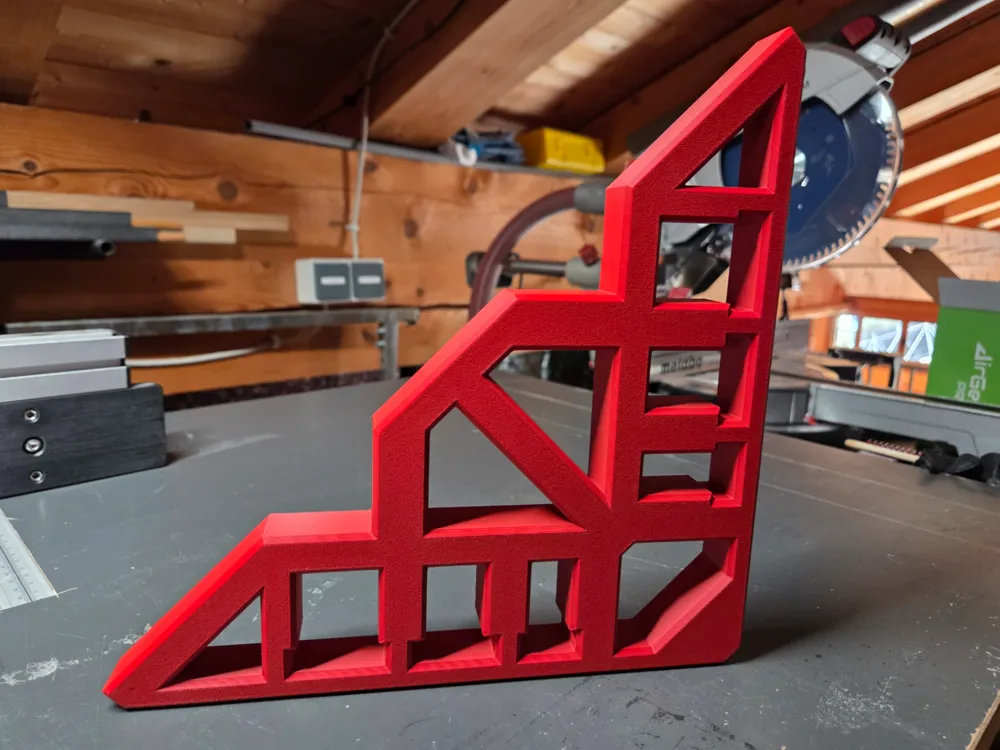

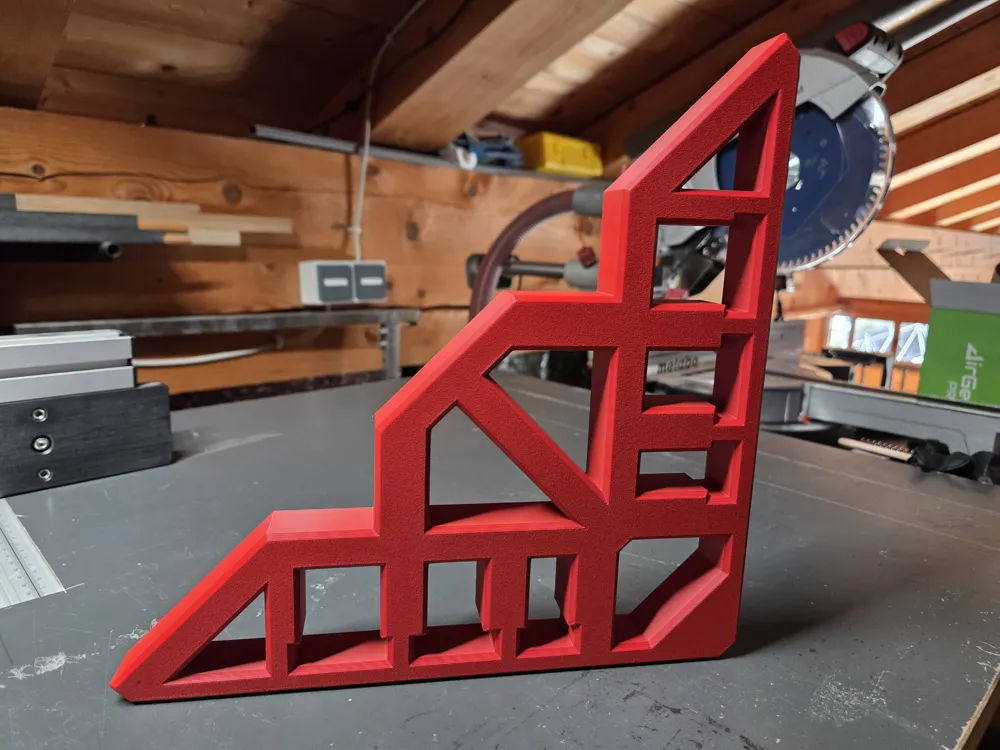

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>If you like this mounting bracket and it meets your expectations, I would really appreciate a boost. Thank you</boostcontent></boostme><p>A universal mounting bracket that facilitates screwing or gluing at a right angle. The openings are designed to fit spring clamps from various manufacturers, as well as larger clamps via the cutouts on the back. It is 90 degrees with an edge length of approximately 250mm. Since most decent mounting brackets are often quite expensive, I designed this model myself and adapted it to my clamps. Therefore, while not every clamp may fit, I believe this bracket is extremely flexible in its application.</p>
