Itap Bottle filler mount for 30 mm caping stand
IP Report
Print Profile(1)
0.2mm layer, 6 walls, 30% infill
Designer
2.7 h
1 plate
Open in Bambu Studio
Boost
5
9
0
0
6
2
Released
Description

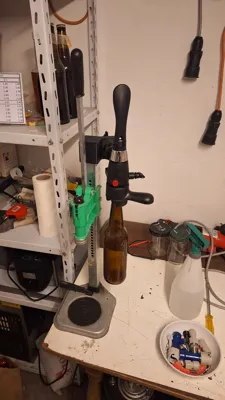

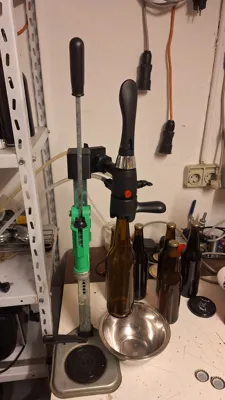

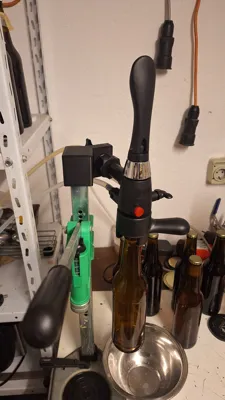

iTap Bottle Filler Mount – 30 mm Square Capper Adapter
This iTap bottle filler mount is designed to fit a nominal 30 mm square bottle capping stand and provides a precise, tapered opening for secure mounting.
The internal opening is tapered from 31.5 mm to 29.5 mm, allowing smooth insertion while ensuring a tight, centered fit on the capper.
Key Features
- Compatible with 30 mm square bottle capping stands
- Tapered internal opening: 31.5 mm → 29.5 mm
- Designed specifically for iTap X bottle filler setups
- Simple, durable design optimized for 3D printing
- No supports required
Recommended Print Settings
- Material: PETG, ABS, ASA , PLA will work but print with 100 % infill
- Layer height: 0.2 mm
- Infill: 30 %
- Walls: 6 perimeters
- Print orientation: As uploaded
Applications
- Home brewing
- Small-scale beverage bottling
- iTap bottle filling and capping stations
