H&K VP9 Airsoft Charging Supports
Print Profile(1)
Description

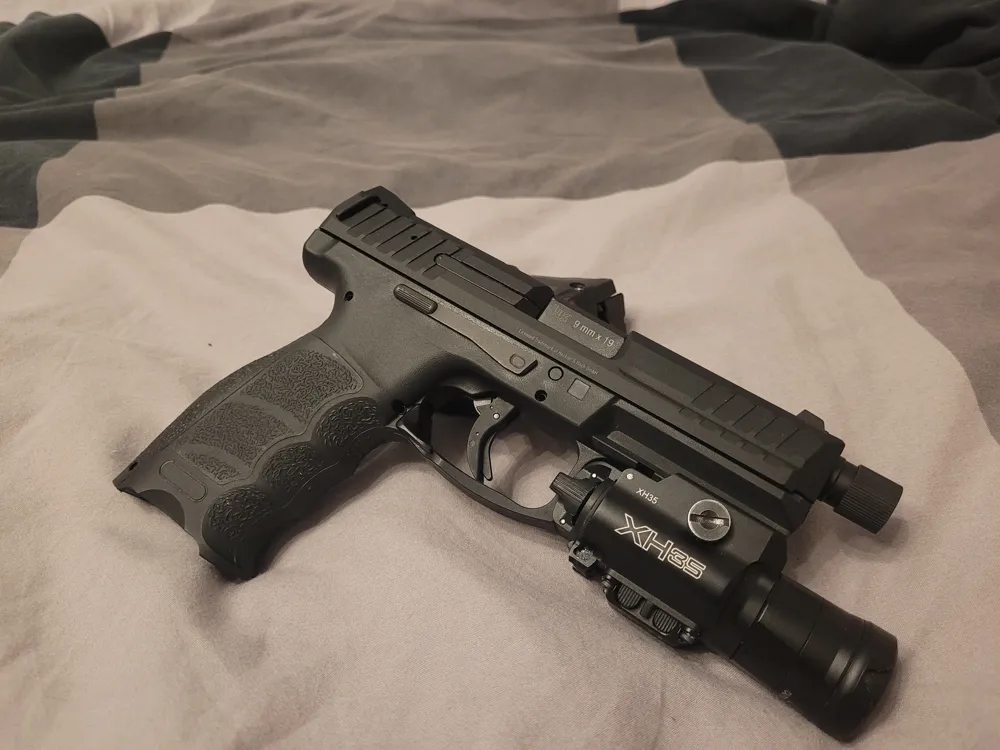

Charging supports for the slide of the H&K VP9 Airsoft pistol by VFC/Umarex.
I printed these with an 0.2 nozzle and coolplate, I advice to do the same yet I do think it could still work with an 0.4 nozzle and a brim.
They are quite difficult to get in, but this is on purpose so that they fit properly and won't come out to easily
Installation guide:

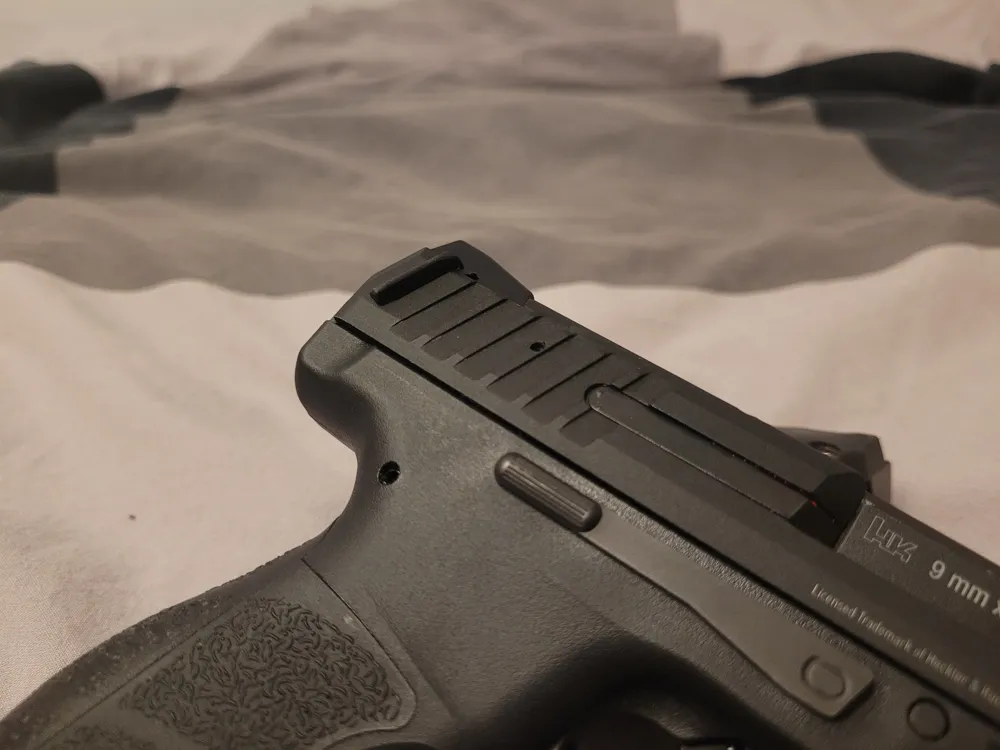

- To install the ears you first want to take out the 2 screws on the inside of the slide that hold down the rear Iron sight.
- Then without taking it off tilt/pull up on the rear post, this way you should create a small gap between the slide and the iron.
- Take out the remainders of the original ears (If there is anything left).
- Then under an angel insert the ears between the slide and sight post do this carefully, this should not be forced.
- Pivot the ears down so that the pin aligns with the whole and press firmly.
Look closely on which side which ear should go.
I also made one without the ears:
https://makerworld.com/en/models/2244867-h-k-vp9-airsoft-charging-support-flat-removed#profileId-2444038
