three-vane fletching jig
Print Profile(1)
Description
Boost Me (for free)

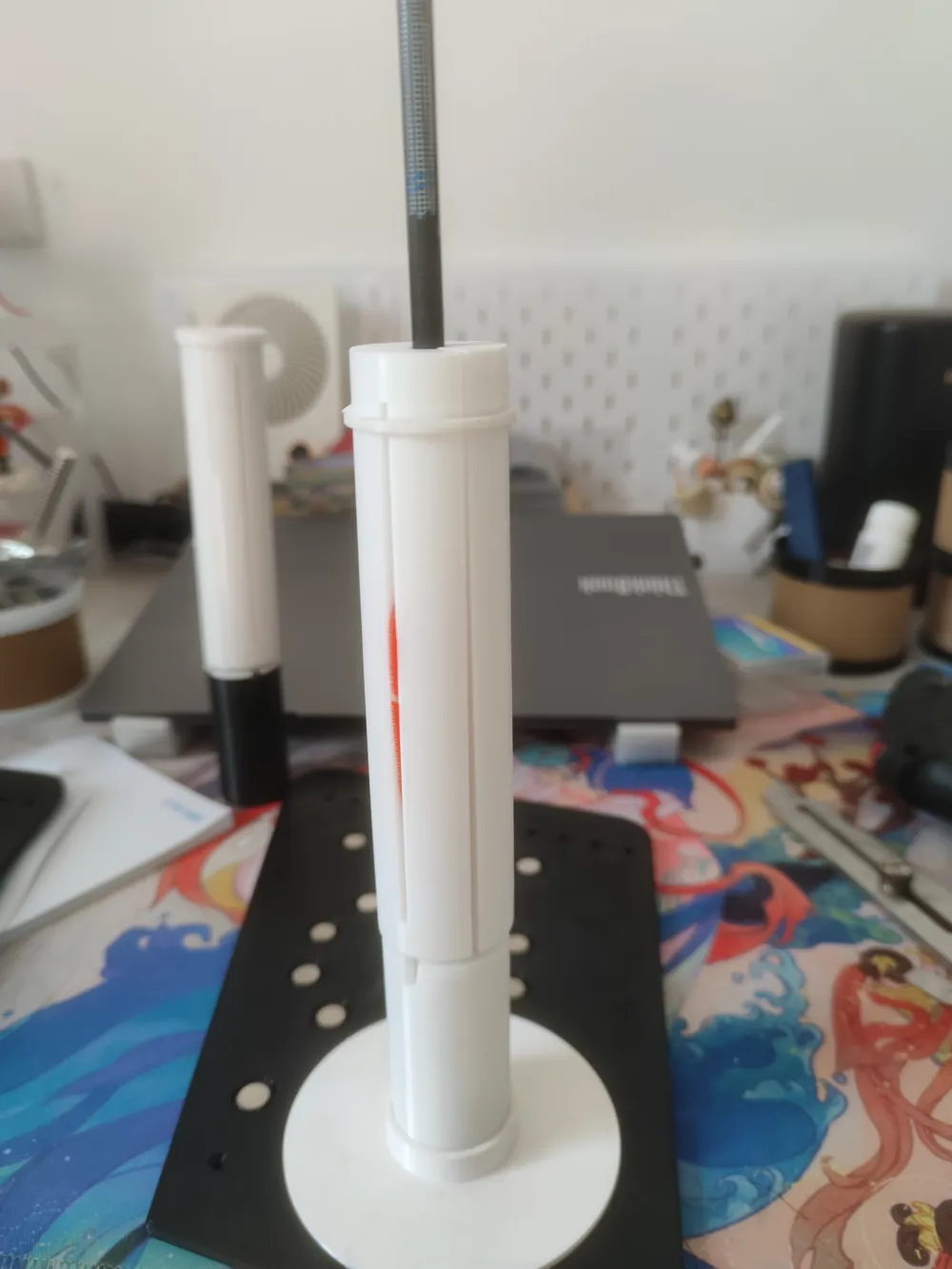

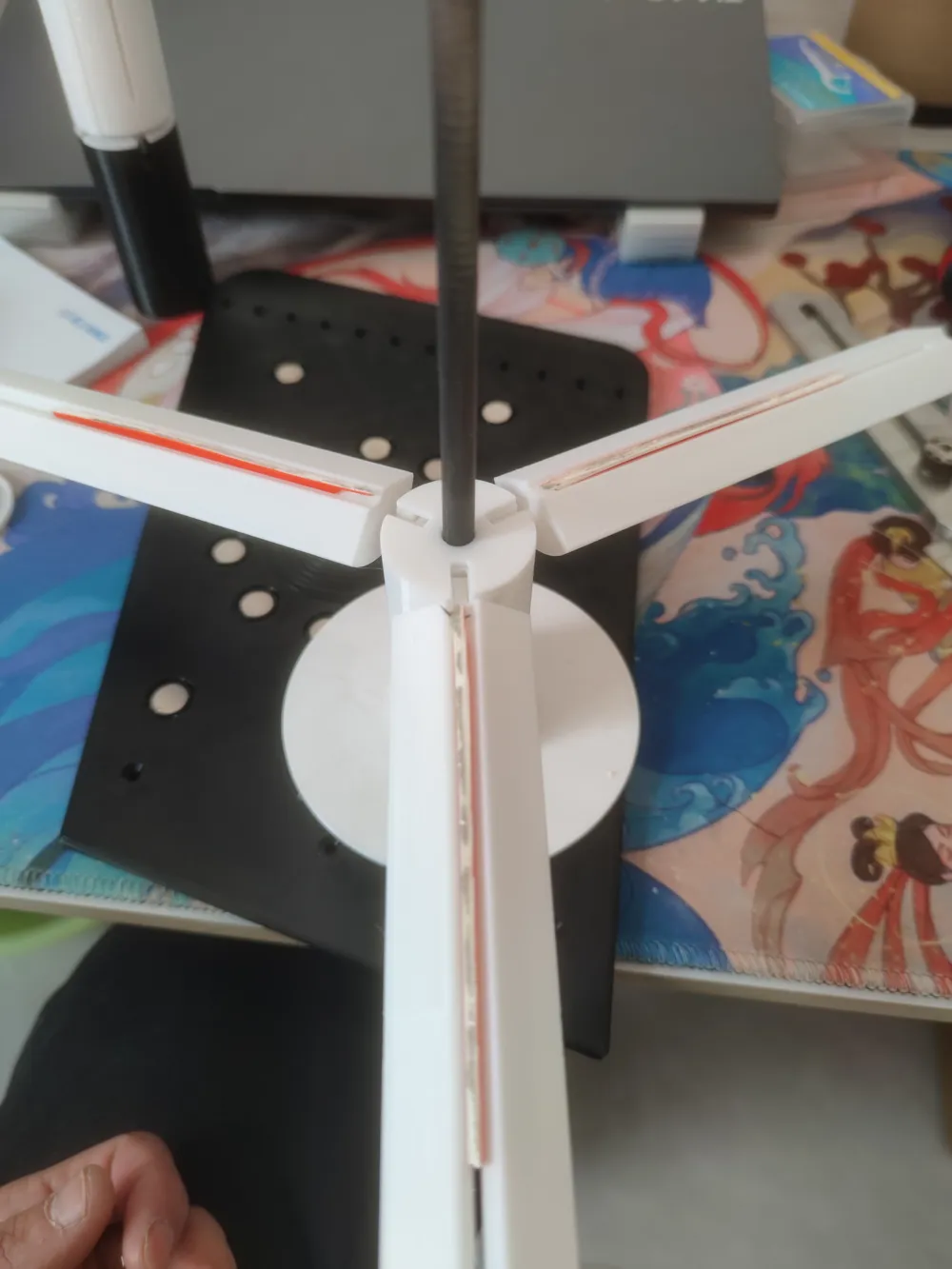

Fletching Jig, Three-Fletch Version, universal for 6.2mm inner diameter, adjustable fletching height
Reference video for use: [3D printed 4-fletch fletching jig, can quickly and accurately fletch rapid-fire four-vane arrows] https://www.bilibili.com/video/BV1jpS7BNELF/?share_source=copy_web&vd_source=bd00ddbf88954d9801c991bebde28ecf
Also available in a four-fletch version, four-fletch version link https://makerworld.com.cn/zh/models/1831662-si-yu-liang-yu-nian-yu-qi#profileId-2025529
Compatible with 3-inch, 4-inch, and 5-inch fletchings
Fletching distance from the bottom of the bare shaft is currently designed at 60, 55, 25, and 21mm. No specific arrow shaft diameter required, all 6.2mm inner diameter arrows can be used

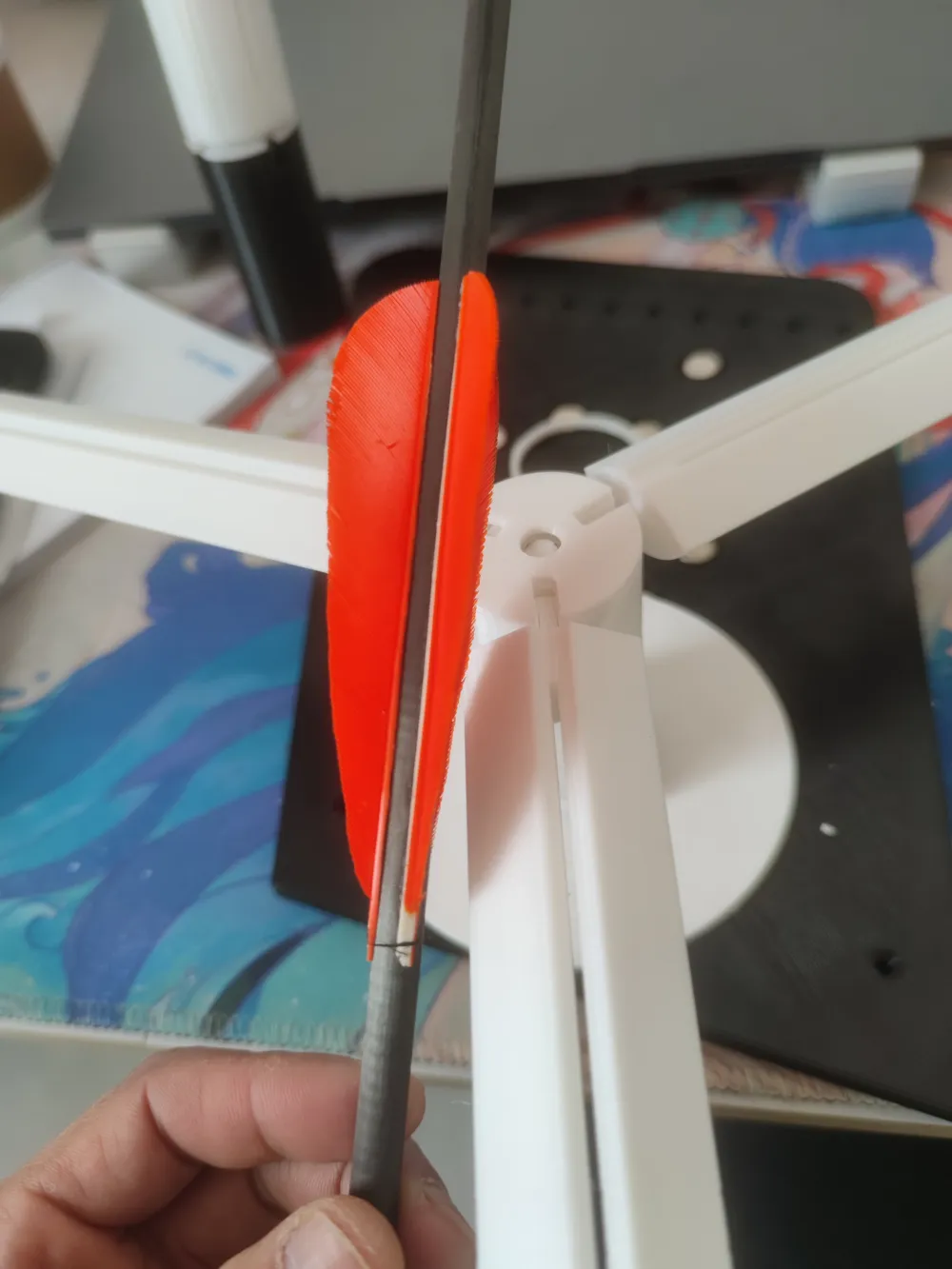

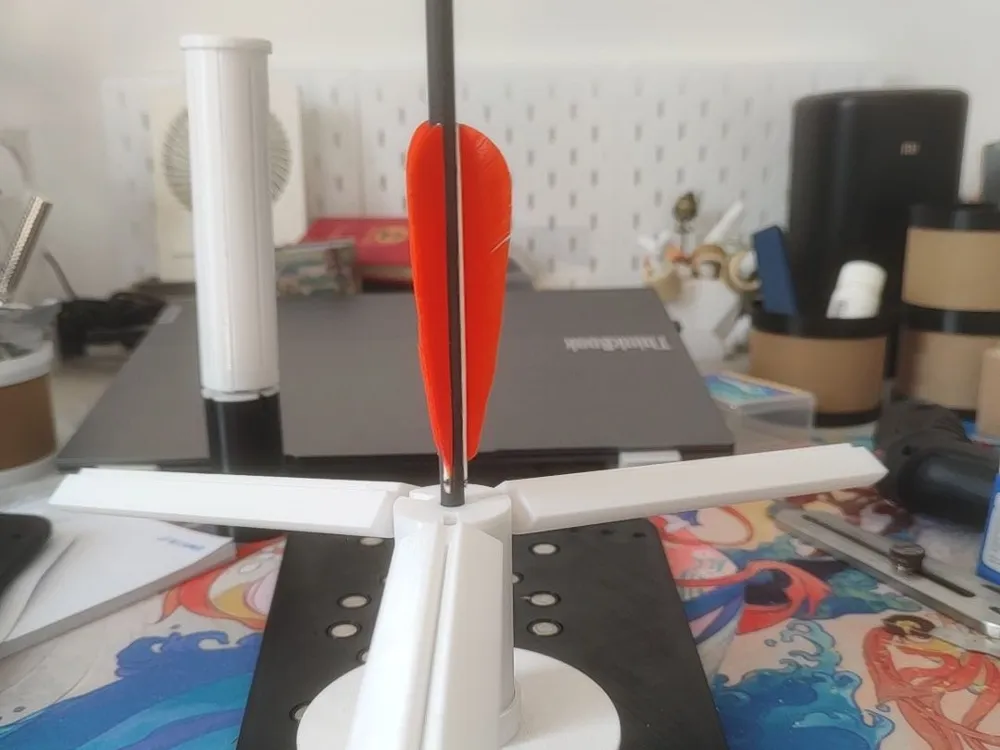

Can fletch even with nock attached, no need to remove nock, convenient for refletching
For repeated use, it is recommended to apply tape to the fletching clamp area; once glue is applied, remove the tape for convenient continued use
