LED Holder and Spacer
Print Profile(4)
Description

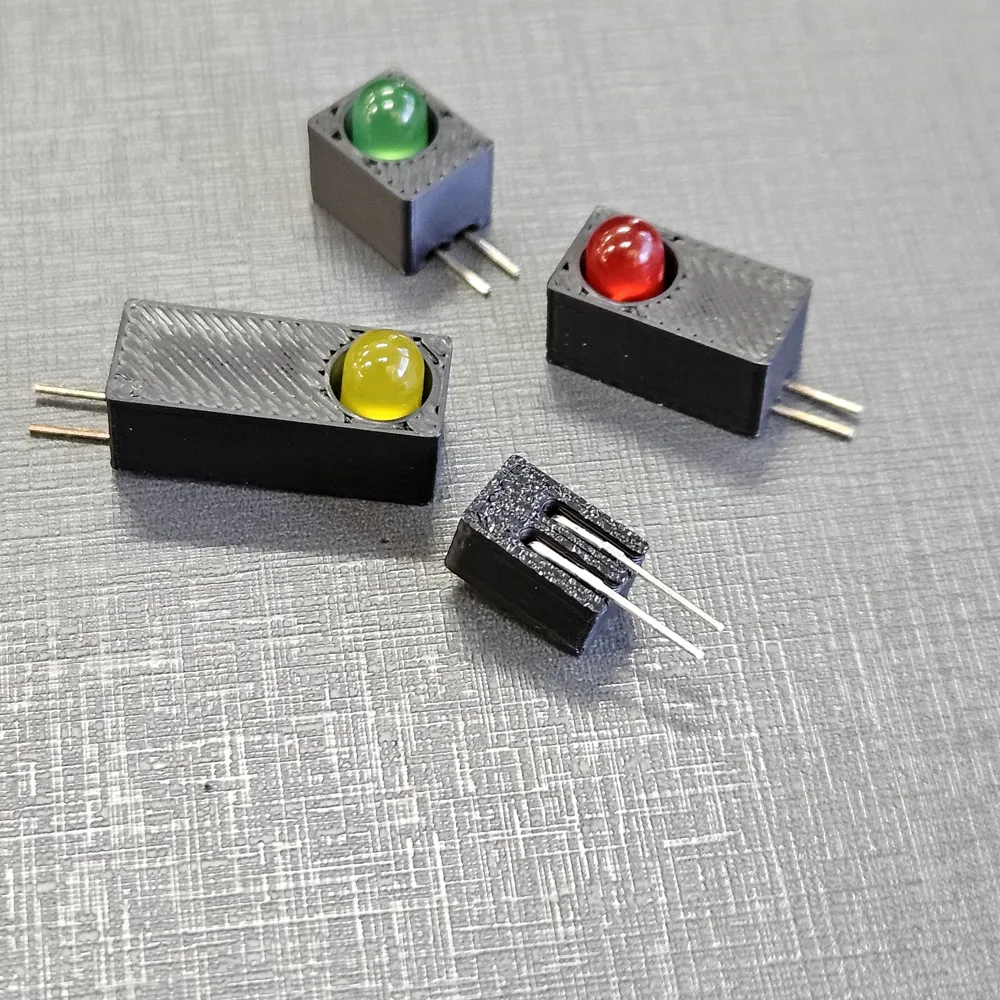

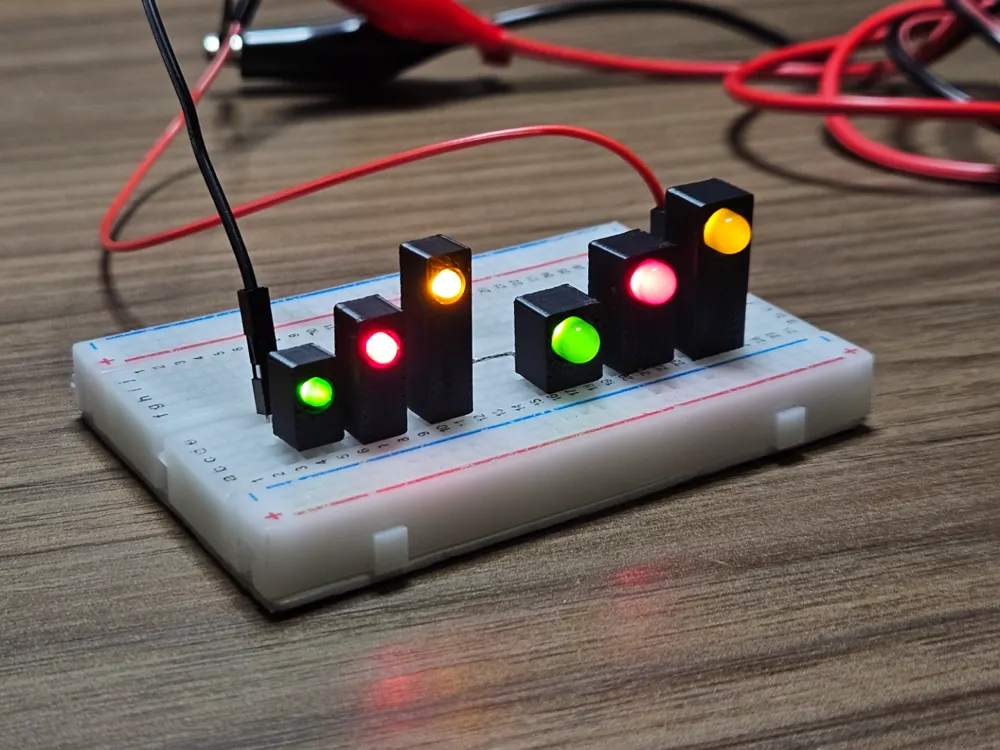

This is a 90-degree LED holder designed to simplify the mounting and alignment of LEDs on breadboards and PCBs. It keeps the LED firmly positioned in a vertical orientation, improving mechanical consistency and visibility of the indicator.
The holder height can be adjusted using the customization tool, allowing you to adapt the model to different clearance and visibility requirements without modifying the geometry manually.

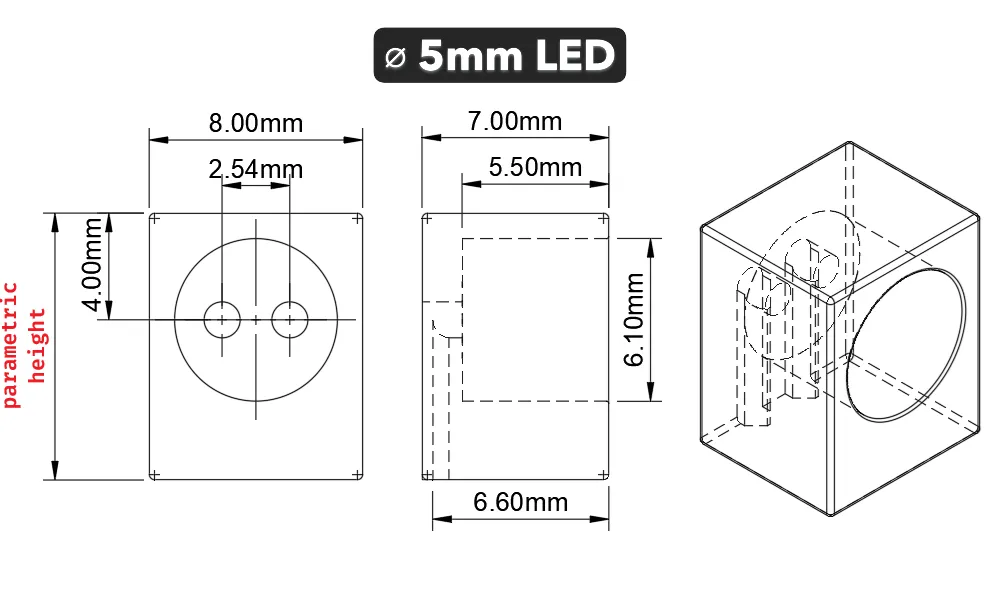

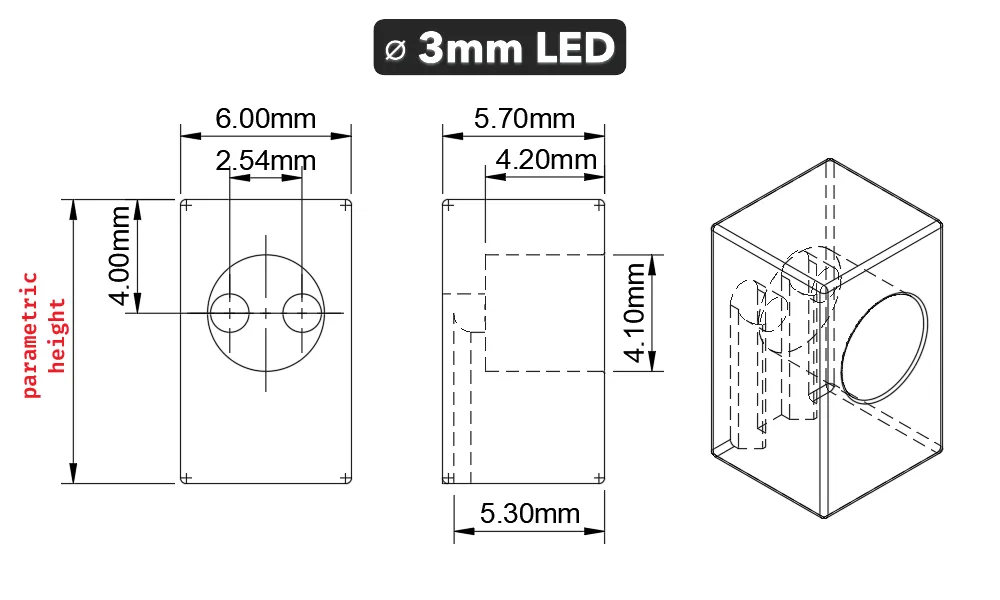

Dedicated versions are provided for 3 mm and 5 mm LEDs, ensuring proper fit, reliable mechanical retention, and correct alignment of the component. The model is designed for easy and efficient printing, requiring no supports and producing good results with a standard 0.4 mm nozzle.

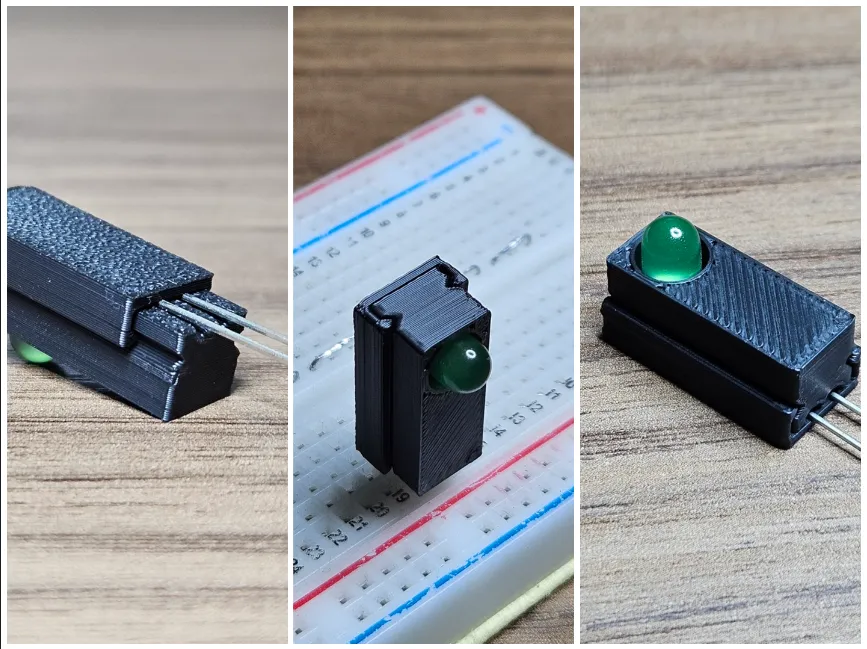

Available in multiple print profiles and customizable models with LED pin cover (0.4mm nozzle with no supports required):

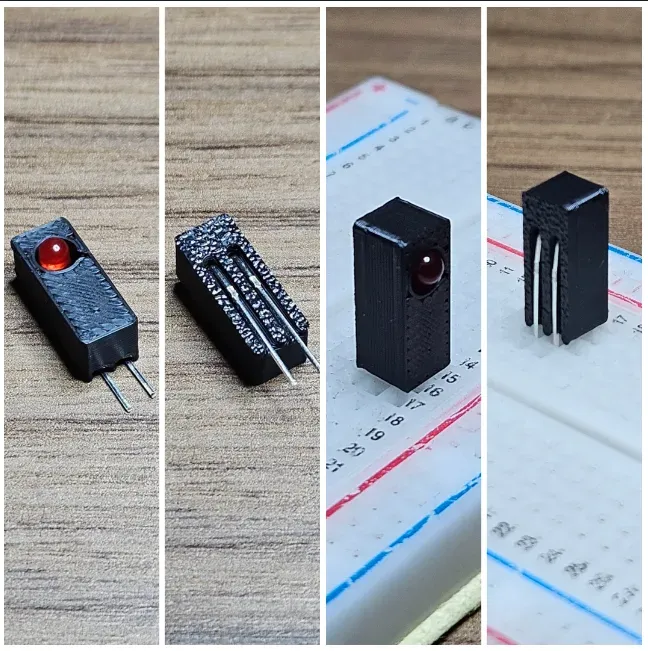

And, without cover (0.4mm nozzle with no supports required):
