Multiboard bracket for Lepro N1 LED strip

Lepro N1 LED Strip Bracket for Multiboard Tile

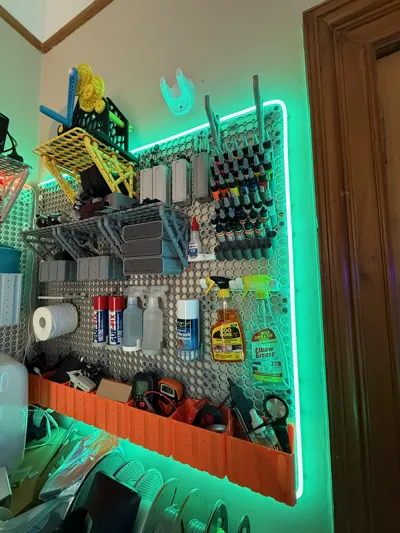

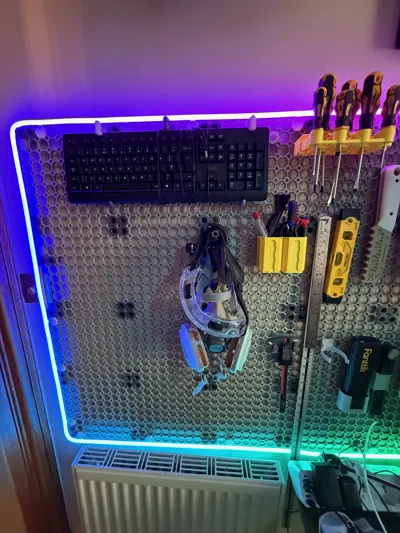

This bracket is designed to securely hold a Lepro N1 LED strip around the perimeter of a Multiboard tile, providing a clean, even light outline without adhesive directly on the tile itself.

The clip profile follows the edge of the tile and supports the LED strip in a consistent position, making it suitable for ambient lighting, backlighting, or accent lighting setups using the Multiboard system.

⚠️ Material Notes

Due to the thin clip geometry, this model can be brittle when printed in PLA or PETG and may snap during installation or removal.

For best results, it is strongly recommended to print using:

• ABS
• Reinforced ABS (preferred)

These materials provide the flexibility and impact resistance needed for reliable clipping around the tile edges.

🖨️ Recommended Print Settings

• Wall / Perimeter Count: 3
• Infill: 15%
• Supports: Not required
• Orientation: Print flat as supplied
• Cooling: Moderate (especially for ABS to avoid layer brittleness)

🔧 Installation

• Press-fit around the edge of the Multiboard tile
• LED strip slots in place along the channel
• Avoid excessive bending during installation, especially with stiffer materials

📌 Notes

• Designed specifically for Lepro N1 LED strips – fit is not guaranteed for other strips
• Tolerances assume a well-calibrated printer
