Flexible Travel Bottle Set – 8 Sizes
Print Profile(2)
Description
Boost Me (for free)
If you find my designs useful, please boost and rate. It helps a lot!

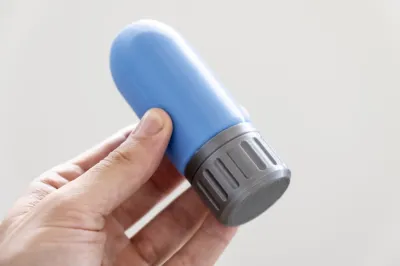

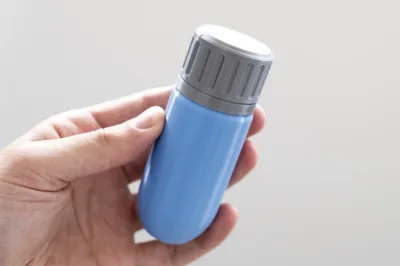

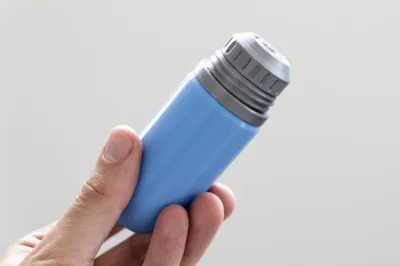

A compact, flexible travel bottle designed for 3D printing in soft TPU.
This design uses multiple sealing surfaces and a positive shut-off lid to minimise leaks during travel, even when squeezed or packed tightly.

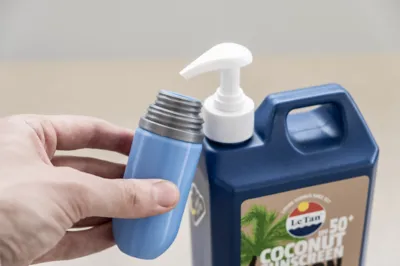

Available in 10 ml size increments from 30 ml to 100 ml, making it easy to print the exact capacity you need for toiletries, soaps, or liquids on the go.
Key Features

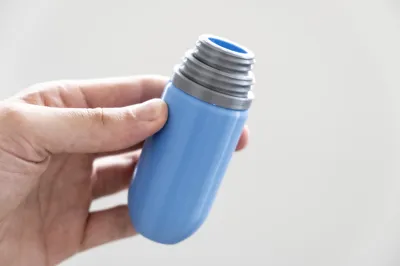

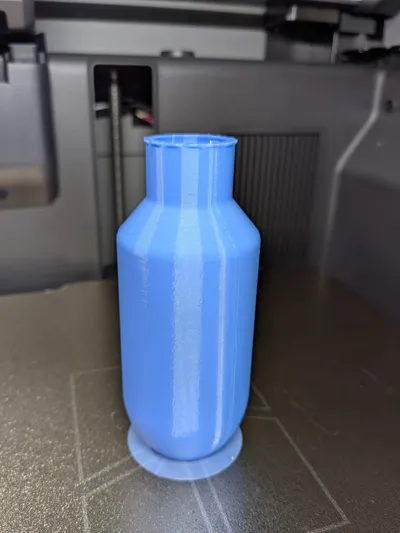

- Flexible squeeze bottle body (TPU)

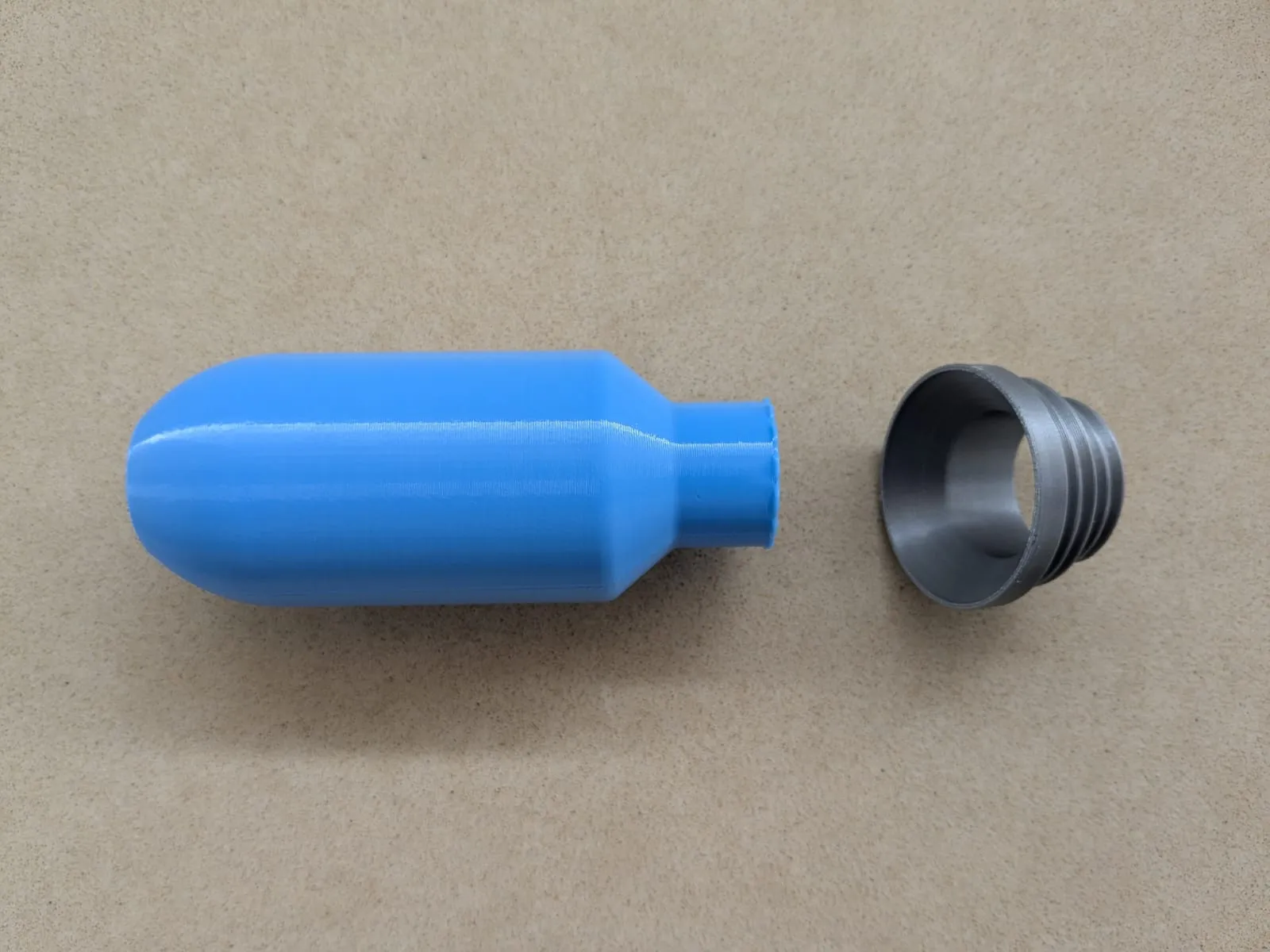

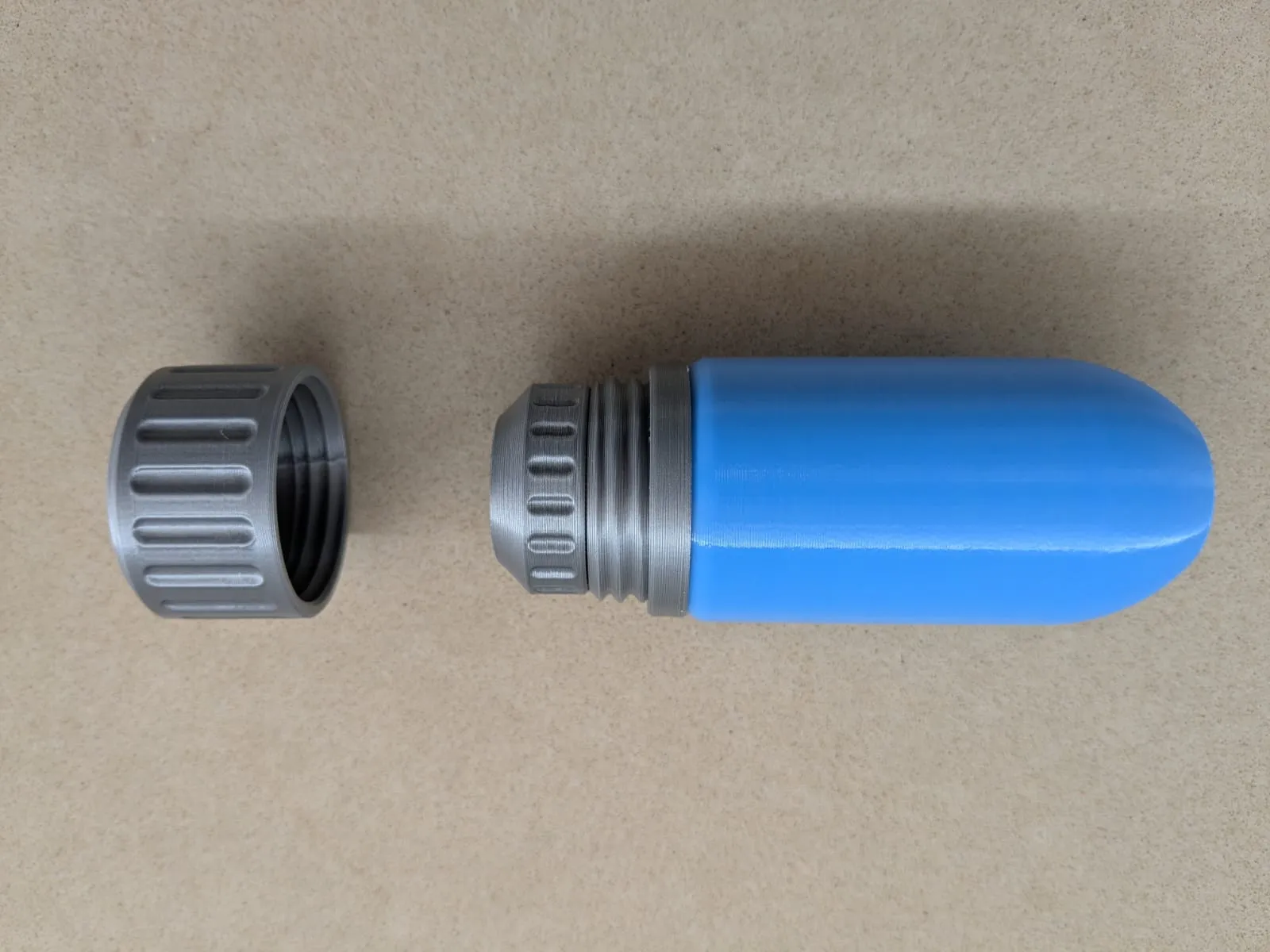

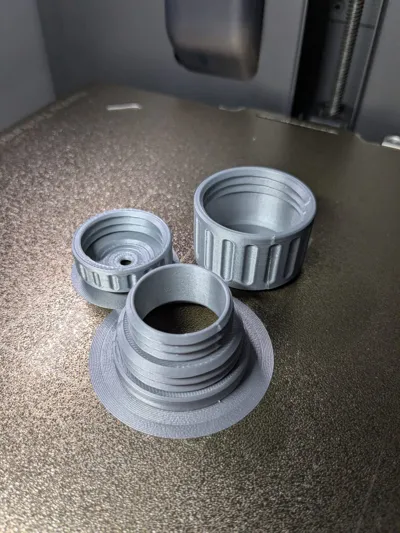

- 3-part cap design (PLA or ABS recommended)

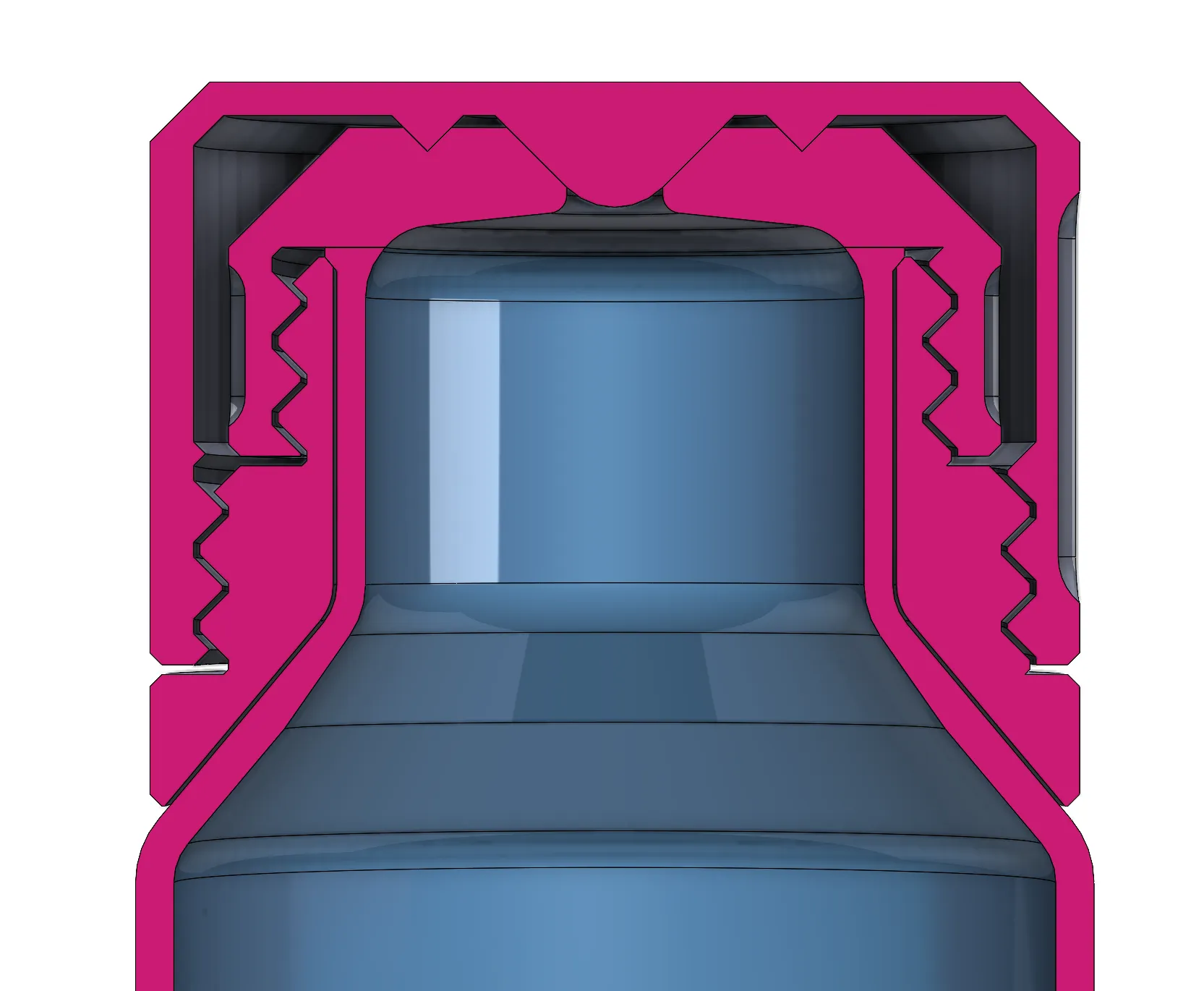

- Leak-resistant design with multiple internal seals

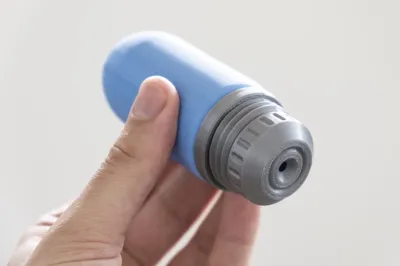

- Anti-spill nozzle design with 4mm opening
- Modular sizing: 30 ml - 100 ml in 10 ml steps
- Easy to clean, no thin membranes or slit valves
- Designed for repeated use and travel

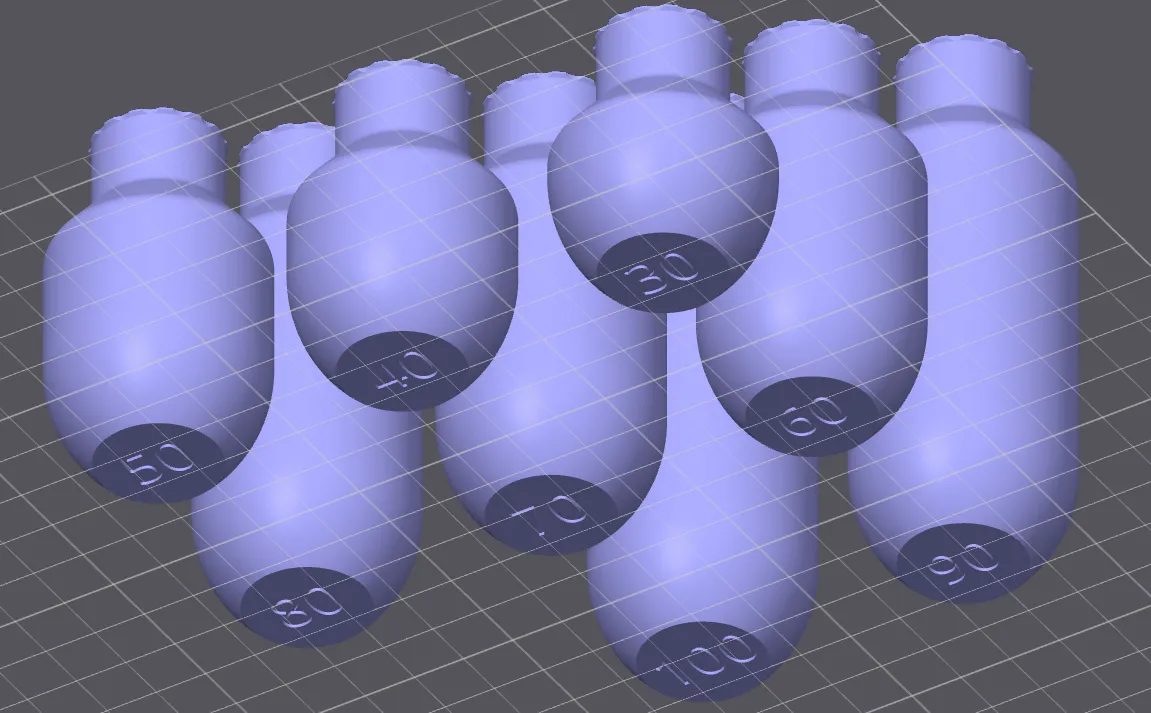

SIZES INCLUDED
This model includes the following volumes:
- 30 ml
- 40 ml
- 50 ml
- 60 ml
- 70 ml
- 80 ml
- 90 ml
- 100 ml

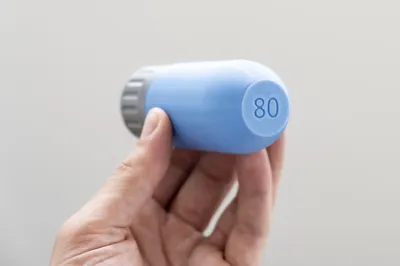

All versions share the same lid and sealing geometry and the volume of the bottle is indicated on the bottom.
** IMPORTANT MATERIAL WARNING
This model is intended for 85A TPU or softer, TPU for AMS can be used in the larger bottle sizes (60ml upwards), but can be quite hard to squeeze and may delaminate after extended use. Please use separate print profile for TPU for AMS material.
ASSEMBLY

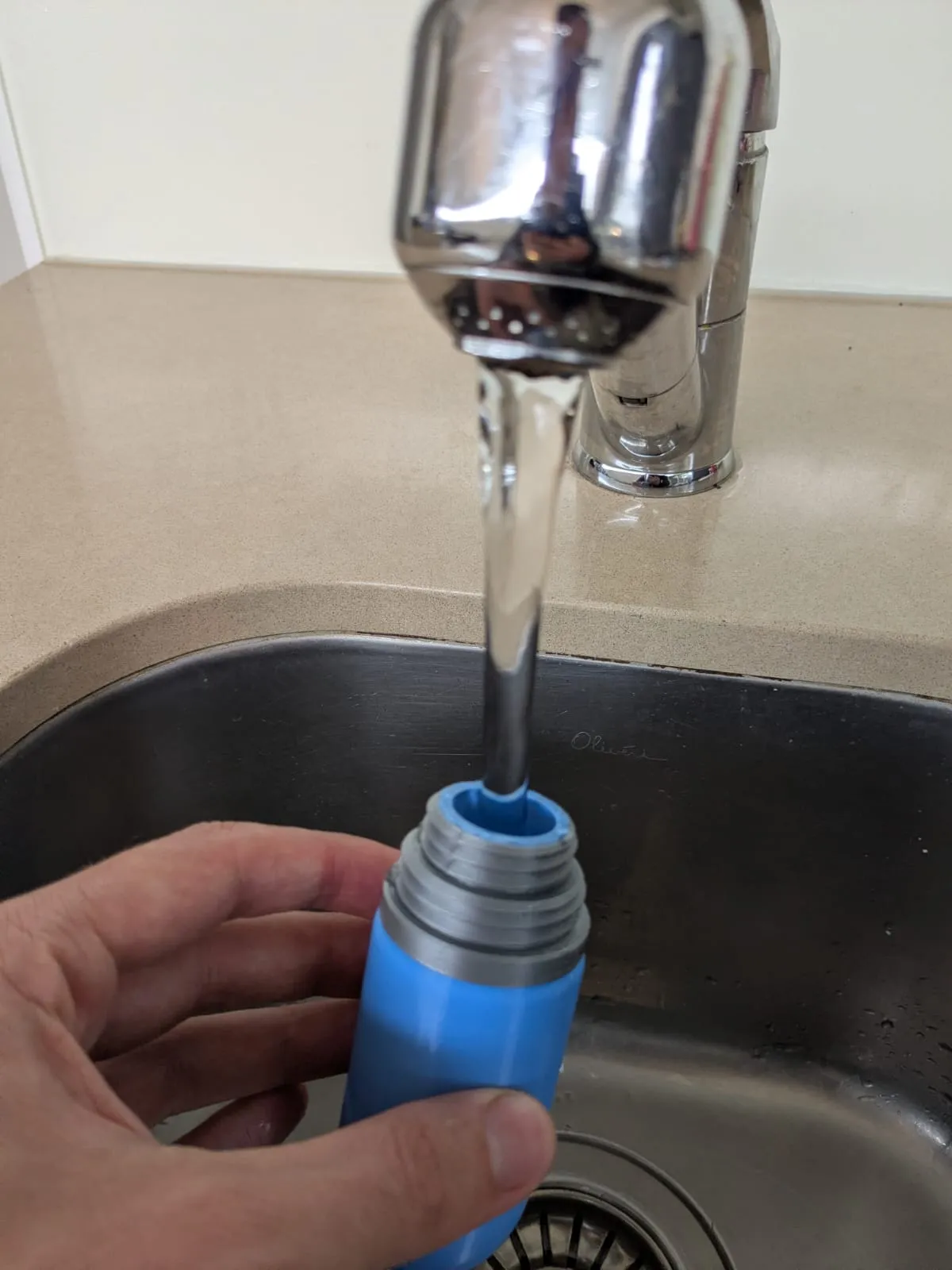

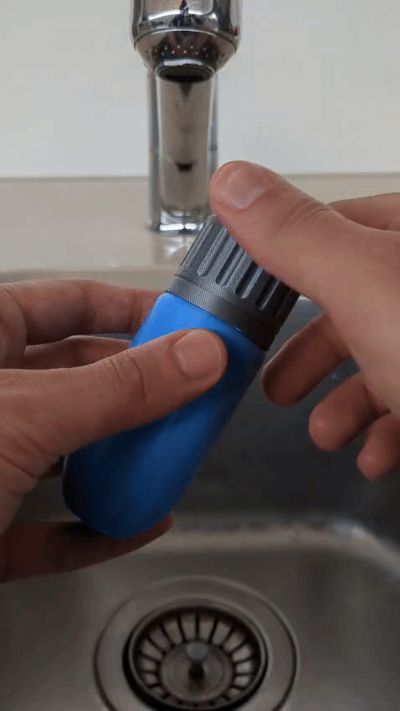

If you plan to travel with this bottle, do a test squeeze under water after your first print to confirm sealing before use.
