Dust Collector For DeWalt DCS334 Jig Saw
Print Profile(1)
Description

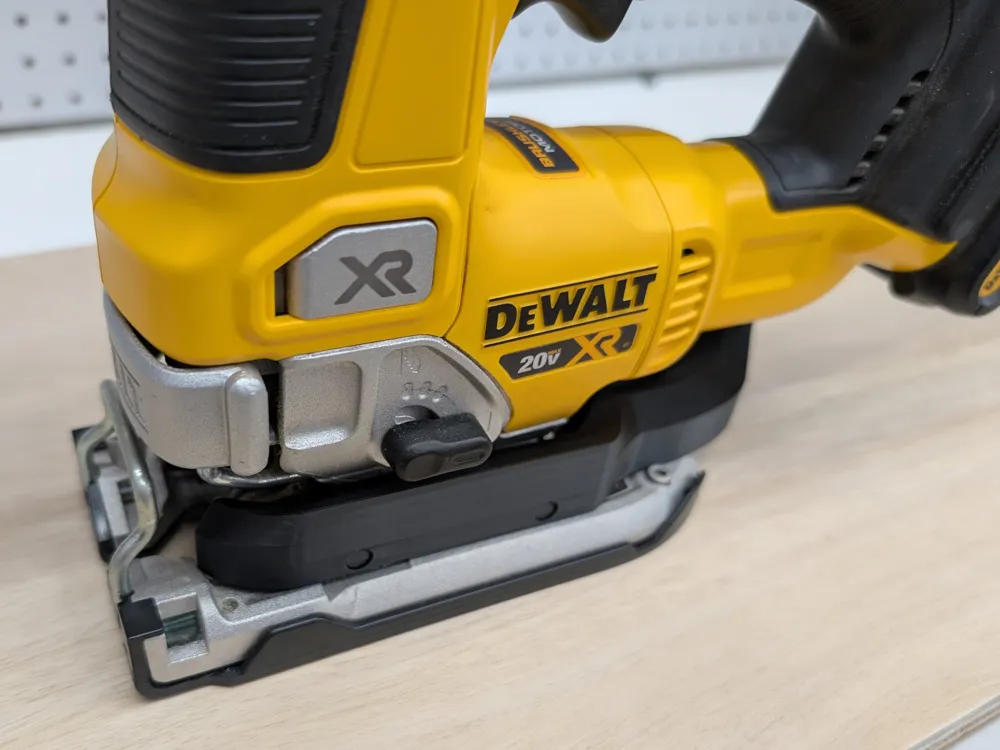

This is a dust collection port for the DeWalt DCS334 Jig Saw. It may also fit the DCS335.

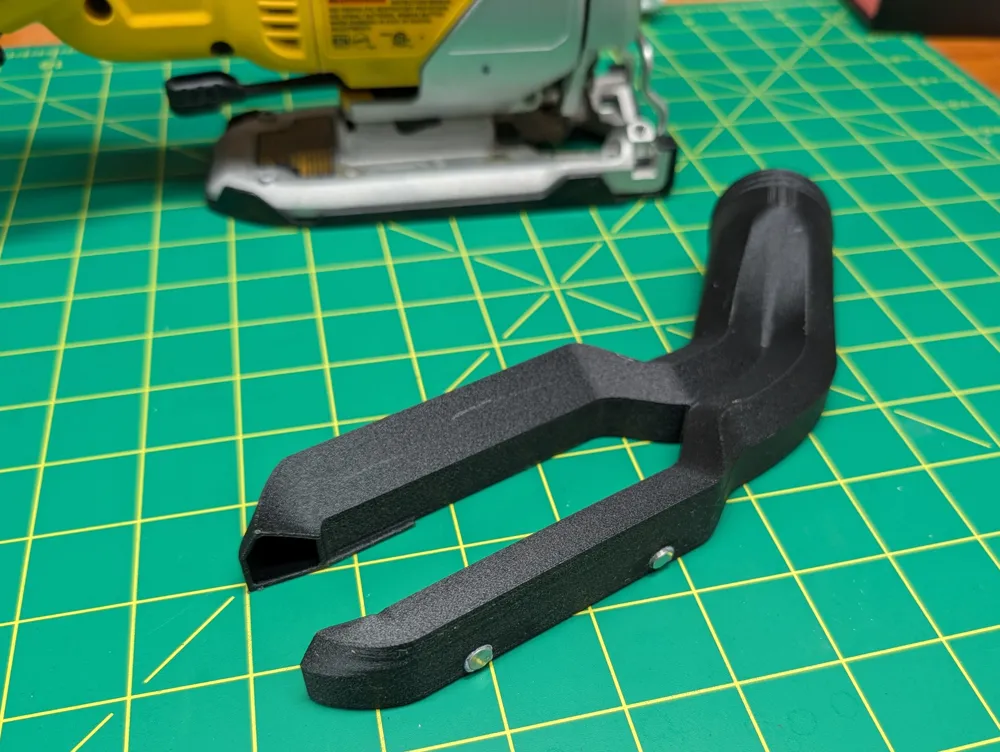

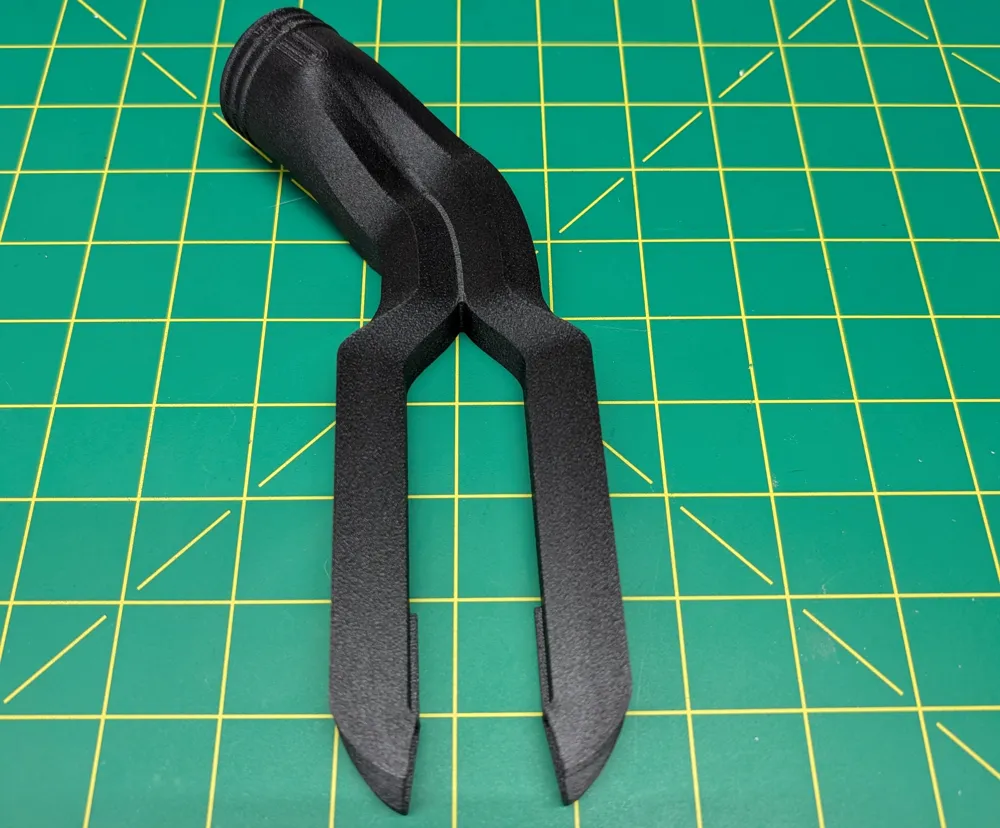

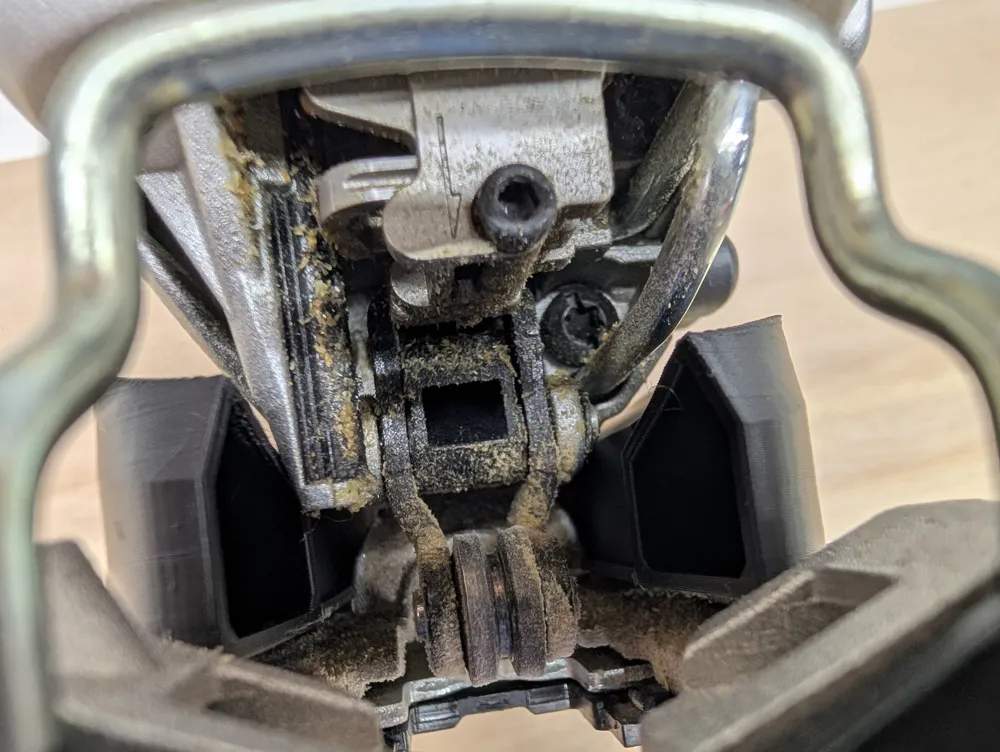

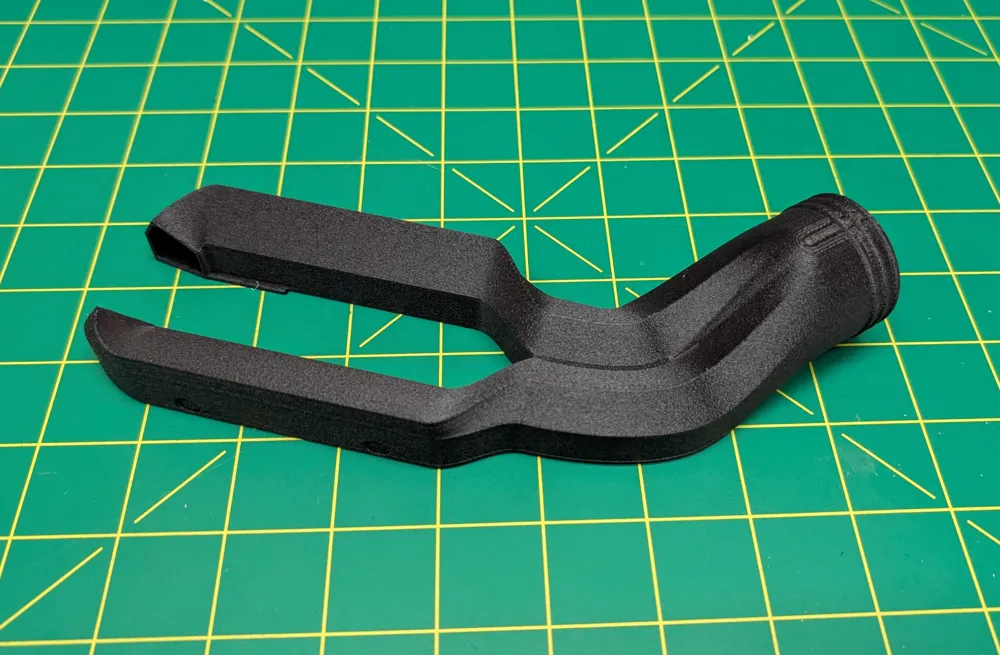

The tubes are designed so it can print flat on the print bed as a single piece. It also follows the contours of the tool allowing for larger air passages.

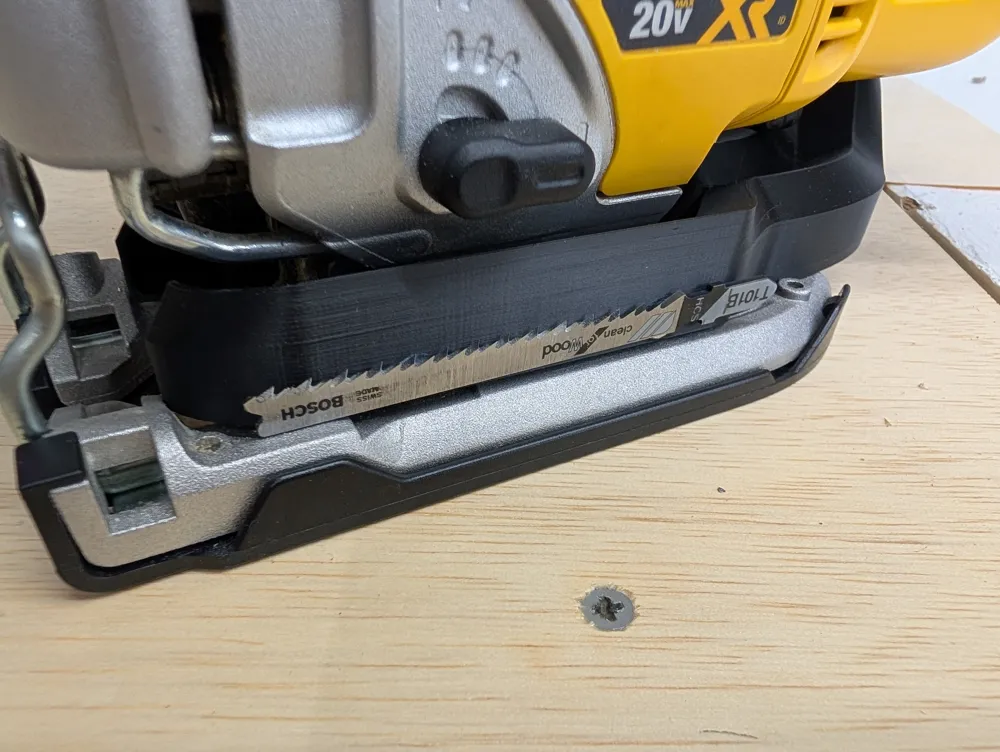

There are indents on each side where 2mm x 6mm magnets can be glued for holding spare blades.
Models are provided with and without ribs on the outside of the dust port.

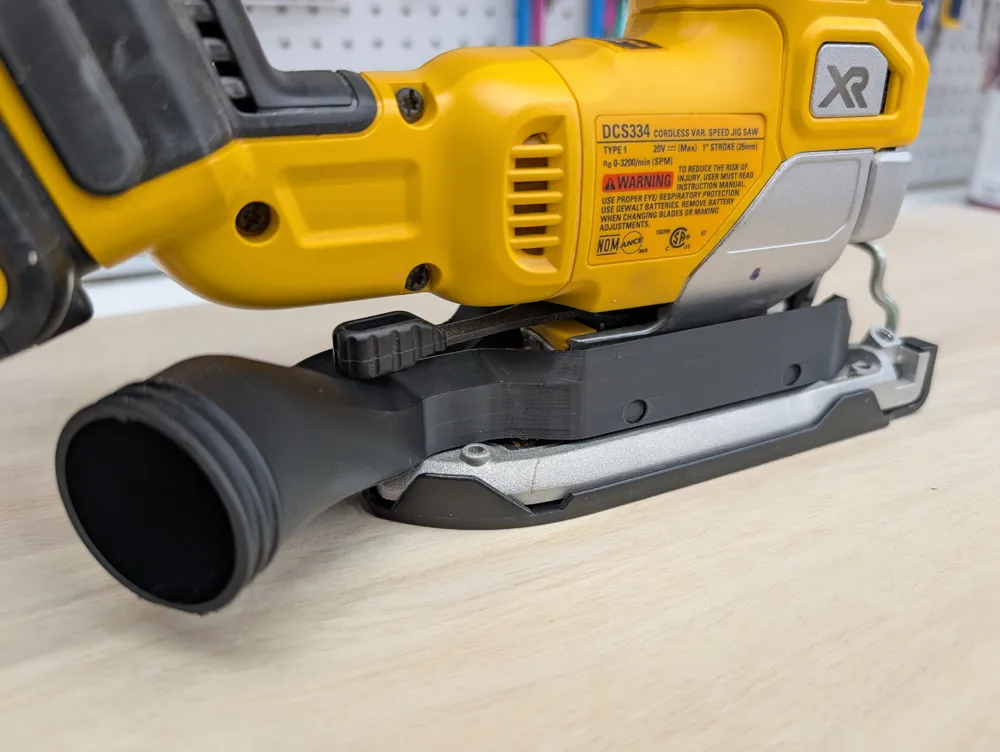

The dust port is 1.5" OD (38mm). I can create other port sizes if requested
