Altura da camada a 0.16mm e com a deteção de paredes finas ligada

Layer height at 0.16mm and with thin wall detection enabled

0.16mm layer, 2 walls, 15% infill

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

Depois de alguns cabos de conexão entre as placas KC010 e o cabo de alimentação se terem solto após a montagem do litophane no quadro, tive a necessidade de desenhar esta peça para tentar que não volte a acontecer. Não é uma garantia que deixe de acontecer mas com apenas um dos clips entre o cabo de alimentação e a primeira placa do kit consegui assegurar que a ligação fosse mais resistente. Ainda ponderei a utilização de cola quente mas essa solução seria mais permanente e impediria que conseguisse, no futuro, trocar ou a placa ou o cabo de ligação

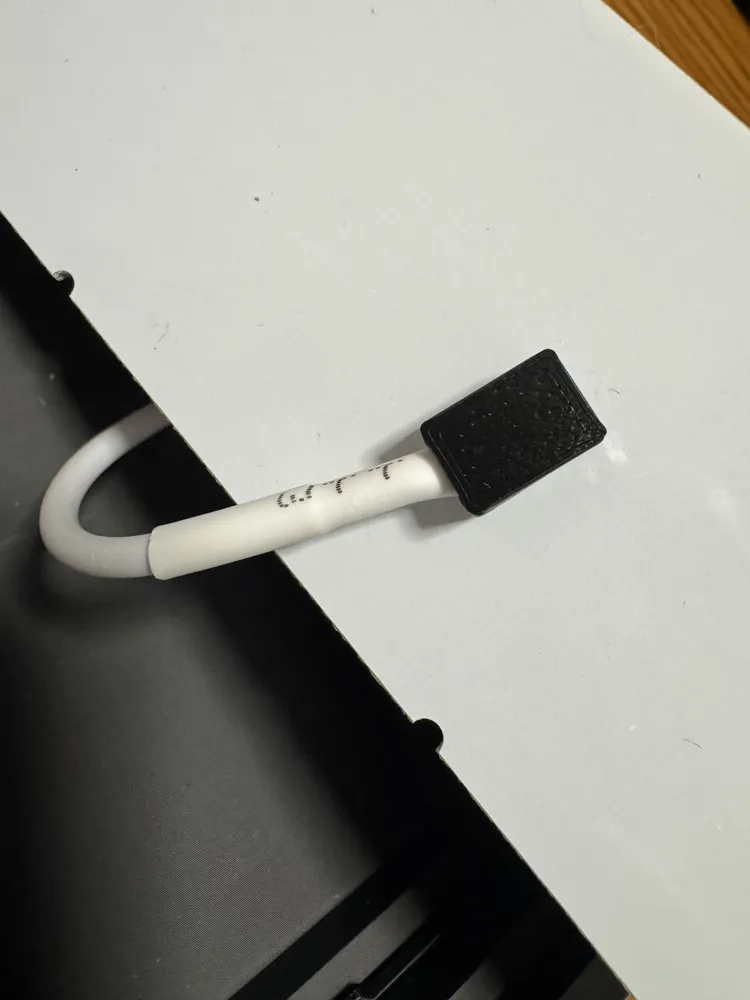

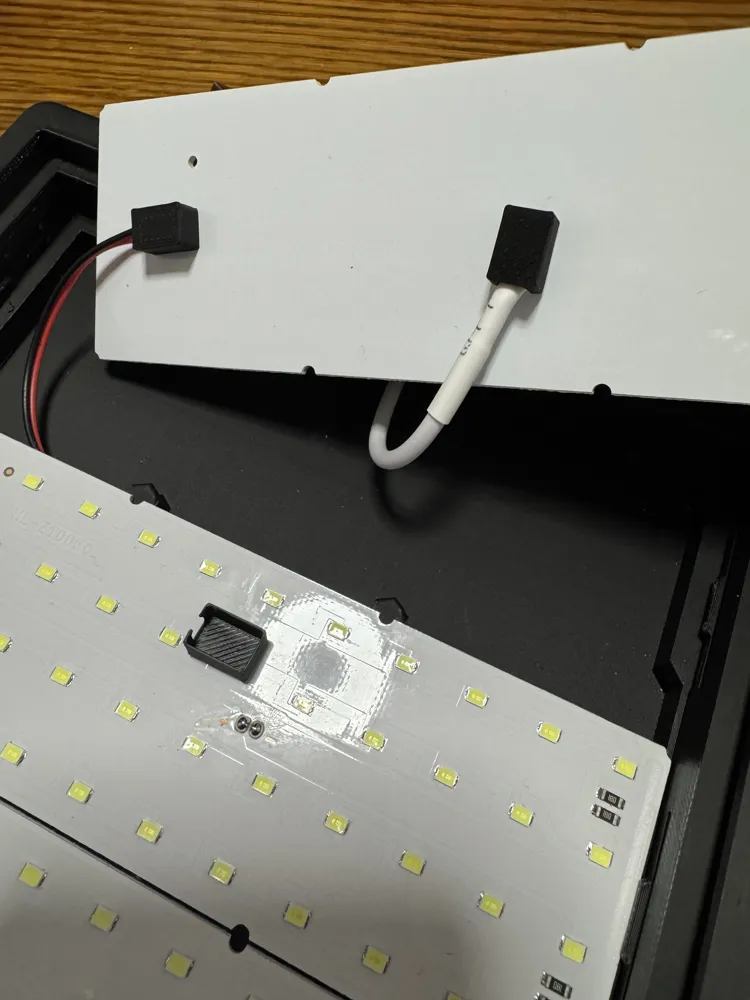

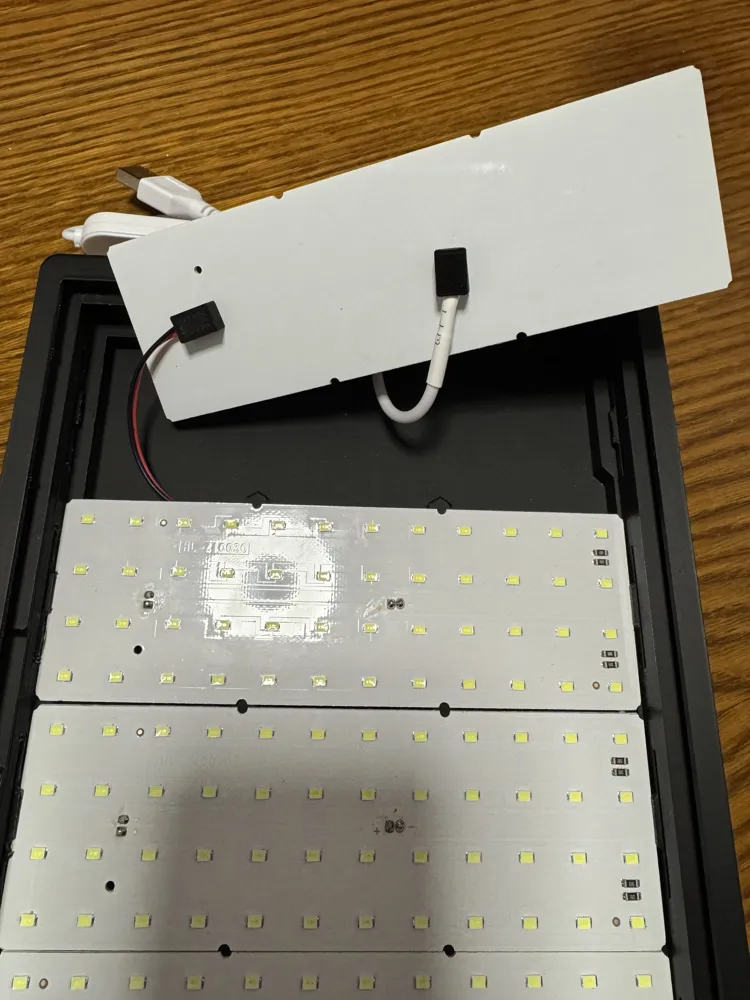

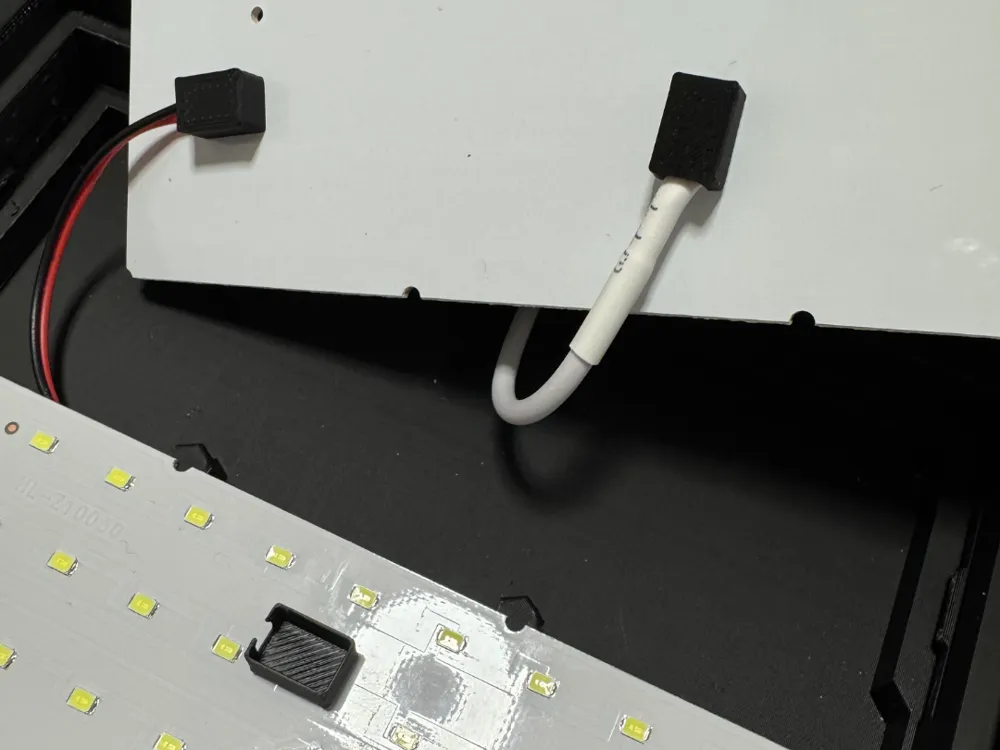

After some connection cables between the KC010 boards and the power cable came loose after mounting the lithophane on the frame, I felt the need to design this piece to try to prevent it from happening again. It's not a guarantee that it won't happen, but with just one clip between the power cable and the first board of the kit, I was able to ensure a more resistant connection. I still considered using hot glue, but that solution would be more permanent and would prevent me from being able to replace either the board or the connection cable in the future.
