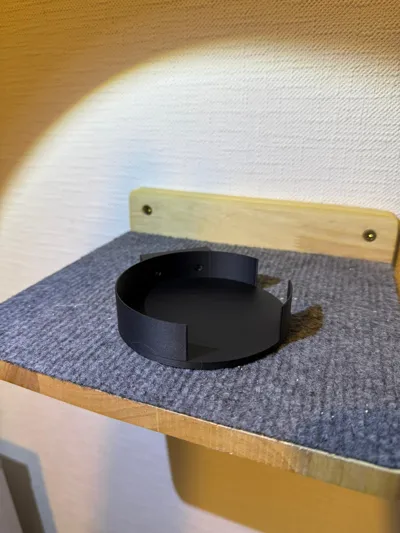

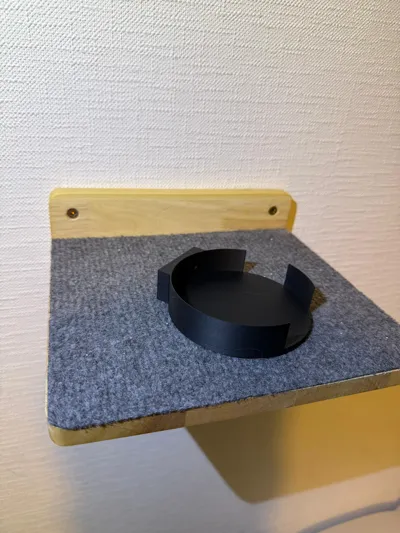

Wall Mount for Alexa Echo Plus (2nd Gen)
Print Profile(1)
0.2mm layer, 3 walls, 15% infill
Designer
48 min
1 plate
Open in Bambu Studio
Boost
5
29
2
1
33
26
Released
Description
Content has been automatically translated.
I designed this mount in **Fusion 360** and optimized it for **FDM printing** Two things were important to me:
- **Clean cable routing** – there's a cable slot at the back so the plug doesn't kink
- **Effortless installation** – the wall opposite the screw holes is **cut open** so you can easily use a **cordless screwdriver**
**Features**
- Suitable for **Echo Plus (2nd Gen)**
- **Cable outlet** at the back – power adapter sits stress-free
- **Side opening** for convenient screwing
- Designed for **3 walls** – stable with little material
- Prints **support-free**
Recommended Print Settings (0.4-mm Nozzle)
- **Layer Height:** 0.20 mm
- **Wall Lines:** **3**
- **Top/Bottom:** 5 / 4
- **Infill:** **Gyroid 15%**
- **Material:** **PLA**
- **Adhesion:** skirt; for PETG on a smooth plate, a thin brim if necessary
Assembly Instructions
- Choose suitable anchors/screws for the wall (e.g., Ø4–5 mm)
- First, mark **without the device**, drill, screw on the holder, insert the cable, then place the Echo
- Do not overtighten – only tighten hand-tight
**Scaling / Tolerance**
- Tailored for Echo Plus (2nd Gen) If your device deviates minimally: Scale **X/Y by ±1–2%**
Boost Me (for free)
Feel free to leave a boost to support me with my projects :-)
