BELIAL - Tank Mecha

🎁 Join my Patreon for exclusive models, sneakpeeks, votes for new designs, and a commercial license to sell prints of my model kits!💎

Equipped with heavy duty armor, BELIAL is a tank mecha designed to withstand great damage and is the third of my series of mecha model kits. BELIAL has 12 points of articulation and comes with a sword and gun to attach to each hand. AMS is not required; each part is printed independently without supports.

No need for PETG either, all the prototyping and model images were printed with PLA.

The provided profiles are:

• A1/P1/X1
  • Single Color - Frameless
  • Multi-Color - Frameless
  • Multi-Color - Kit Card
• A1 mini
  • Single Color - Frameless
  • Multi-Color - Frameless
  • Multi-Color - Kit Card

The model is put together using ball-and-socket snap joints and hinged friction fit joints. When attaching the arms and legs to the base.

Build Instructions:

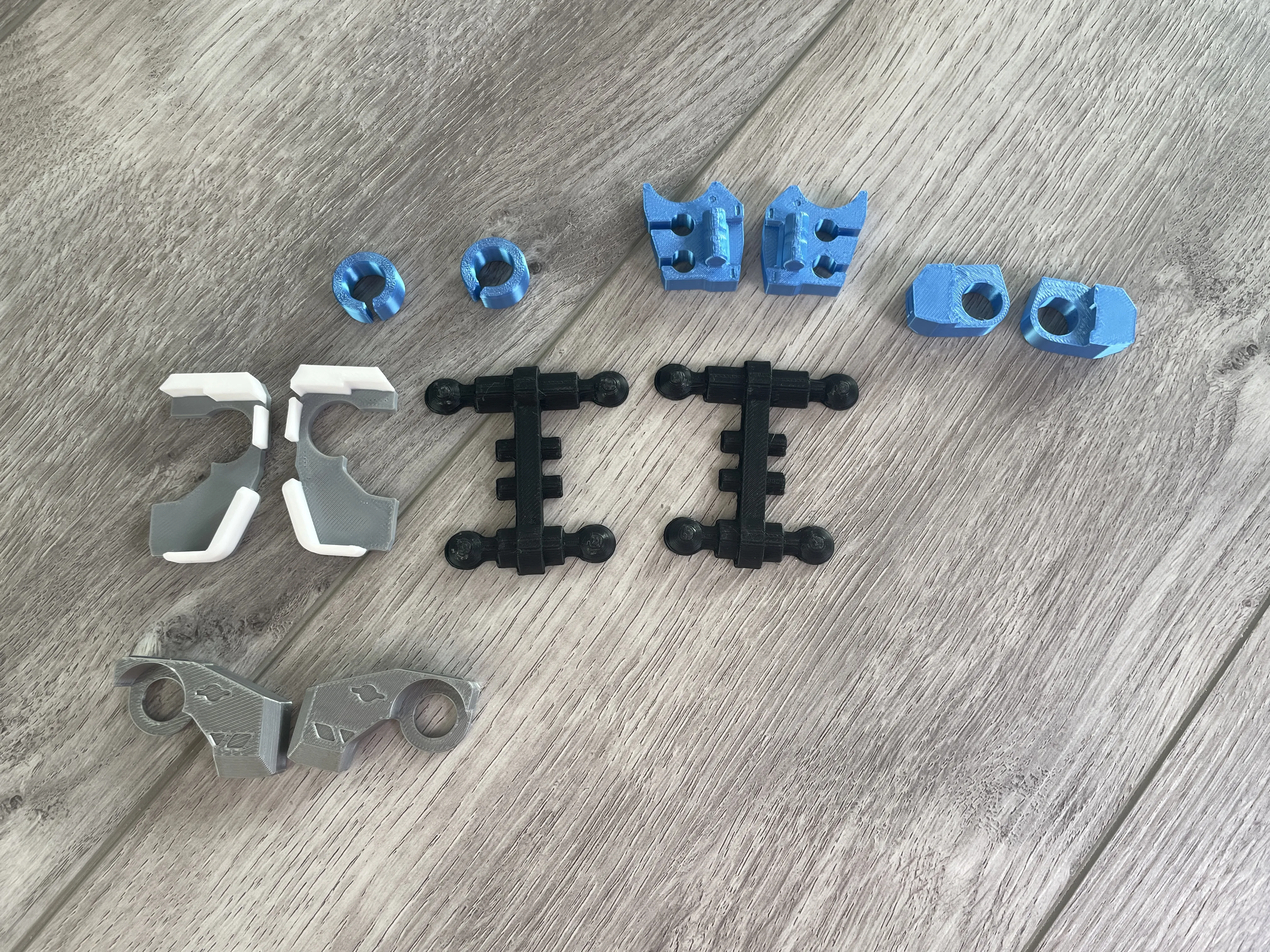

All the parts laid out:

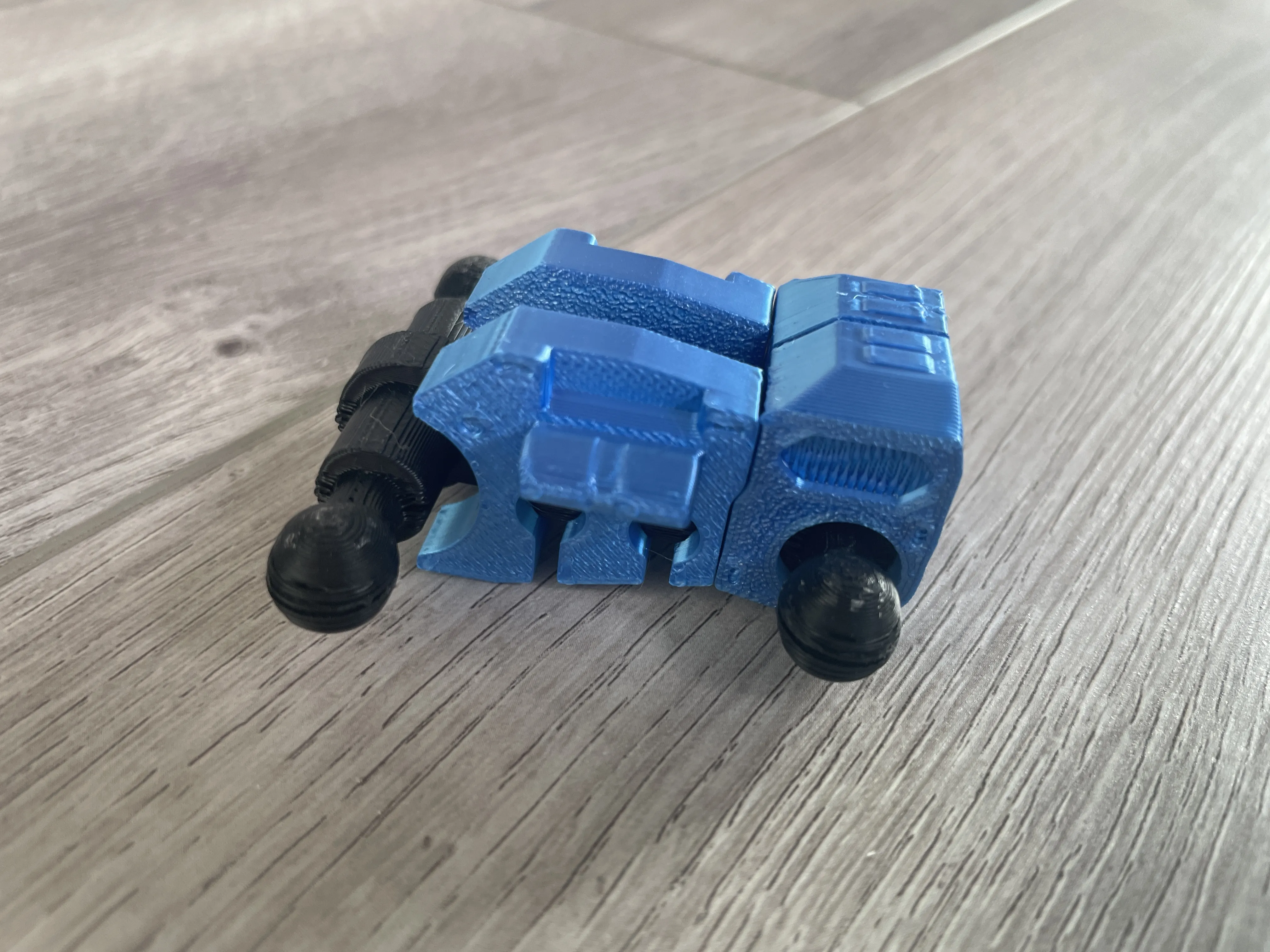

Combine the base pieces and clip on the side parts:

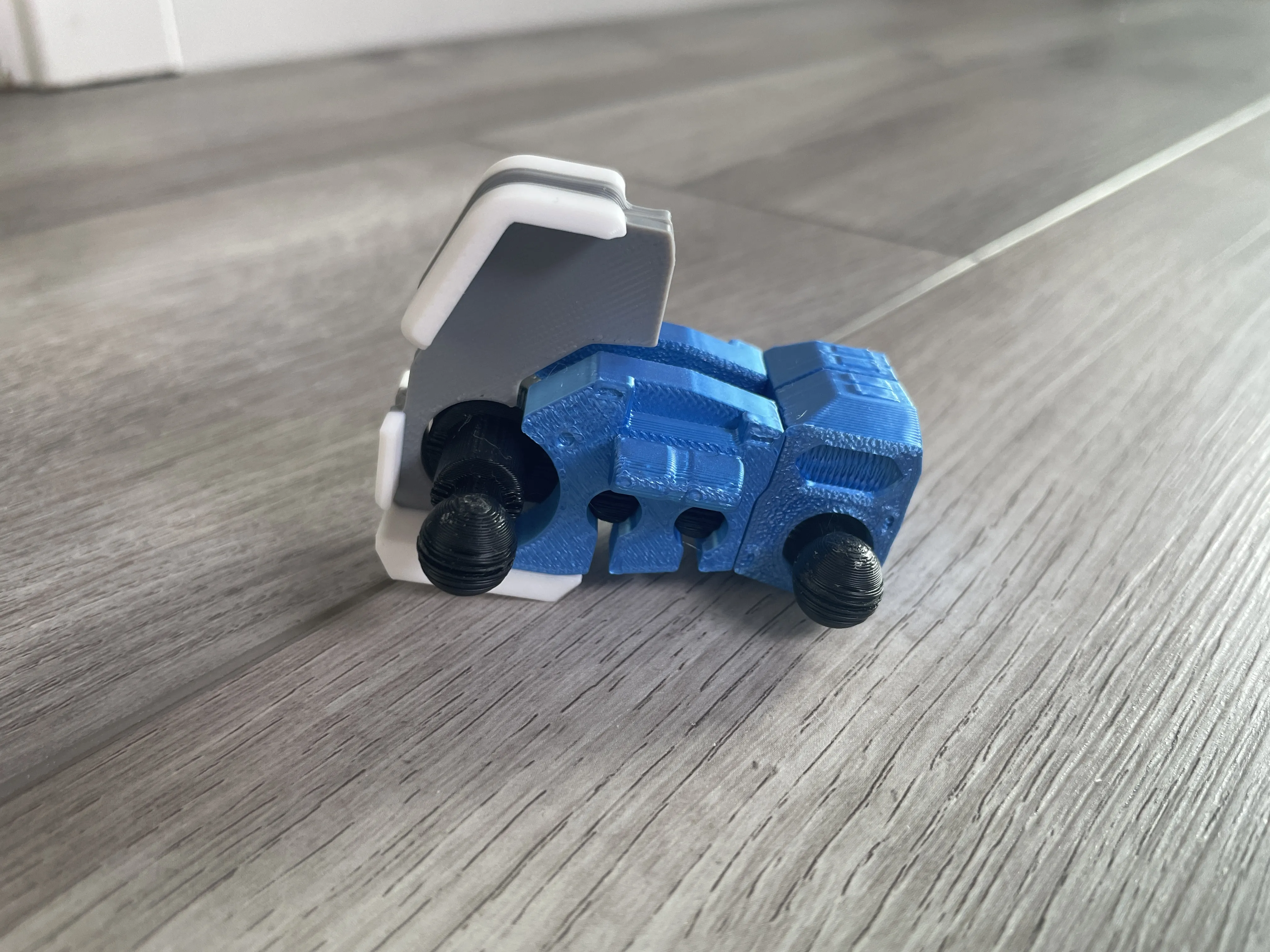

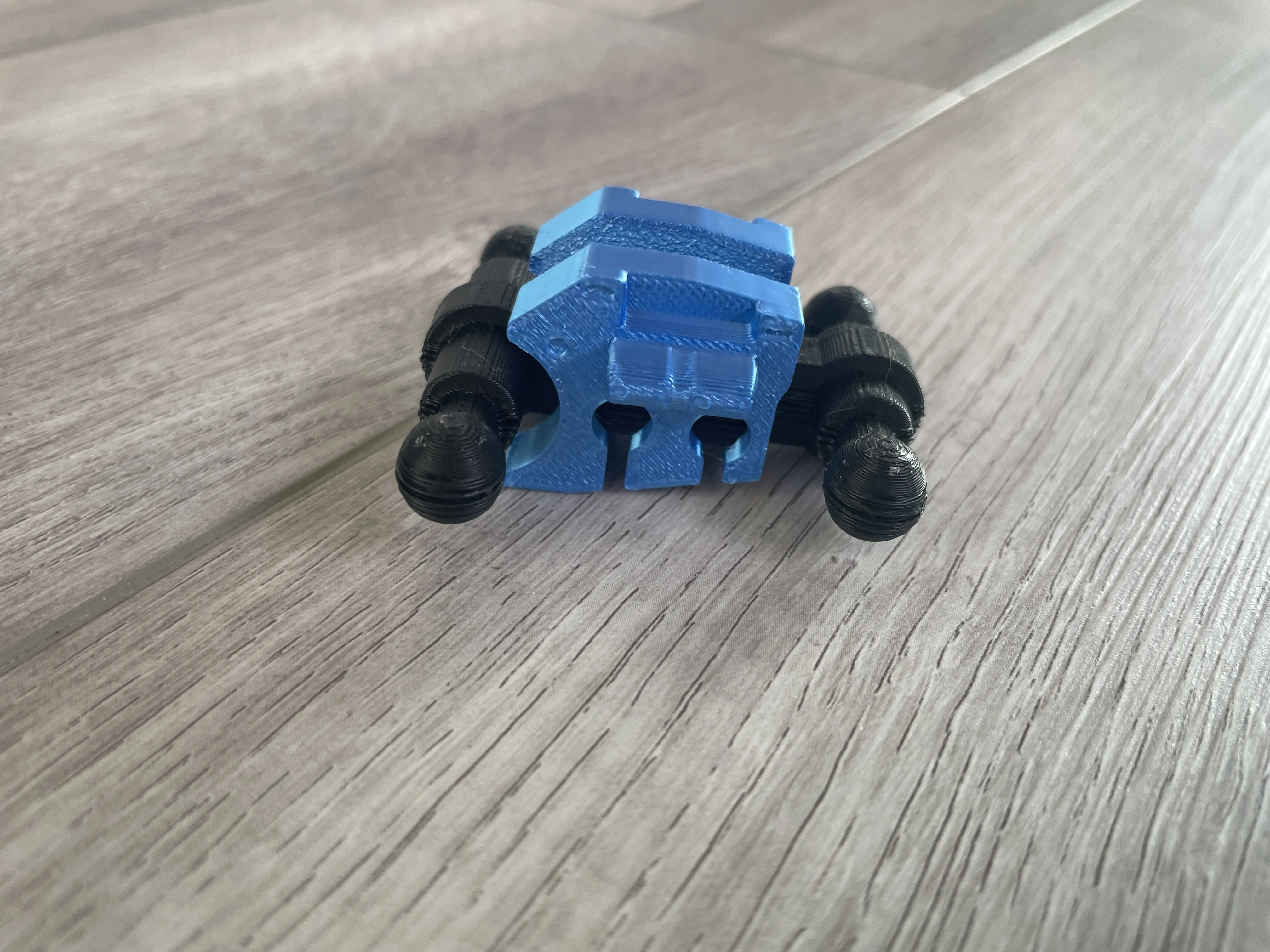

Attach hip parts:

Put in internal head pieces (they will be loose for now):

Push in external head pieces:

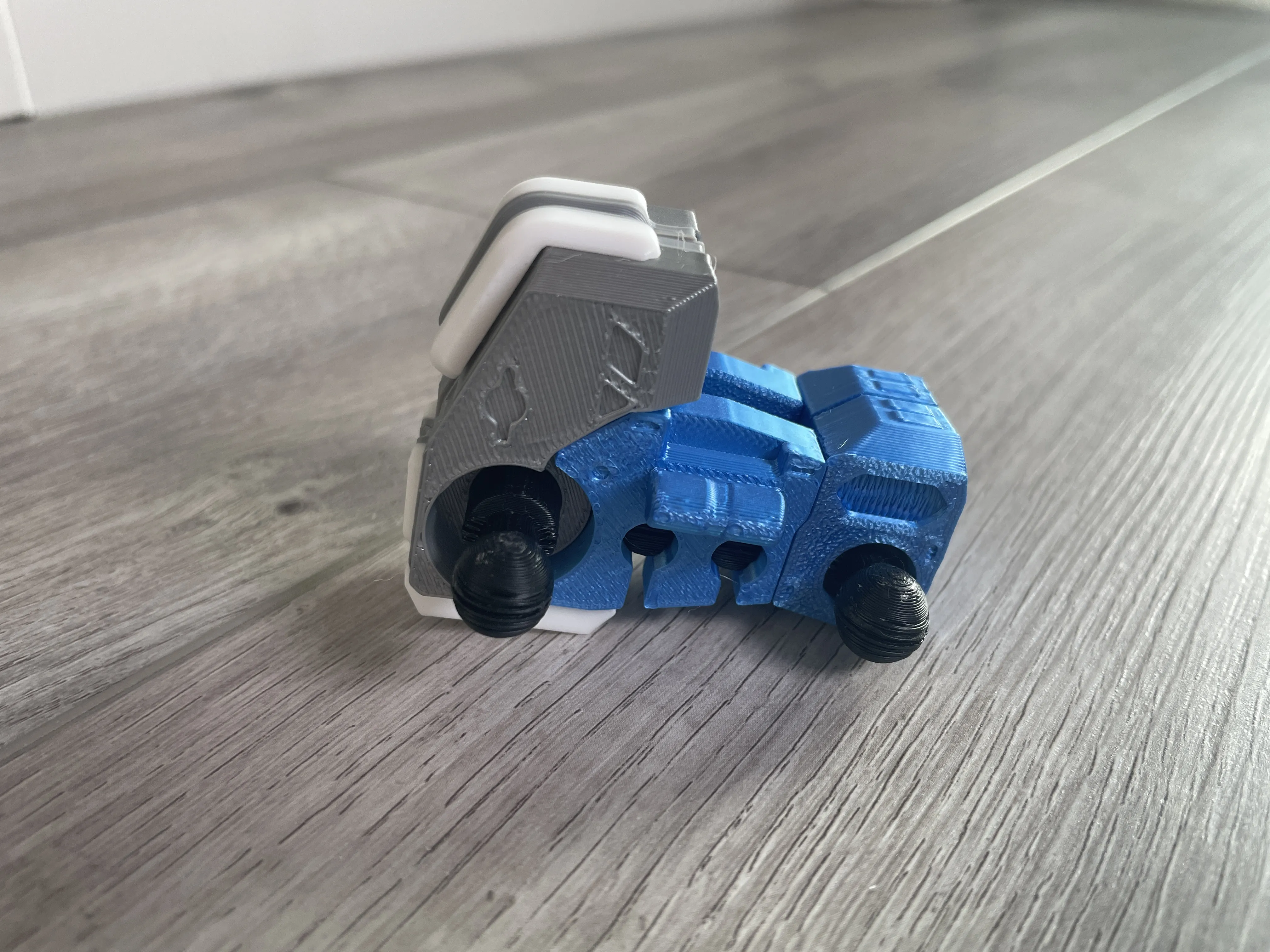

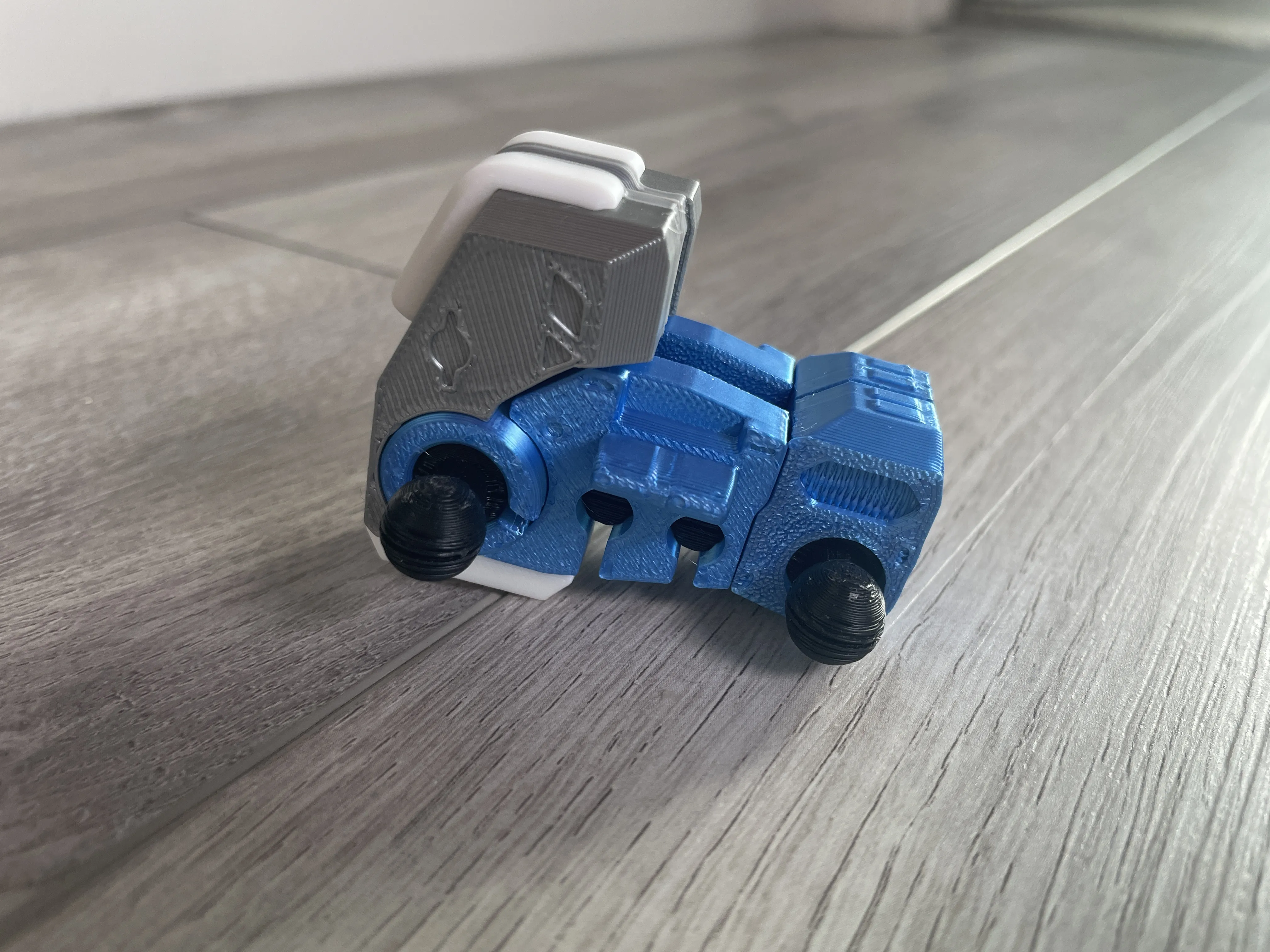

Push in shoulder rings:

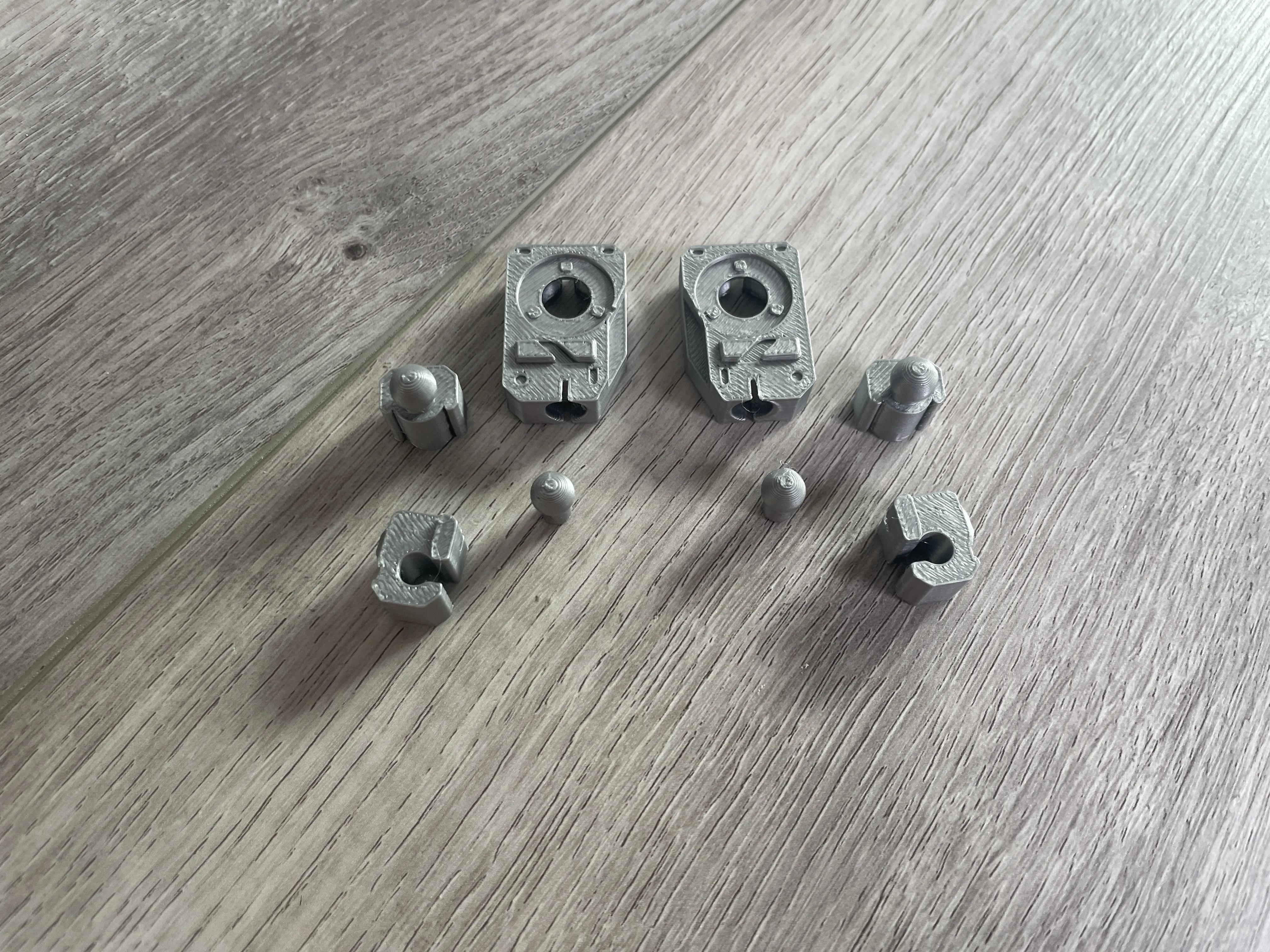

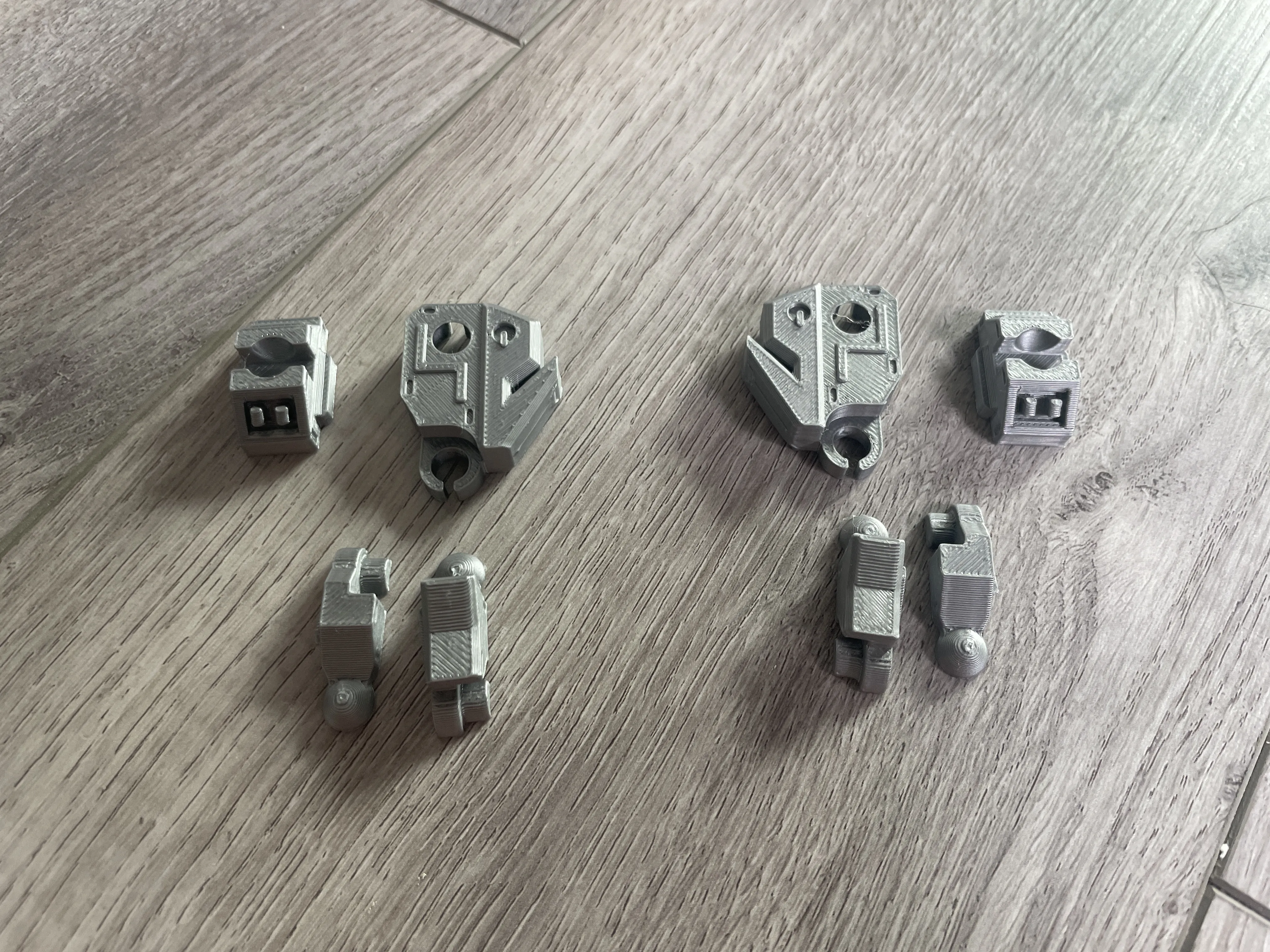

Arm parts laid out:

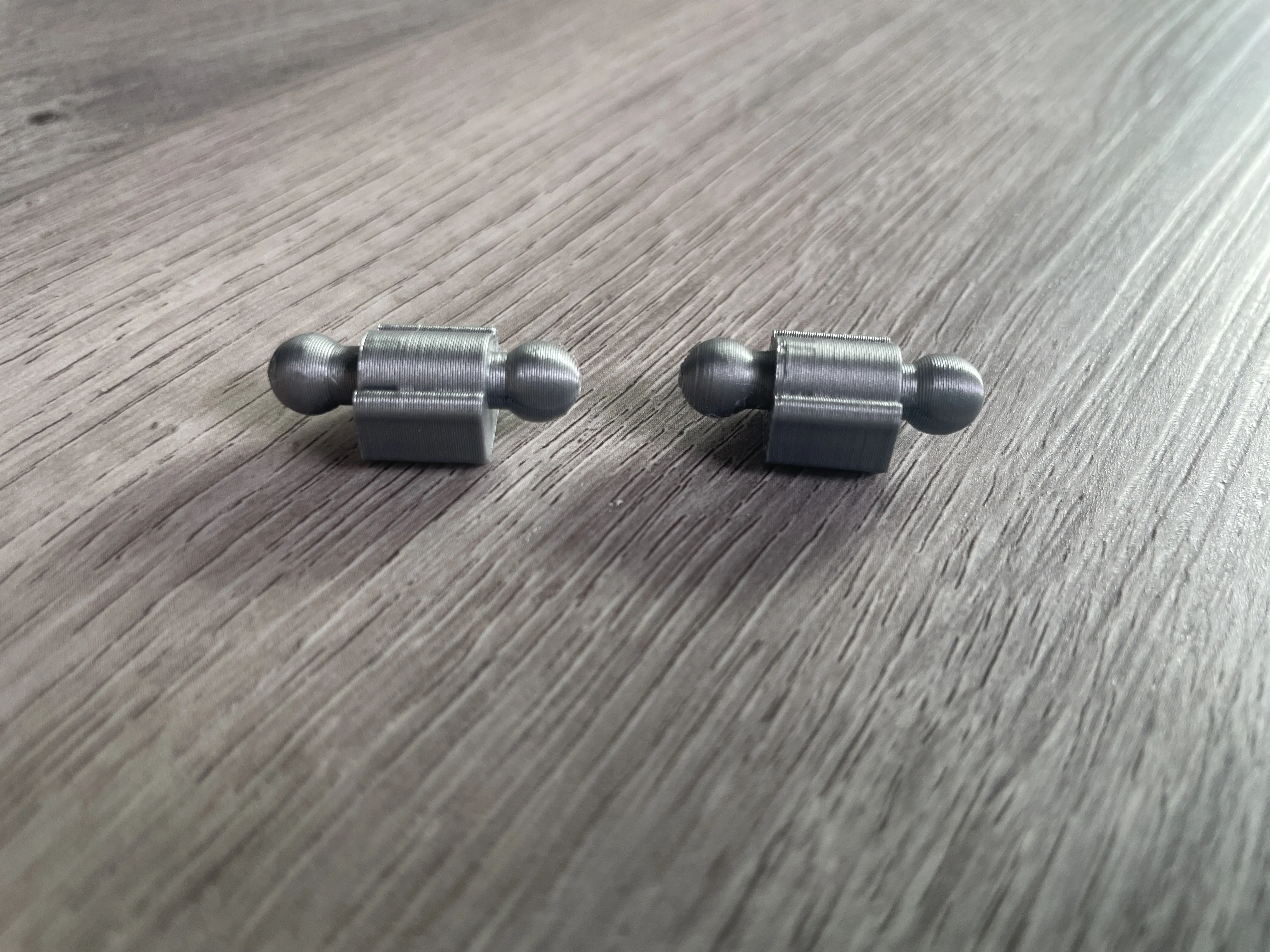

Attach small joint to forearms:

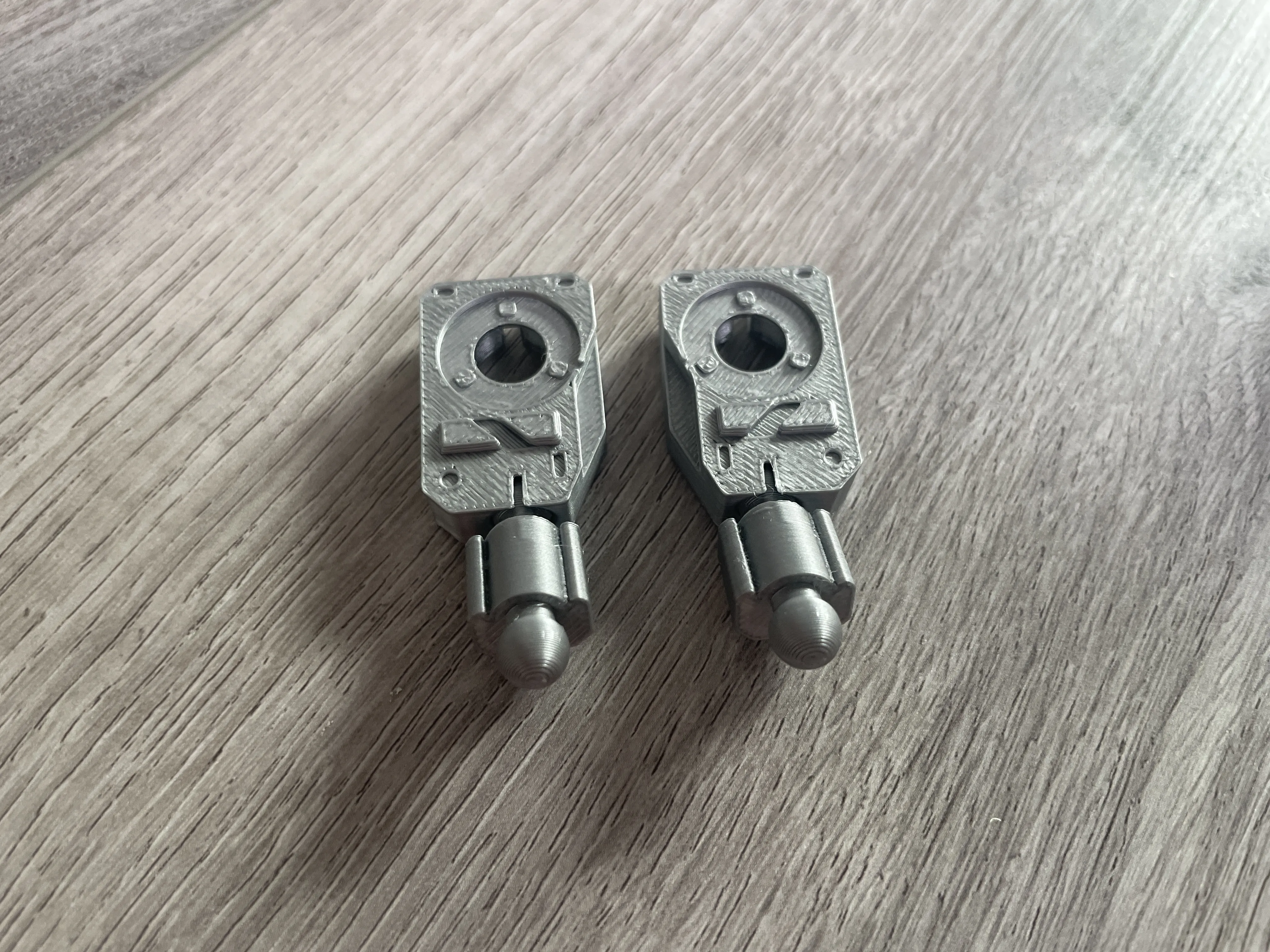

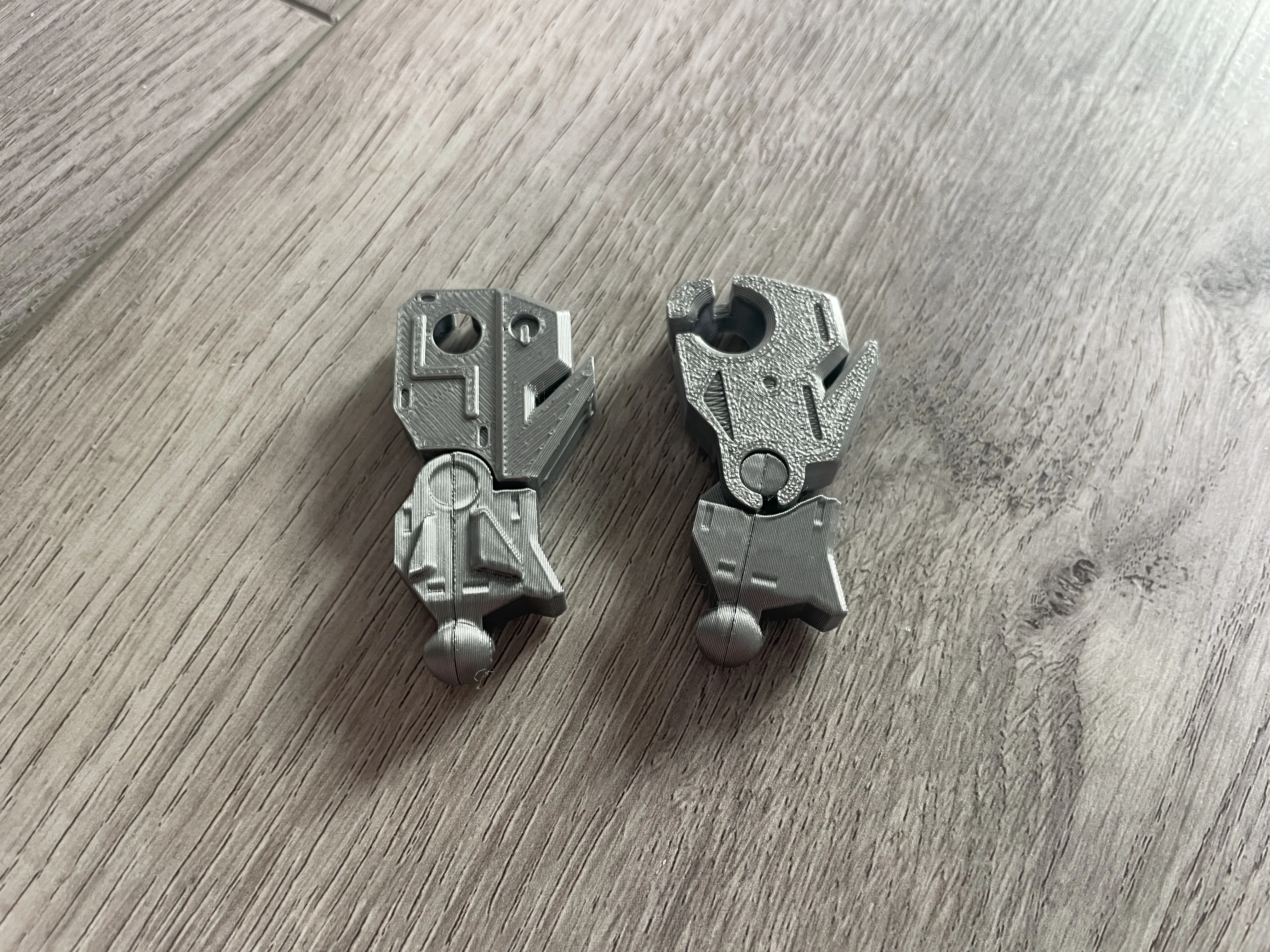

Attach forearm to upper arms:

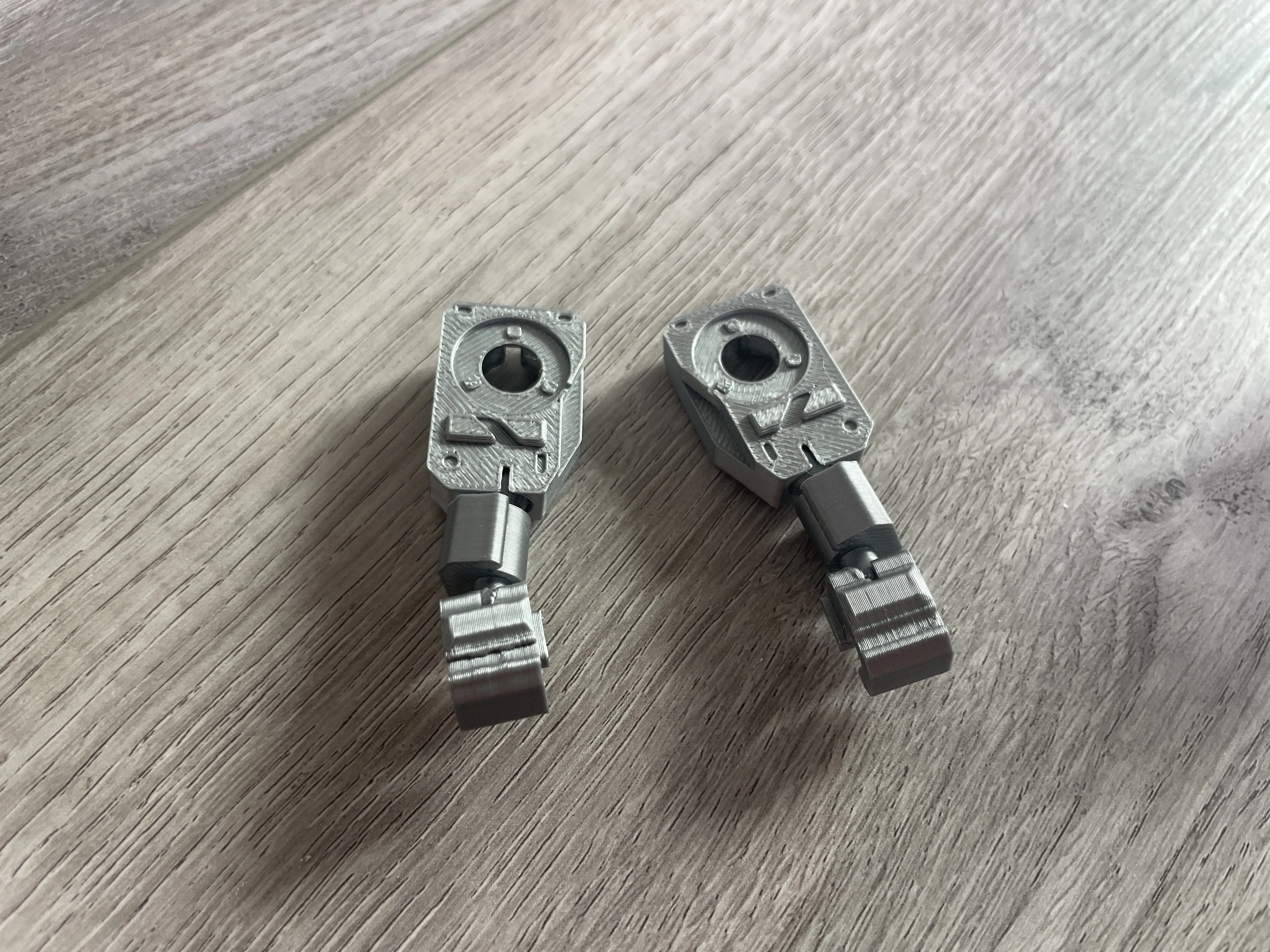

Attach fists:

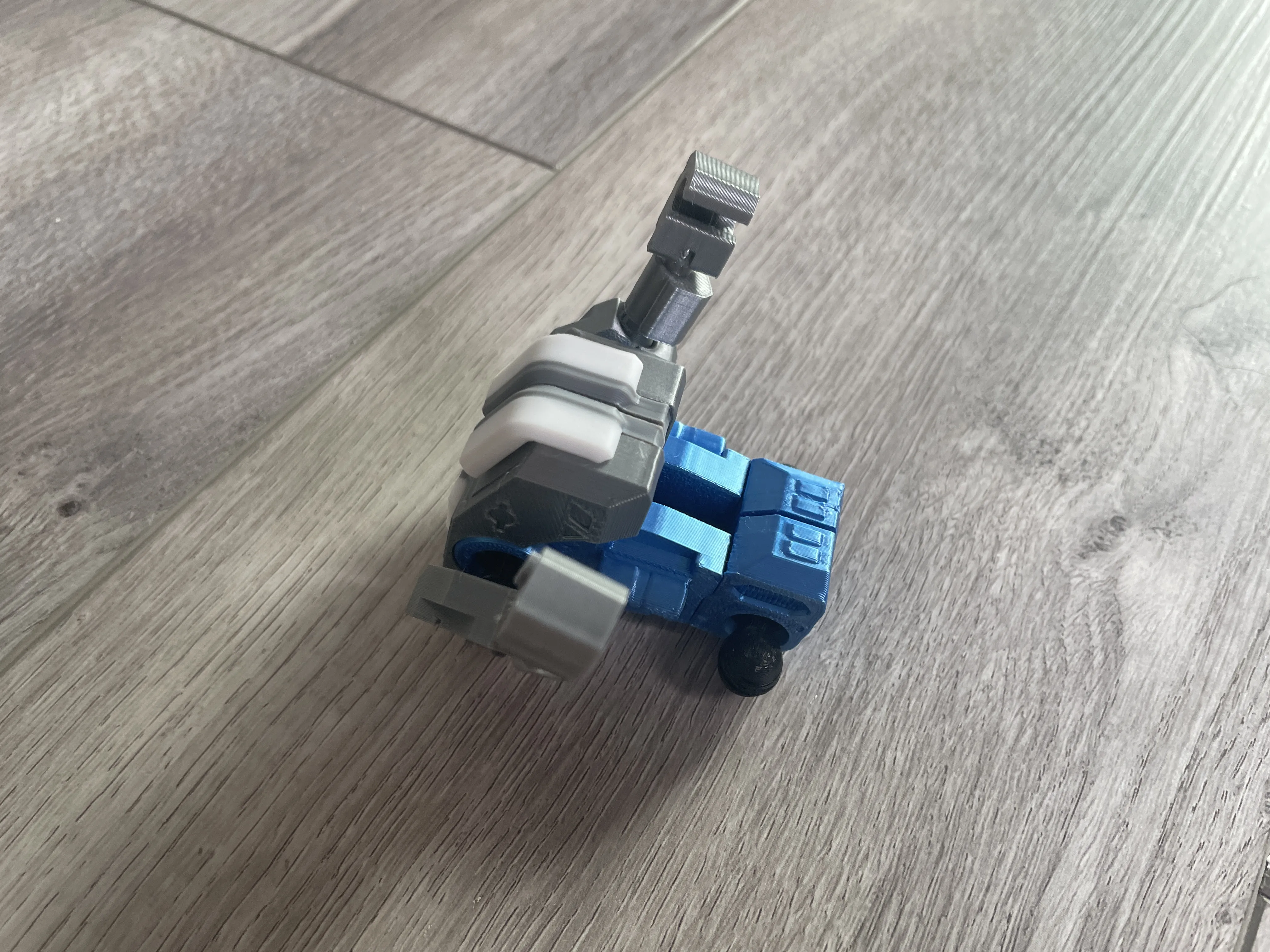

Snap arms into body, this will require some force:

Leg parts laid out:

Combine shin parts and then push into thigh pieces:

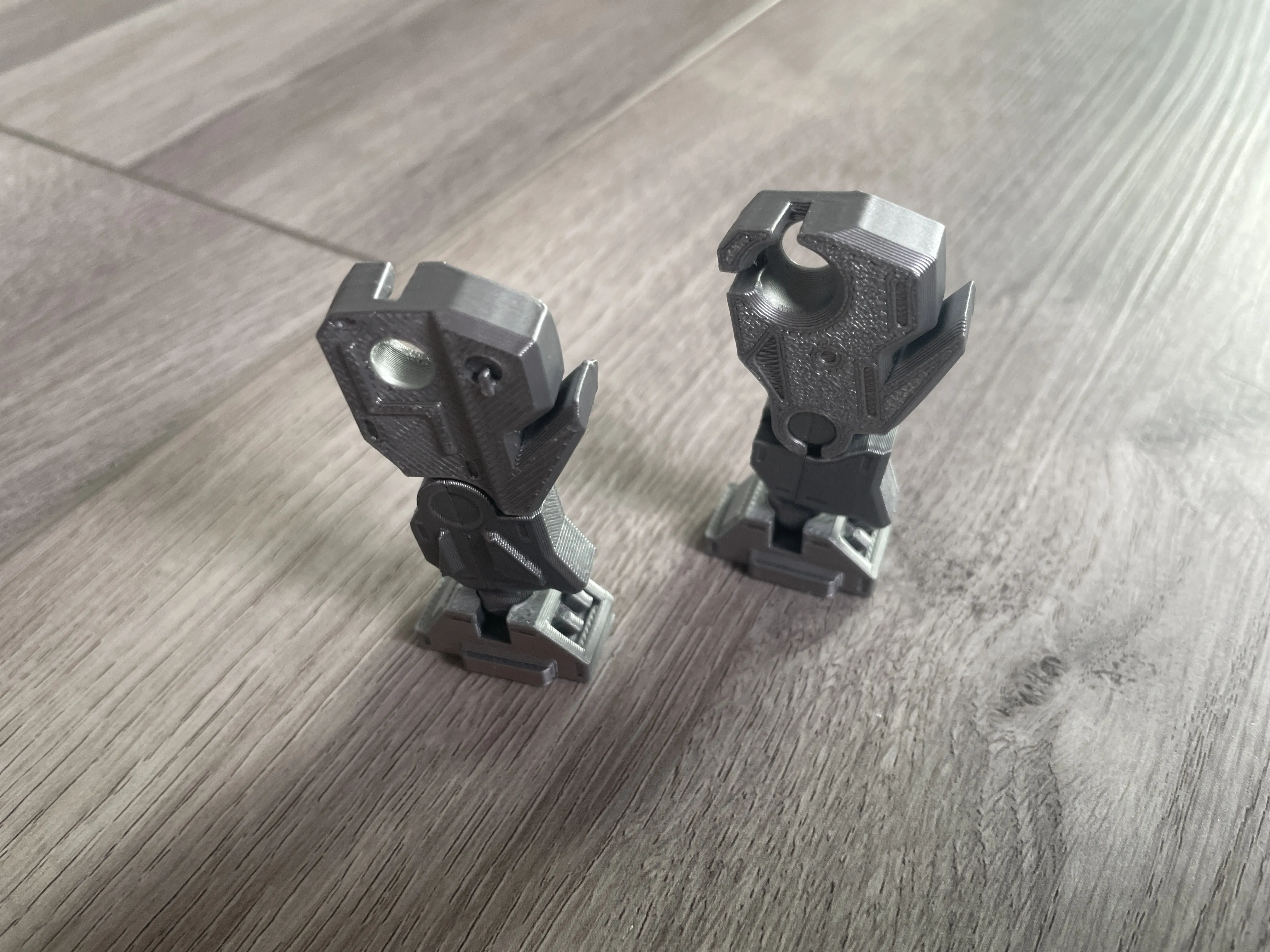

Attach feet:

Snap legs to body, this will require force:

Thank you for downloading, printing, and enjoying my designs! I really appreciate all of your support and I love seeing all of your prints!
