Description

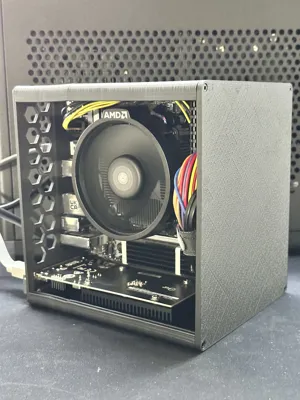

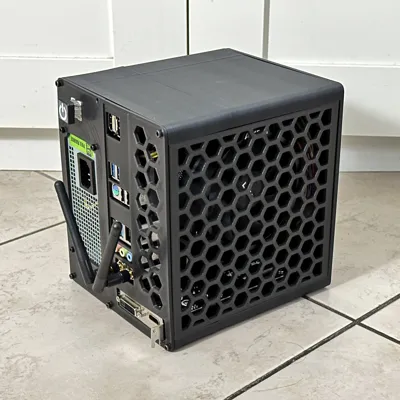

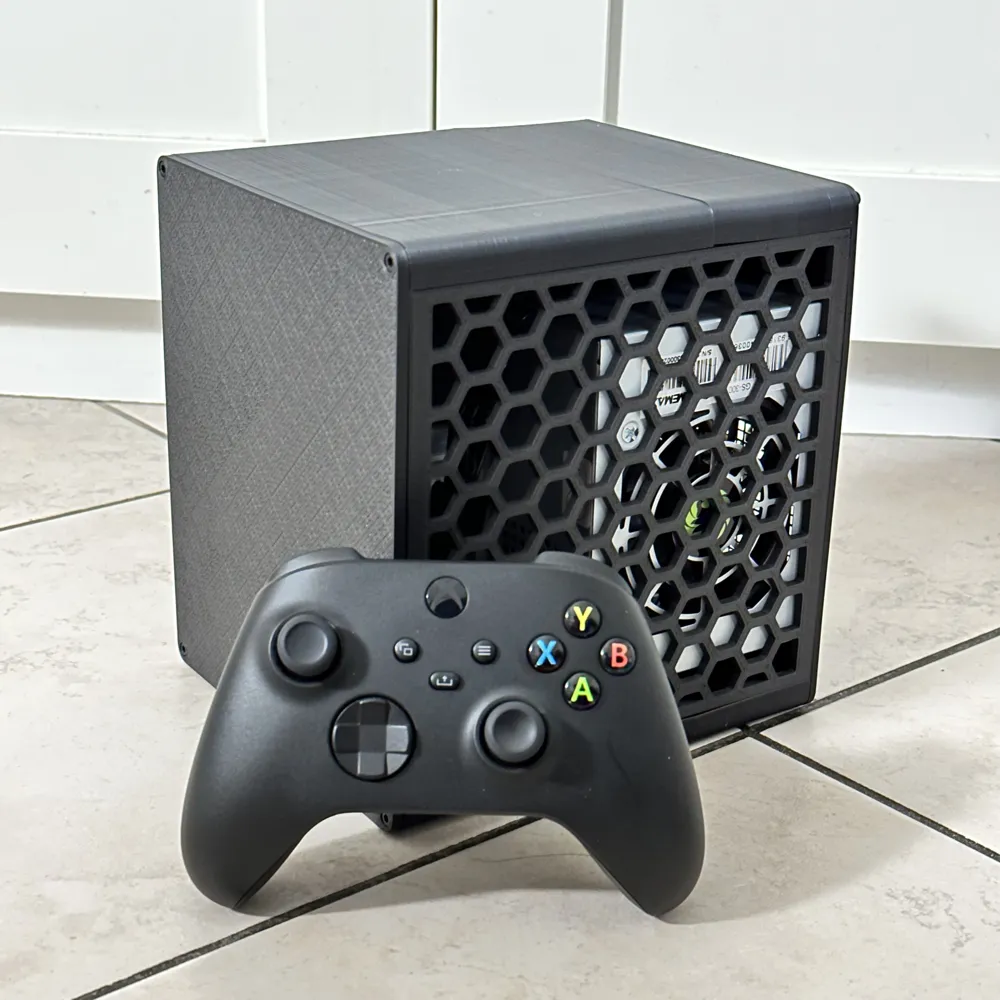

The case is 5.4 liters.
It's shaped like a cube because it can easily be printed on basically any printer
COMPATIBILITY:

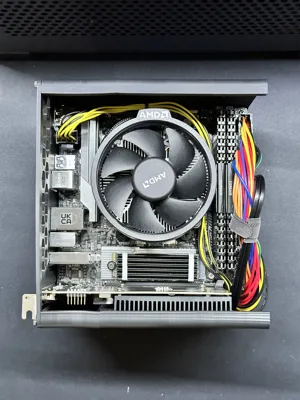

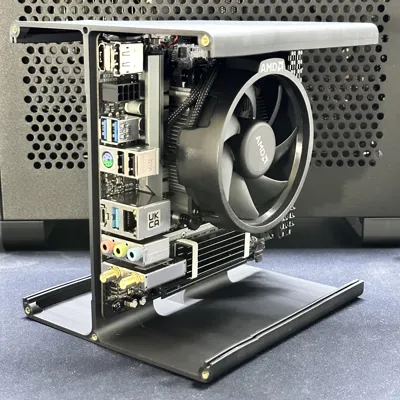

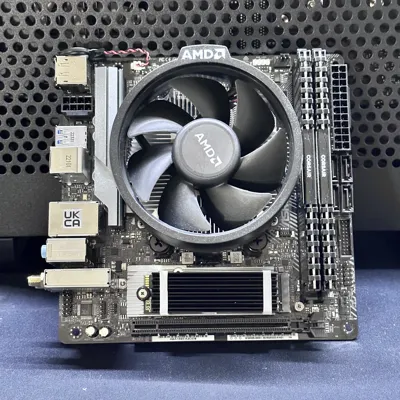

- Mini ITX motherboard

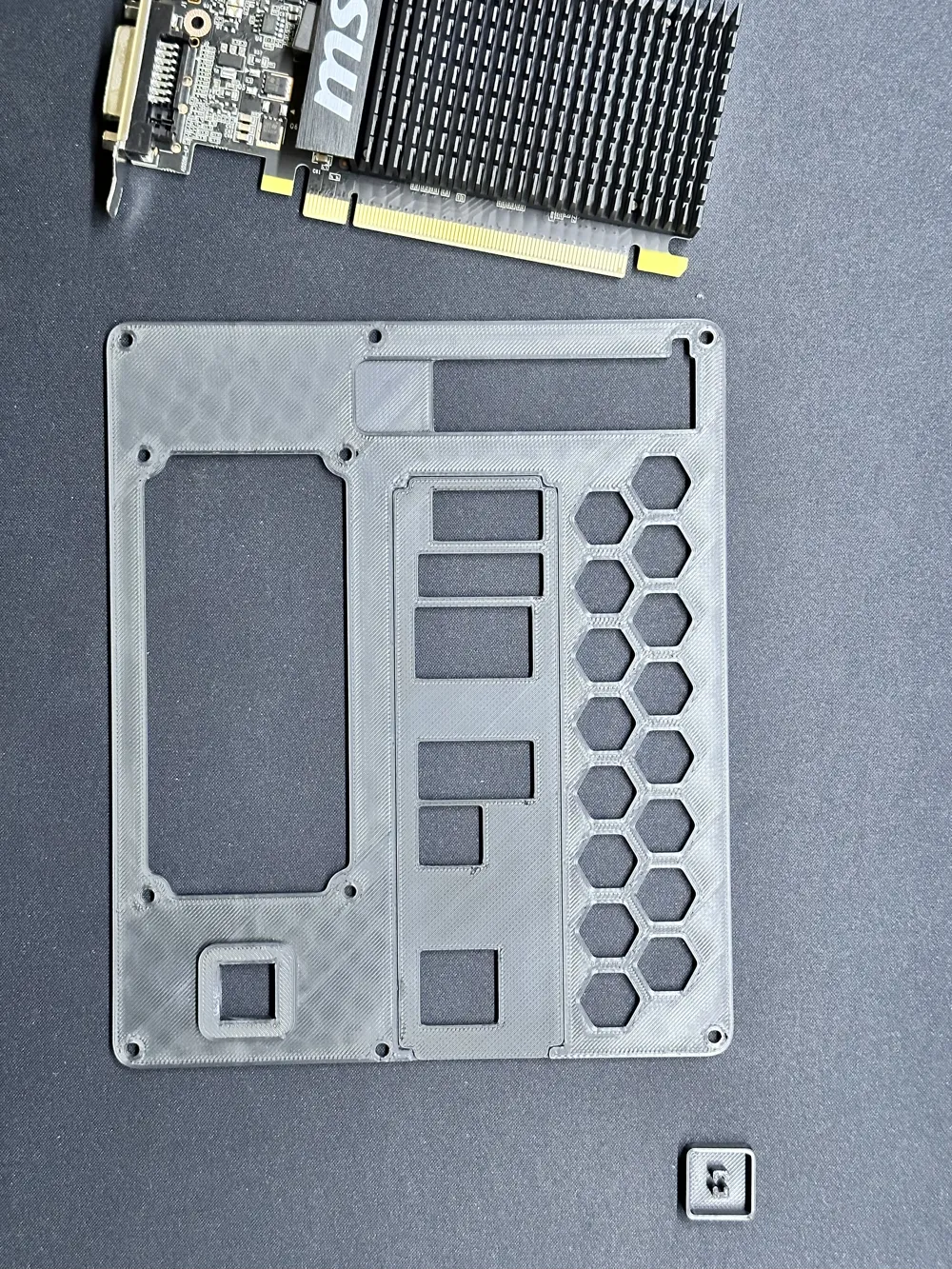

- Single slot low profile PCIE card
- 70 mm CPU cooler clearance (Arctic passive & AMD Wraith Spire will fit)

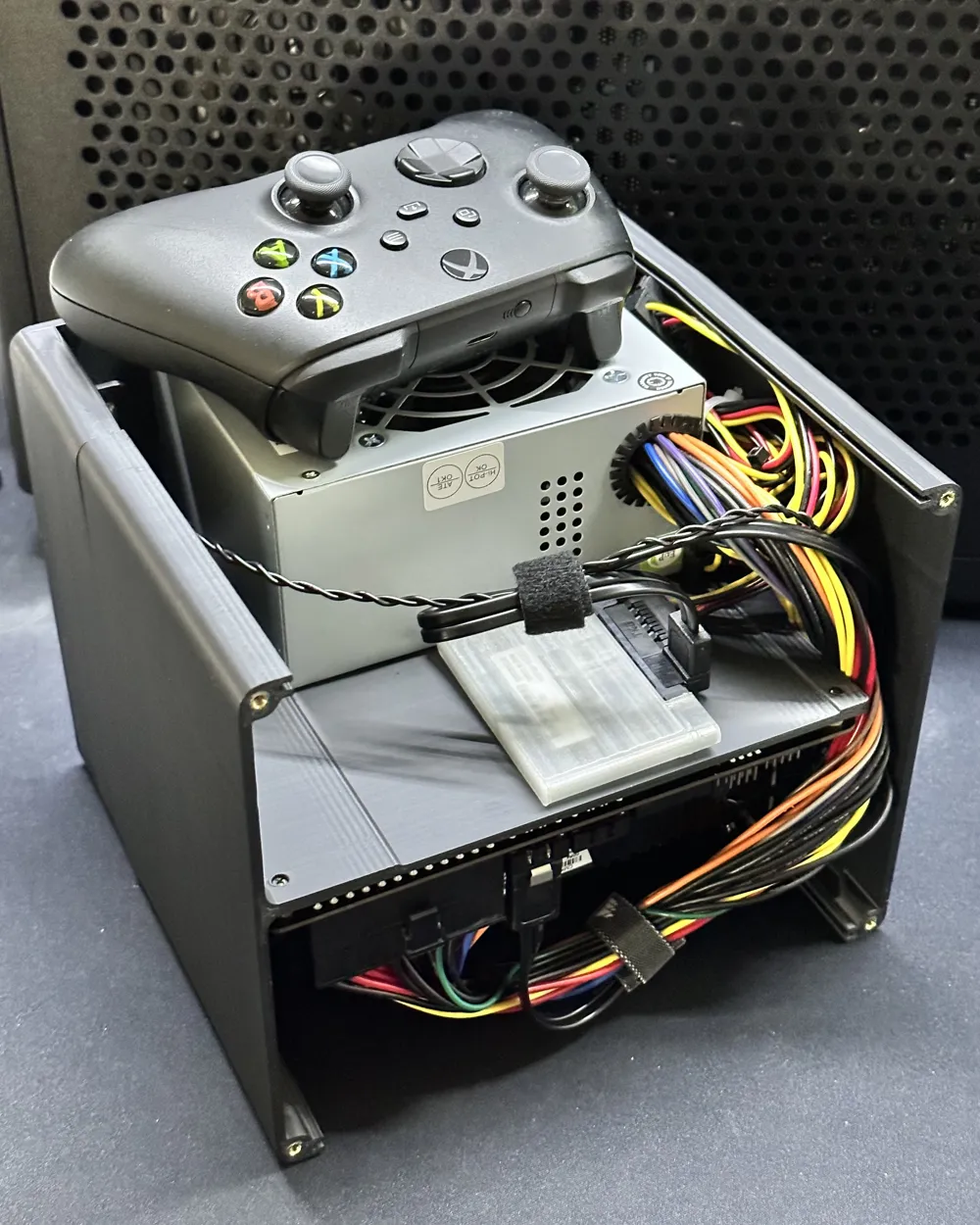

- SFX and SFX-L PSU
- 2.5" ssd under where the PSU cable exits (When using a SFX PSU)

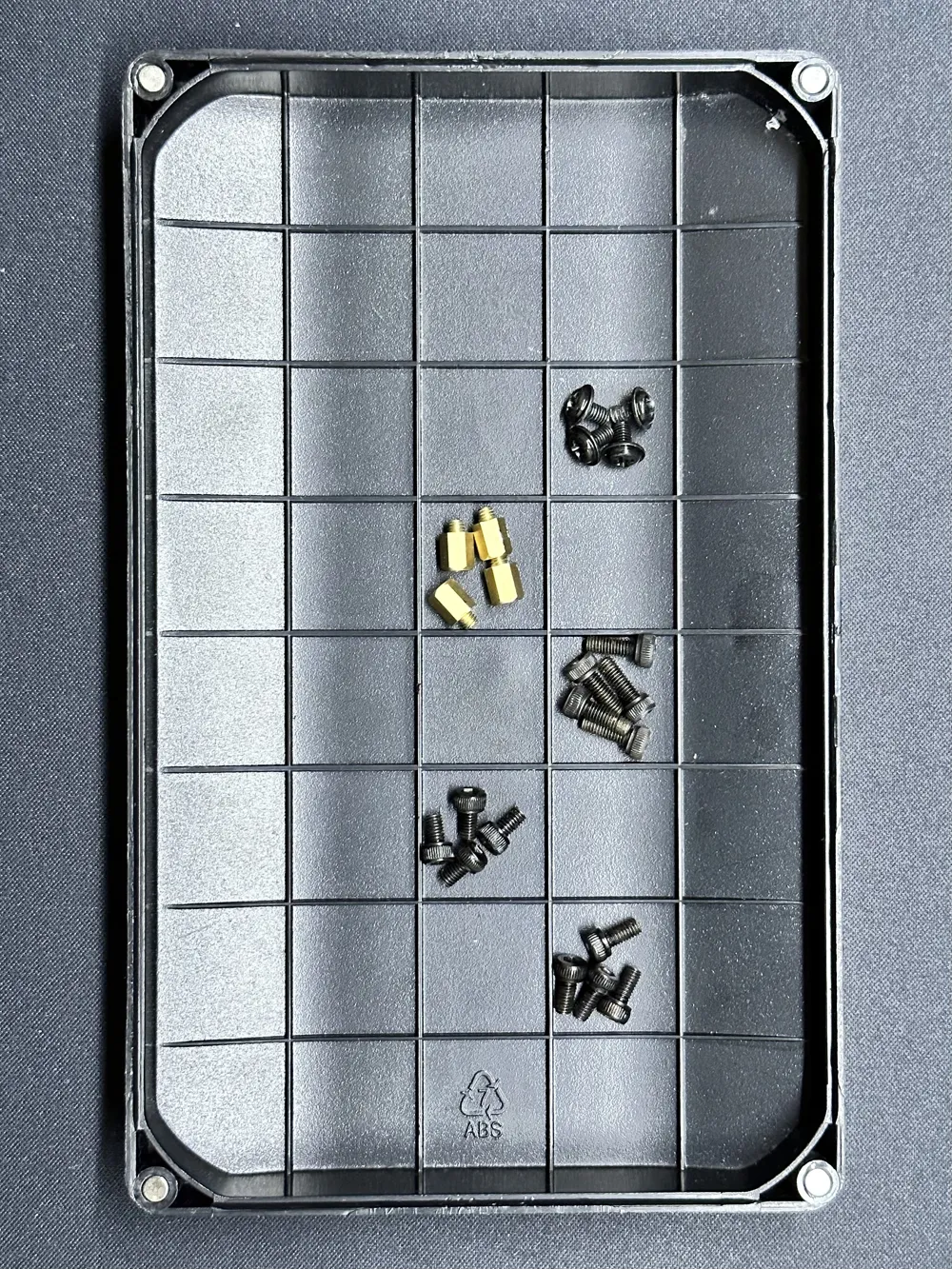

EXTRA MATERIAL NEEDED:
- x14 (min x12)* m3 brass heat insert. The hole I designed is 4.25mm in diameter
- x4 standard 6mm motherboard standoff
- x4 PSU screw
- x4 Motherboard screw
- x8-10* m3 screw for the front and back panel
*the back panel has 6 screw hole but 2 are extra

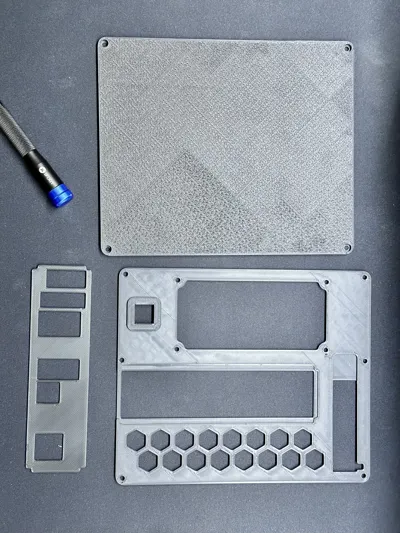

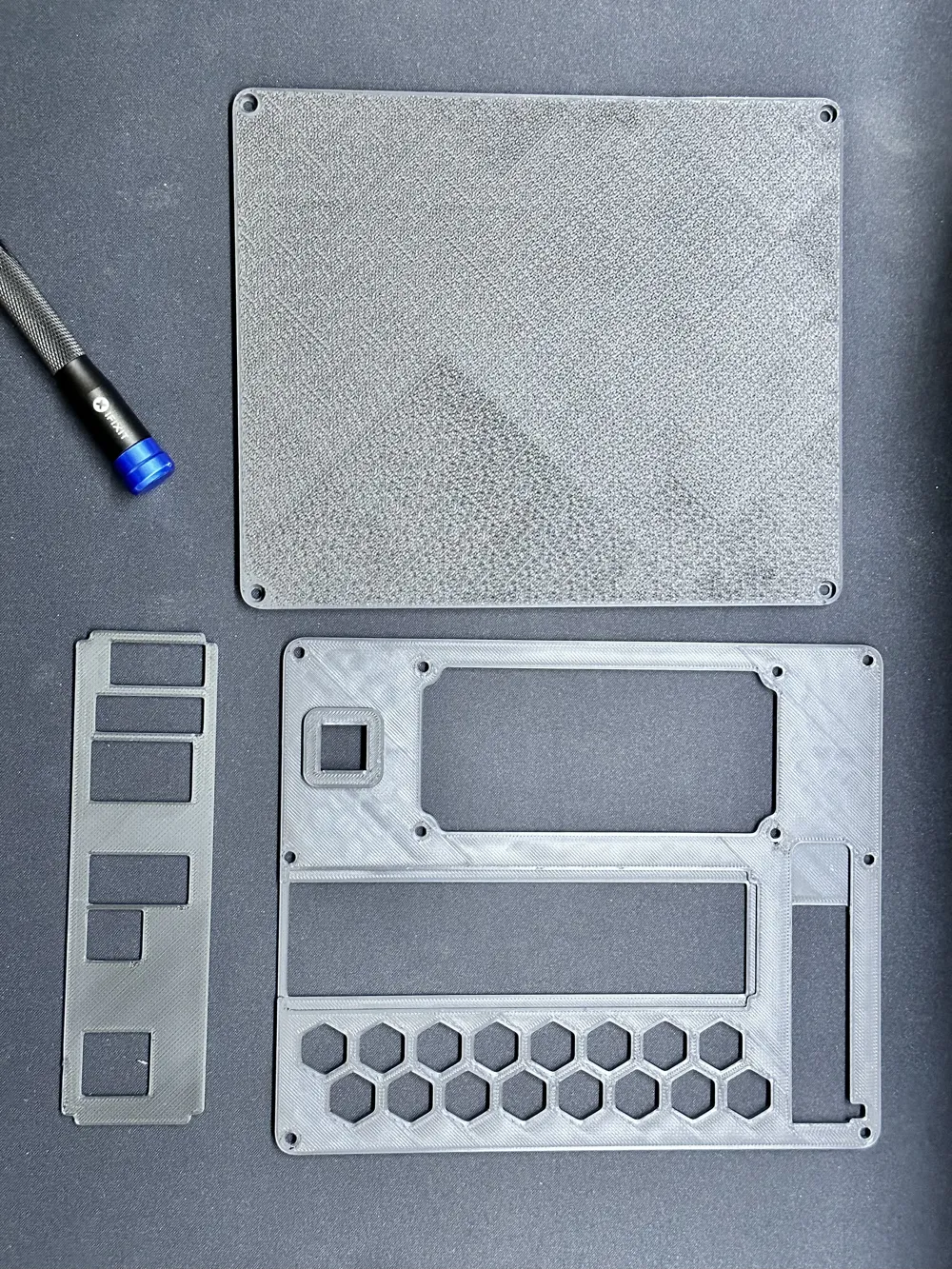

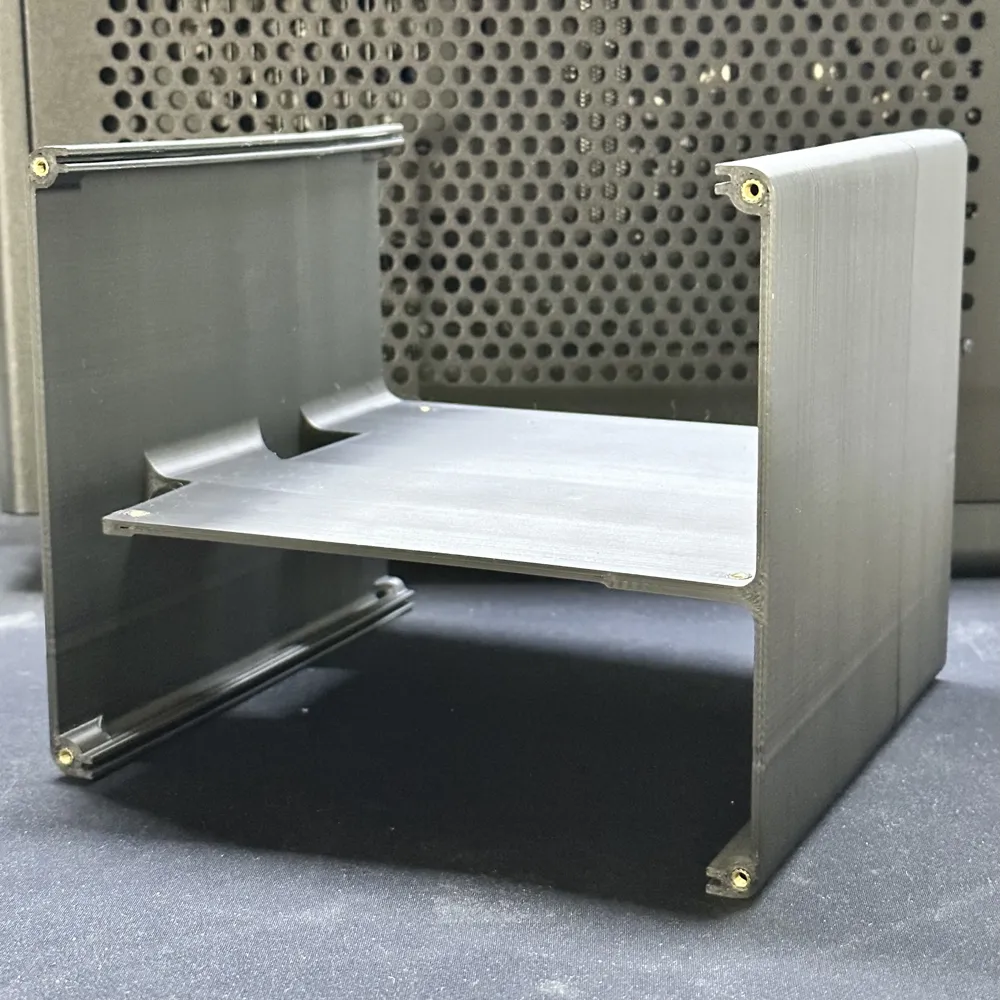

All parts can be printed with basically no bridging. Just orient the parts in the right way

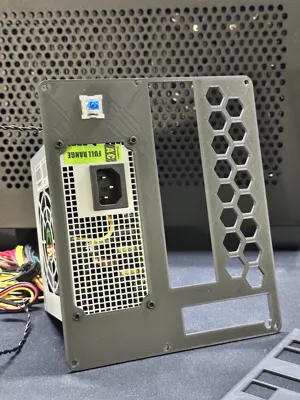

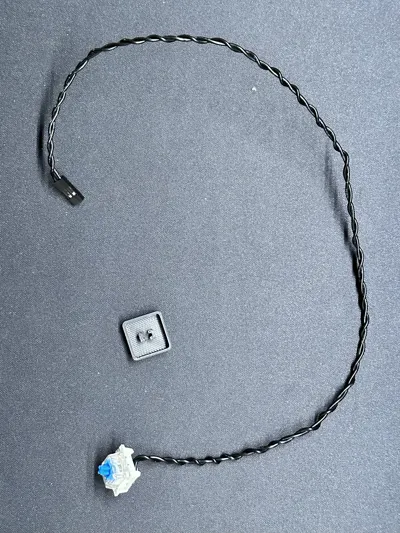

There's a square hole to fit a keyboard switch so it can be used as a power button

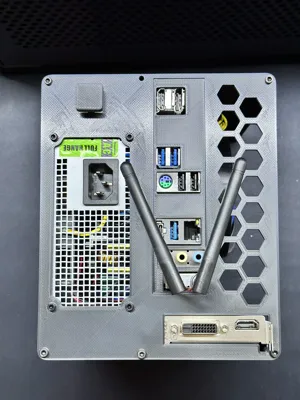

The motherboard IO plate is a separate file. Cut the hole for your motherboard. (Stock IO plate is not supported because it require extra space on the top)
There's also a blank side panel file. You can carve your own design.
