Customizable End Caps – Text & Symbols

These fully parametric end caps are designed to cleanly finish rods or tubes in modular builds — while also adding clear visual labels and engraved symbols.

Designed in OpenSCAD, this model lets you easily customize:

• rod / tube diameter
• wall thickness and tolerances
• engraved text (e.g. M6, M8, size labels)
• decorative or functional front symbols

Perfect for modular frames, workshop builds, display systems, educational setups, or storage solutions, where clarity and a clean finish matter.

This model is part of my Modular Connectors system, designed for building flexible, scalable structures from simple elements.

If you like modular functional and STEM projects, follow for upcoming models.

Key Features

• Fully parametric OpenSCAD design
• Customizable rod/tube diameter & clearance
• Optional engraved text (size labels, IDs, notes)
• Optional front symbol engraving

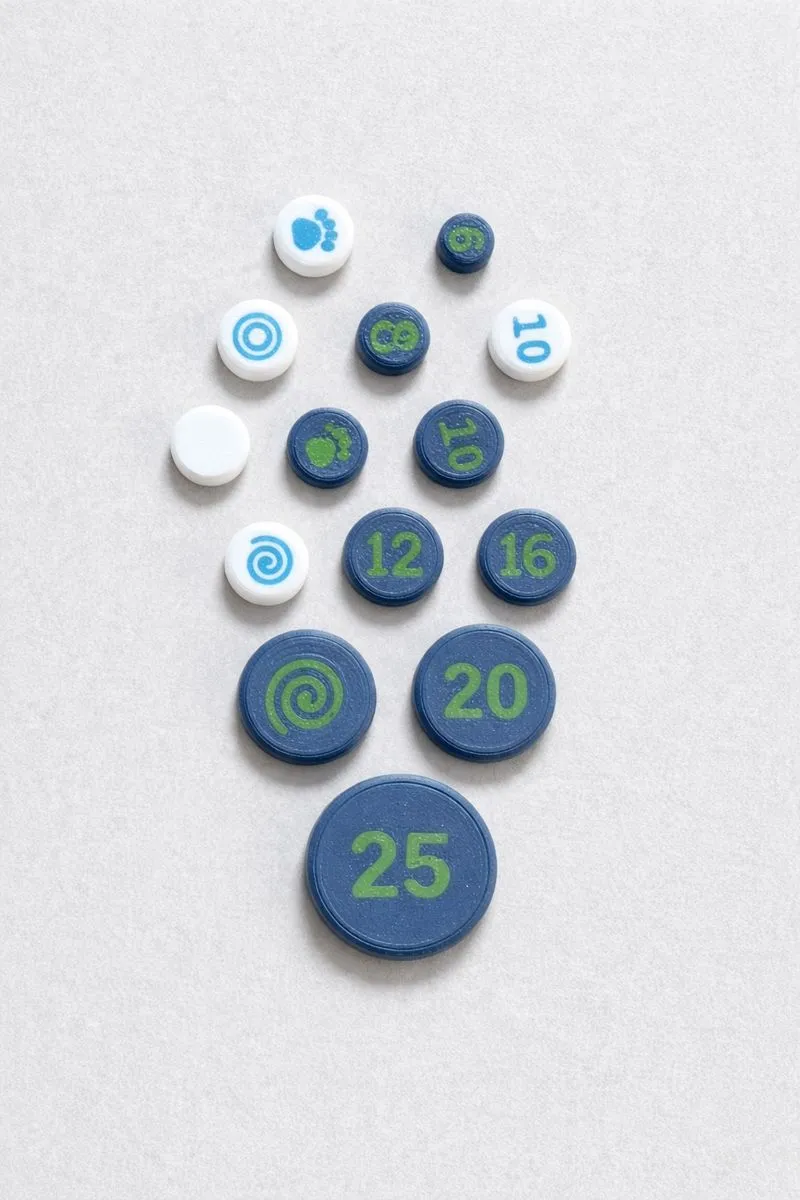

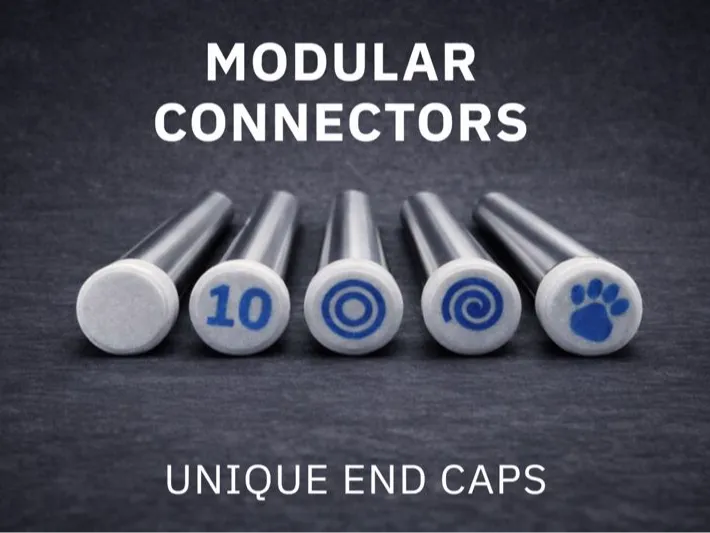

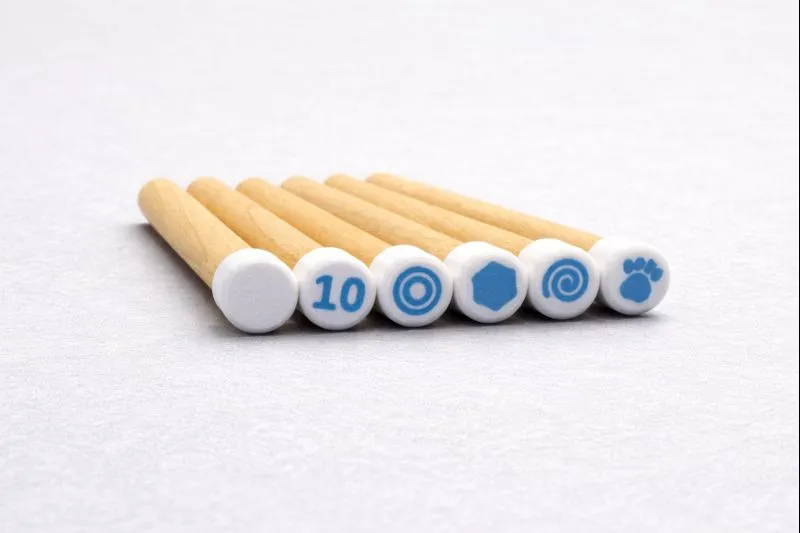

• Multiple built-in symbols:
  • heart
  • hexagon
  • spiral
  • snowflake
  • target
  • paw
• Rounded edges for a clean, finished look
• Designed for support-free printing
• Ideal for single-color or multi-color prints

Export Modes

Use export_mode to generate exactly what you need:

• "lid" – full end cap with text & symbol
• "text" – text only (for multi-color workflows)
• "symbol" – symbol only (for multi-color workflows)

This makes it easy to combine parts in slicers.

Recommended Print Settings

• Layer height: 0.2 mm (or finer for crisp text)
• No supports required
• PLA / PETG both work well
• For multi-color: export text/symbol separately and combine in slicer

Customization Tips

• Increase lid_clearance slightly for tight materials (PETG)
• Use bold fonts for smaller text sizes
• Symbols scale cleanly — ideal for visual size coding
• Adjust text_engrave_depth and symbol_engrave_depth for stronger contrast

Multicolor printing in Bambu Studio

1. Export each stl files you created (lid + text or lid + symbol)

2. Load and print in Bambu Studio

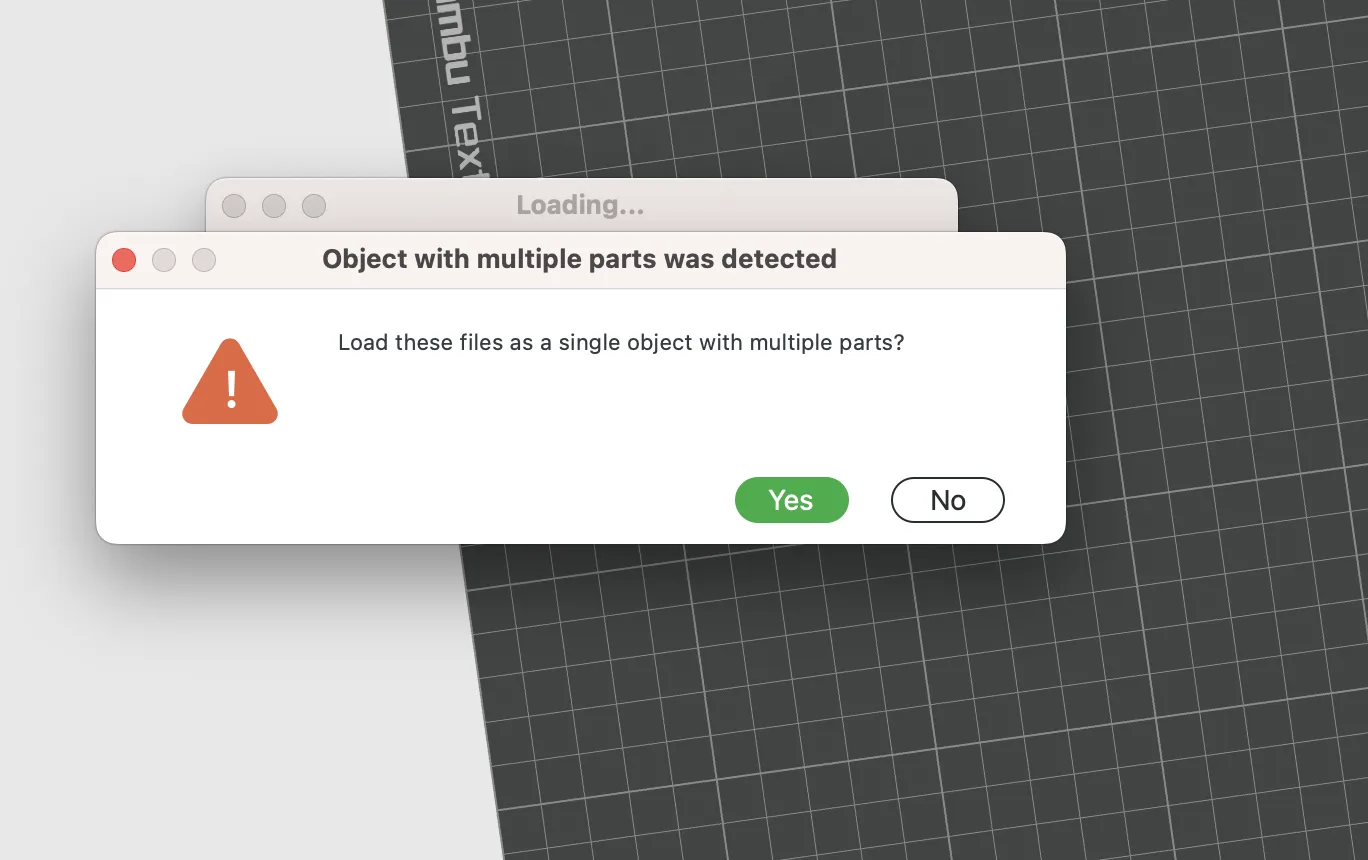

1. Import all STL files simultaneously into BambuStudio



2. Click “Yes” to “Load these files as a single object with multiple parts?”
3. Assign different filaments to the various parts
4. Slice and print
