MetaBall: A Soft End-of-Robot Module
Print Profile(1)
Description

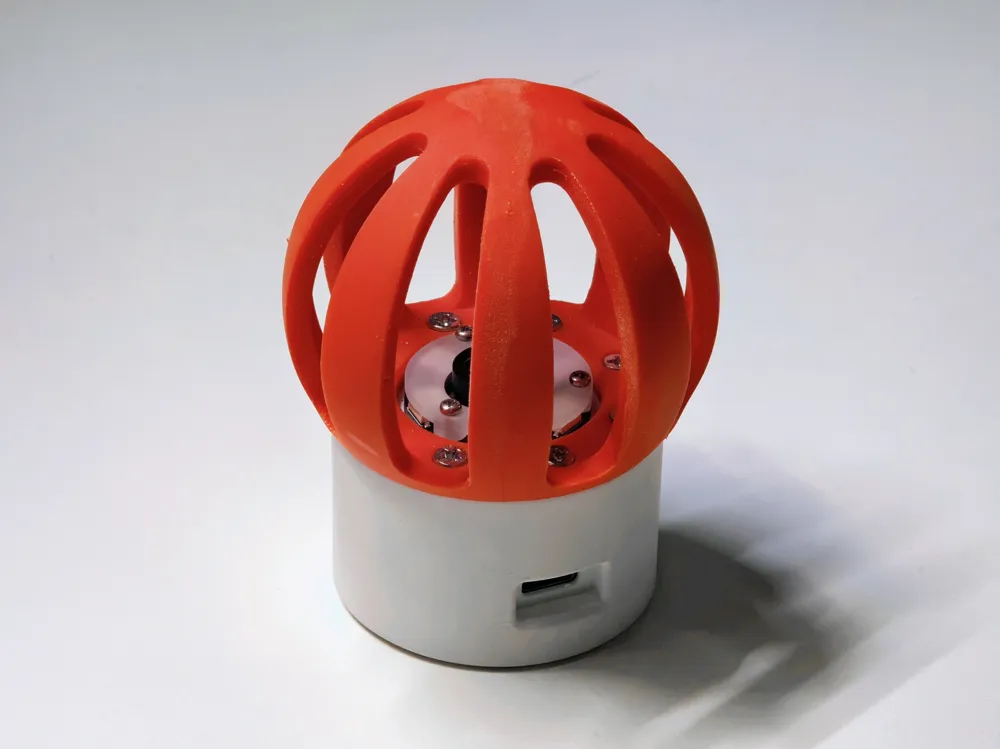

MetaBall is a soft end-of-robot module capable of vision-based deformable perception. It is designed to provide a wide range of motion and sensing capabilities, making it suitable for various applications in robotics, including manipulation, exploration, and human-robot interaction. MetaBall is a member of the Proprioceptive Soft Robotic Modules (ProSoRo) family.
Hardware

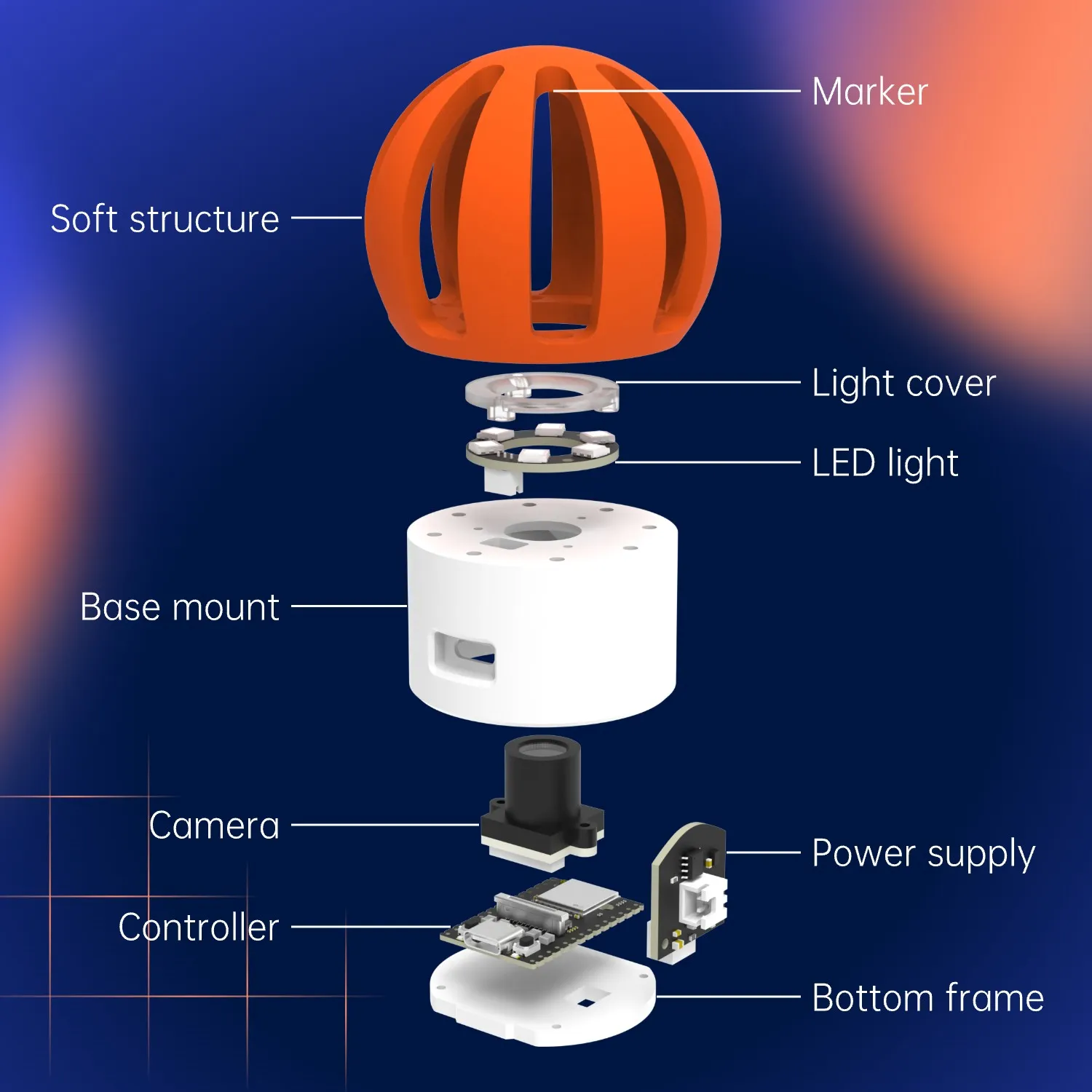

The MetaBall hardware mainly consists of a camera, a controller board, a power board, an LED light board, a soft struture and several 3D-printed parts. The camera is used for capturing images, while the controller board publishes the images through TCP protocol. The power board supports 6-36V input and powers the controller board. The LED light board provides illumination for the camera. The soft struture is made of polyurethane (PU), which is the main part to interact with the environment. 3D-printed parts are used to assemble the camera, controller board, and power board together.
CAD files of the MetaBall are available on Fusion. Please refer to the assembly guide for more details on how to assemble the MetaBall.
Software
After you have an assembled MetaBall, it's available to make it functional using the following repositories:
- Github: https://github.com/han-xudong/metaball
- Hugging Face: https://huggingface.co/han-xudong/ballnet
