Description
Hello, my name is Edward.
Eward is a project of an internet radio receiver based on Esp32.
Why Edward you can ask? Edward was my beloved grandfather who passed away few months ago. He was carpenter and he also build and create many things. In this way i want to honor him.
Eward is my first so complex project so you can find some bugs in design, nevertheless i built this form scratch without bigger problems.
Fell free to comment ask questions etc.
In project file you will find complete bill of materials with links where to buy everything you need to build this masterpiece of craftsmanship :)
Knobs and led housing you will find here:
https://makerworld.com/en/models/1652026-rotary-encoder-knob-with-led#profileId-1746707
Print PEI plates that i used :
Edward usues ESP32-S3 N16R8 as a brain;
link:
Software used to run this radio is here:
https://github.com/VaraiTamas/yoRadio
Speaker, they are doing grate in that eclousure, good sound quality and quite loud:
WARNING : i have 4 sets of them and every single pair of them has a little different holes, so if holes in case missalling just drill another sets of them.
Display is no touch 4 inch tft lcd:
Quite big but prurpose of this radio is to stand in my mother kitchen, she is not a teenage anymore so smaler was inconvininet.

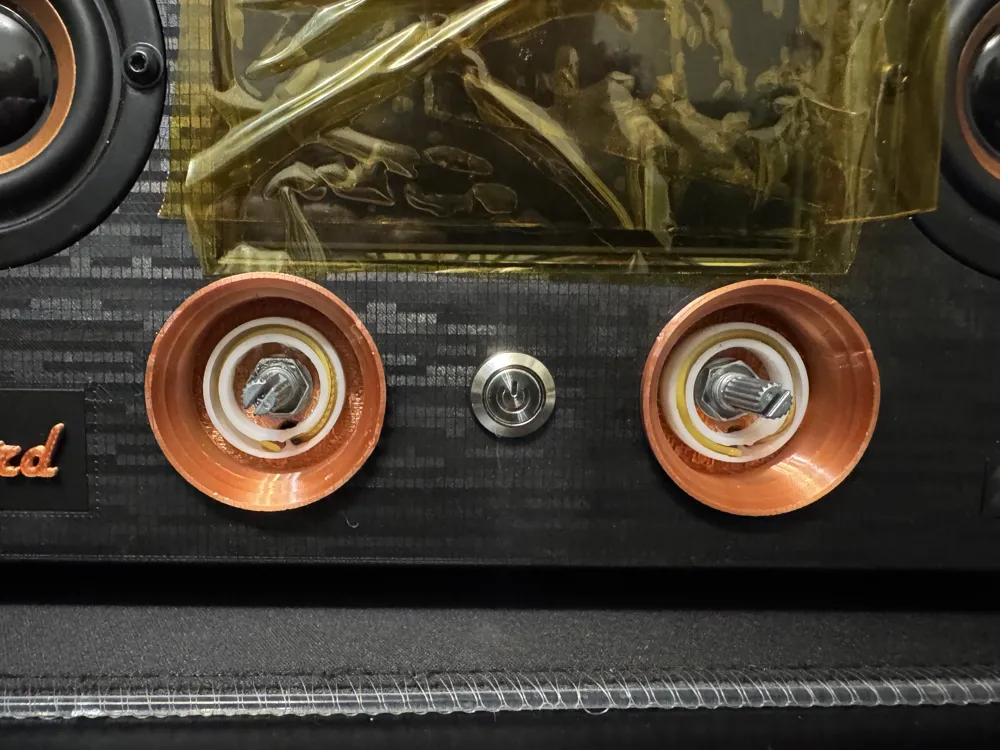

Led under the encoders:
Design of it and idea was made before by Michał aka Rajmax everything about it is in his profle on Makerworld.
https://makerworld.com/en/models/1652026-rotary-encoder-knob-with-led#profileId-1746707
Encoders :
Powerbutton, and here stop, i recomend a bigger one, 12mm is too small in my opinion but looks grate.
Simple wifi antena:
Amplifier i have chooen this one couse i has regulation for each channel. If at maximum volume on radio sound i cracking trun those regulators down. Amplifier has enought power for those speakers:

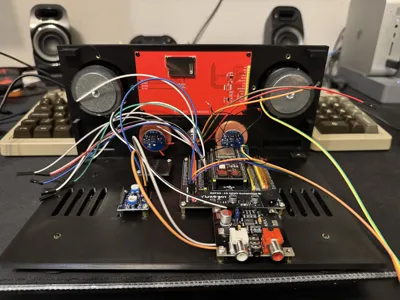

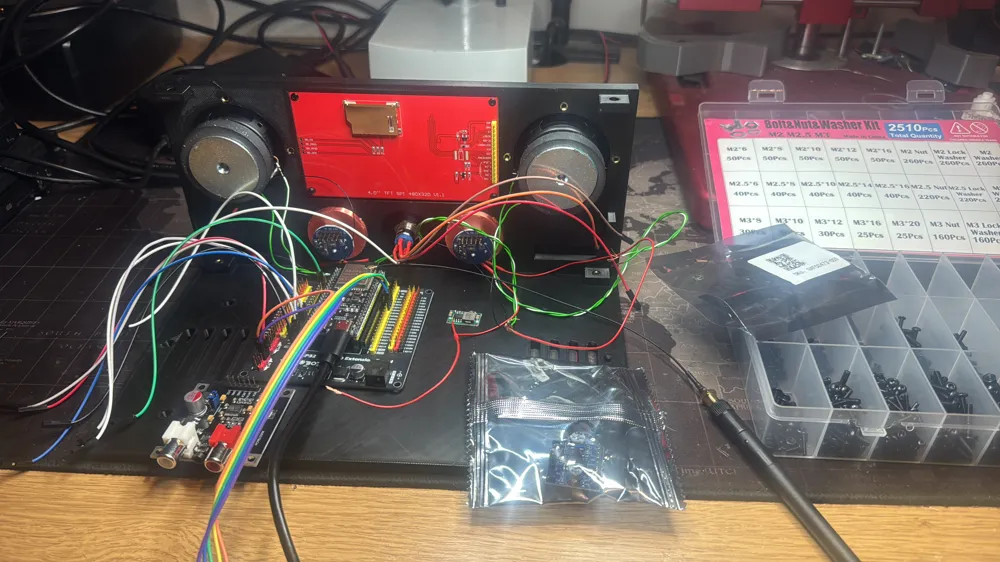

Expansion board for esp
Attention : you can connect encoders to 3.3v and they are working fine, not enought 5v outs on this board. but if you switch dispaly for 3.3 it will be enought for both encoders. For me they are working just fine under 3.3v
Usb extension for programing via usb and using radio without powered on amplifier :
Standard DC connector you can find that one also on Aliexpres but i bought it in Poland, it was faster:
DC 9V adapter is used to power this monster :
DC Buck Converter Step Down led regulation it is used for voltage regulation for leds working under knobs, as Michał said the are to bright and they are become hot so you can lower the voltage using screwdriver, simple and easy:
Dimmed 2mm plexi as a screen cover:
Hex columns:
Cables, i recomned those ones if you want good quality :
But if you want cheap ones :
Power switch for amplifier, i used it for disabling power to speakers if you want to use rca or aux out:
Some screws:
