Window screen bottom right corner 160mm inner diameter PVC pipe adapter
IP Report
Print Profile(1)
0.2mm layer, 6 walls, 25% infill
Designer
14.3 h
1 plate
Open in Bambu Studio
Boost
2
2
0
0
0
0
Released
Description
Content has been automatically translated.

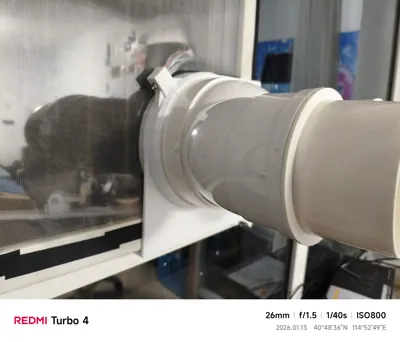

This is an adapter frame for connecting an exhaust duct to a screen window.
Hardware required: Three sets of M4*25 screws and nuts

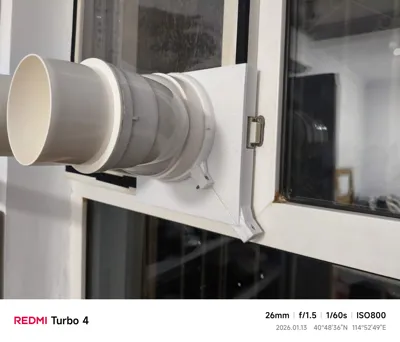

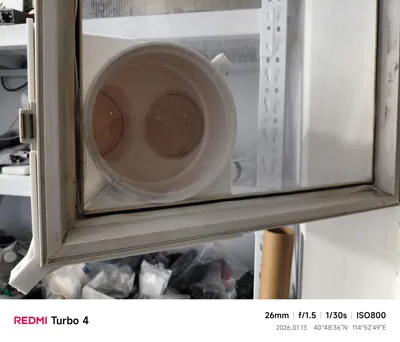

Please ensure your window matches the one in the picture before printing
Printing suggestions:
Try printing at 100% speed first; if it doesn't work, try 50%
- It is recommended to enable "Circular Axis Hole Compensation" after turning on developer mode (I successfully printed with this setting enabled; not enabling it may lead to excessively tight tolerances).
- Due to the model's large area, it is highly prone to shrinkage. When printing with PETG, I even pulled the printing plate directly off the heated bed (lol). It is recommended to ensure good heated bed insulation, or print in two plates.Note, the two halves of the model are not identical!!
- The support surface may not be perfect, but it does not affect functionality. Friends who prioritize aesthetics can try printing the support surface with dedicated support material.
- If possible, it is best to print with ABS, as the window area may require temperature resistance. I don't get sunlight here year-round, so it doesn't matter to me.DO NOT use PLA!!! It will degrade!!!!
Design notes:
This model is compatible with PVC pipes of 160mm inner diameter (6mm wall thickness).
Note: I designed this size because I used a 160-110-110 T-joint. If you only need to connect a regular 110 pipe, you can modify the model yourself.
This is the first model I've uploaded; please show your support!
