KLR Oil Fill Funnel (Screw in)
Print Profile(1)
Description
I got sick of funnels that didn't fit in to my bike. So i made one.
https://www.youtube.com/shorts/qi6h9ViouRc

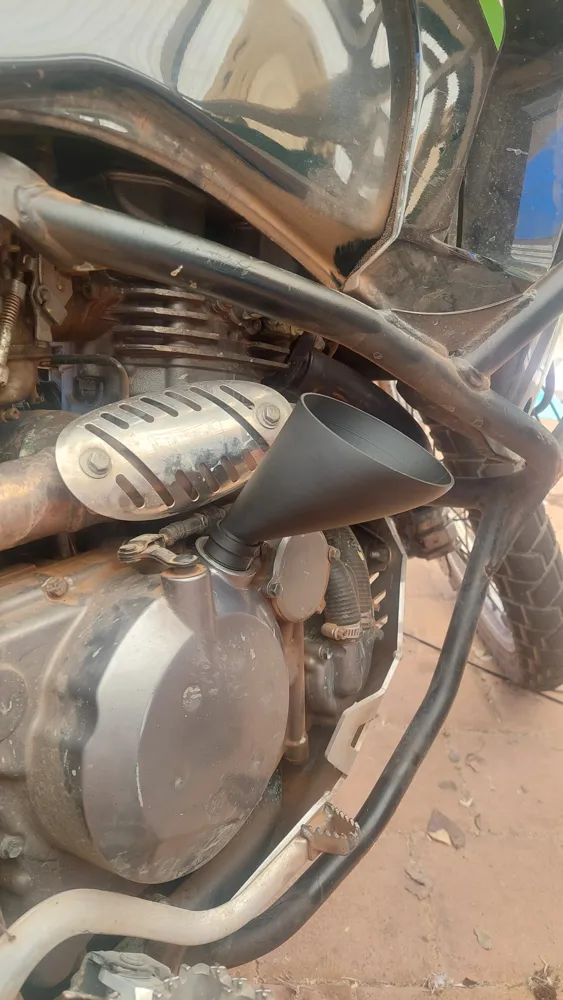

This is a print in place funnel with a screw in design, Its designed on an angle to get around the exhaust on my KLR 650. The thread is m30 1.5mm pitch so it will probably fit some other bikes too.
If there is enough interest i may expand the sizes.
If you like my work please show some love and buy me a coffee!
https://www.buymeacoffee.com/bchambro
Print settings.

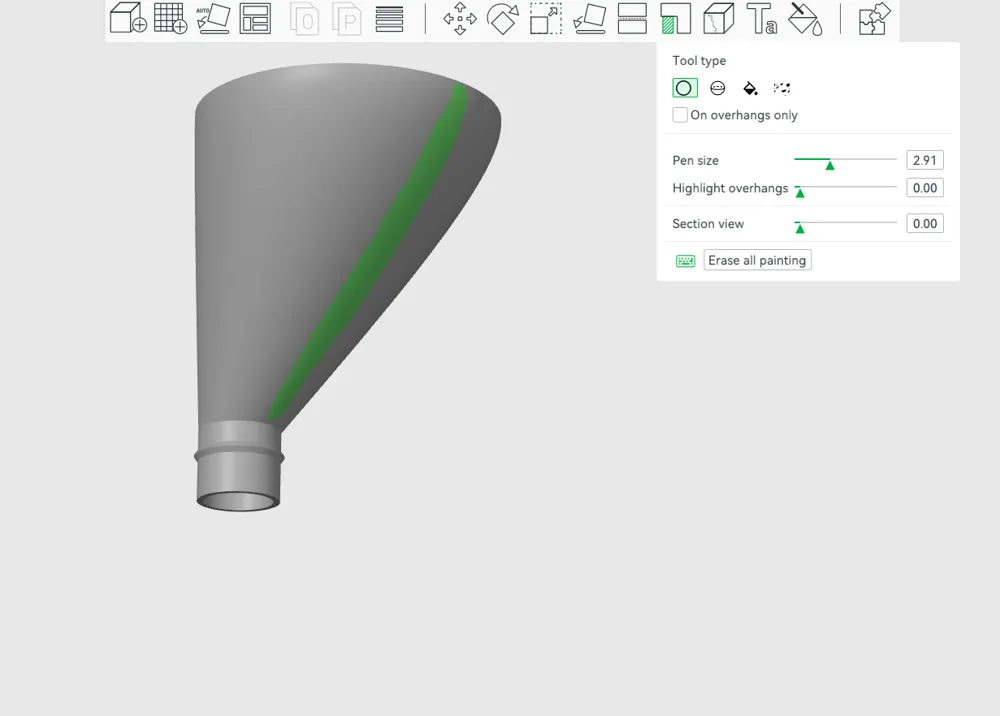

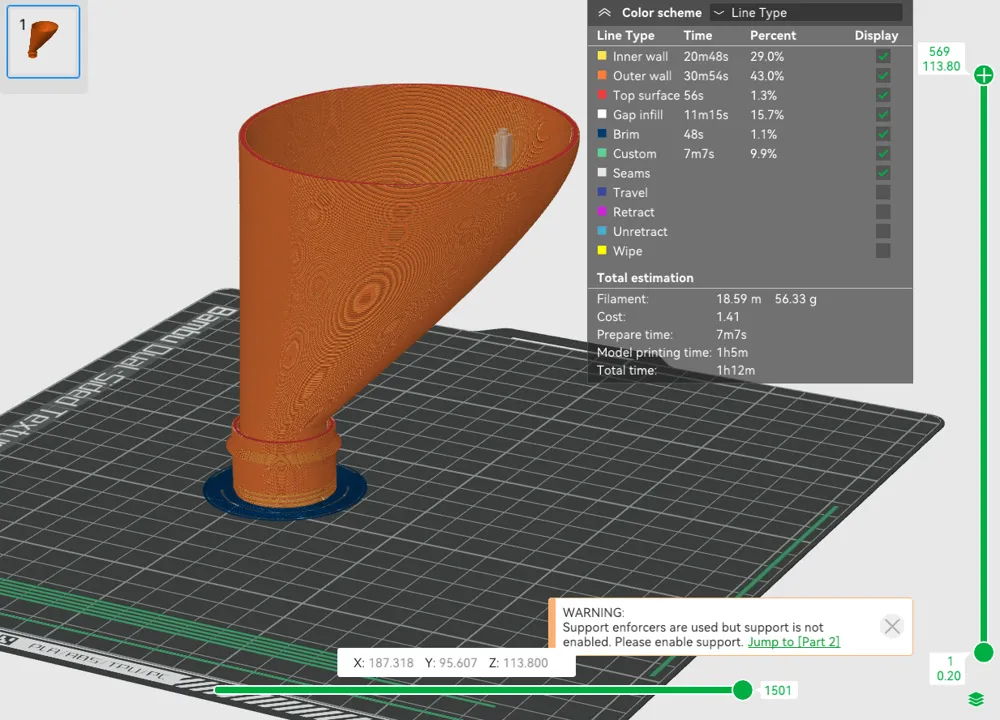

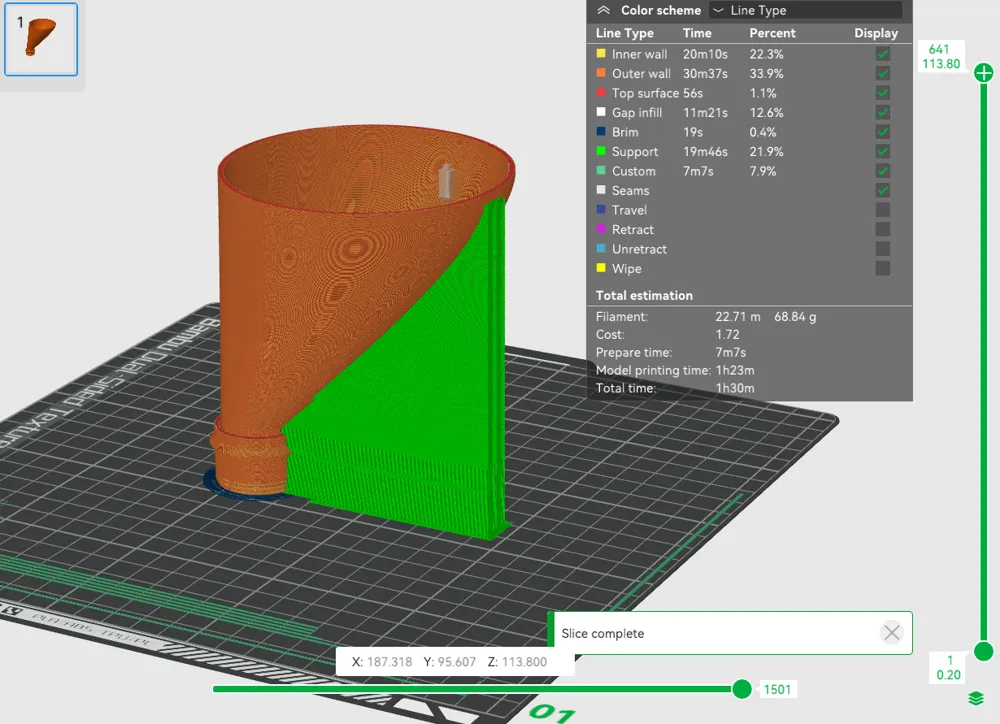

Print is oriented correctly. Just add a brim and send it. Or paint one line of support and give it a brim if you're worried about bed adhesion.
Should be able to print on most printers. But you'll need to be able to print with 0.4mm tolerances.
Layer height: i printed this with variable layer height just at the threads. 0.08-0.12mm and then 0.2mm the rest but could do heaps more.
Infill: Doesn't really matter 15%+
Wall loops: 3-4
Material: Won't matter. I printed with ABS as it was in my printer at the time.
