Inlet Valve for Ingersoll Rand 7802SA Air Shear
IP Report
Print Profile(1)
0.2mm layer, 7 walls, 15% infill
Designer
16 min
1 plate
Open in Bambu Studio
Boost
0
0
0
0
0
0
Released
Bill of Materials
List other parts

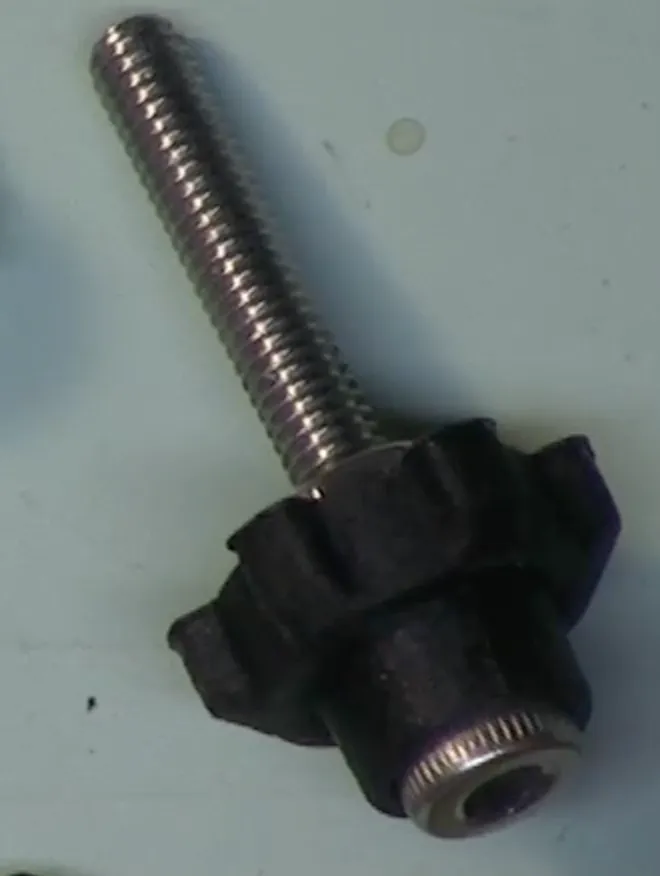

- M4 screw 30mm x 1: can use longer and cut
- M4 hex nut x 1:
Description

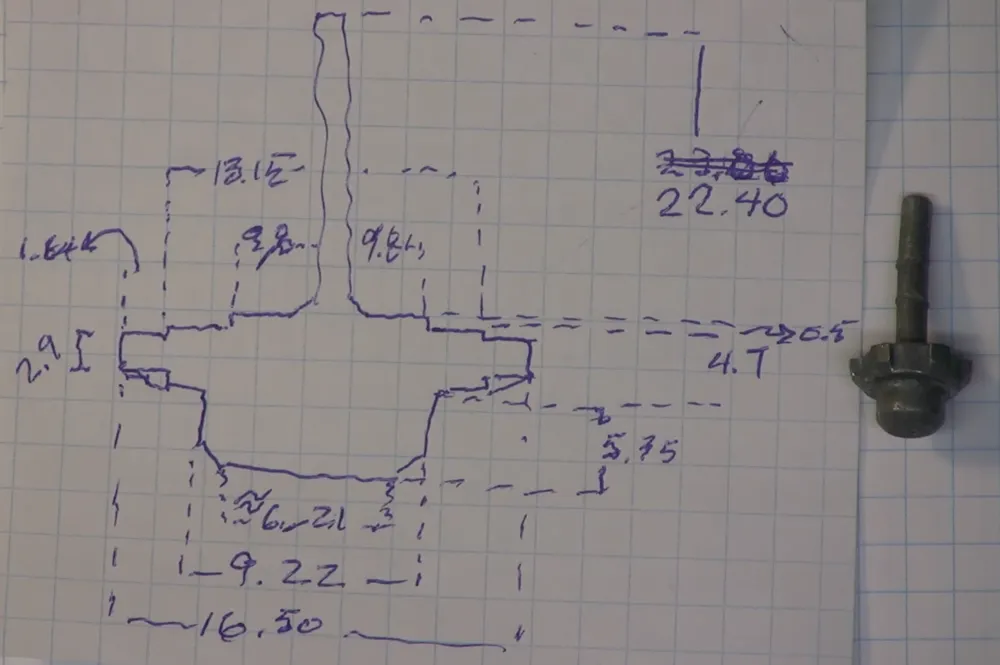

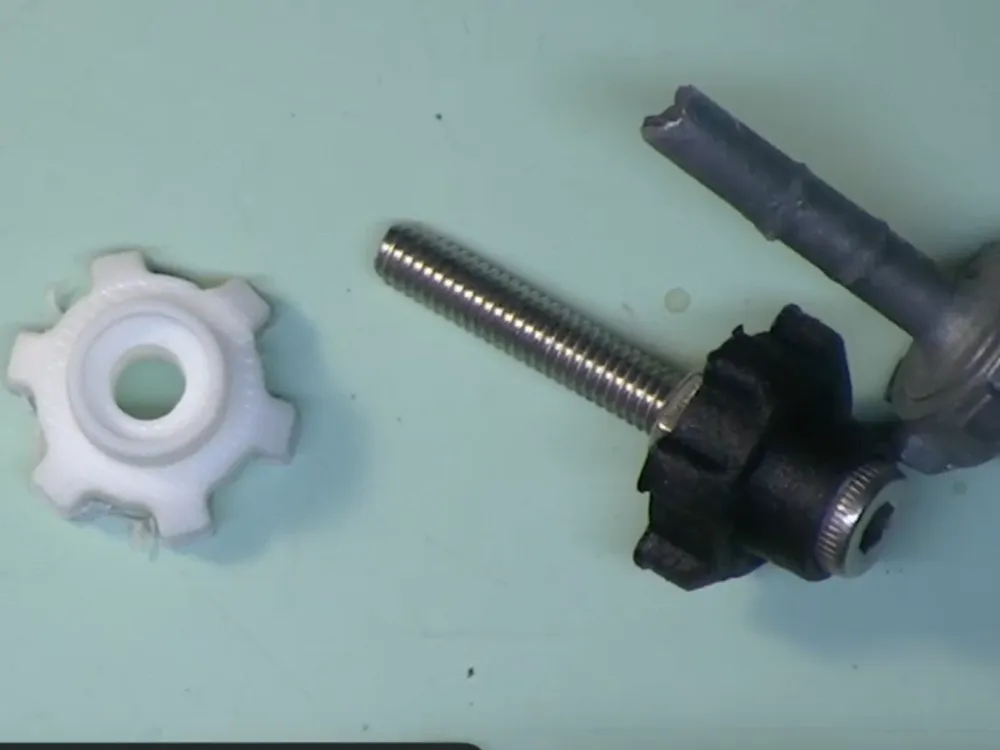

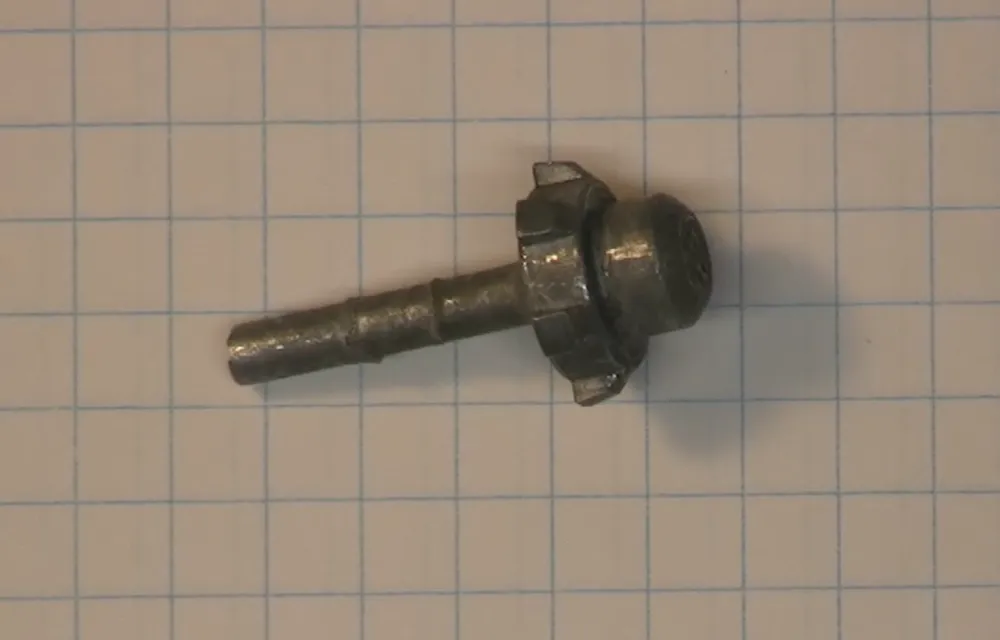

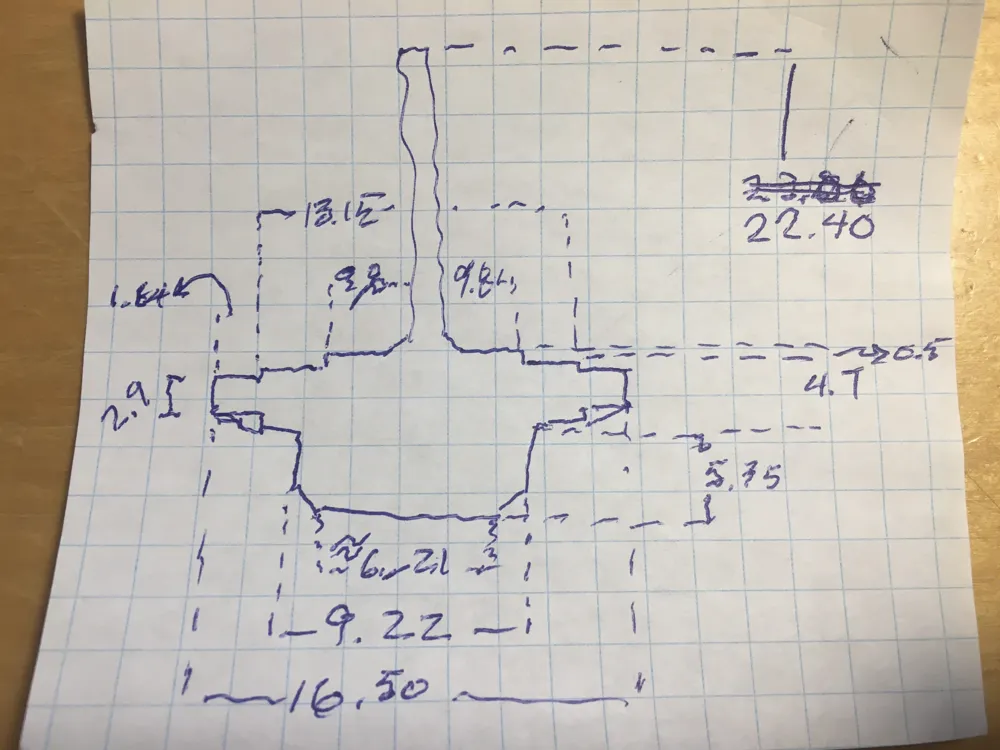

Inlet valve for tool Ingersoll Rand Air Shear 7802SA (and probably many others). I included a detailed (ugly) set of measurements of the broken part. Two version are included: one valve with an M4 bolt and nut and one with an M5. I used the M4 in my tool.
Printed using the included .3mf file with PET-CF filament. There is a bit of bridging and I didn't want to use support so I slowed the speed and increased flow for the bridges.
