Tool-Free Slide-In Case for ESP32-P4-WIFI6
Print Profile(1)
Description
I designed this custom case specifically for the ESP32-P4-WIFI6, focusing on simplicity, strength, and ease of use.

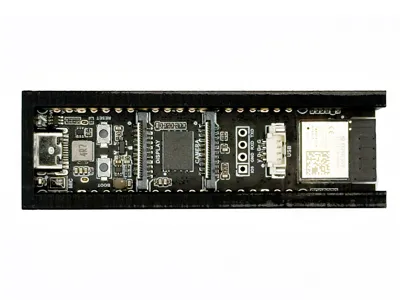

The case uses a slide-in drawer design that securely holds the ESP32 without any screws, clips, or supports. The board slides in from the side and locks in place through a tight, friction-fit channel. The fit is intentionally snug on first use to keep the board secure during normal handling.
After sliding the board in and out a few times, the fit naturally loosens just enough for smooth operation—without sacrificing hold.

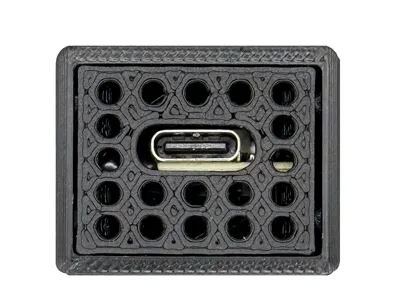

The back features a polygonal vent pattern for airflow and visibility, while still protecting the board. All ports and connectors remain fully accessible.
This design has been physically tested with:
- A generic ESP32-P4-WIFI6 from AliExpress
- A Waveshare ESP32-P4-WIFI6
Both versions fit cleanly and securely.
Features:
- No screws or supports required
- Slide-in drawer design
- Snug fit by design (loosens slightly with use)
- Tested with multiple ESP32-P4-WIFI6 boards
- Ventilated polygon cutout pattern
- Clean, minimal, print-friendly geometry
Perfect for desk projects, prototypes, and clean installs where you don’t want to deal with hardware.
Boost Me (for free)
A boost always helps me to keep designing these stands for other devices! Feel free to comment if you need one for a particular device
