Description

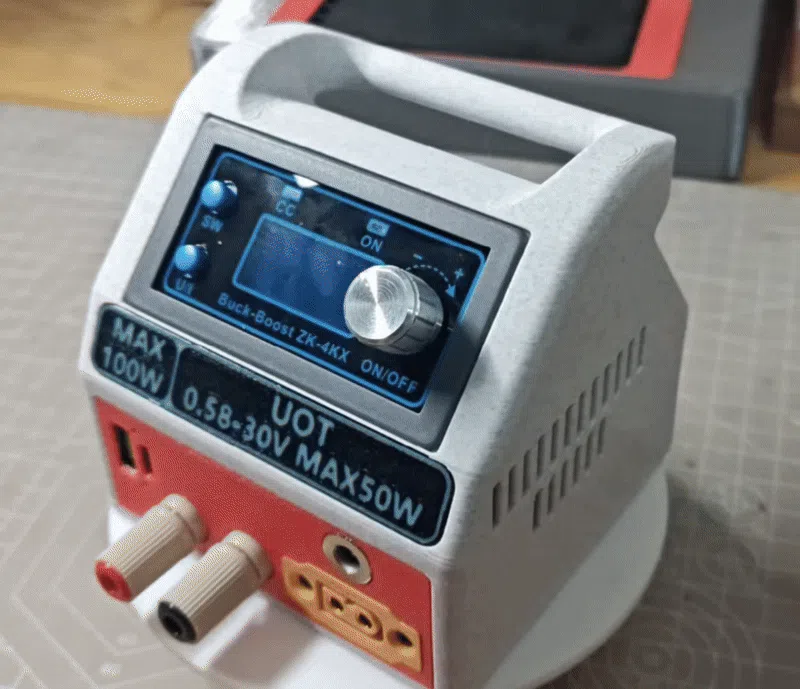

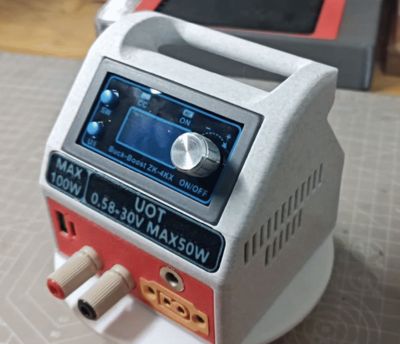

A meticulously designed, multifunctional adjustable power supply that integrates aesthetics, portability, practicality, and powerful performance. It features diverse input and output options, a wide voltage range, a high-current 6538 dual-port MAX 100W fast charging module, undervoltage protection, and more. For detailed configuration, bill of materials, and installation steps, please refer to the print profile.

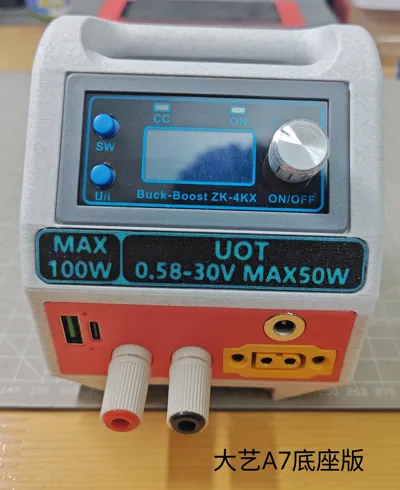

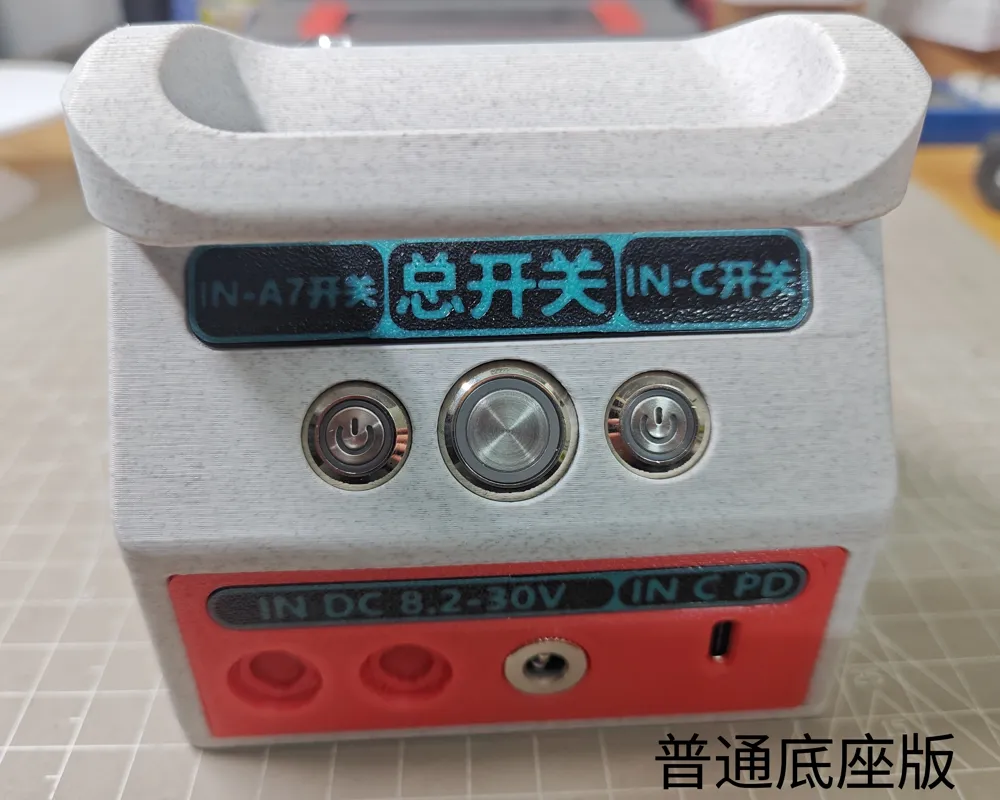

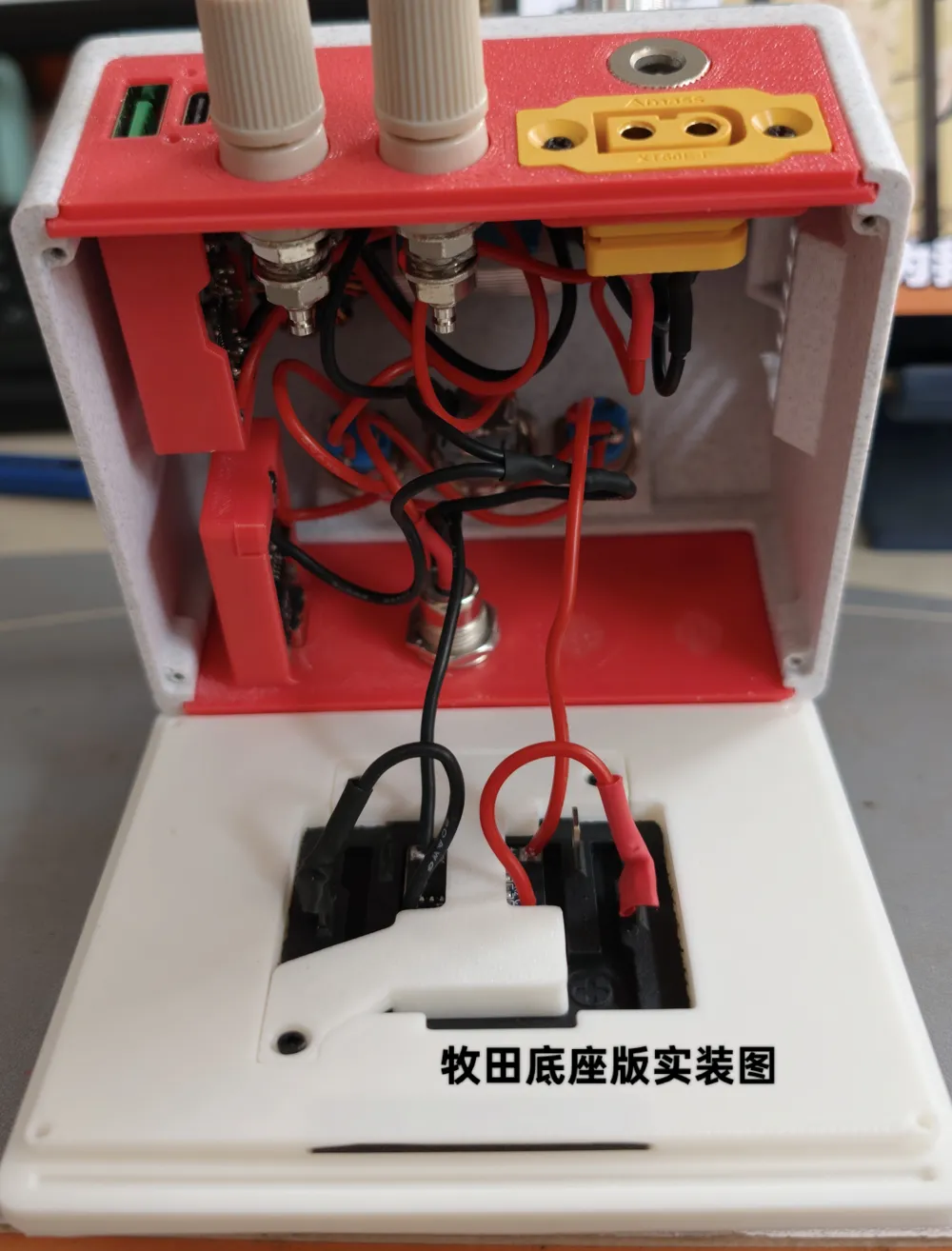

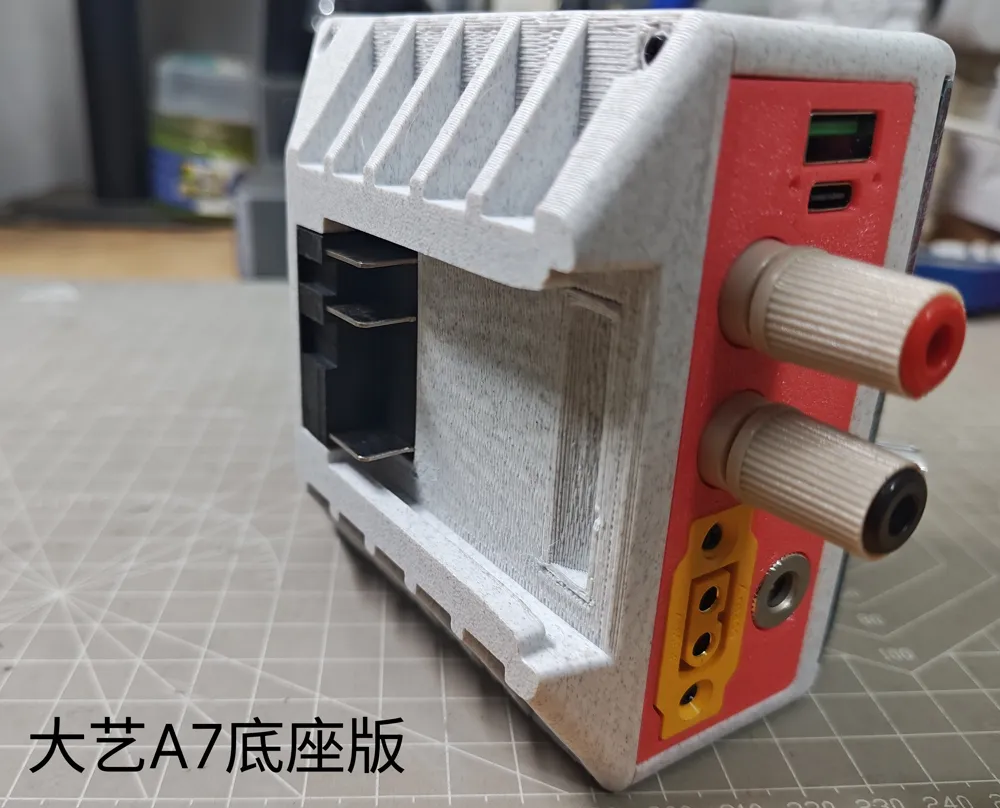

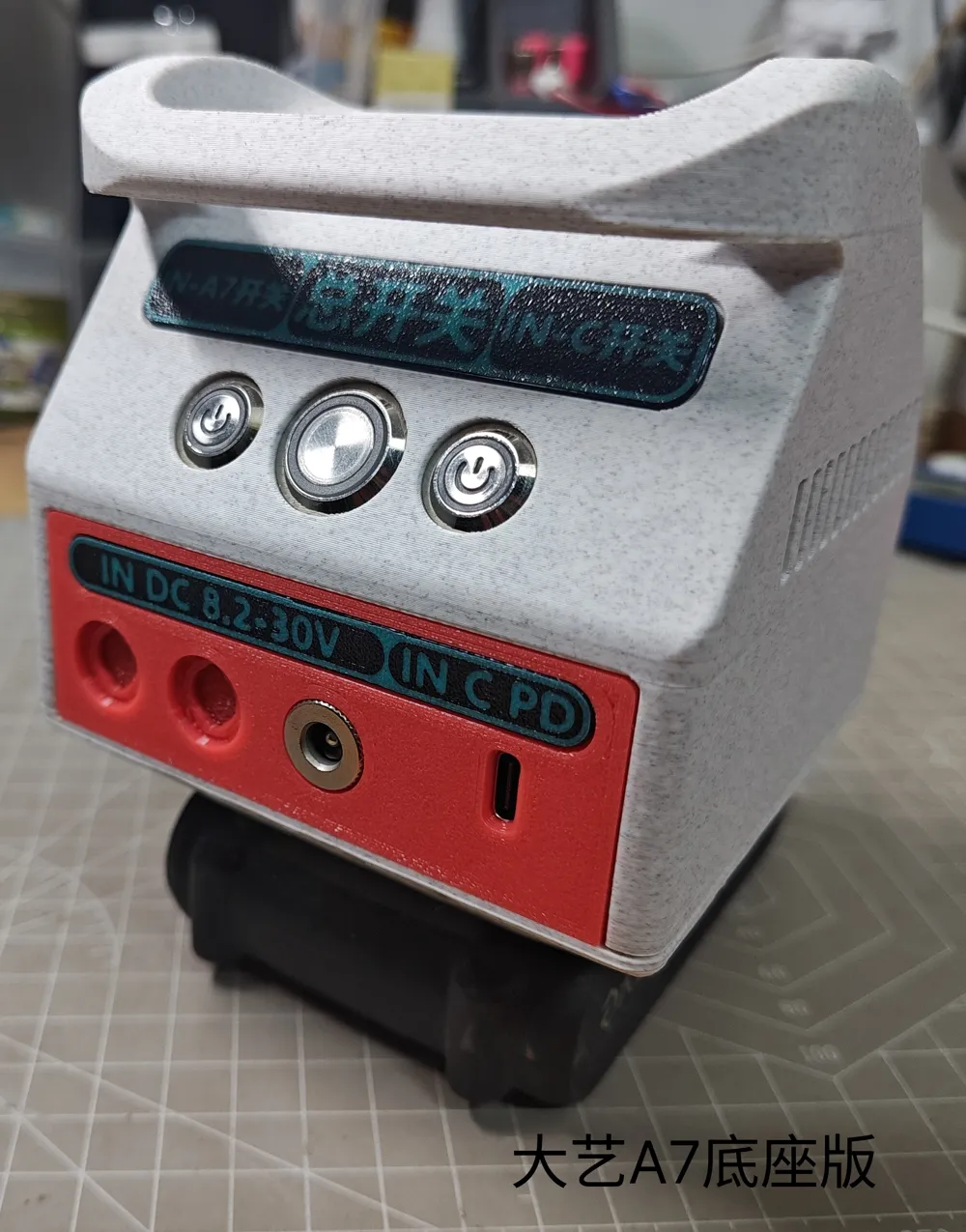

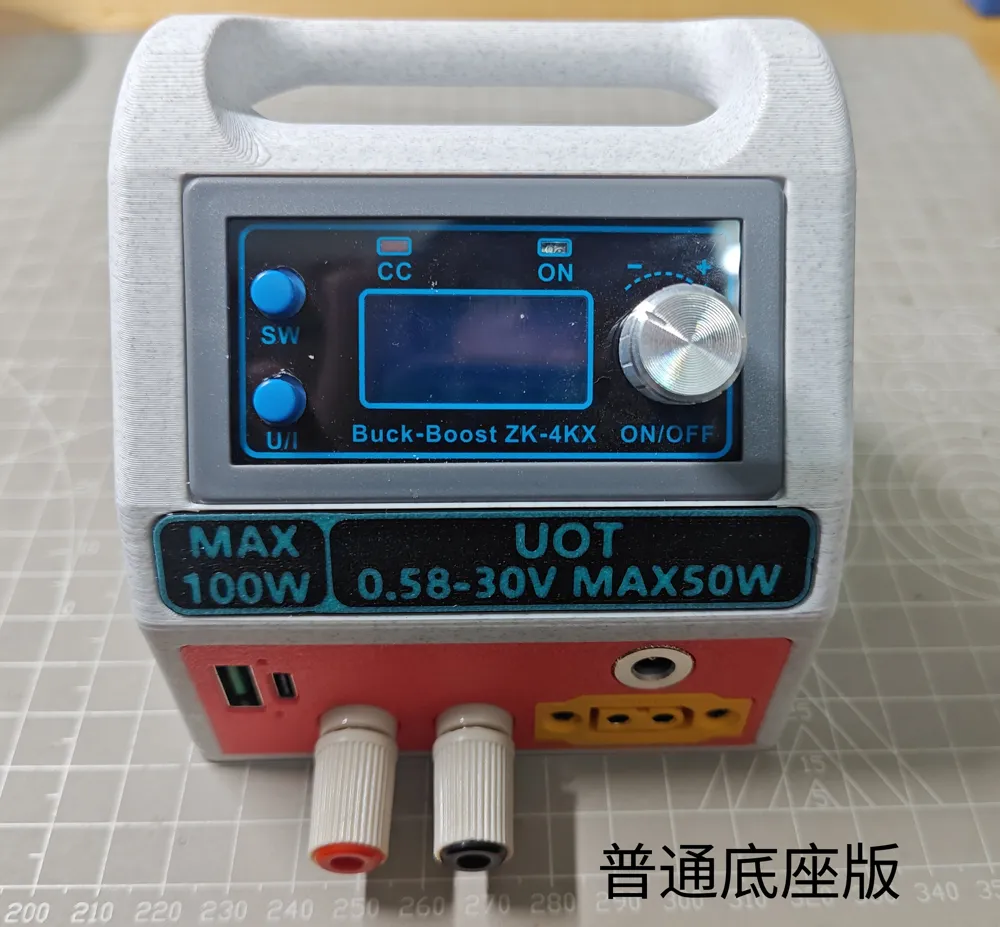

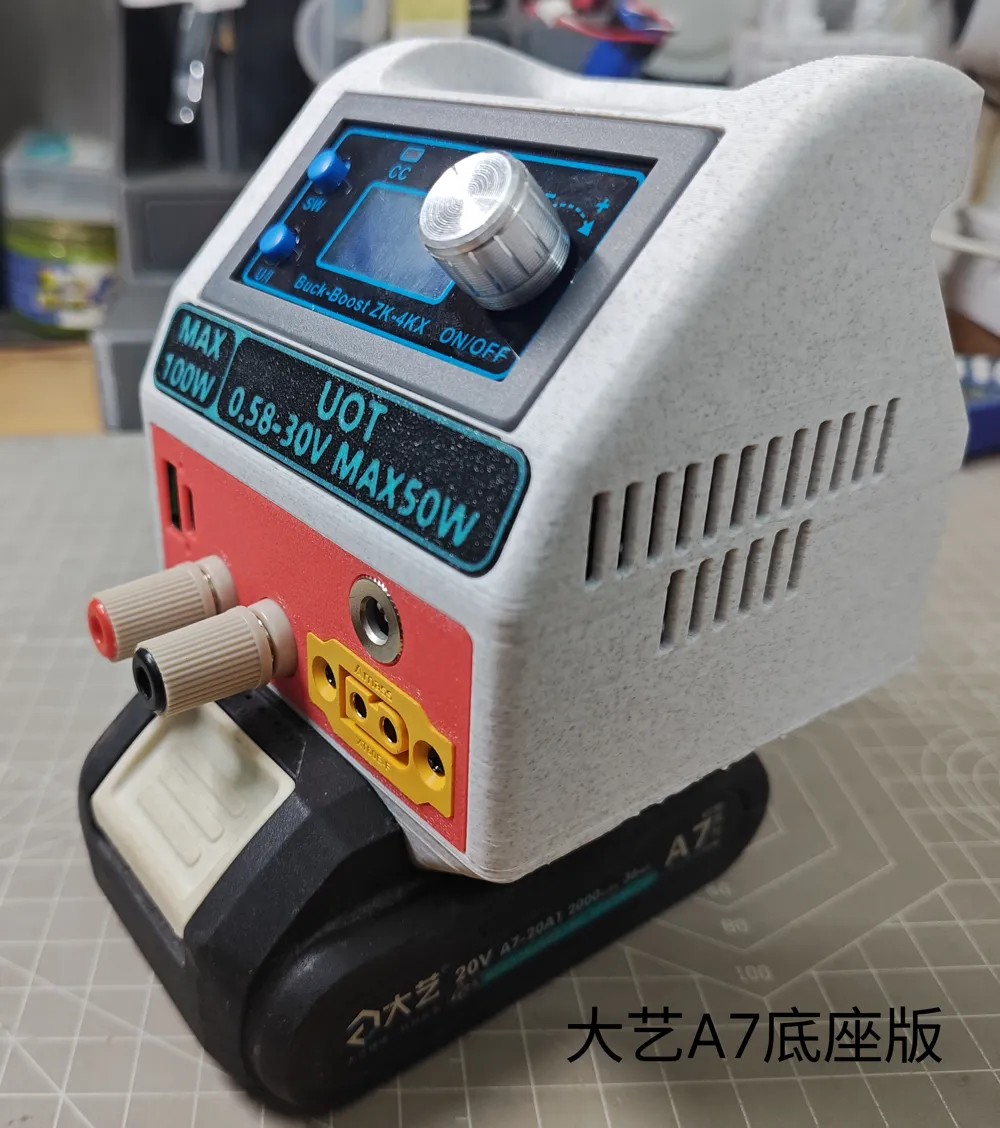

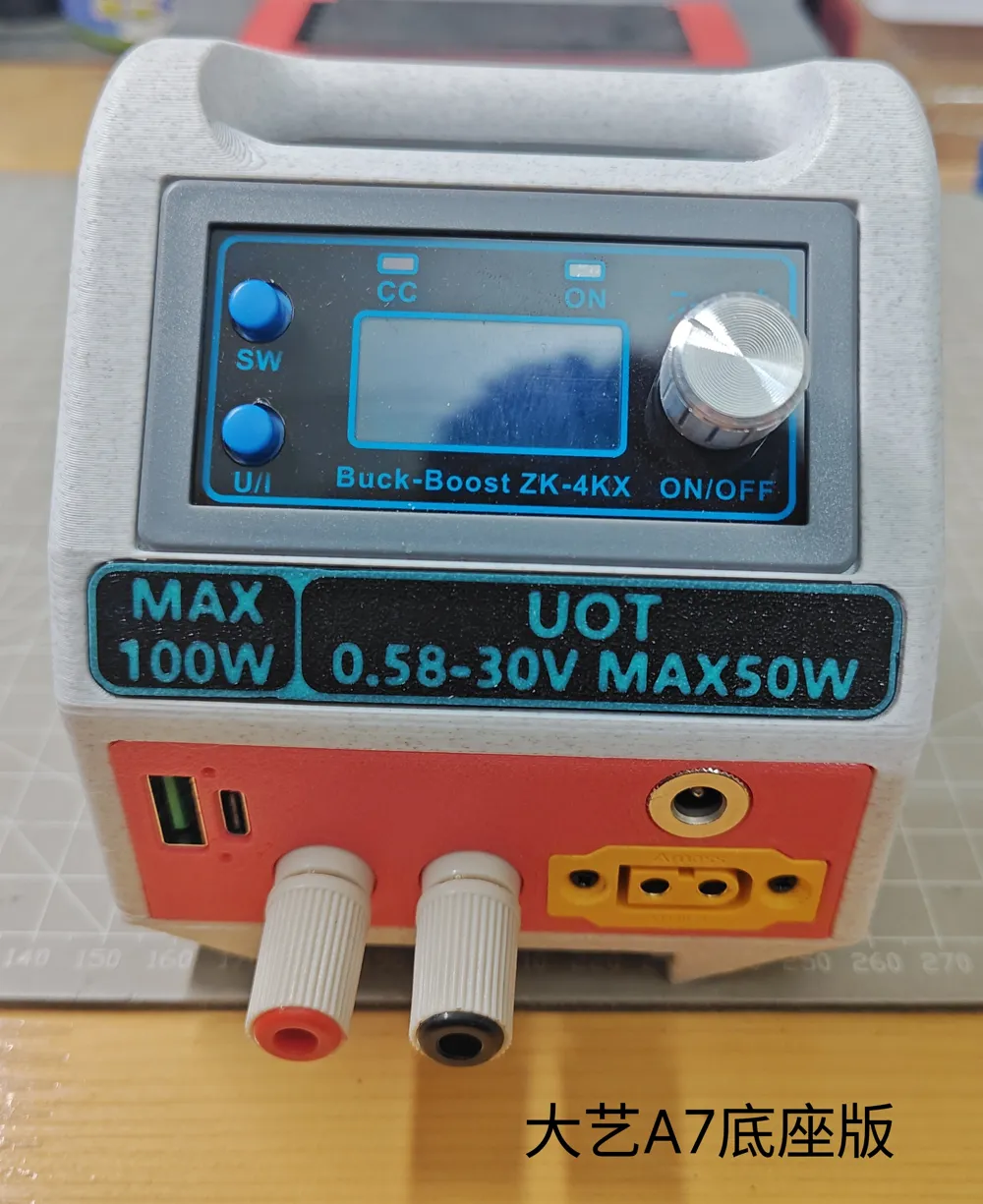

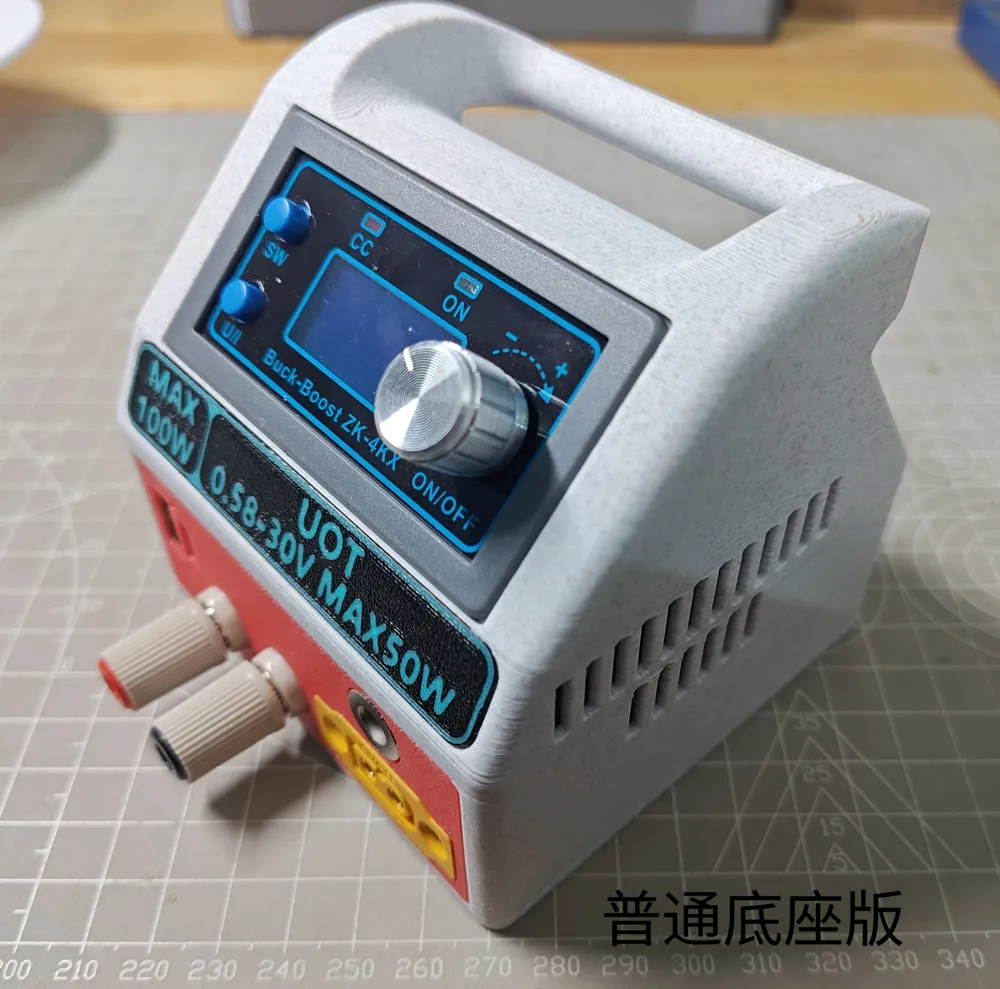

Currently, four base designs are available: 1. Standard base version. 2. Base version compatible with the Daya A7 battery platform. 3. Base version compatible with the Daya A3 battery platform. 4. Base version compatible with some Makita battery platforms.
This is a hobbyist design, not from an electronics professional. Please assess its suitability yourself; you are responsible for any consequences of replication and use! Beware of electric shock and fire!
Boost Me (for free)
If it meets your expectations, please give it a boost!
