Screen module for 10 inch rack + Raspberry Pi [2U]
Print Profile(1)
Description
This model is a 2U front-facing control and display module designed for compact homelabs and 10-inch racks.
It combines a large front screen, system controls, and clean internal organization into a single modular unit - making it ideal as a dashboard, controller, or system status panel for your rack.
Designed as part of the KWS Rack ecosystem, but usable in any 10-inch rack setup.
What This Module Is For
- System monitoring dashboard or controller
- Front-panel access to your Raspberry Pi
- Cleanly integrating screens, storage, and controls into the rack front
This is the kind of module you interact with daily.
Hardware Supported
🔹 Main Front Display (7.84”)
The centerpiece of the module.
- 7.84 inch LCD display
- Designed for the frameless version
- Dedicated internal mount for the display PCB
Recommended display (frameless version)
⚠️ Make sure to order the version without the metal frame.
🔹 External SSD Mount (Optional)

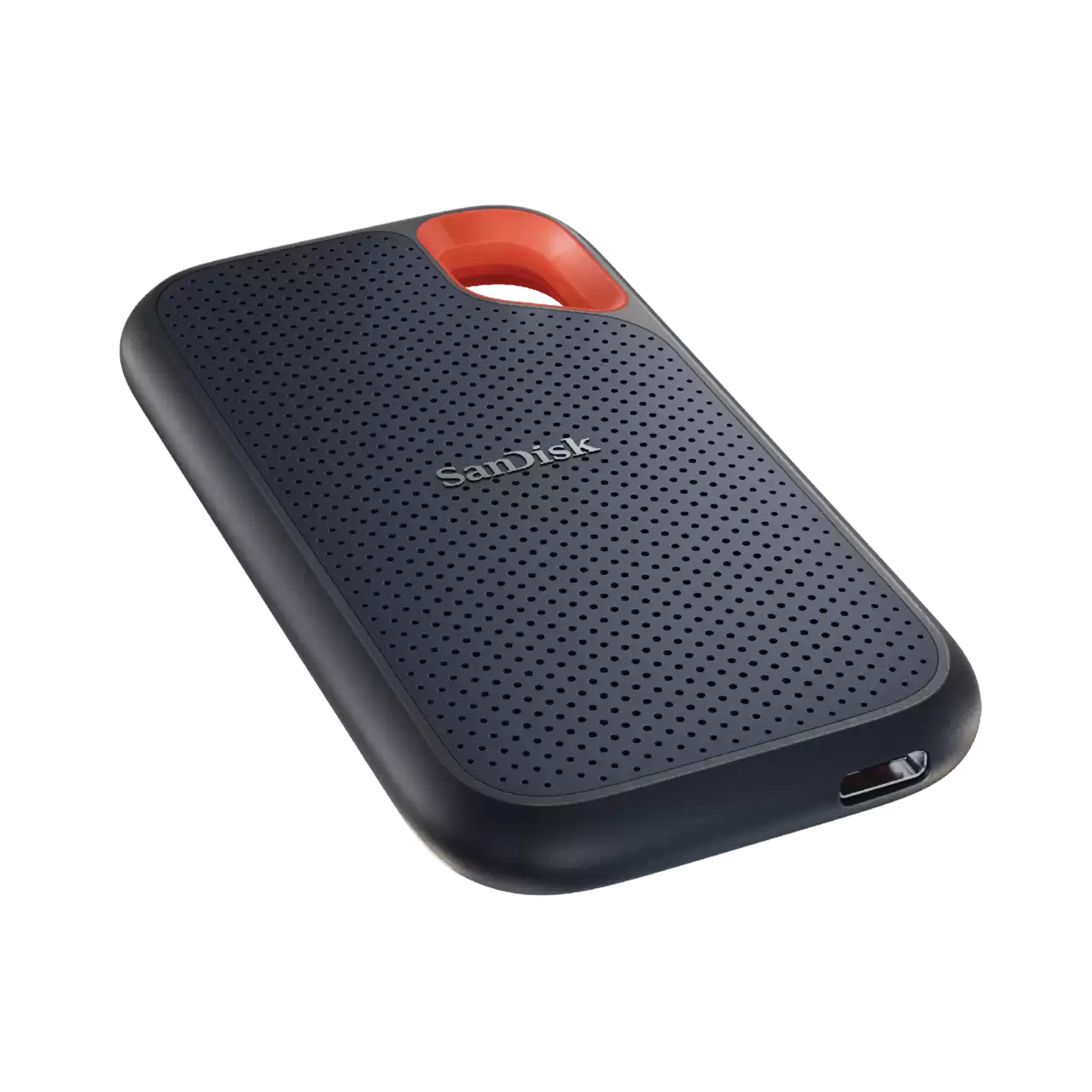

- Dedicated slot for SanDisk Extreme Portable SSD
- Ideal if you boot your Raspberry Pi from SSD
- If not used, the space can be used as cable organization slot
🔹 Secondary OLED Status Display (0.91”)
For quick system info at a glance.
- 0.91 inch OLED display
- Great for IP address, CPU usage, temperature, uptime, etc.
🔹 Raspberry Pi
- Internal mounting space for a Raspberry Pi
- Clean cable routing behind the front panel
🔹 Front Controls & I/O
- 12mm power button (front-mounted)
- 2× Keystone ports - Common uses: USB, RJ45, or other adapters
If you don’t need the keystones, you can install blank keystone inserts
(search: blank keystone insert).
Credits & References
Some reference models were used during the design process for sizing and fit validation:
- Raspberry Pi board models – sourced from GrabCAD
- OLED display reference models – sourced from GrabCAD
All third-party models were used for reference only and are not included in the printable files.
If you recognize your model here and would like a direct link or attribution added, feel free to reach out.
Part of the KWS Rack Ecosystem
This module is part of a growing series of modular, printable rack components designed for compact homelabs.
If you haven’t seen it yet, check out the base system:
👉 KWS Rack v2 – Modular Heavy-Duty 10-Inch Rack
More modules and accessories are already in progress.
