RC Glider
Print Profile(8)
Description
This is a modified version that can be printed on Bambu lab.
The wings have a hole for carbon fiber arrow shaft ID 6.2 sp300 which is about 7.7mm outside diameter.
I increased the length of the nose by 50mm. I had to put more than 100g of ballast in the nose of the first plane.

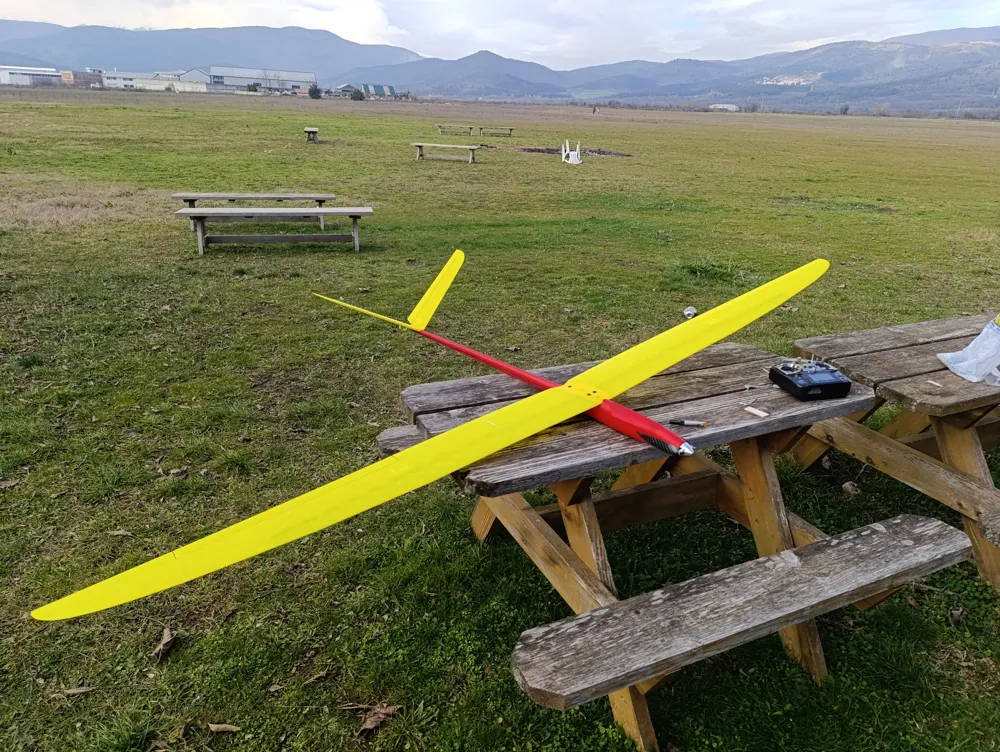

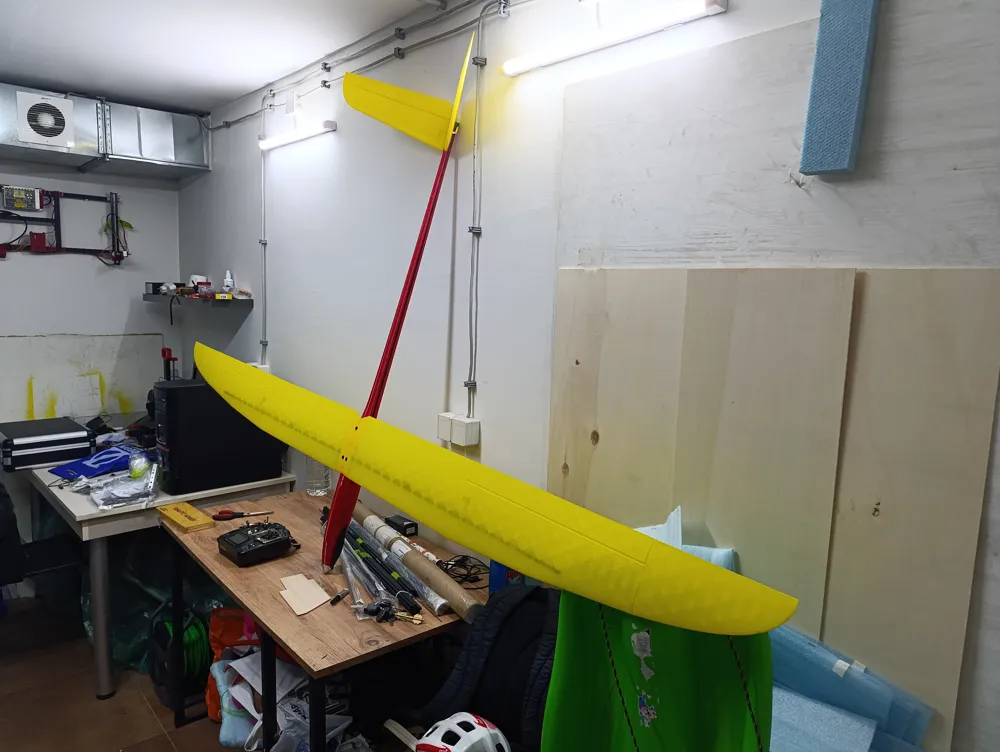

The pictures are from the first plane. I have print the parts for this one, but it will take some time for me to assemble it.
The firewall is for Dualsky XM3045EG, I used this one.

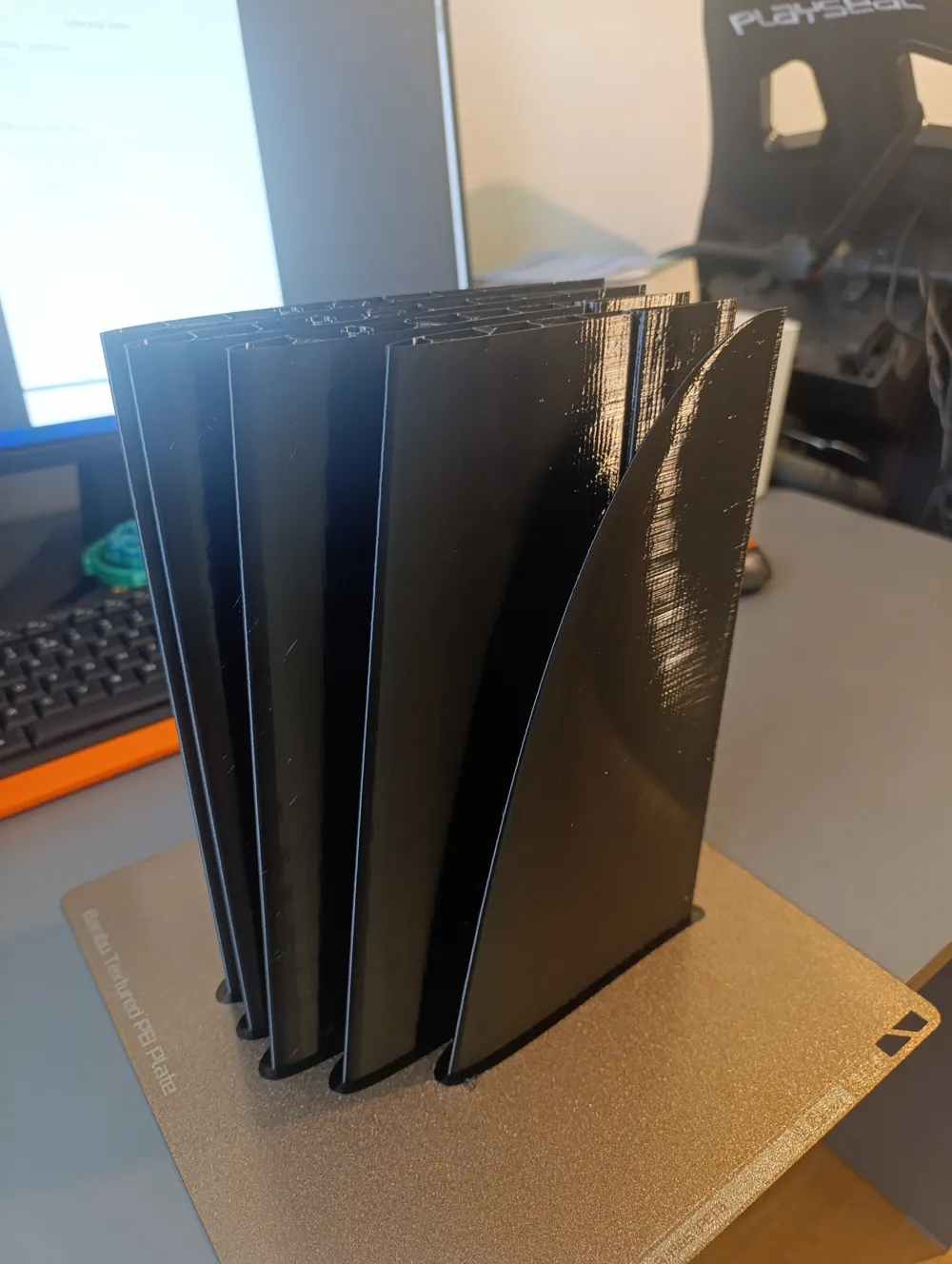

Everything is printed in PetG and glued with CA glue.
The first plane was flying wery well but I have crashed it because I lost the RC signal. My mistake, I just trow the receiver inside the fuselage next to the ESC and all the servo wires. Now I made two holes for the antennas on the fuselage.
All the files are atached as Raw Model Files…
Note:
This is not a model for a first build. You will need some experience.
And I will not make an assambly guide, I don't have time. I'm just sharing what I have made for me.
Have fun…
