Fidget EDC Nautilus three-blade spiral spinner

Personal Collection No.116, Difficulty: ⭐⭐⭐

Original Author: Gene Studio

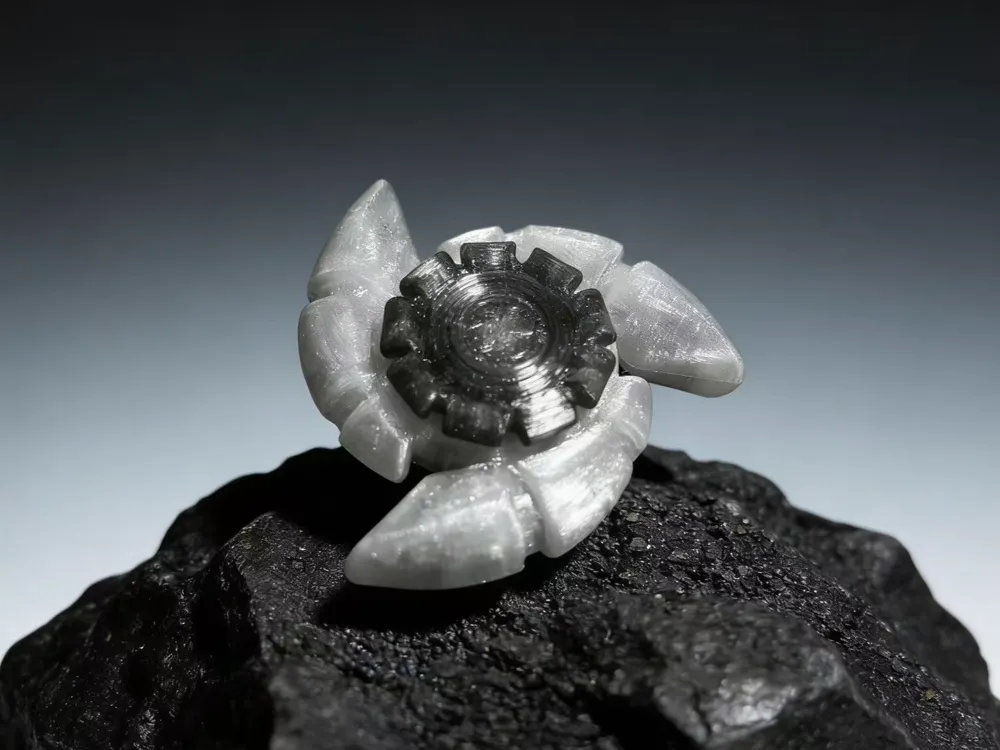

Nautilus Dragon Spine. A very artistic bionic design; the spinning light and shadow are very beautiful; even when made in a single color, it produces excellent results. I couldn't resist this type of design, so I made it; single-color printing in metal or transparent colors works well.

For PETG printing, glue must be applied, otherwise there's a high chance of failure!

• Accessories to prepare for print profile 1:

  • 1 high-quality R188 bearing
  • 6 8mm steel balls for counterweight
  • 6 M3*4 hex socket cup head screws
  • 1 pair of M3*14 external hex screws and nuts
  • 12 3mm*8mm dowel pins

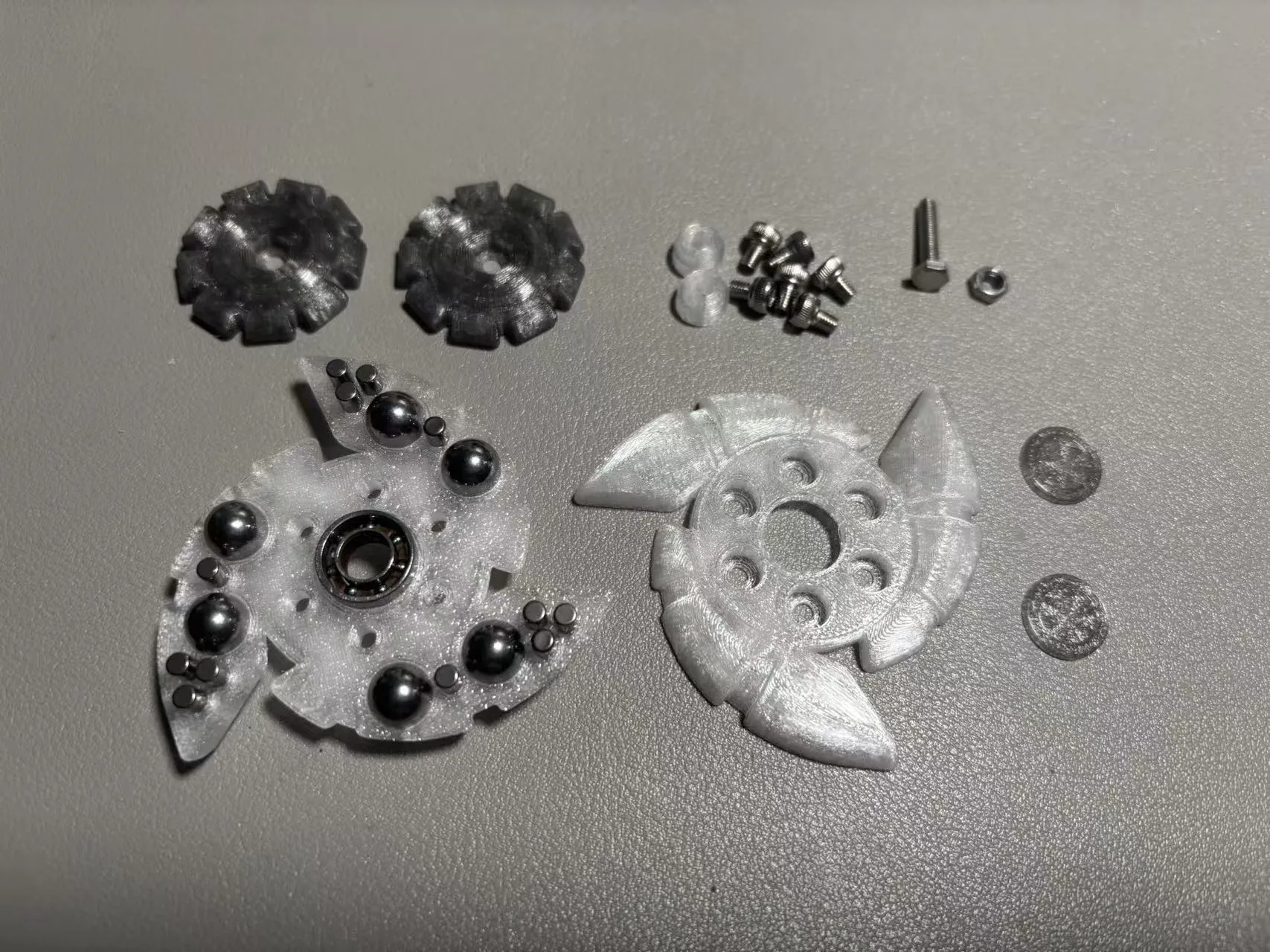

• Parts list (dowel pins, steel balls, and bearings in place):





• Assembly steps:

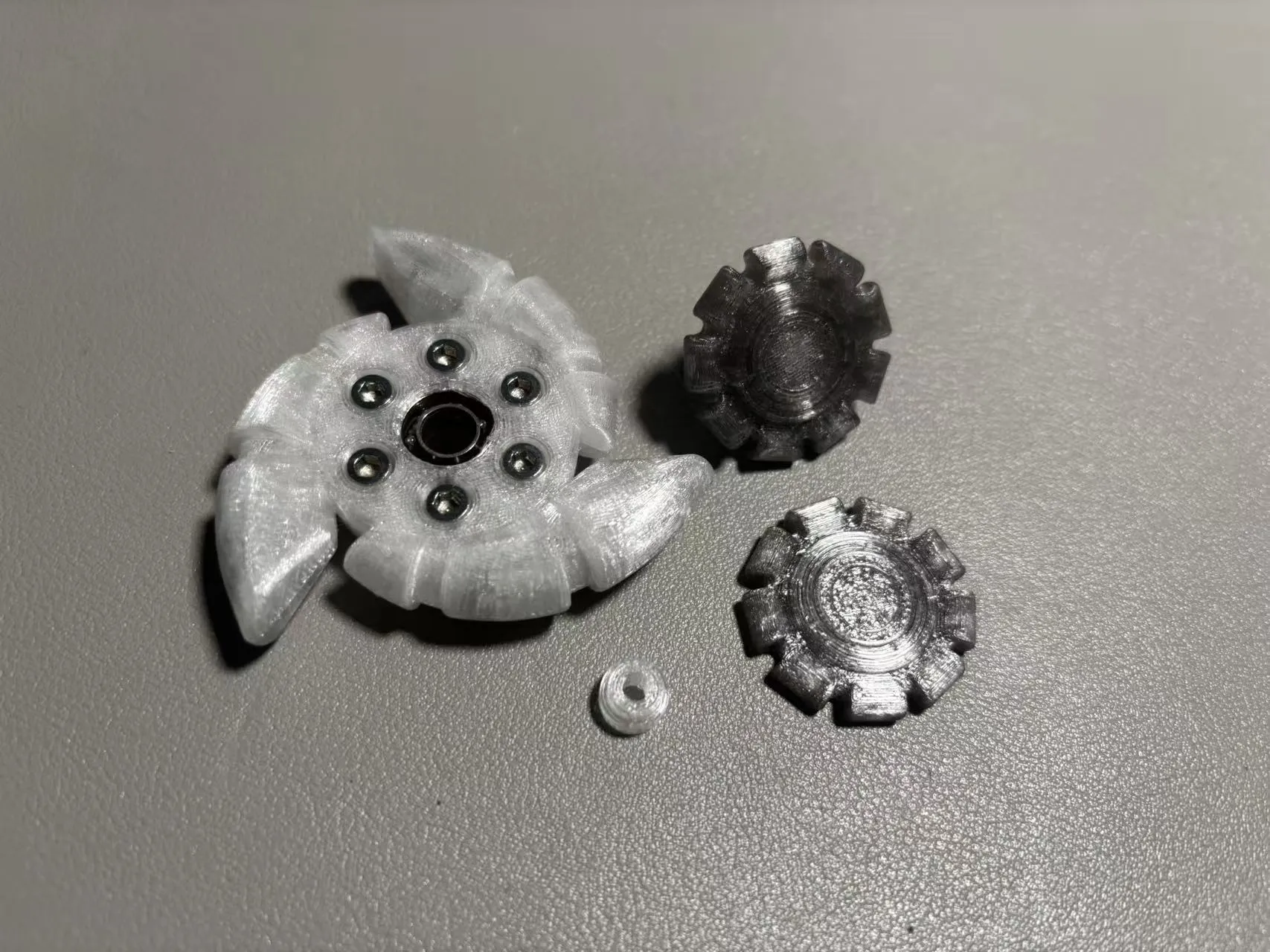

  ① Insert the R188 bearing, 6 8mm steel balls, and 12 3mm*8mm dowel pins into the two main body pieces, then combine them to form the complete main body

  ② Install 6 M3*4 hex socket cup head screws into the reserved holes and tighten them with a screwdriver

  ③ Place the M3*14 hex screw and nut into their respective hexagonal locking positions and cover with the locking patch

  ④ Connect the male and female locking parts and tighten; then it's done
