Key cabinet with custom light image

🔑 Key cabinet with LED light image and 7 hooks

This modern key cabinet combines organization with a personal touch.
It offers 7 sturdy key hooks and an integrated battery compartment for an LED strip. The highlight is the illuminated motif in the door, which can be individually designed.

The light image is not fixed, but can be created by anyone and adapted to their own taste. This makes every key cabinet truly unique.

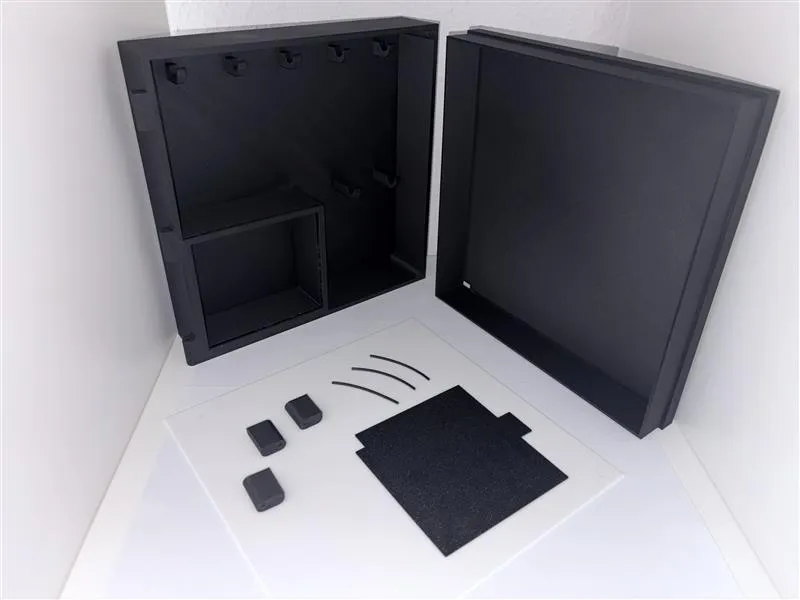

🔧 Assembly Instructions

• 4 magnets (5 mm × 1 mm) are needed for the door closure
  → These are glued in
• The door hinges are glued directly onto the door
• Recommended adhesive: Superglue

Hinge pin:

• 1.75 mm filament is used as the pin
• Thread the filament through, then slightly warm the ends briefly with a lighter
• Then carefully press it down so that the filament mushrooms out and cannot slip out anymore

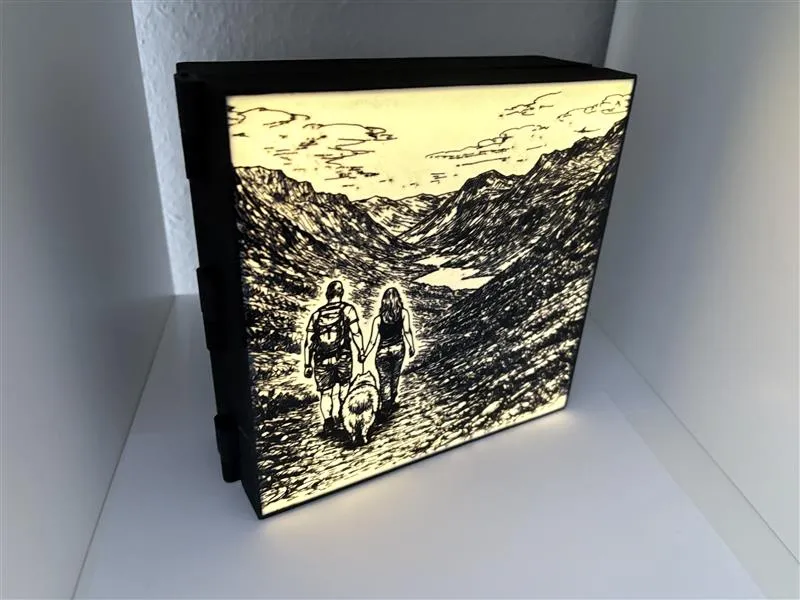

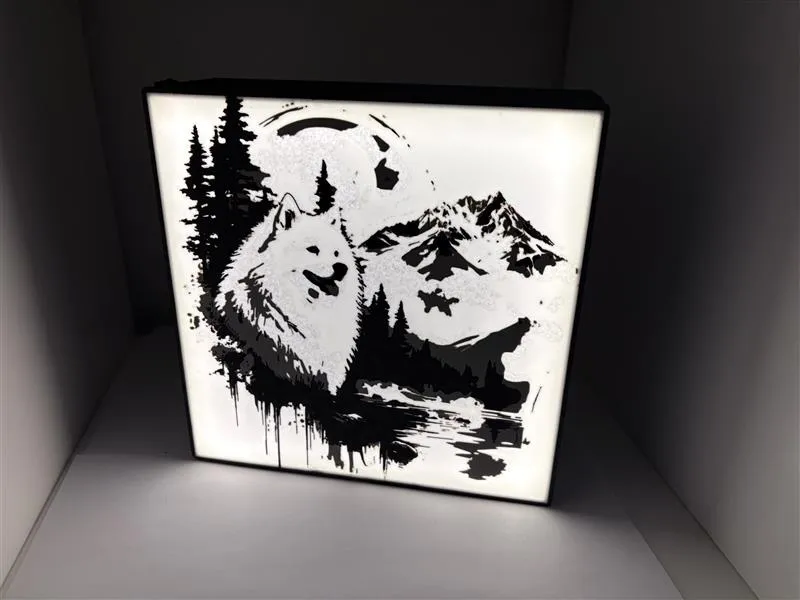

✨ Create your own light image (Bambu Studio)

The front motif is generated with the Bambu Studio MakerLAB – Create Light Box.

Recommended settings:

• Light Box Size: 200 mm × 200 mm
• Light Box Depth: 20 mm
• Front Thickness: 0.8 mm
• Frame Width: 2 mm
• Structure Type: Default

⚠️ Important:

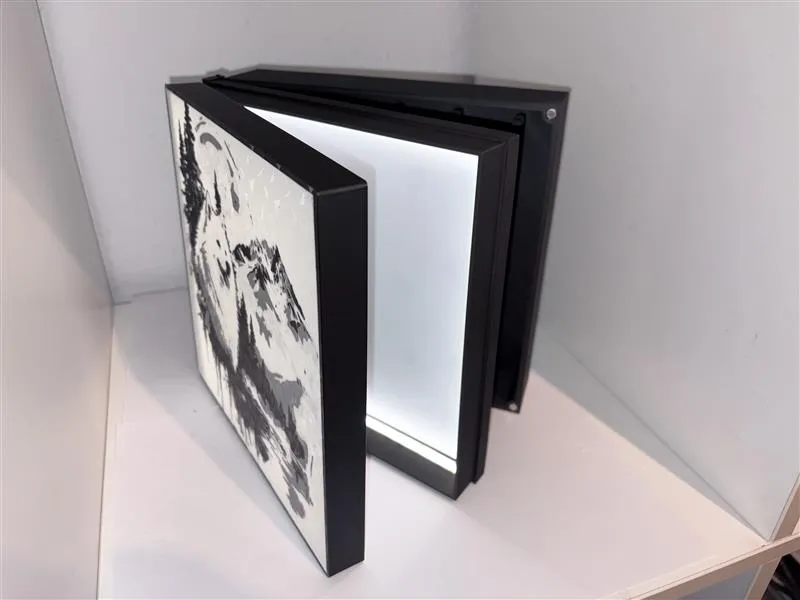

The light box must be printed without a back panel.

🔋 LED & Battery Compartment

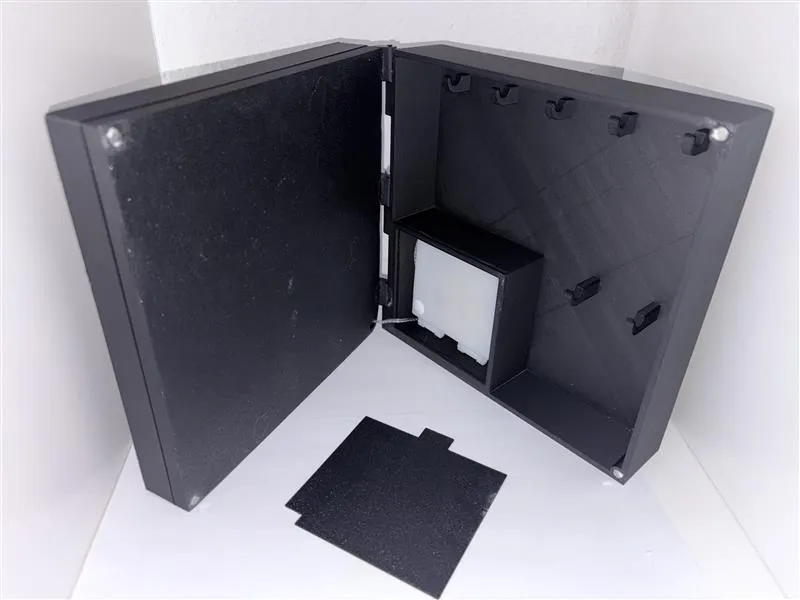

• A compartment for an LED strip is integrated into the door

🧩 Features

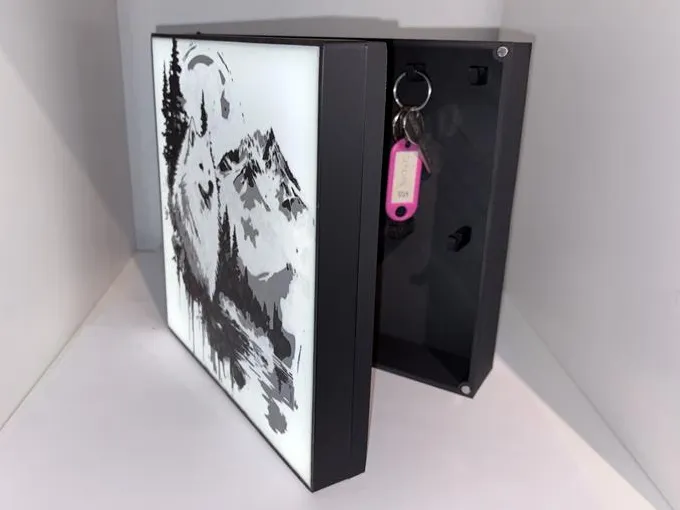

• 7 key hooks
• Integrated LED light image
• Individually customizable front motif
• Modern, tidy design

Have fun printing and designing your very own key cabinet 💡🔑
