Gola Profile Routing Jigs – J & C Types
Print Profile(1)
Description
This set includes three 3D-printed routing jigs designed to accurately mill Gola profiles in furniture panels using an electric hand mill / router.
The jigs are optimized for repeatability, precision, and ease of use, making them ideal for custom furniture, kitchens, and professional workshop use.

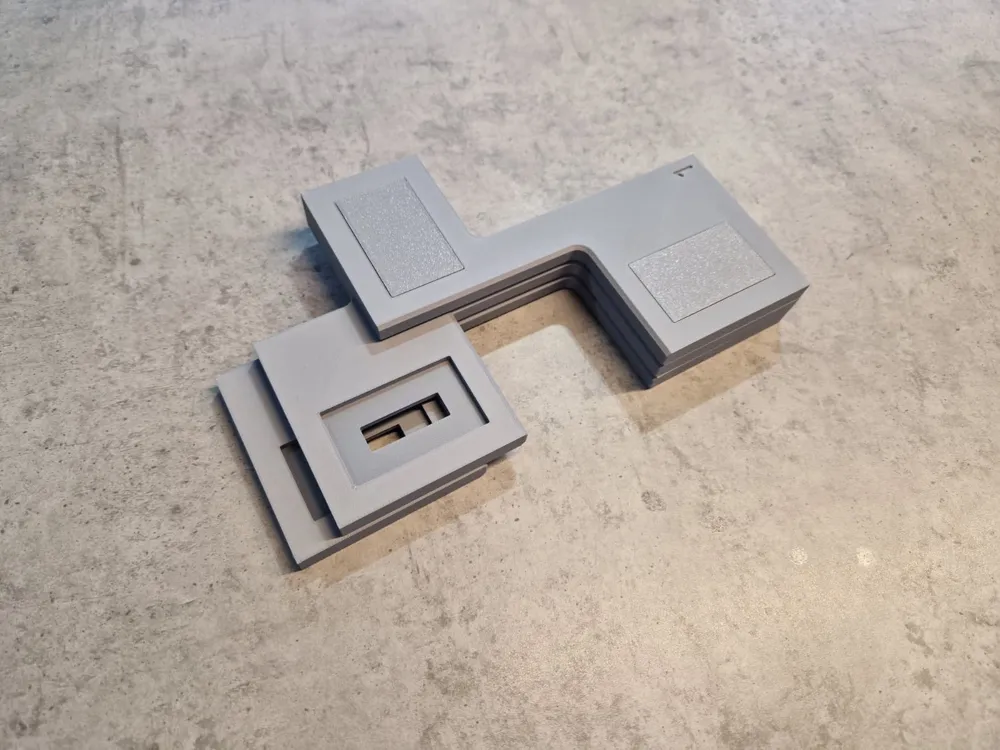

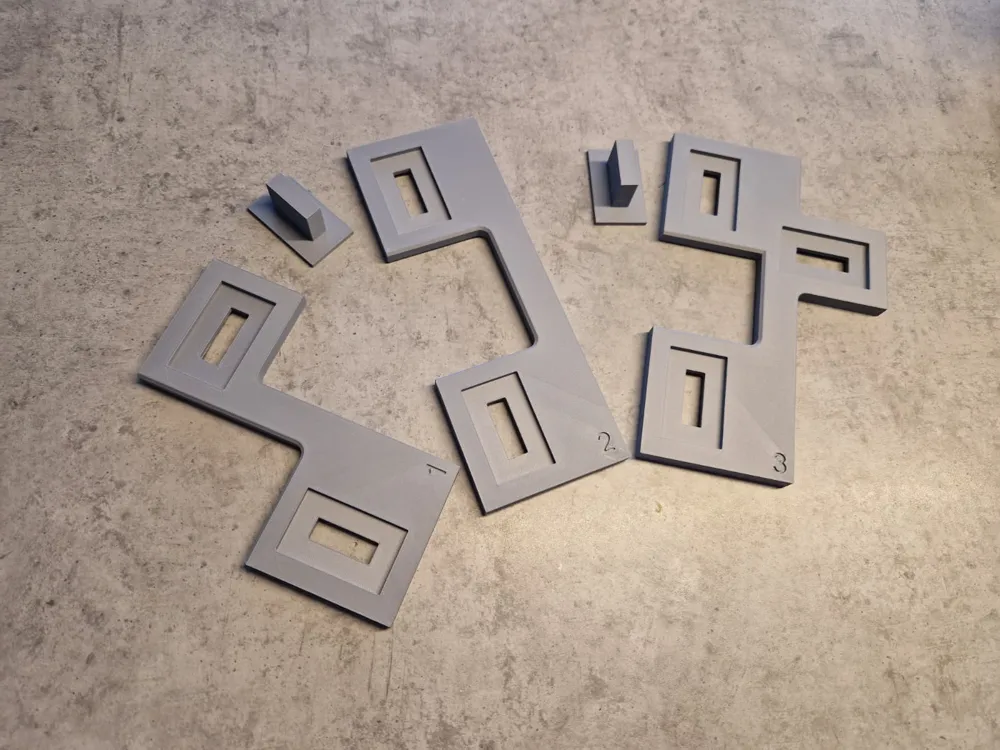

Included Jigs

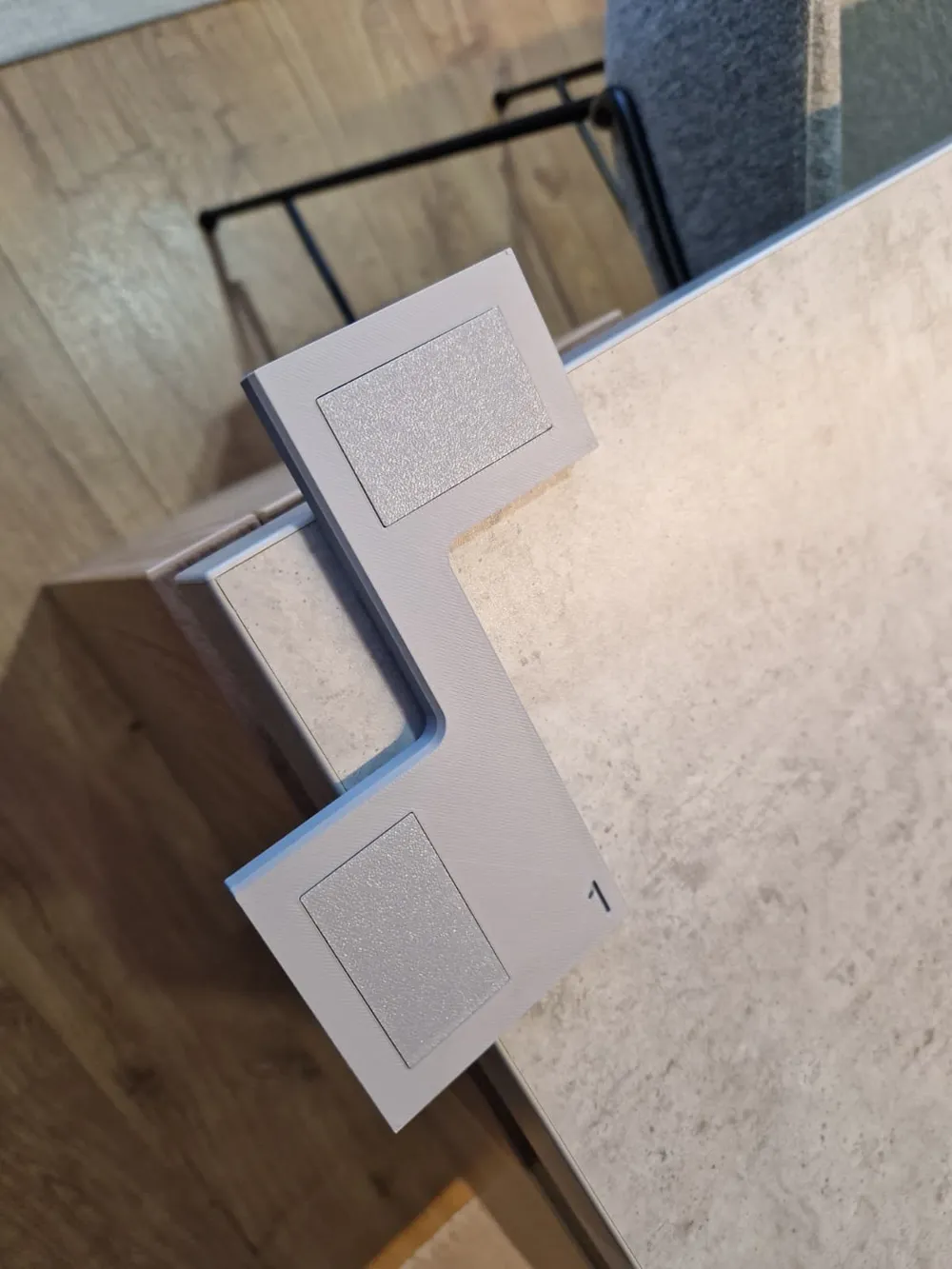

- J Type (1) – Standard J-type Gola profile jig

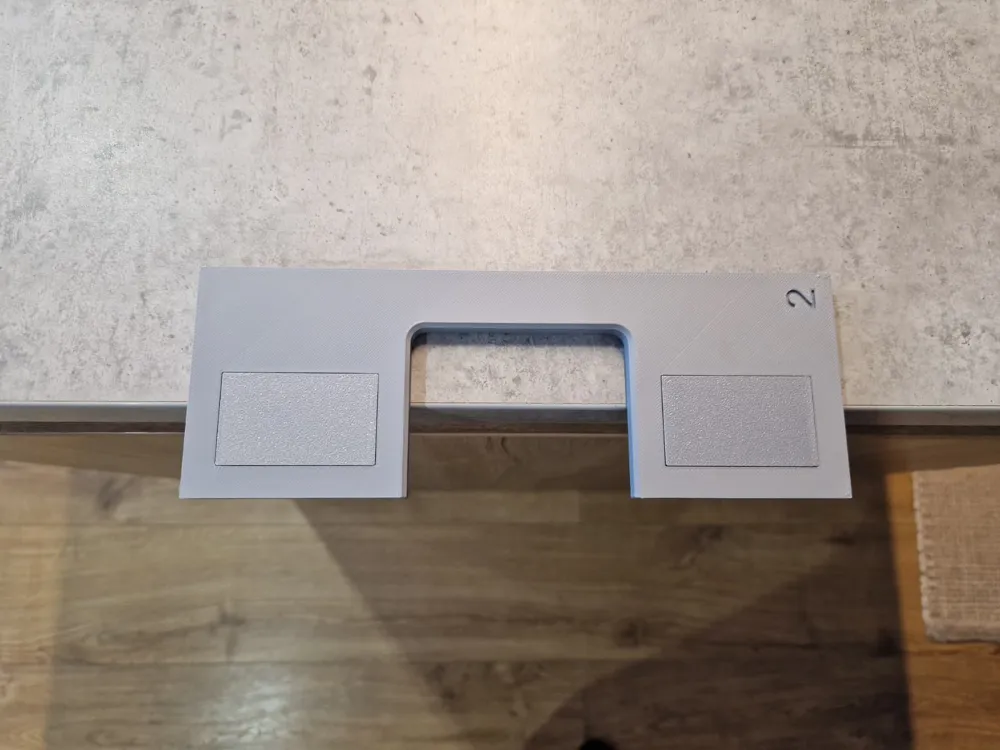

- C Type (2) – C-type Gola profile jig

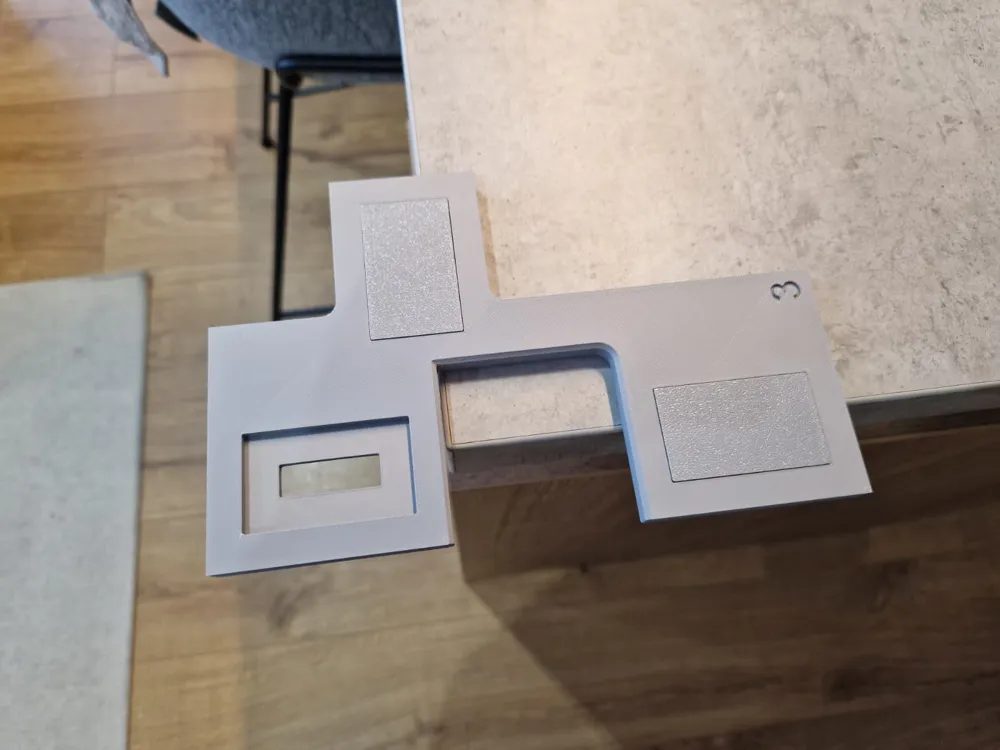

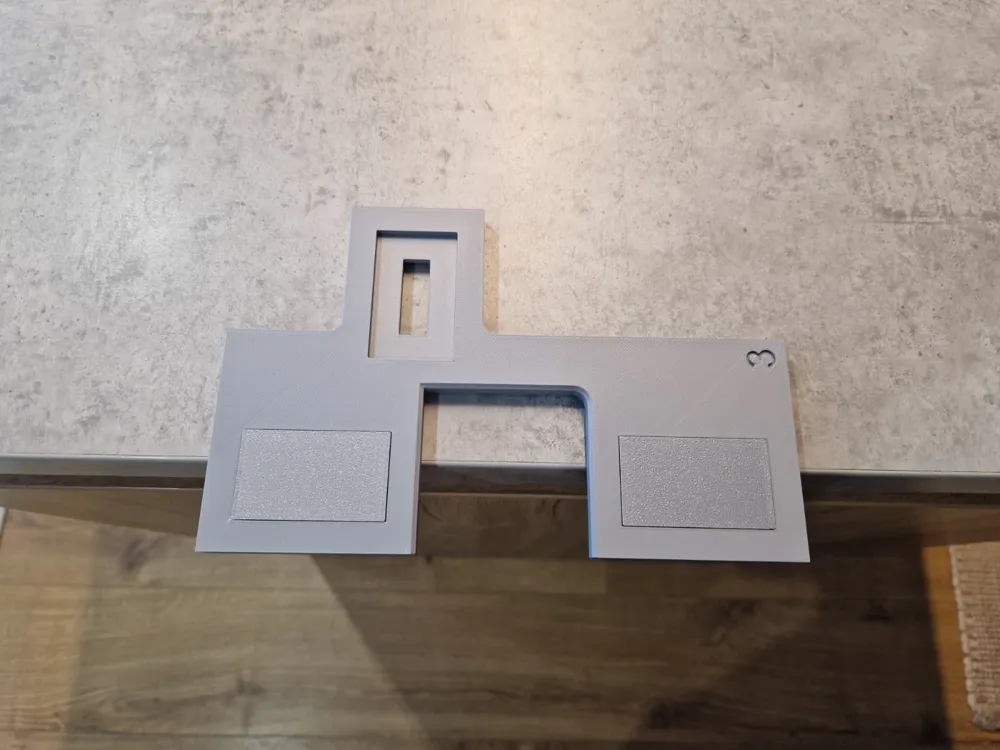

- J Type (3) – Middle Jig
- Designed to be used in the middle of a panel
- Useful when:
- You want to avoid using a C-type profile for cost-saving reasons
- The Gola profile must continue between refrigerator doors or across split panels
Key Features
- Designed for use with an electric hand router
- Can be used on both sides of the panel if needed
- Ensures consistent profile depth and alignment
- Ideal for Gola aluminum profiles
- Compact, rigid design suitable for workshop environments
- Saves setup time compared to manual marking and freehand routing
Recommended Use
- Clamp the jig securely to the panel
- Use a straight router bit
- Perform multiple light passes for best results
- Suitable for MDF, plywood, and particle board (PAL)
NOTE THAT THE 3D MODELS HAVE DIMENSIONS AND ALIGNMENT MARKS ON THEM! (not shown in photos)
