Kenwood KDC-U40 Volume Dial Replacement Knob
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
15 min
1 plate
Open in Bambu Studio
Boost
10
22
4
0
64
53
Released
Description

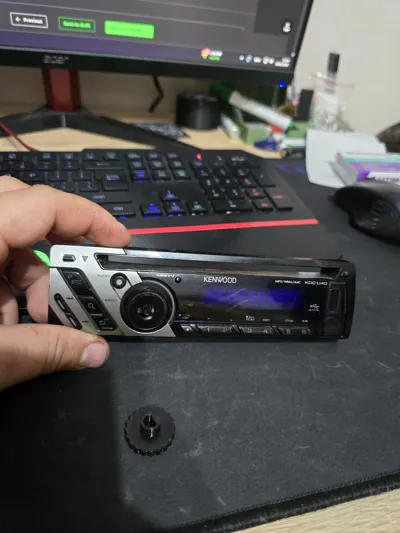

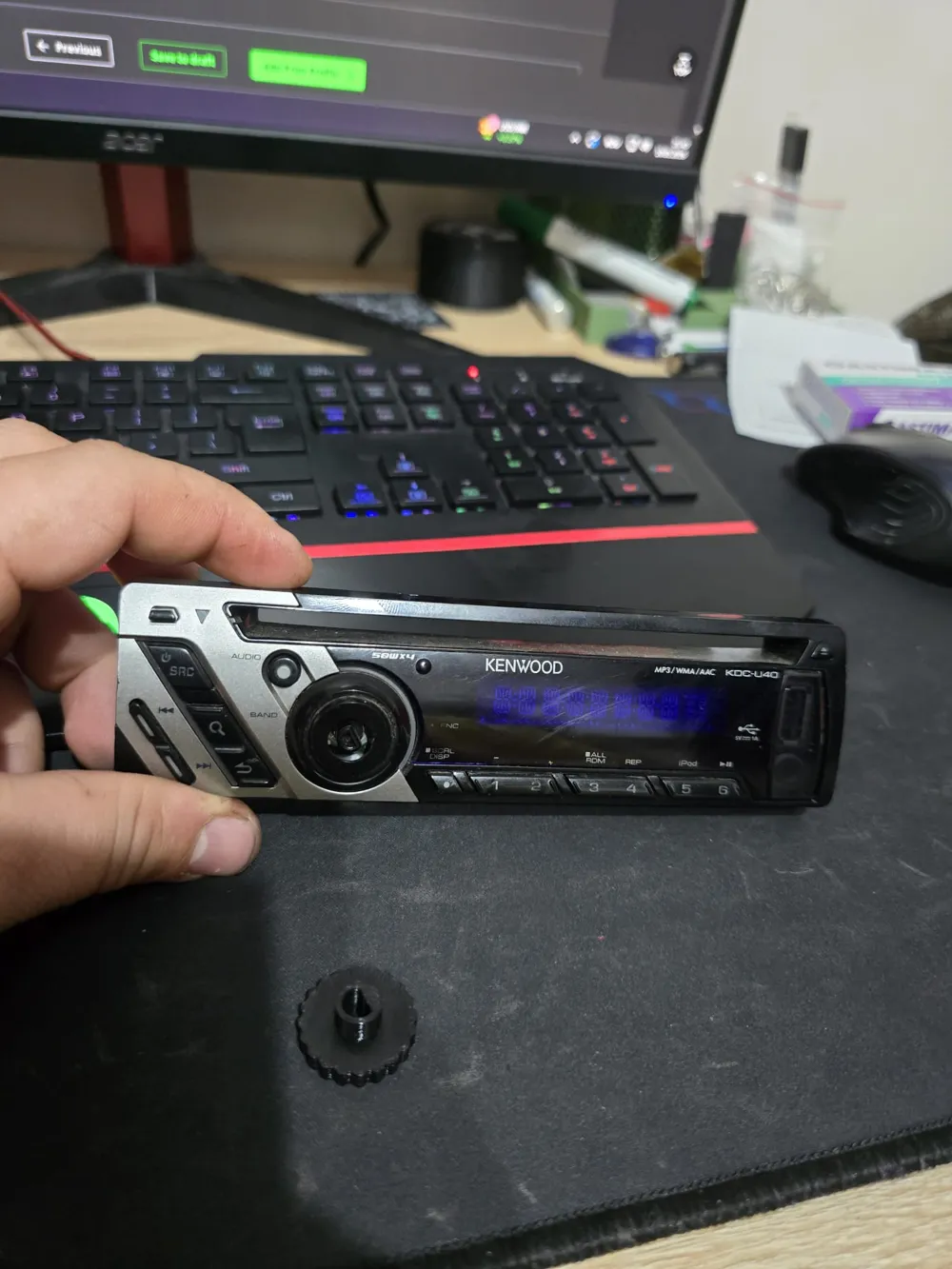

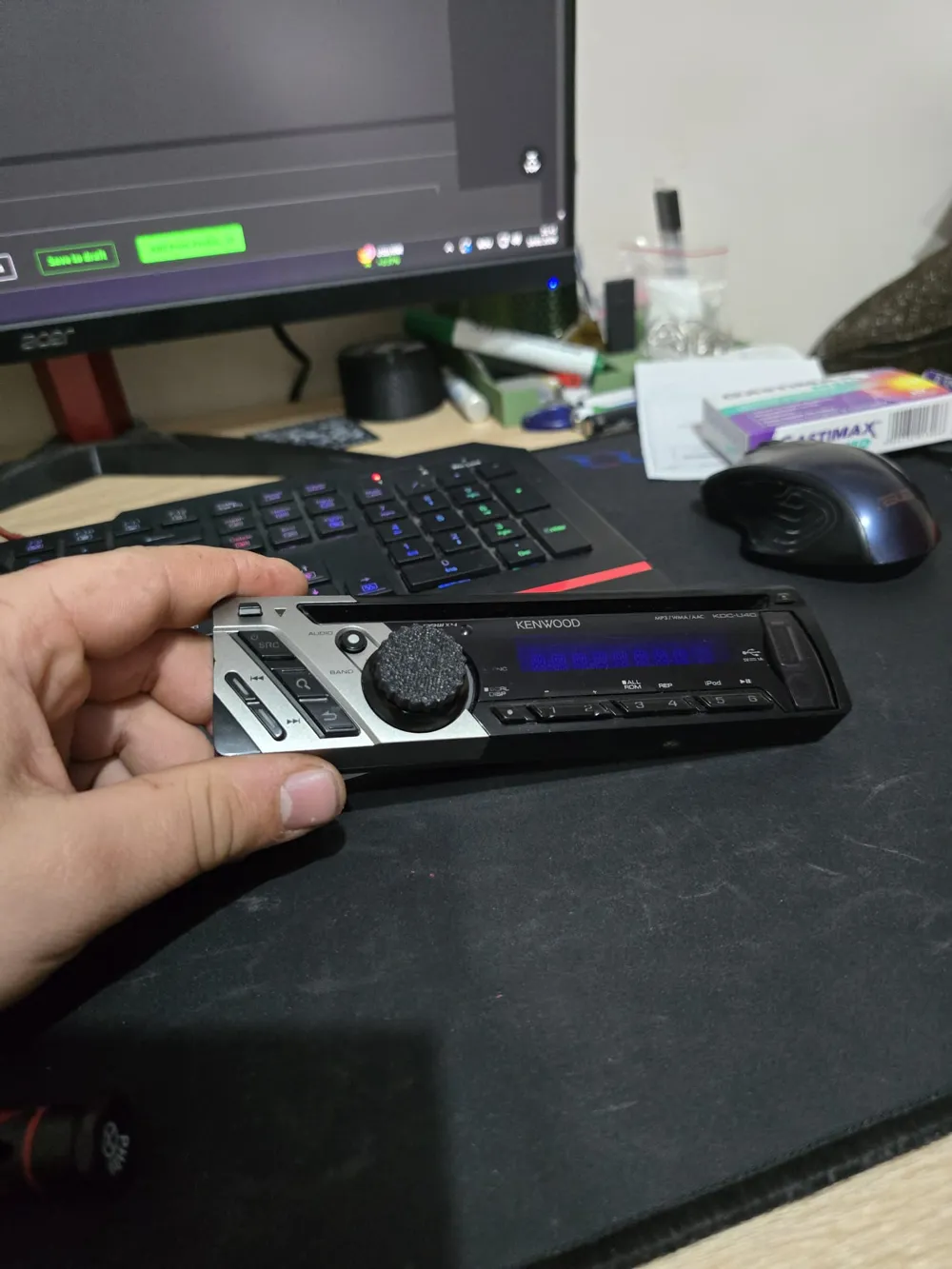

Overview: This is a high-precision 3D-printed replacement for the volume knob of Kenwood car audio units. It is designed to be a perfect fit for units where the original knob has become sticky, damaged, or lost.
Compatibility:
- Tested Model: Kenwood KDC-U40.
- Potential Compatibility: Should fit most Kenwood KDC models (including KDC-U, KDC-BT, and KDC-W series) that use the standard "D-shape" or notched rotary encoder shaft.
Features:

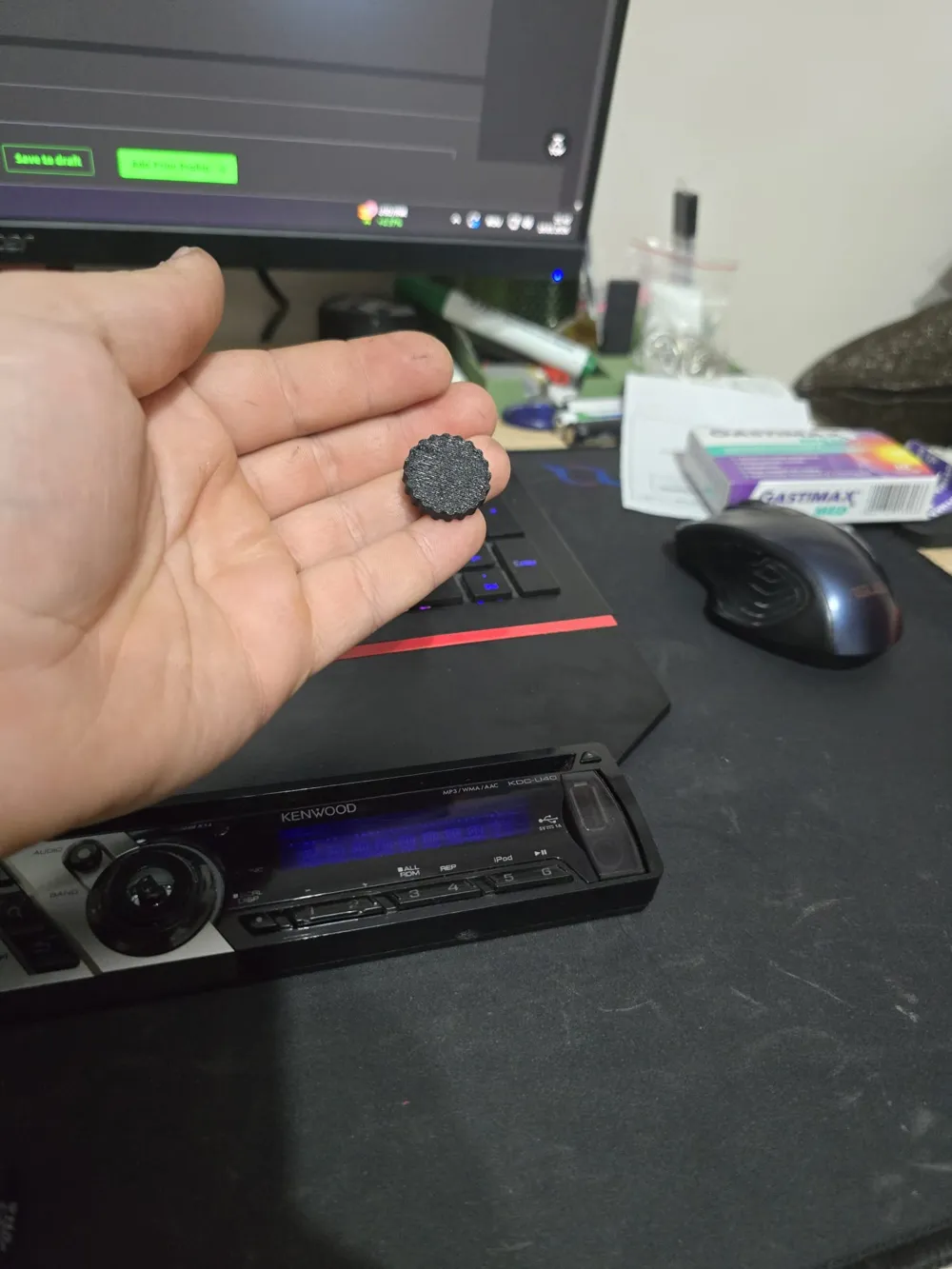

- Perfect Fit: Designed to match the original dimensions for a comfortable grip.

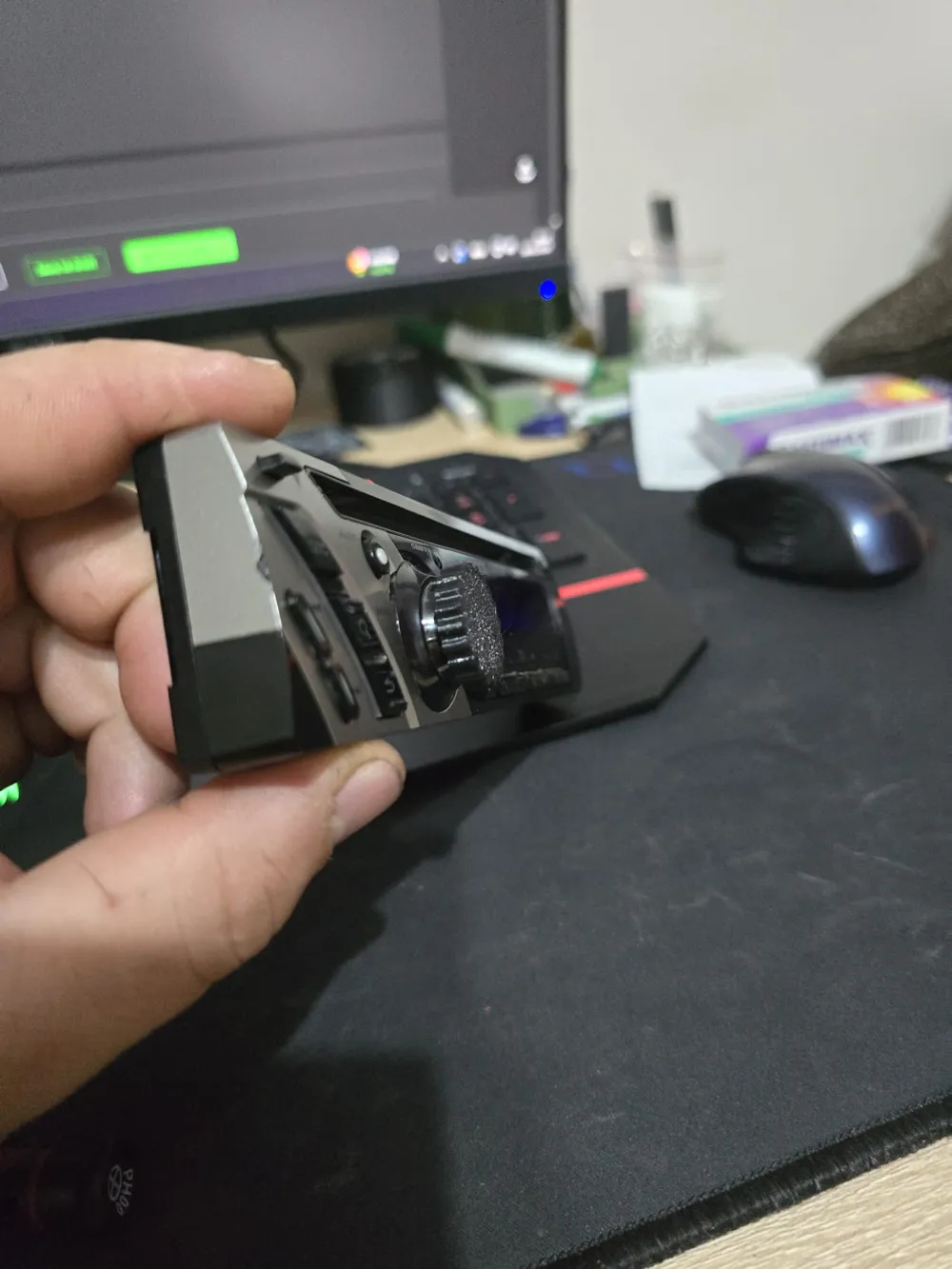

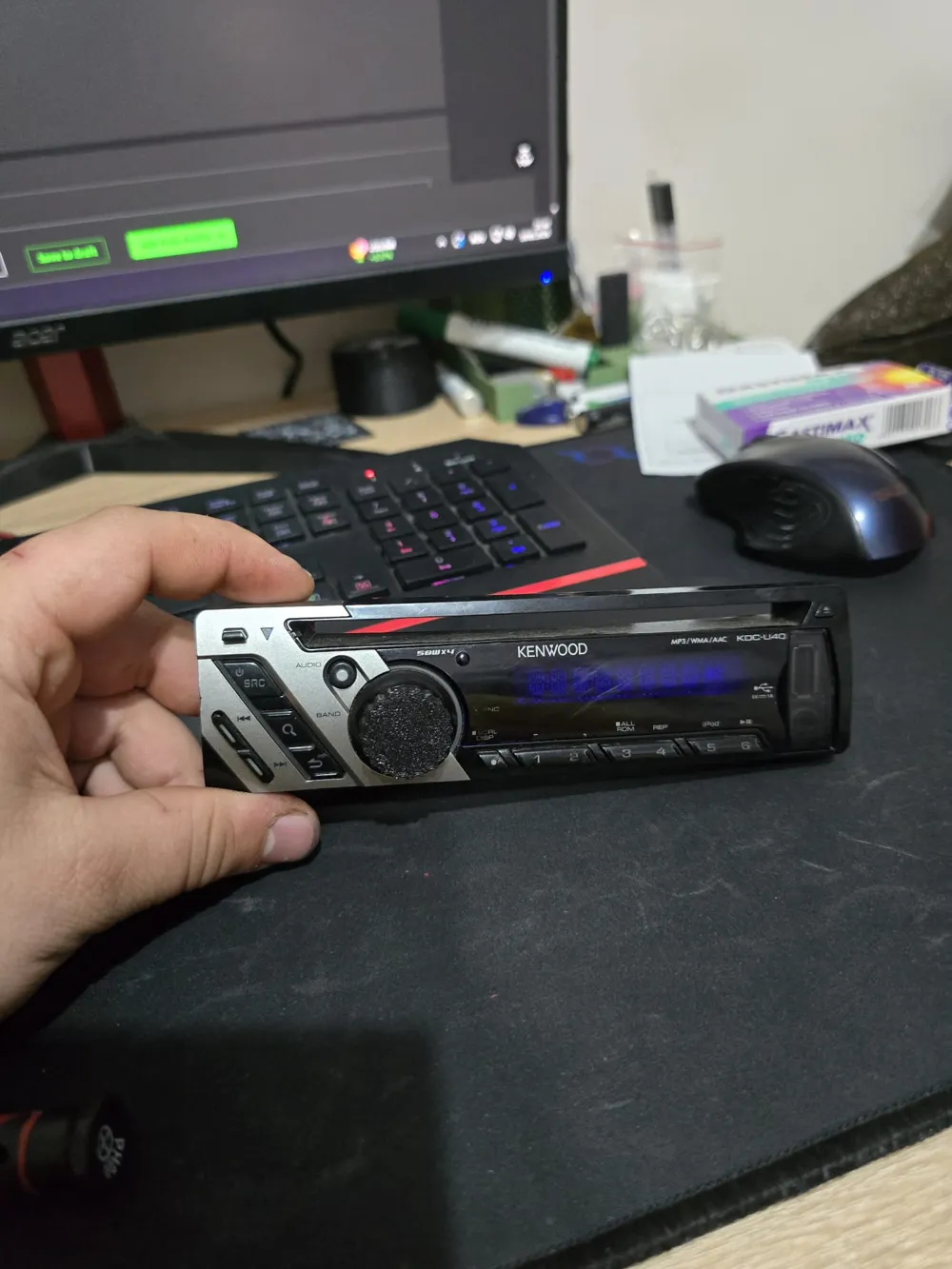

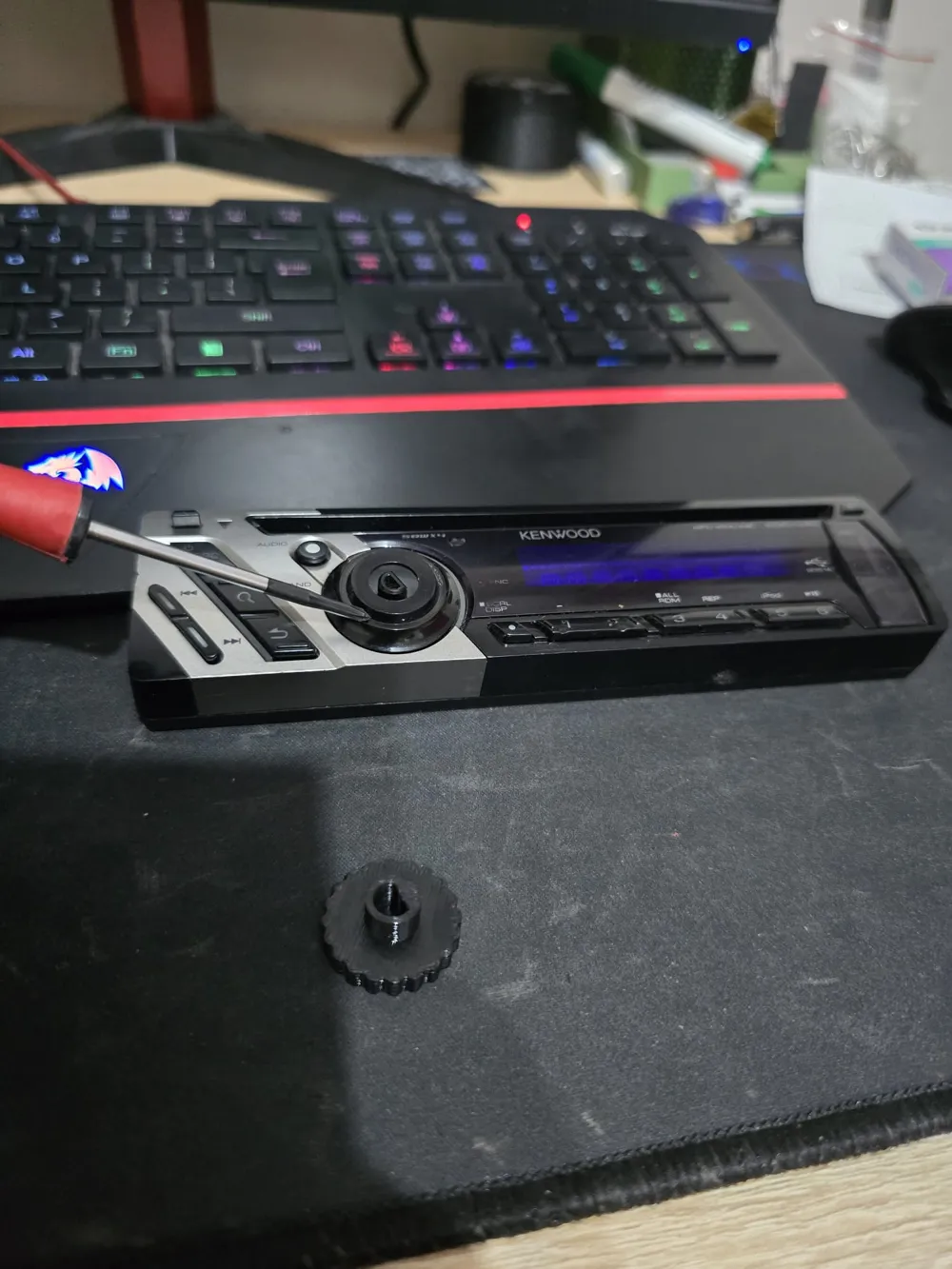

- Easy Installation: Simple push-fit (press-on) design; no glue or tools required.

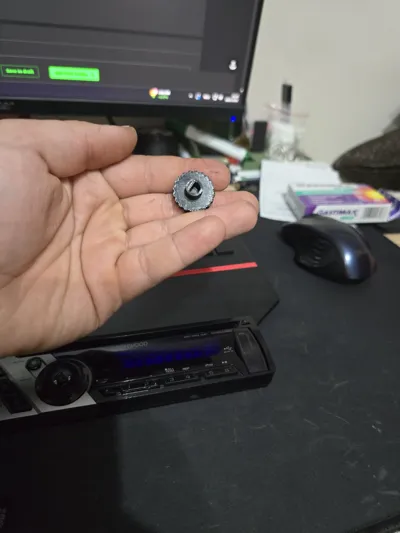

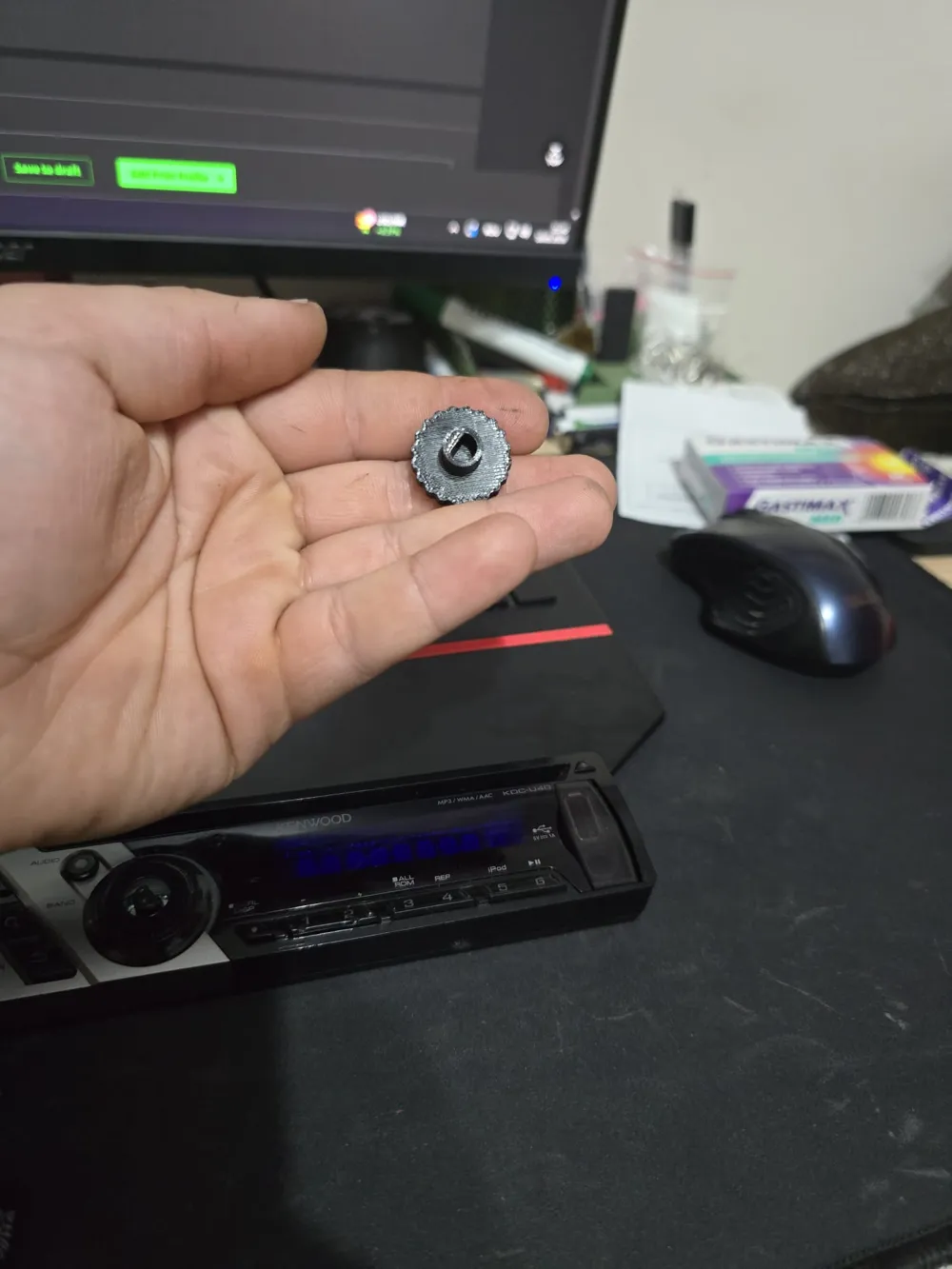

- Durable Design: Optimized for 3D printing with a focus on the internal shaft's strength.
Print Settings & Recommendations:
- Material: PETG, ABS, or ASA are strongly recommended. Avoid PLA, as it will likely warp or melt inside a hot car during summer.
- Resolution: 0.1mm to 0.15mm for the best surface finish and grip texture.
- Infill: 30-50% (Grid or Gyroid) for a solid feel.
- Supports: Not needed if printed with the face down, though a brim might help with bed adhesion.
