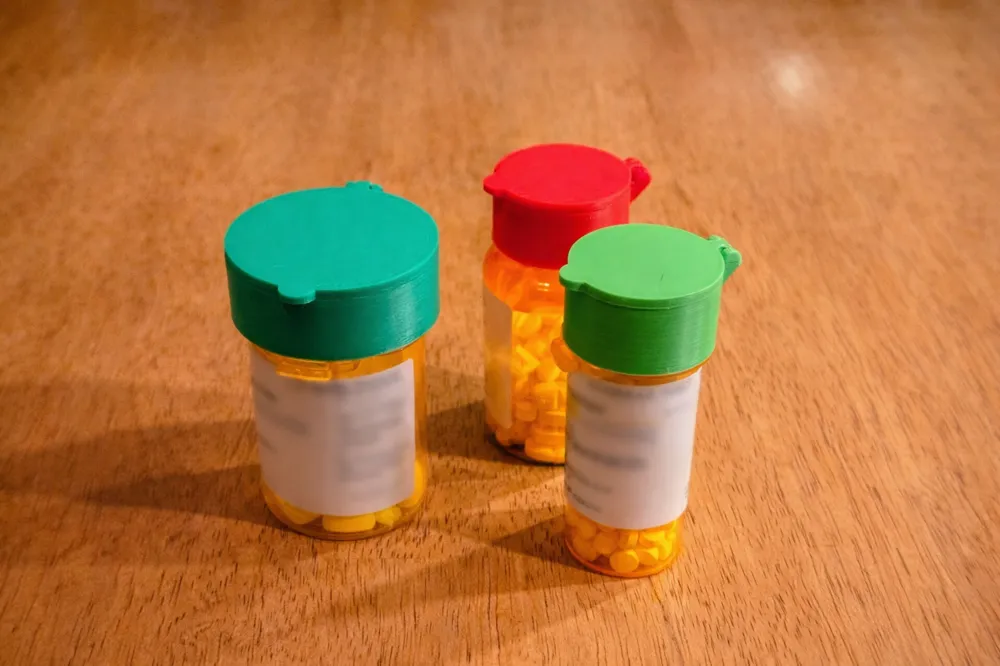

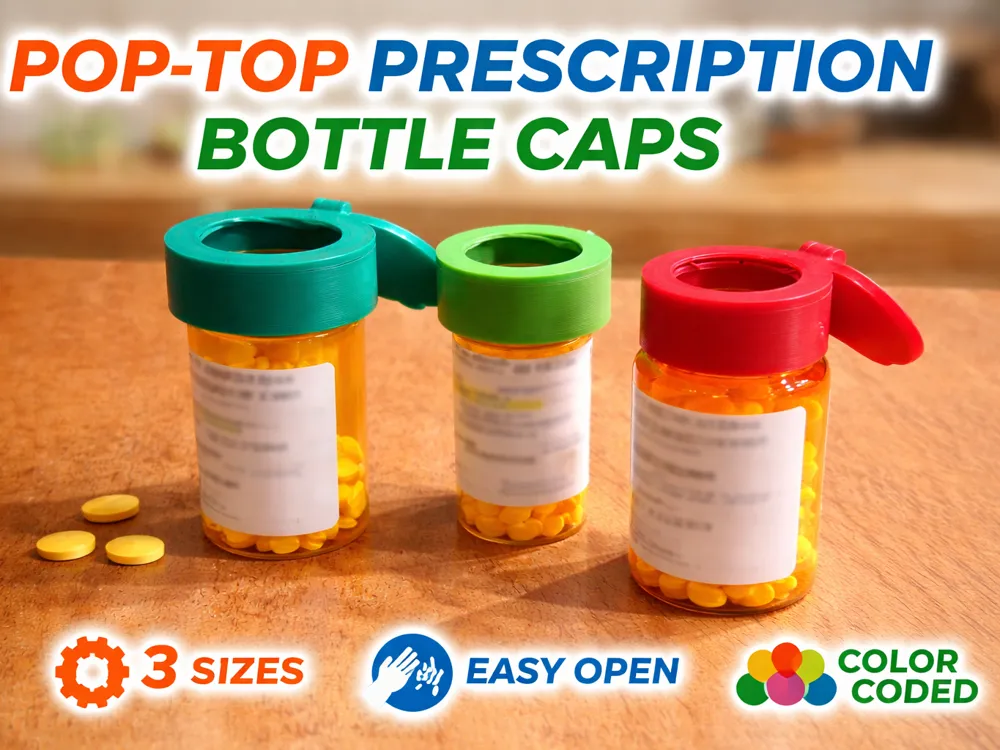

These pop-top replacement prescription bottle caps were designed to make daily medication routines faster, easier, and less frustrating.

They were created at the request of medically dependent users who open multiple prescription bottles several times per day, as well as in-home caregivers and nurses who need reliable, quick-access medication containers.

In addition to easier access, these caps are ideal for color-coding medications by time of day—for example:

• Morning
• Afternoon
• Evening
• Night

Using different filament colors allows medications to be visually identified at a glance, helping reduce confusion and improve routine consistency for both users and caregivers.

These caps replace standard child-resistant caps and screw on just like the originals, while providing a simple push-button pop-top for easy one-handed operation.

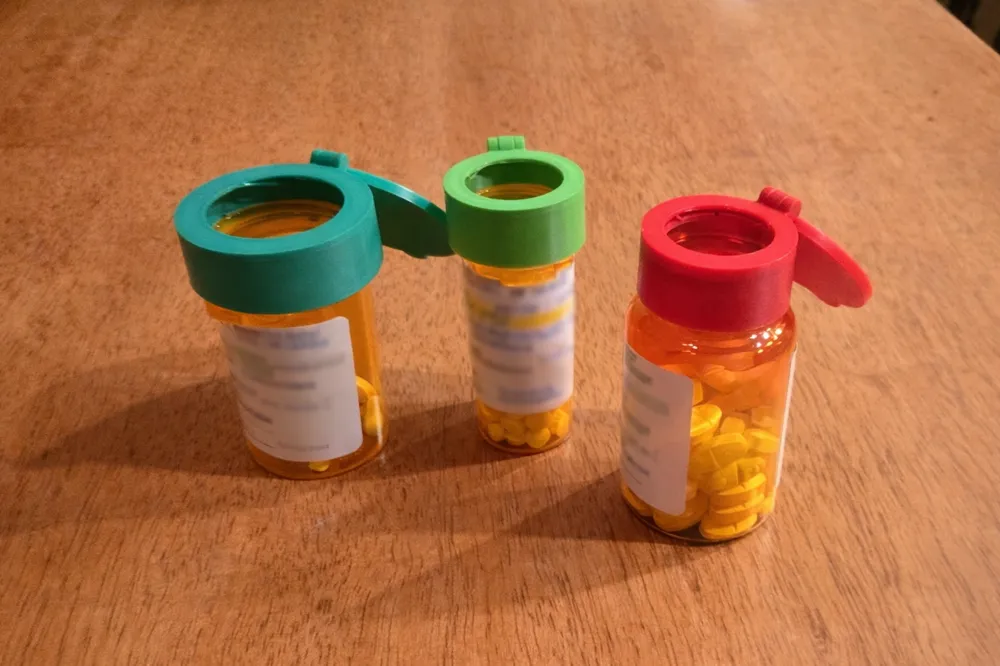

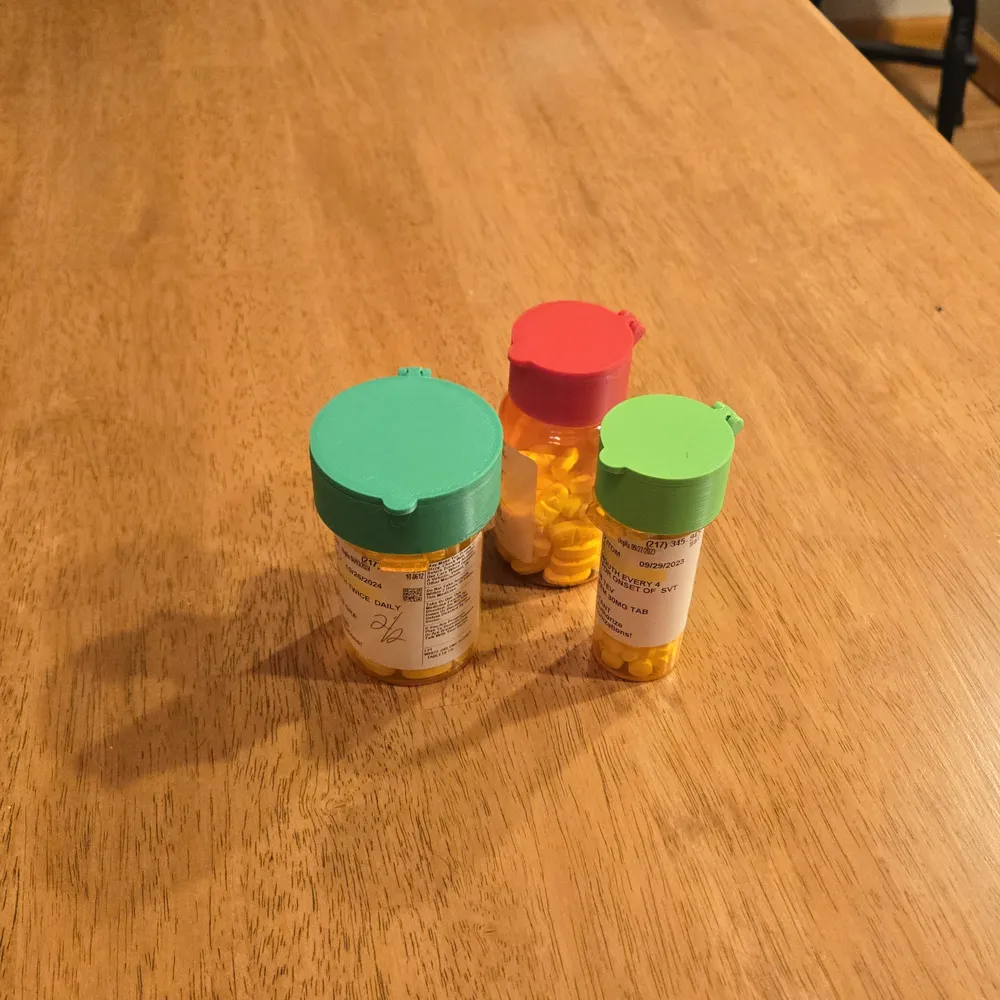

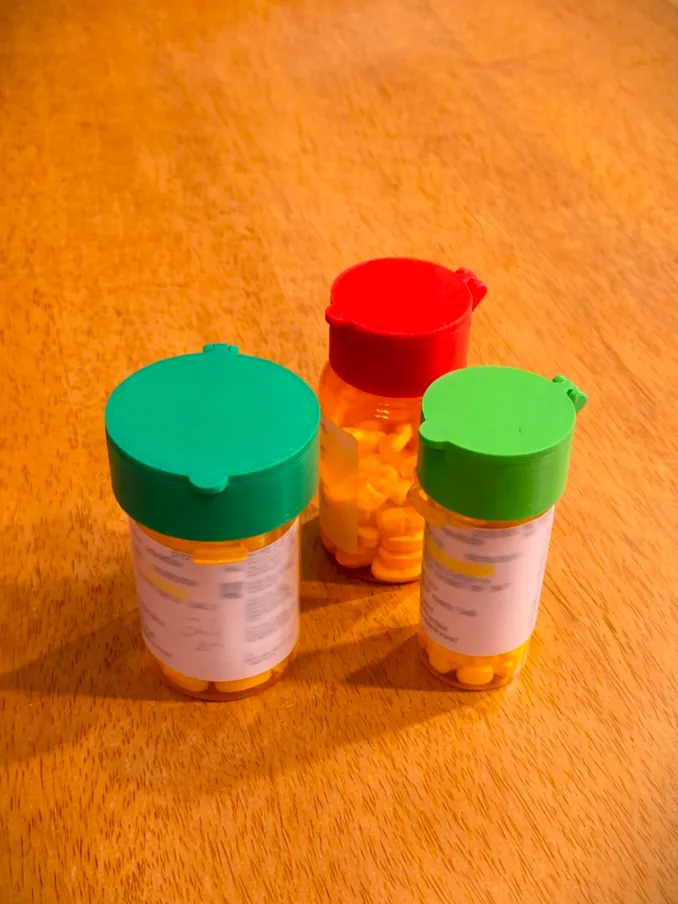

Included Sizes

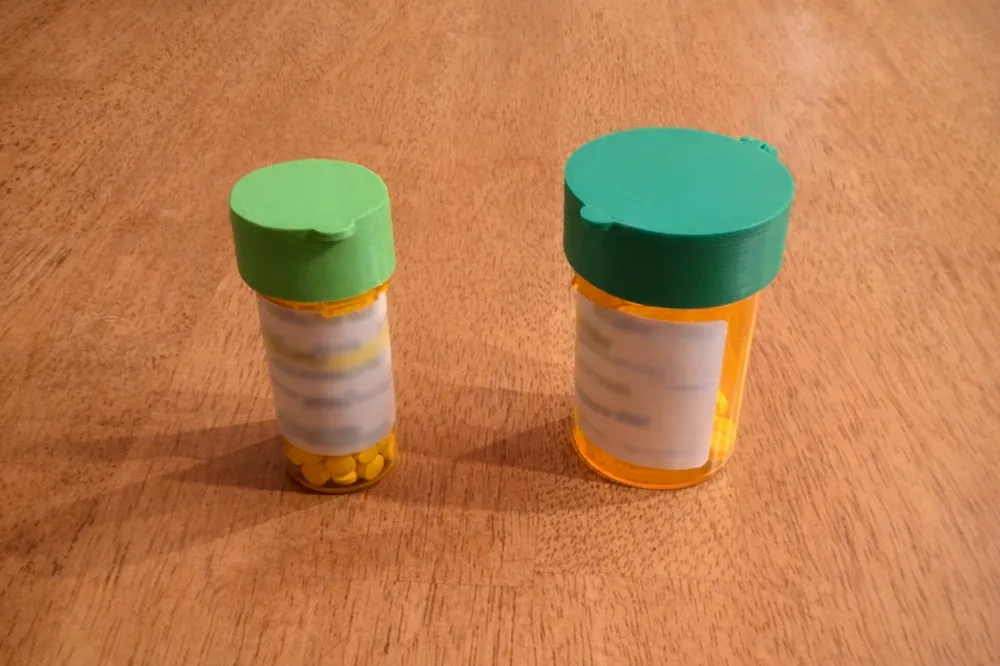

• Small – Fits 13 & 16 dram prescription bottles
• Large – Fits 30, 40 & 60 dram prescription bottles
• Walmart Size – Designed specifically for Walmart prescription bottles

Each size installs securely and functions like the factory cap, without permanent modification to the bottle.

Print & Assembly Details

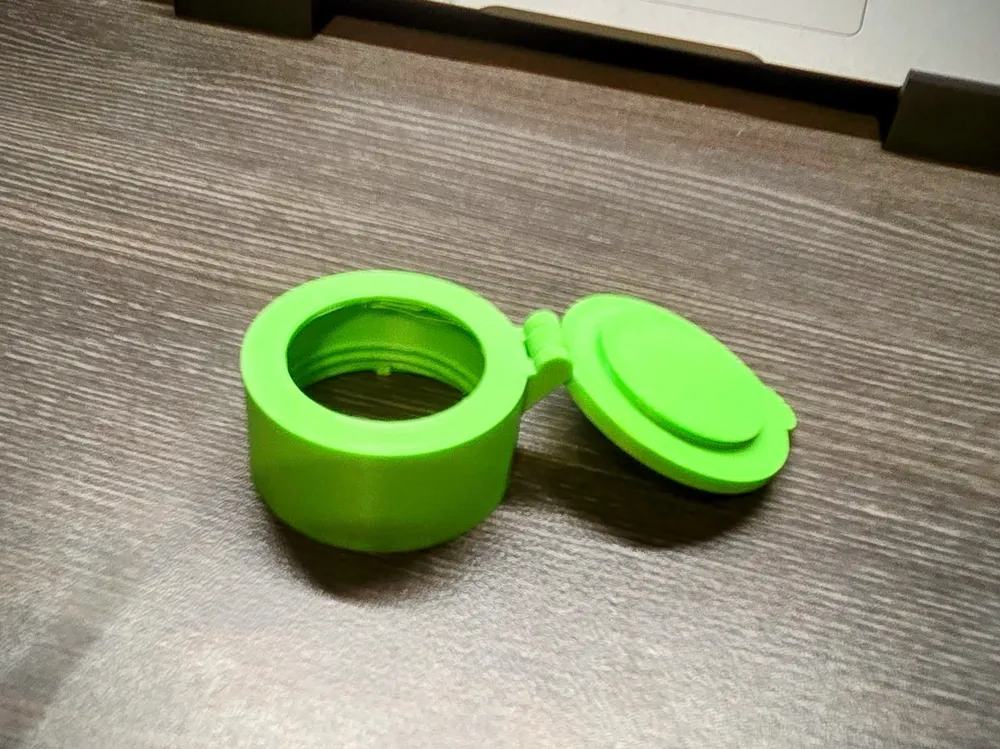

• Small & Large caps: Print in 2 parts
• Walmart cap: Prints in 3 parts
• Parts assemble easily after printing (when attaching lid, be sure to attach at furthest point of opening, slowly)
• Supports required, but designed for easy removal
• PETG recommended for a small amount of flex and durability
  • PLA will work, but PETG provides a better snap fit and longer life

Key Benefits

• Faster access to medications
• Reduced hand strain and fatigue
• Visual color-coding for time-of-day dosing
• Ideal for users with arthritis, limited grip strength, or frequent dosing schedules
• Helpful for caregivers managing multiple prescriptions

Notes

⚠️ These caps are not child-resistant.
Use only in appropriate settings where safety considerations have been evaluated.
