SIGMA Cyclocomputer Holder

Remix of Sigma Bicycle Computer BC 9.16 ATS Mount by Chassou - Base structure

I adapted this version of a SIGMA speedometer mount for our child's bicycle

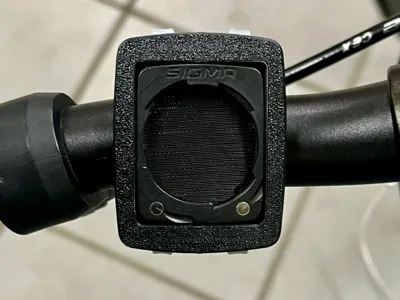

My version is smaller and sits directly on the handlebars (similar to the original)

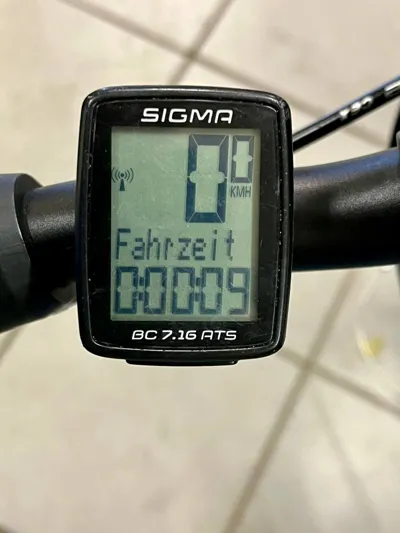

The mount is suitable for the SIGMA BC 7.16 ATS and other computers with this format

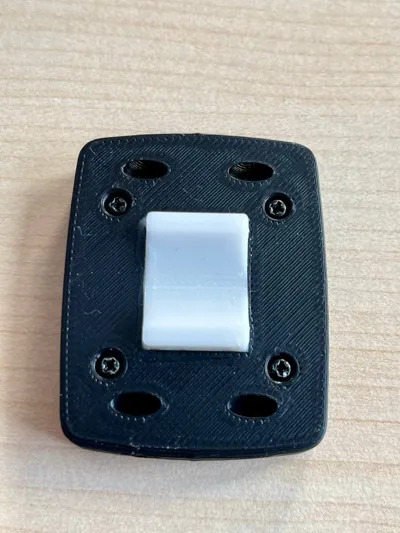

The original base plate of the SIGMA computer can be screwed in from the back and fits flush

On the back there is a recess for a TPU insert (I glued this in),

which rests on the handlebars and is intended to prevent or reduce slipping (works very well for us)

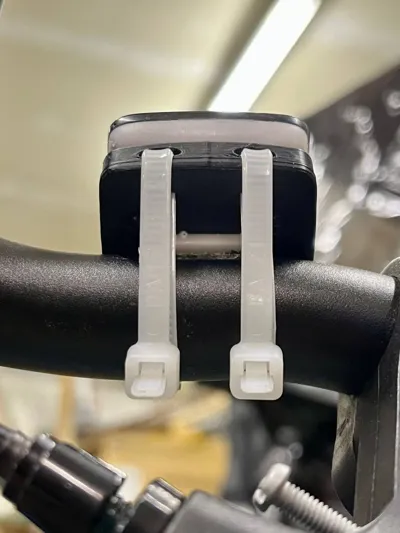

The attachment to the handlebars is done with two cable ties through the designated holes

I printed the mount with PETG for higher durability (0.16 mm layer height, 35% Gyroid infill)

The support can be pushed out from the back through the screw holes
