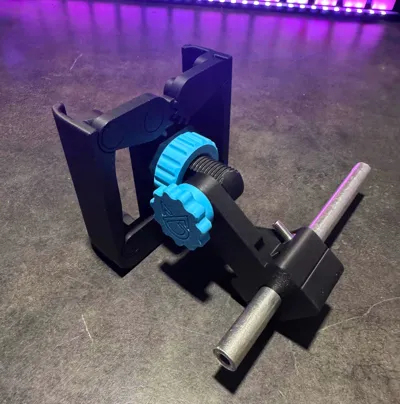

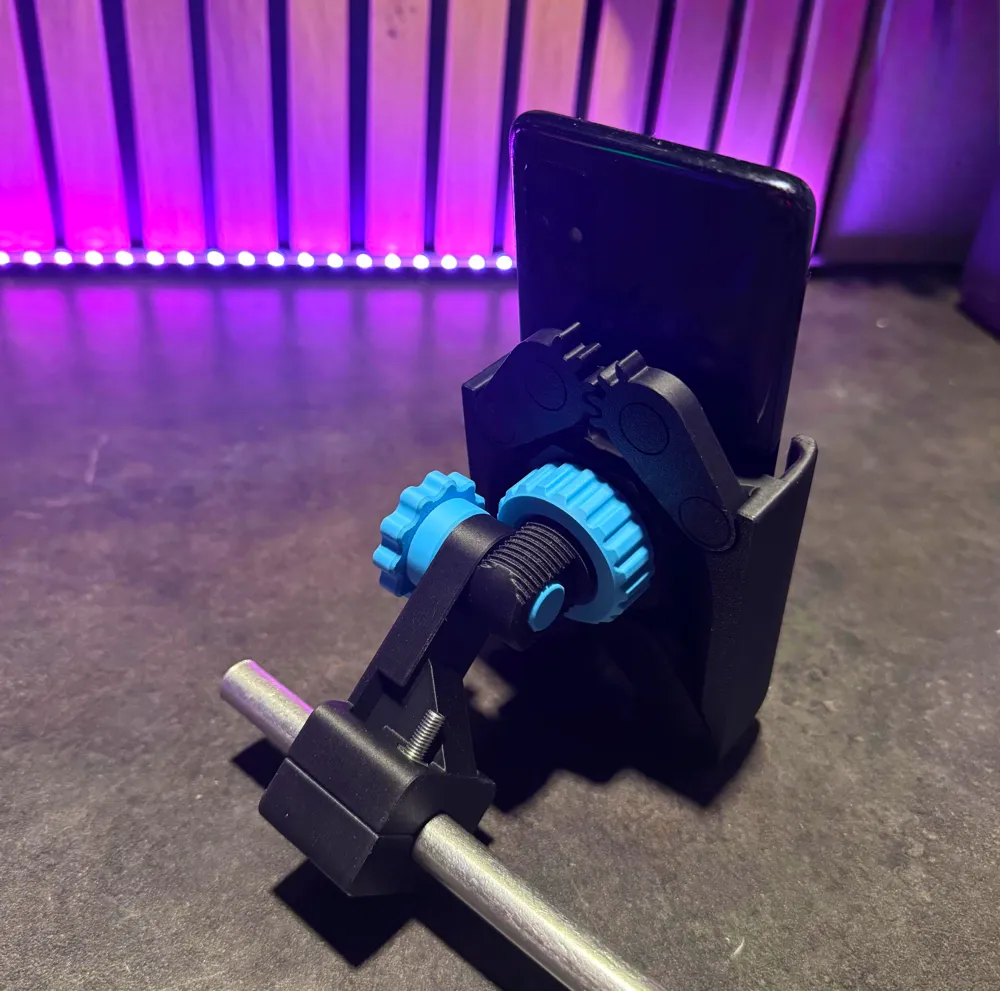

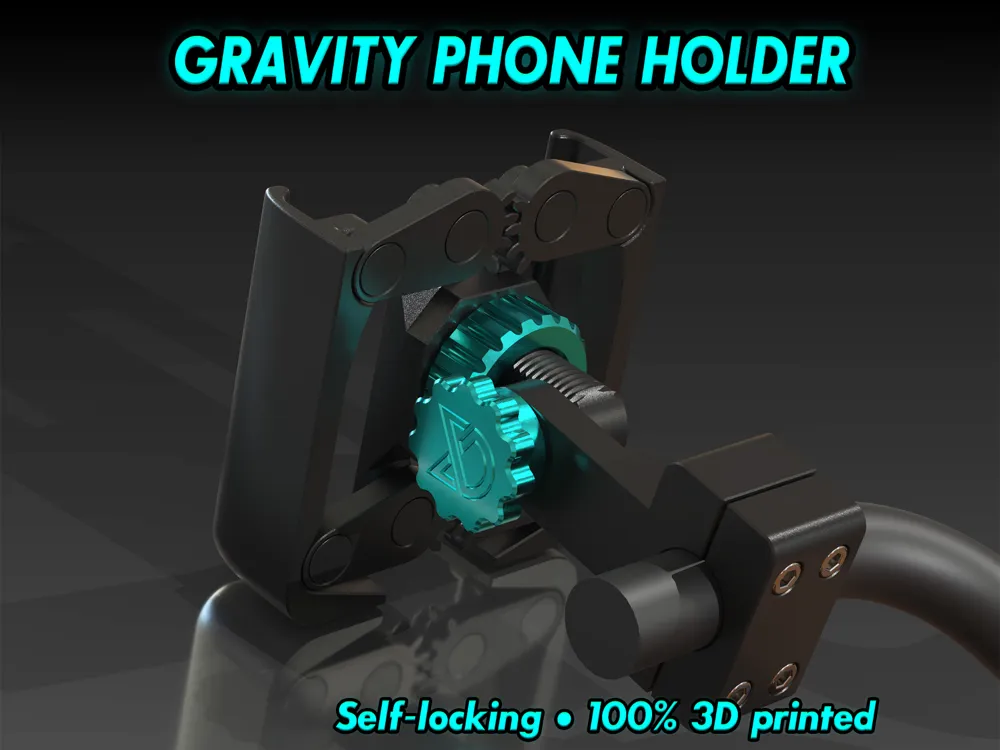

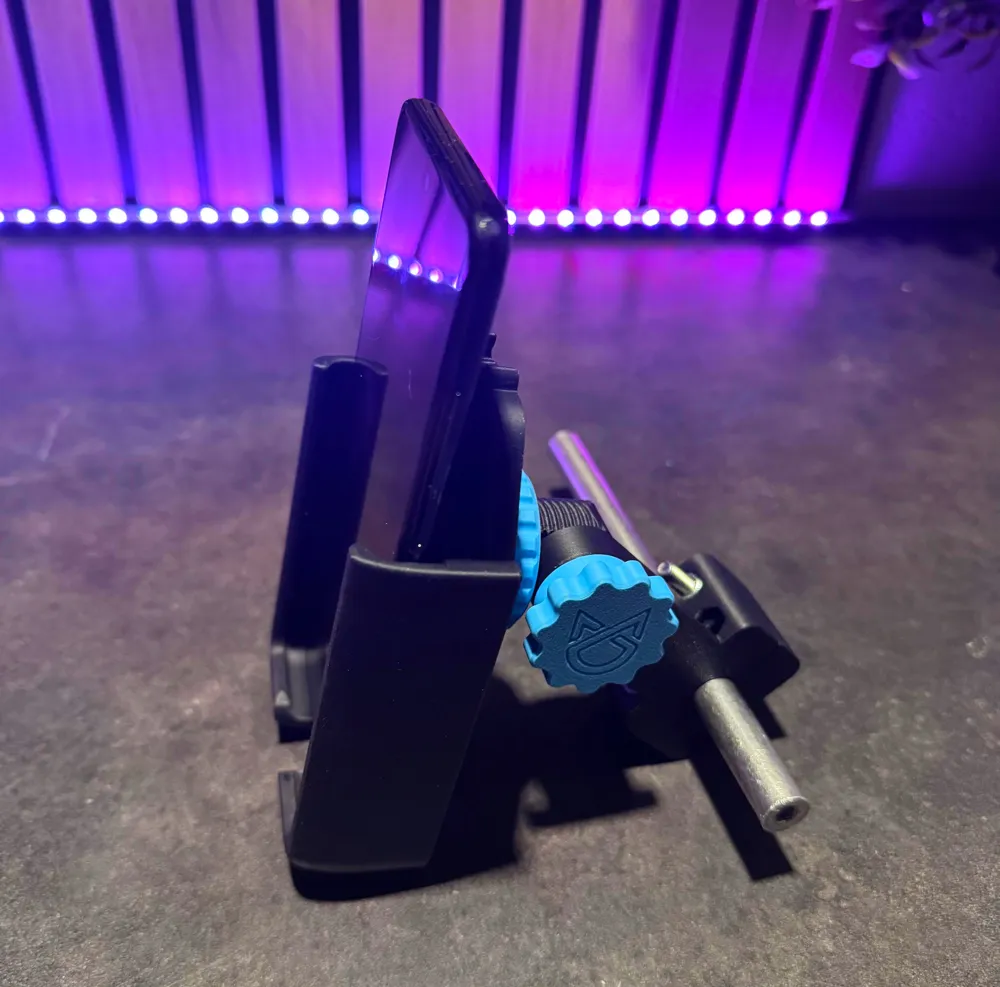

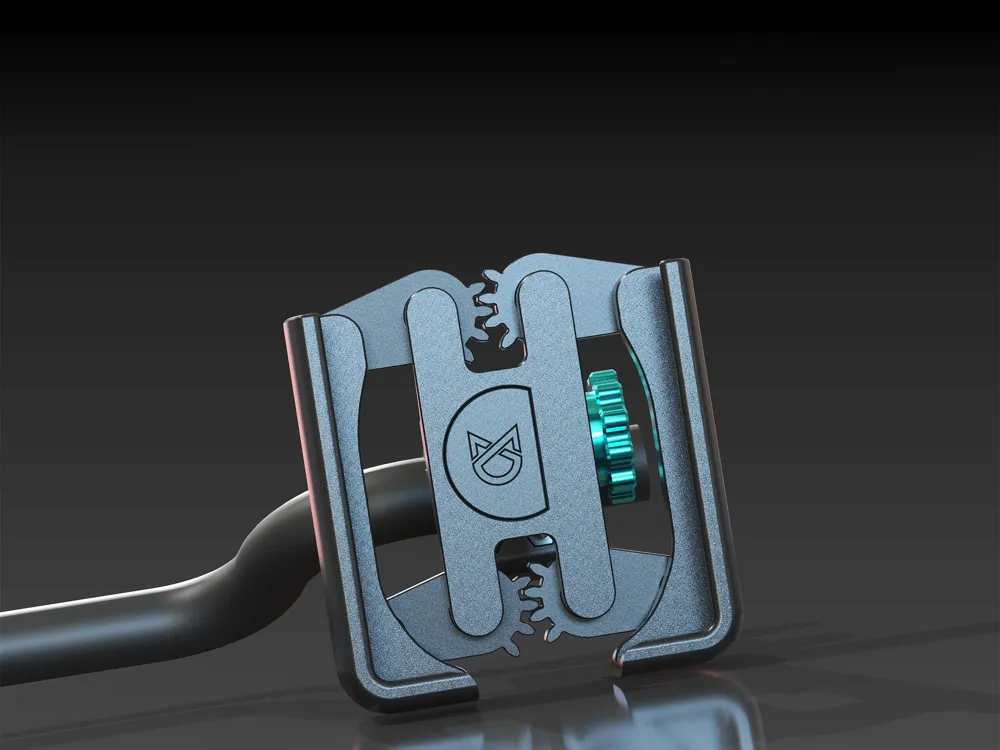

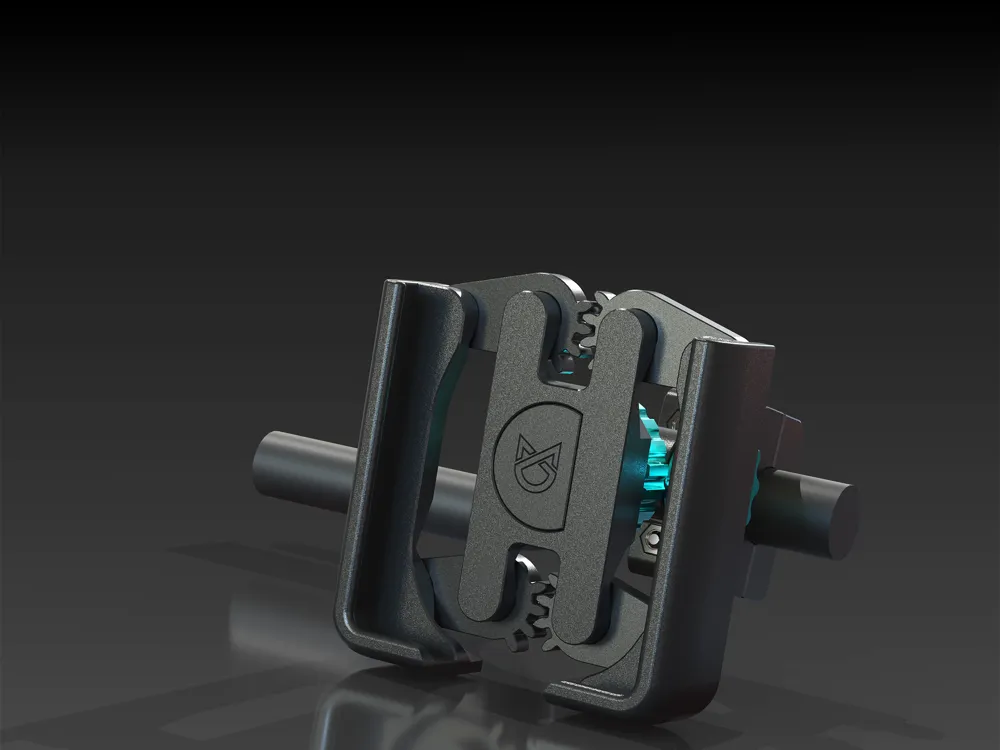

Gravity Phone Holder - Phone Holder for Handlebars
A gravity-hold phone holder, designed for handlebar mounting.
The phone is automatically held by its own weight:
no springs, no complicated adjustments - just place the phone and it works.
The design is robust, fully 3D printable, and designed to withstand vibrations.
All parts print without supports.
🔩 Assembly
Handlebar attachment using:
- 4× M5 CHC screws
- Minimum length: 25 mm
- 4× M5 nuts
Everything else is 100% 3D printed.
📏 Available Handlebar Diameters
- 12,7 mm (1/2")
- 22 mm (7/8")
- 25,4 mm (1")
Choose the version that matches your handlebar.
🖨️ Print Notes
- The main gravity mechanism is print-in-place.
After printing, it is necessary to gently work the mechanism by hand
to free the gears.
- Once unlocked, the movement becomes fluid and the holder functions normally.
🚀 Usage
- Motorcycle / Quad / Bicycle
- Any handlebar compatible with the proposed diameters
