Custom Guitar Knobs - Stratocaster - Retro Style
Print Profile(2)
Description

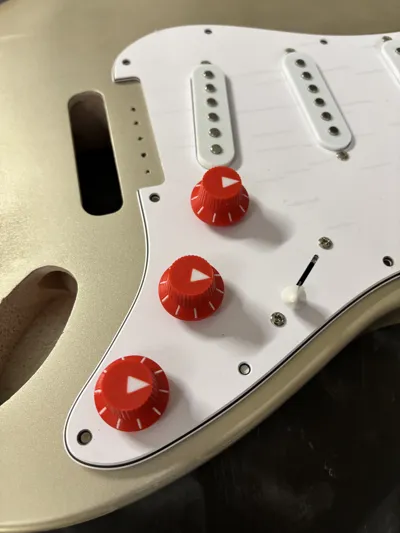

This file is for a custom potentiometer knob for a guitar. The model is based on the standard Fender Stratocaster knob and follows those rough dimensions, though the knurl is slightly softer. I designed these for a space / NASA themed guitar I'm building, but I think the style could look cool in other colors and designs as well!
Fit is for the split-shaft style pot and is push-on.
These print upside-down, so no supports! Unfortunately there are a LOT of filament changes, so you'll want an AMS and patience. It takes about 1.5 hrs to print 3 of these. There isn't much additional waste in time or filament though for doing more… so make a full batch! The plate is set for 3, but you can always add more.
These fit my 6mm split-shaft knobs with a fairly tight fit…. but for all push-on knobs, the exact fit will depend on your potentiometer and printer calibration. If you find these too tight or too loose, you can easily scale them in Bambu Studio without issue. The default hole on these is 6.1mm ID, so I'd start with +/- 2% scaling if you need. Let me know if you need help and I'm happy to help get these fitting for you.
