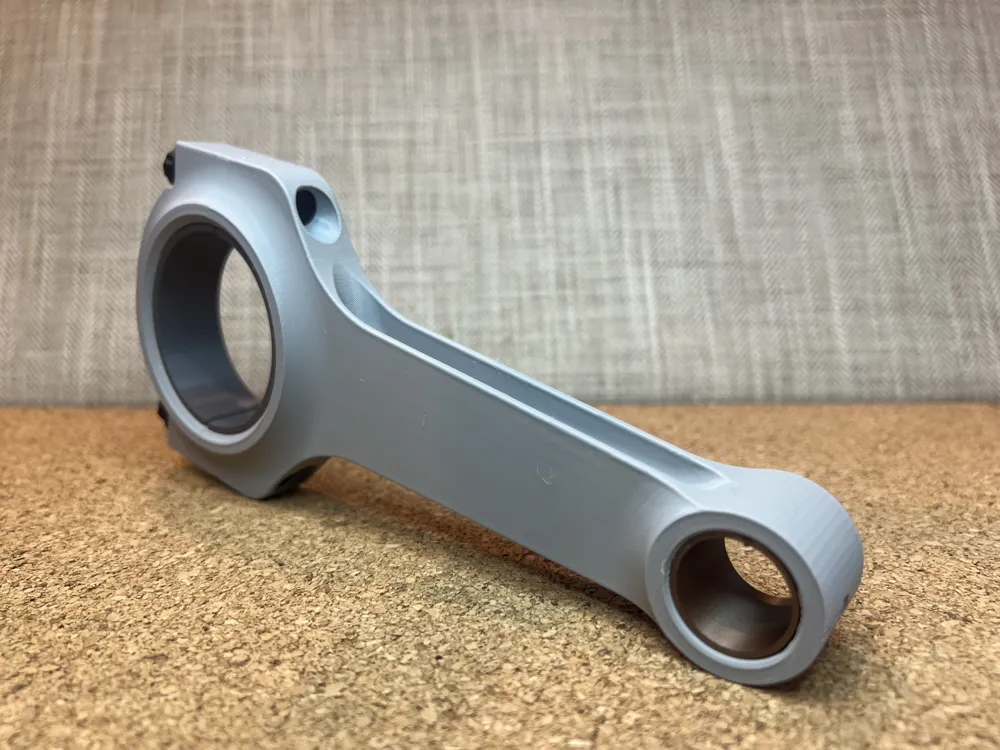

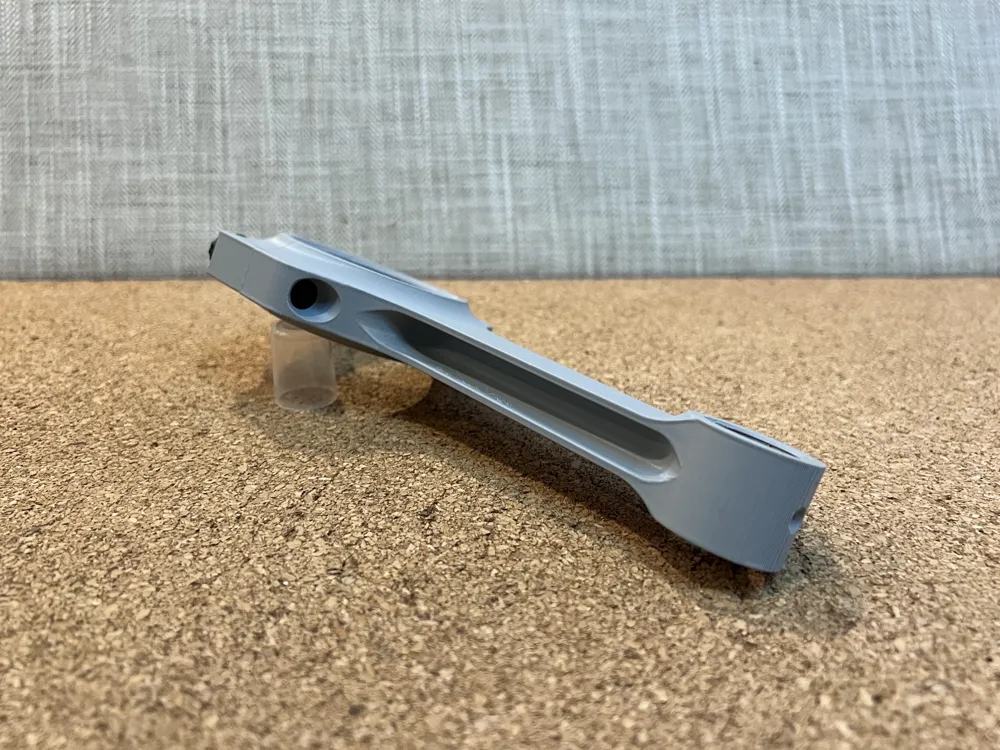

Performance H-Beam Connecting Rod
Print Profile(3)
Description
Just a regular guy designing prints for the masses.
Hey Everyone!

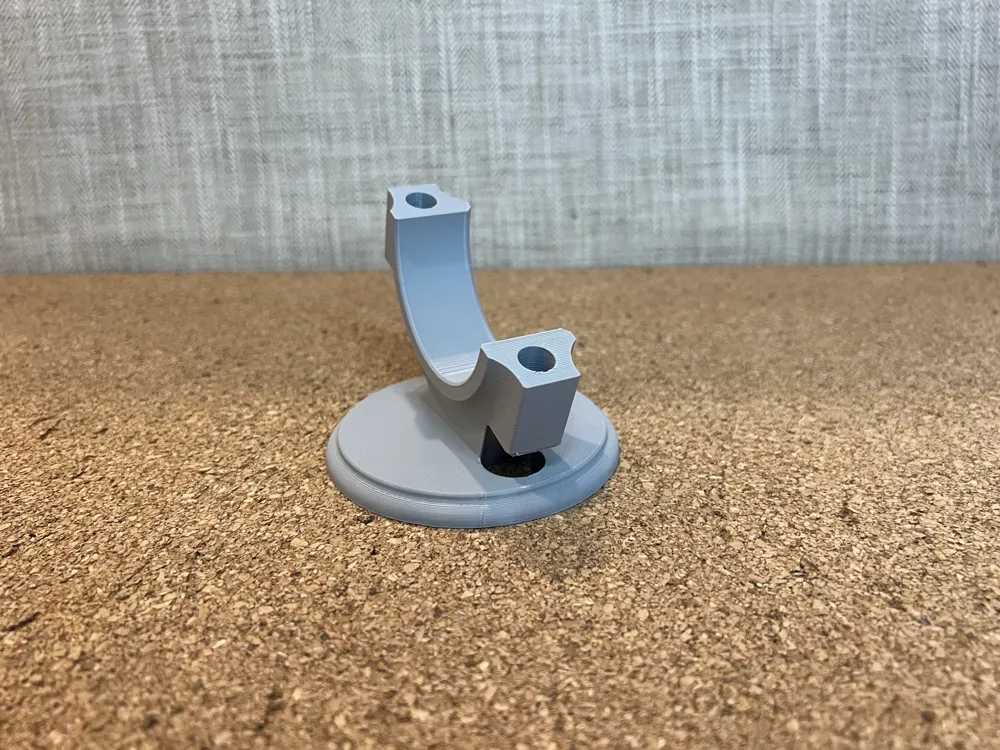

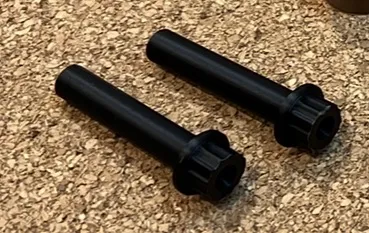

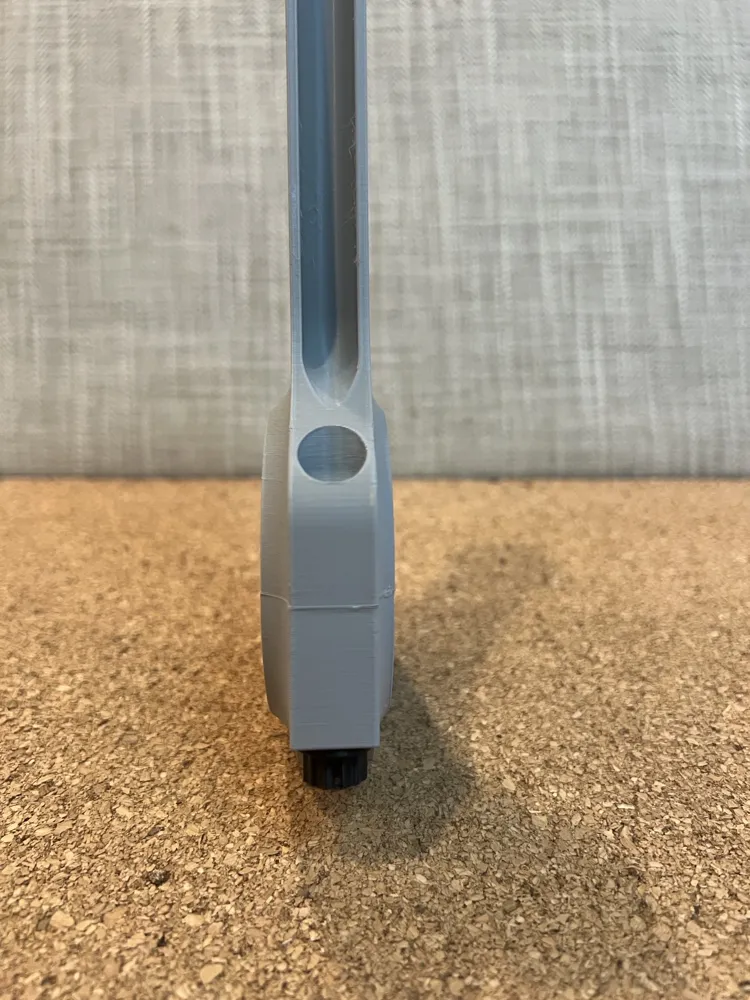

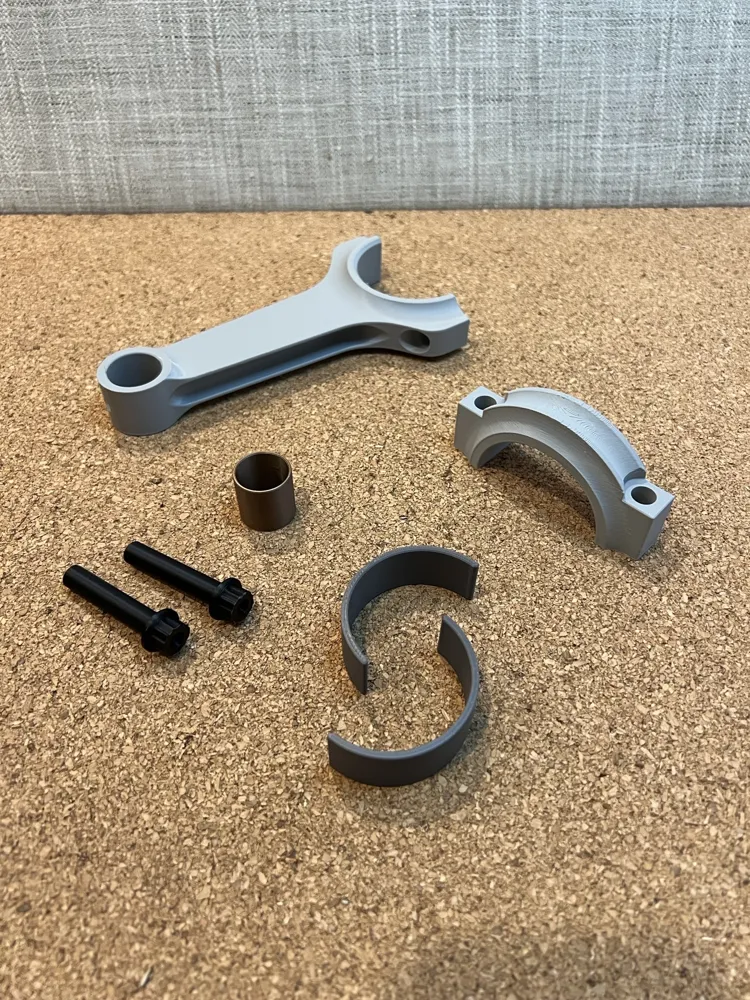

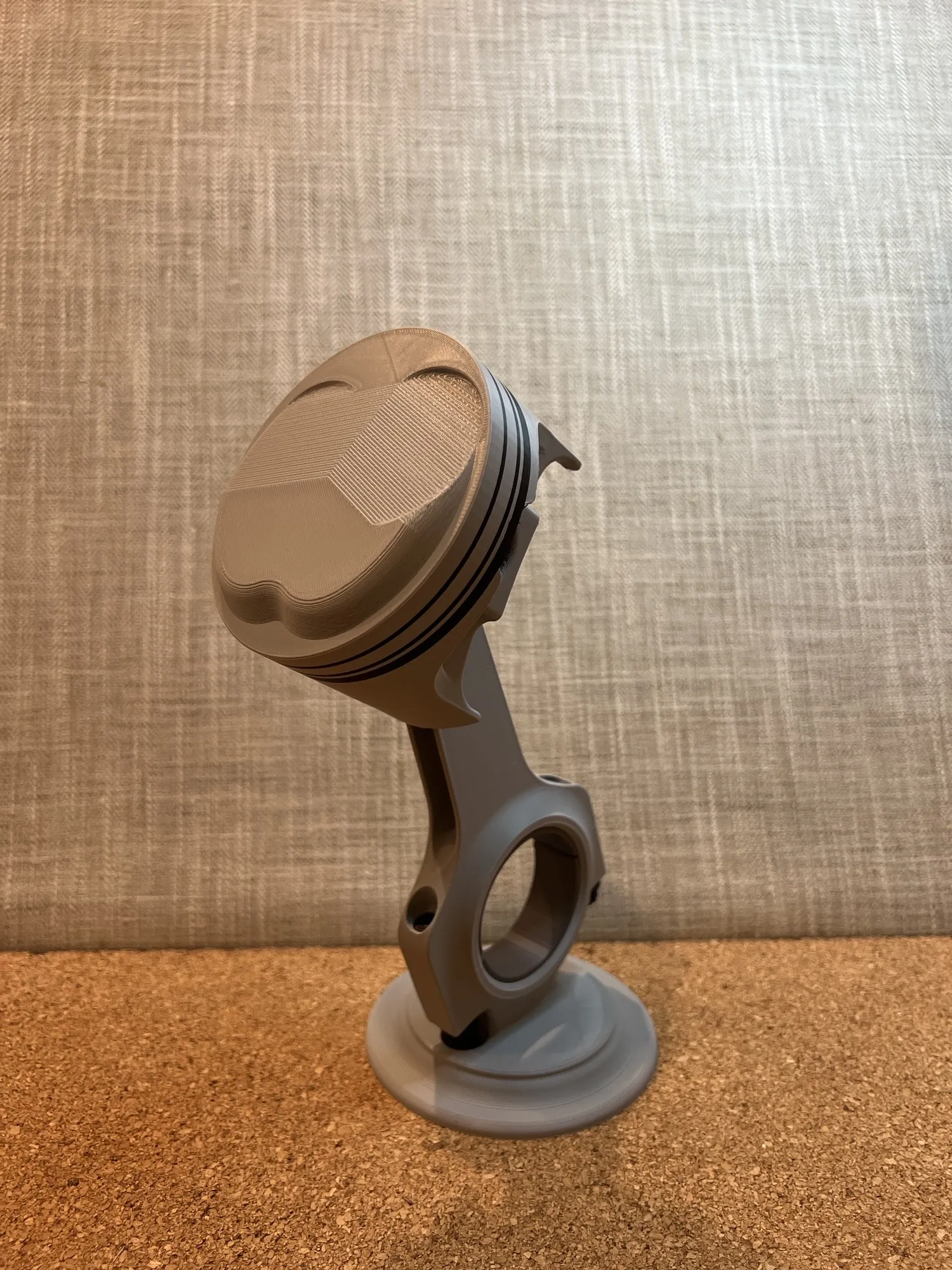

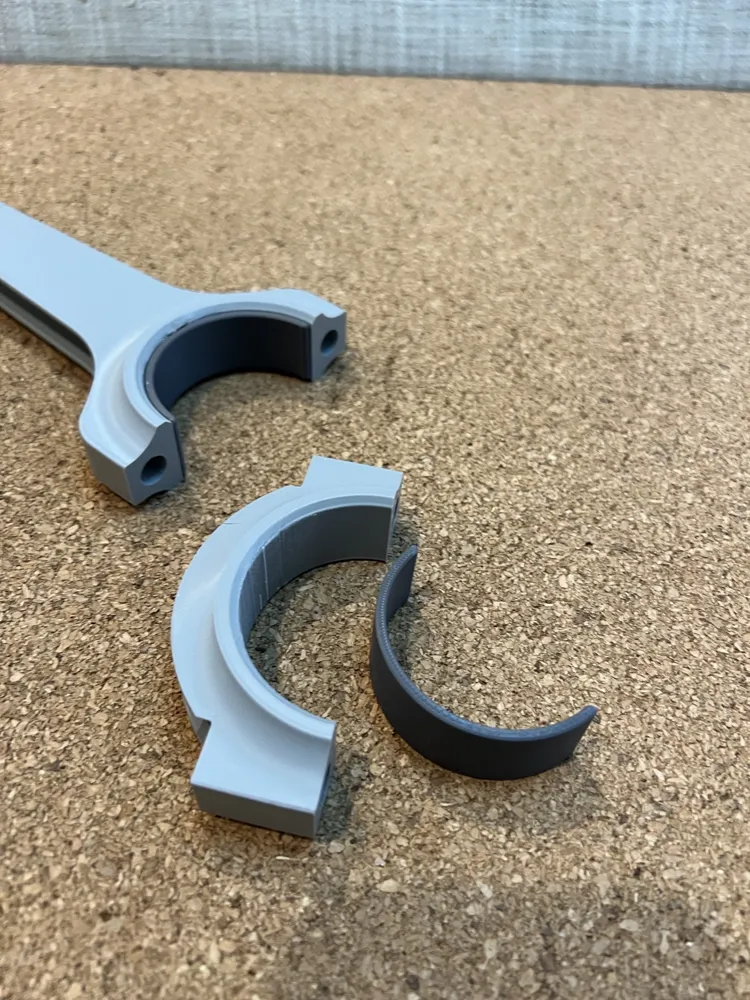

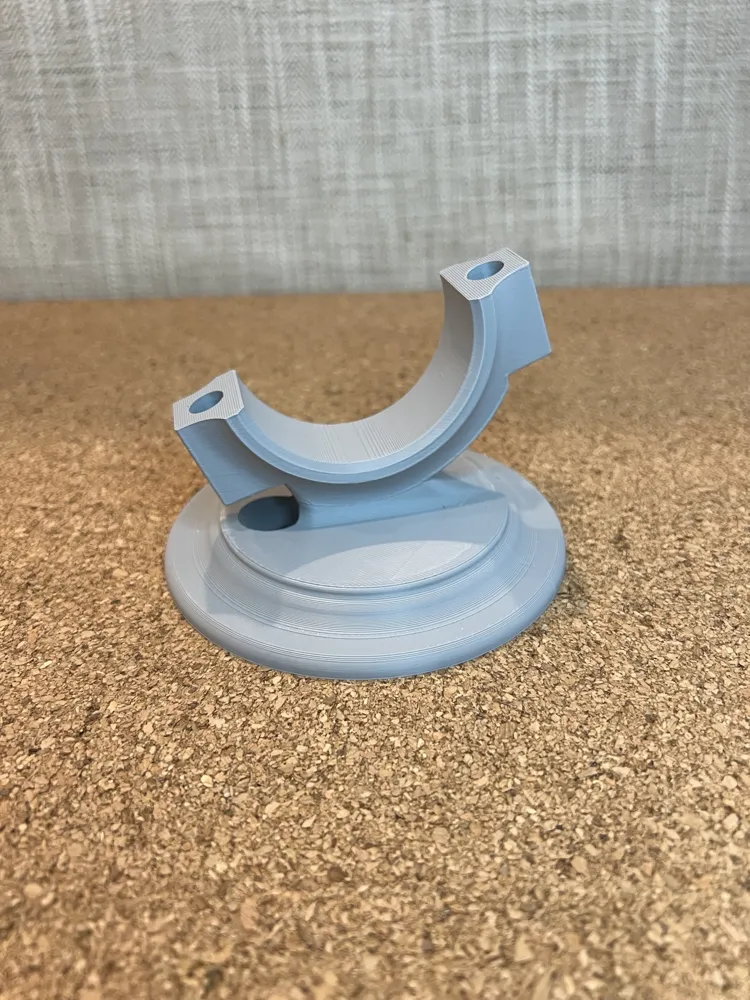

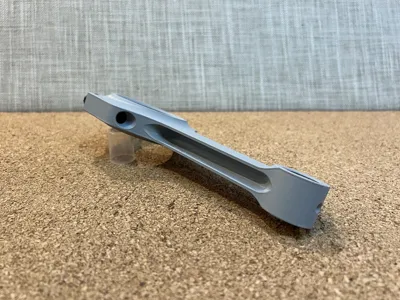

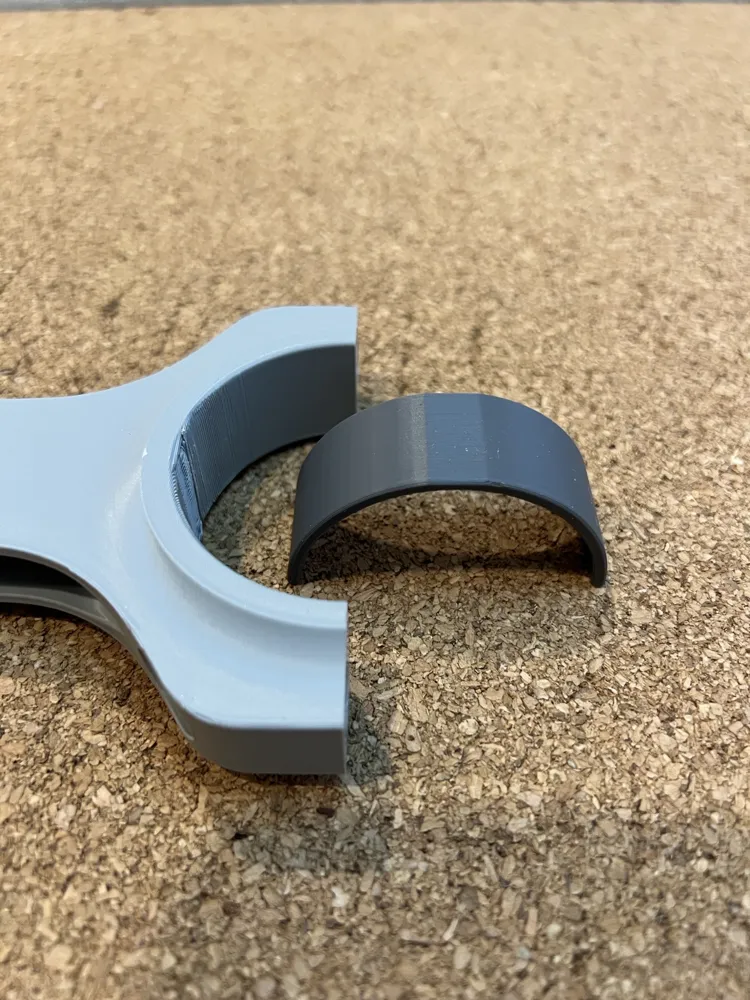

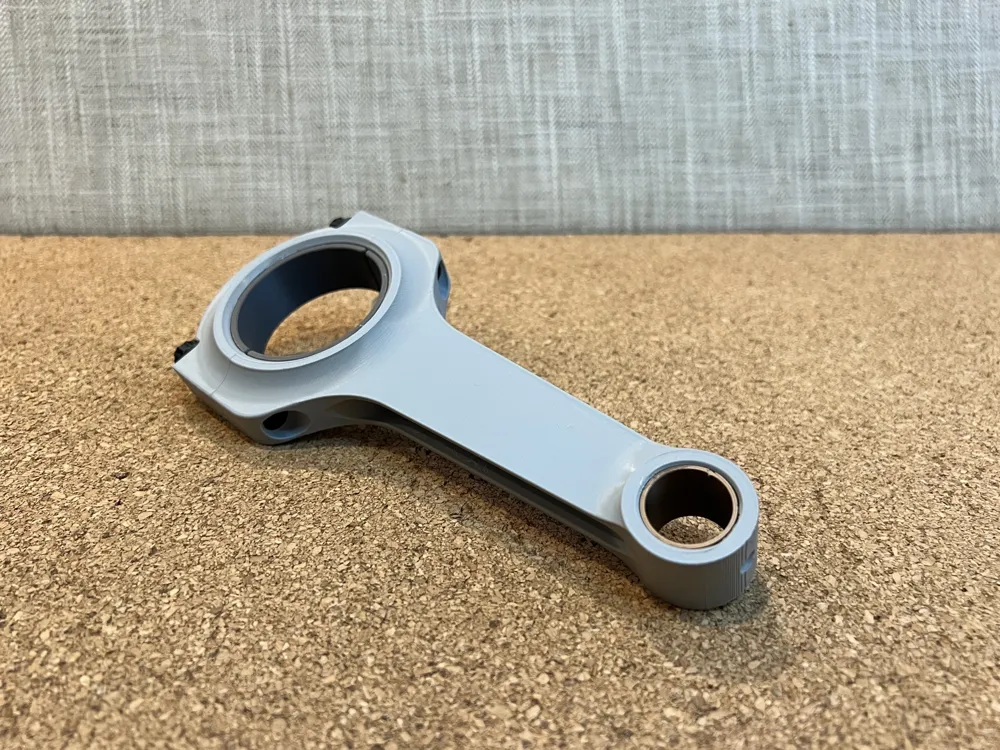

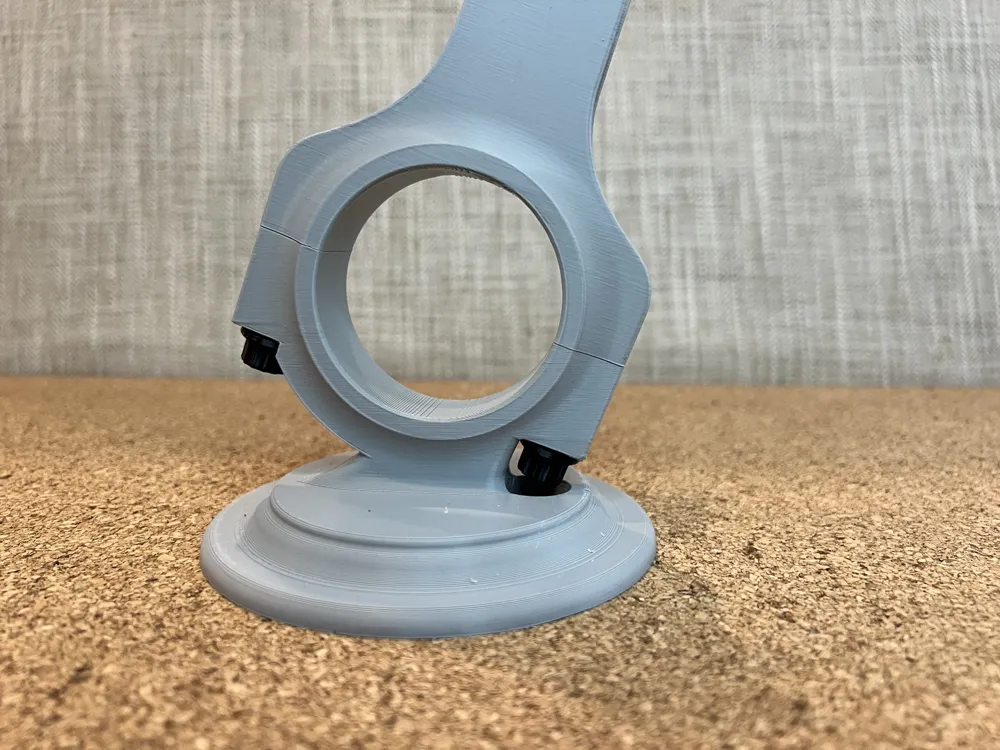

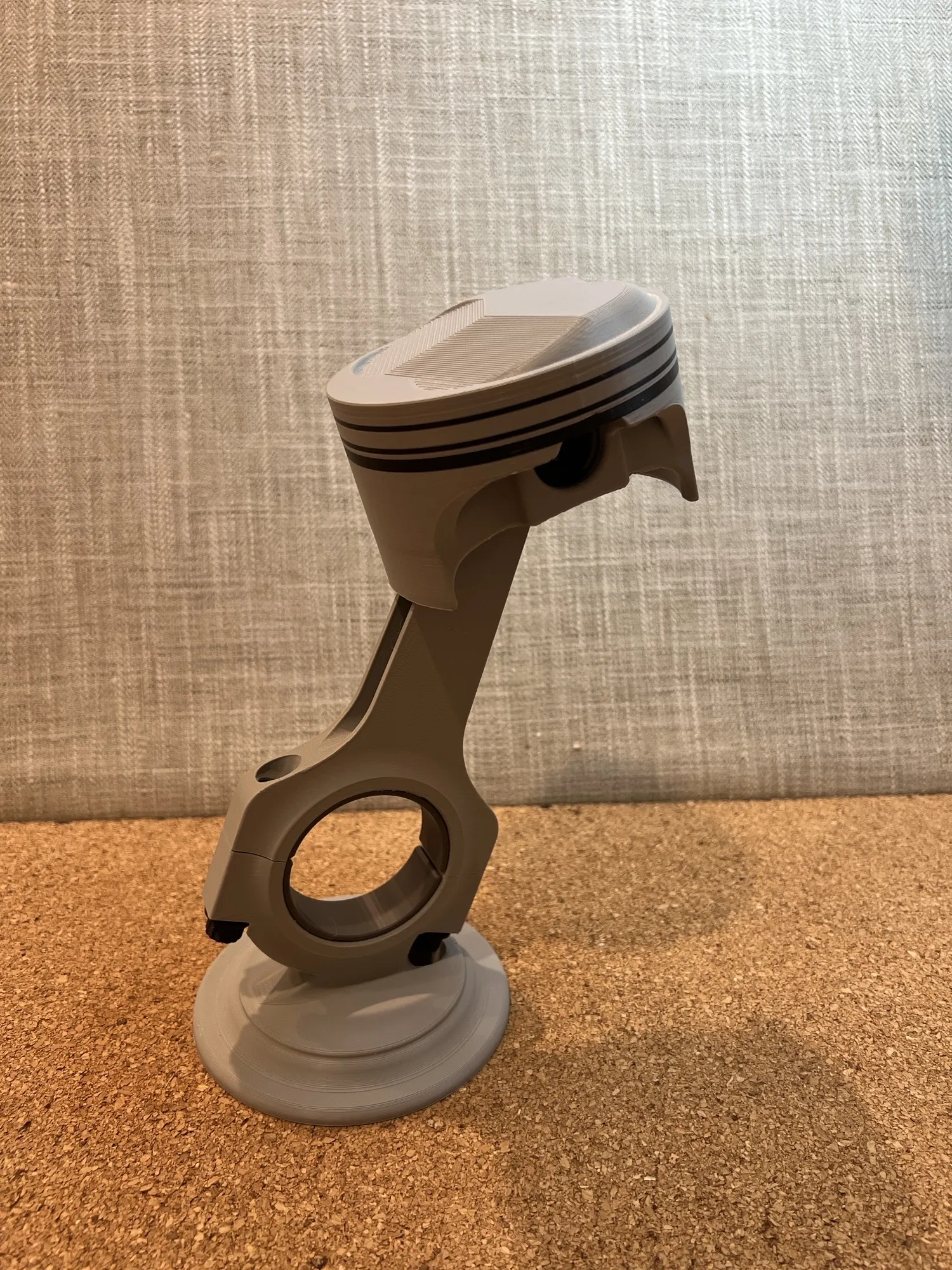

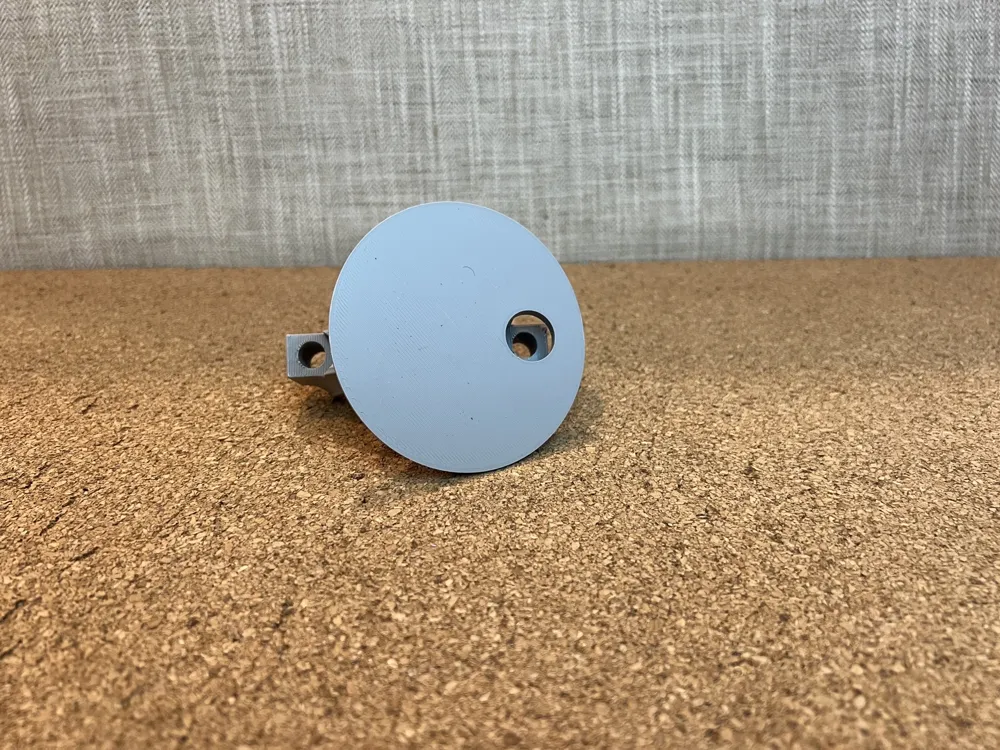

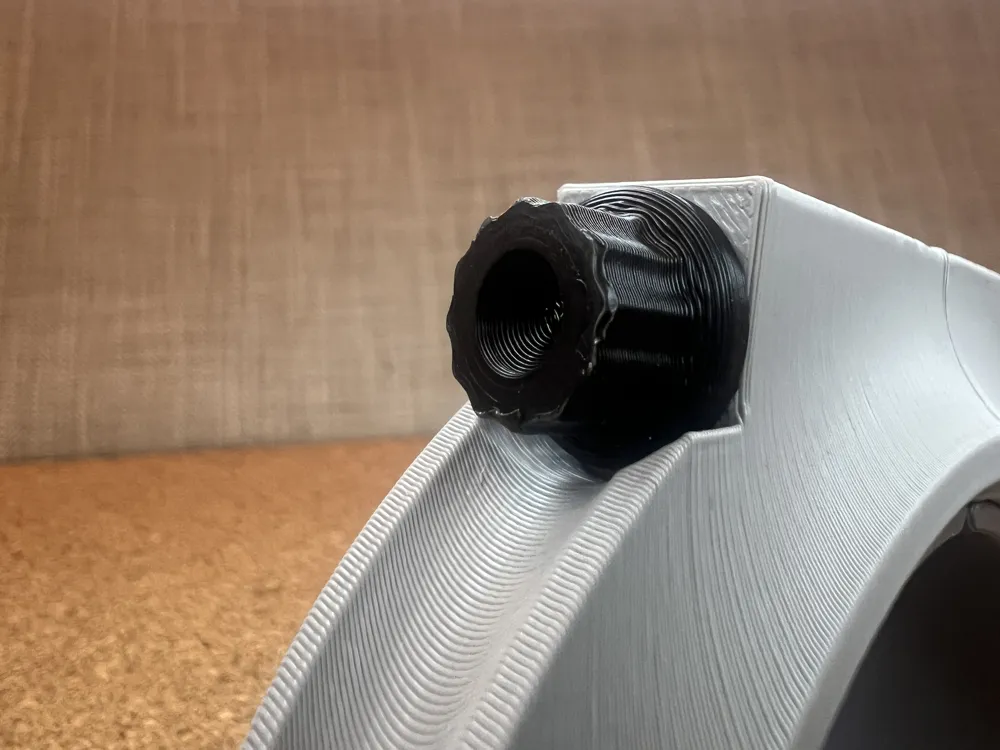

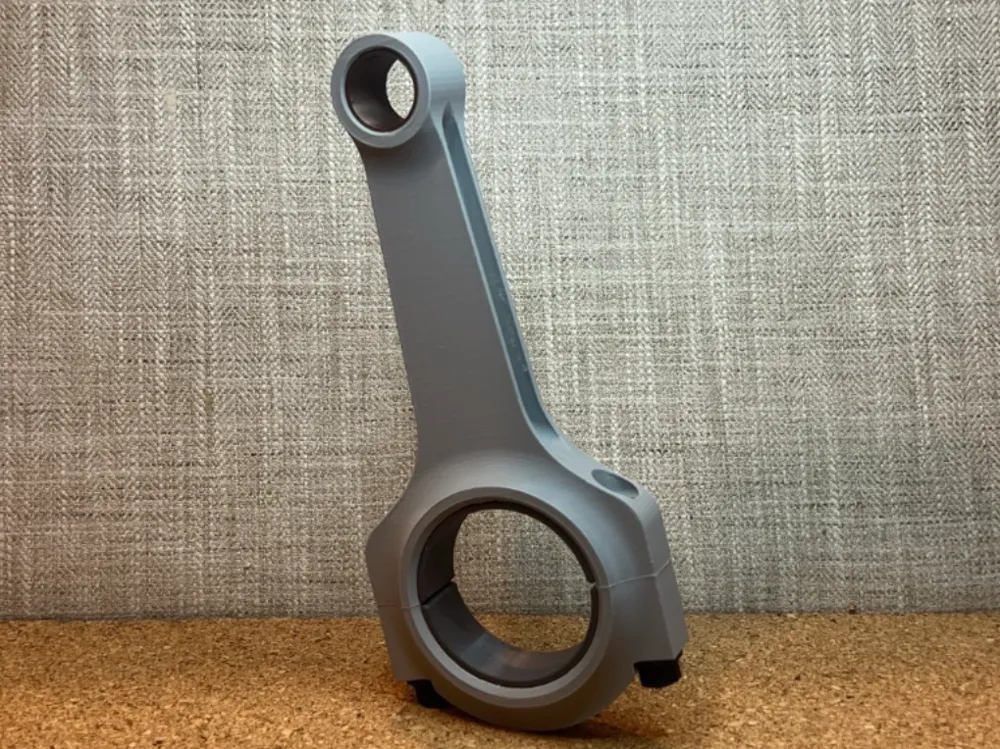

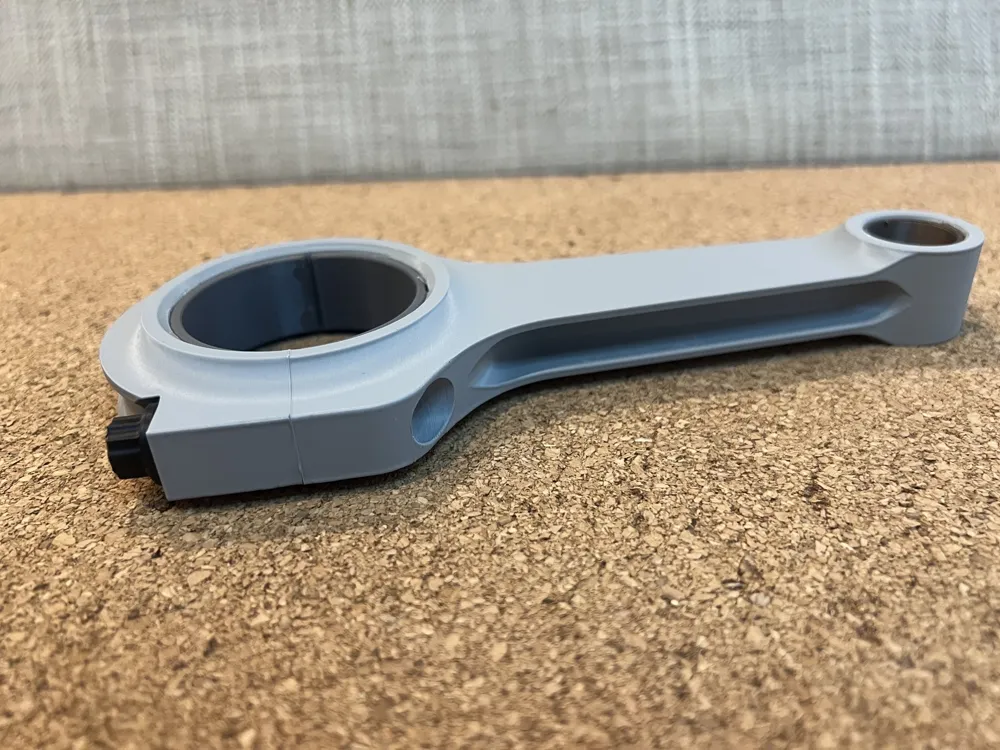

So here is something for my Gearheads. Its pretty close to scale, 6.000 in beam OC x 8.400 OAL x 1.000 W The bearings and bushing need to be glued in. The bolts ARE NOT THREADED so please don't complain :/ they do fit close so gluing them is optional. Yes, im more than capable of drafting threads but didn’t t want to over complicate things. Please be sure to put the cap on in the right direction as it is offset (pictured). Also, check out the optional display stands in the profiles before printing the regular cap. There are 2 sizes, one for the rod only and another larger diameter one for the rod and piston. The bolt heads are a perfect 7/16 12 point size. Any how it is kinda cool to look at and hold, I hope you like it!
Link to Piston
https://makerworld.com/en/models/2236922-performance-piston#profileId-2434422
Print Specifications:
0.4 mm nozzle
0.2 mm layer height
2 wall loops
15% infill
supports where needed
Boost Me (for free)
If you enjoy my models, please consider following me, leaving a comment, like, and Boost!
Link to my models:
https://makerworld.com/en/@Little_Eddy_M/upload
Instagram link:
https://www.instagram.com/lem_little_eddy_m?igsh=MWl3NHloOTBiaHY3OQ%3D%3D&utm_source=qr
YouTube:
https://www.youtube.com/@LittleEddyM
DISCLAIMER:
I design models for fun, the files are posted for “PERSONAL USE ONLY” and are provided ”AS - IS" without warranty of safety or functionality. CAUTION!! some models have small parts, pieces could break off or come loose causing a choking hazard, always use extra care monitoring your children when playing with them.
