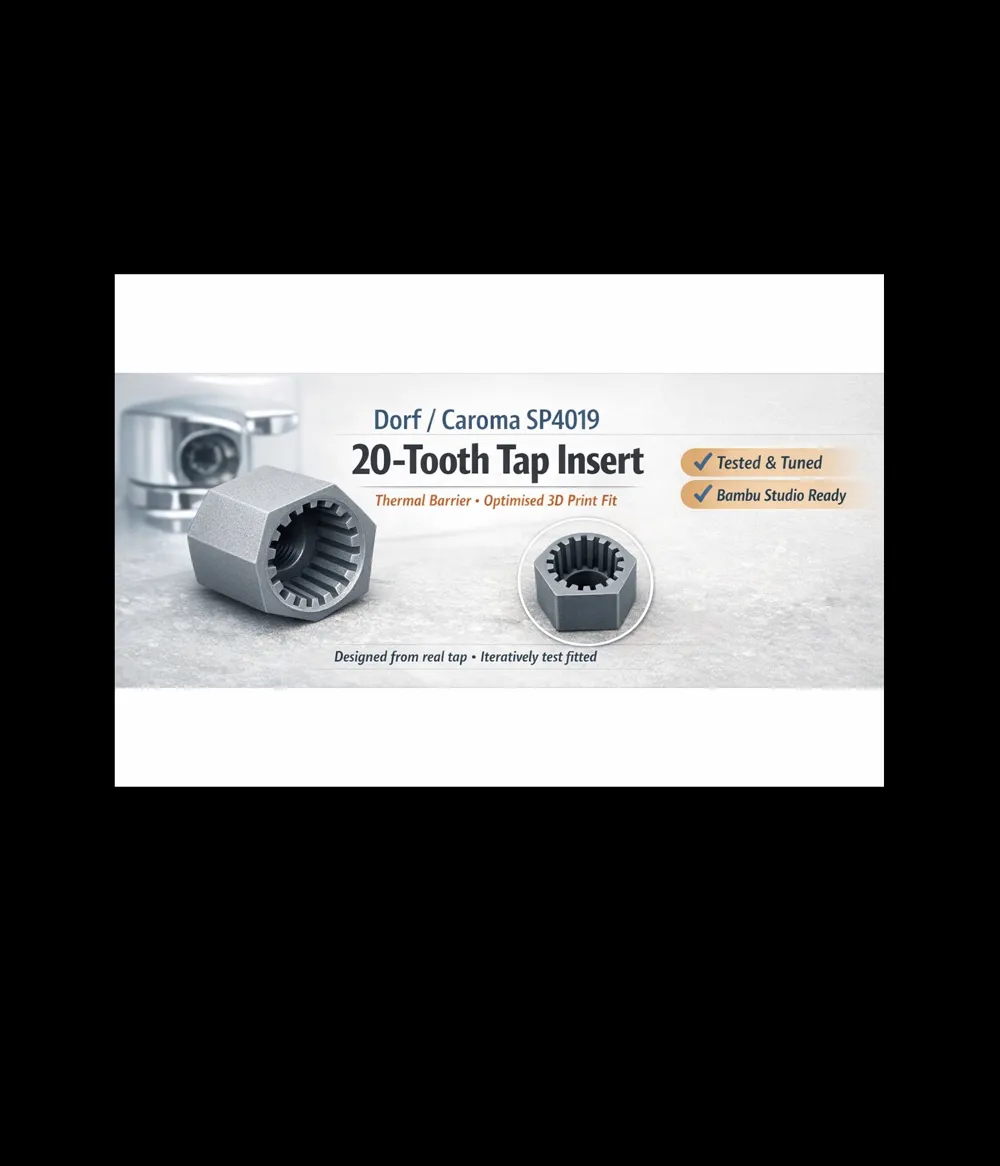

Dorf / Caroma SP4019 Tap Insert 20T Thermal
Print Profile(1)
Description

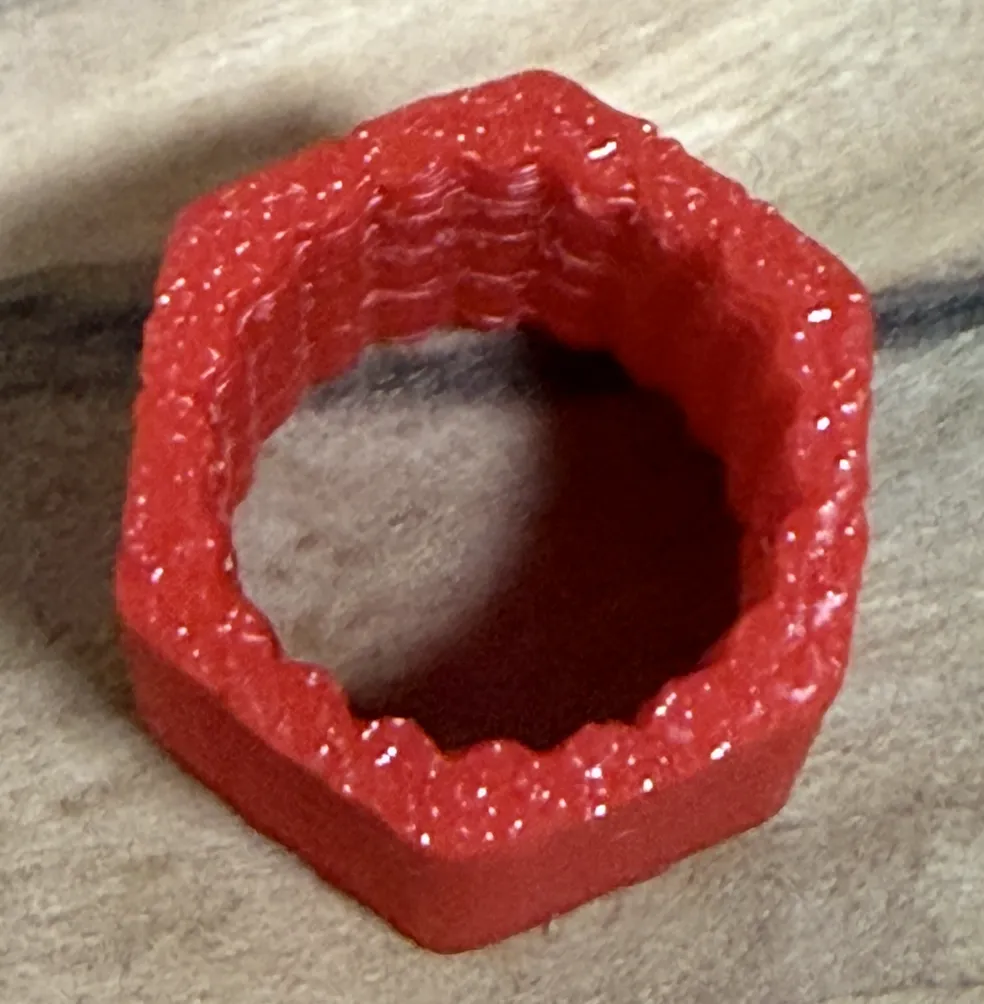

This is a replacement thermal barrier insert for Dorf / Caroma tap handles using a 20-tooth internal spline, commonly found in mixer and basin taps.
The model has been iteratively tuned through real-world test fitting to achieve:
- Secure external fit
- Smooth insertion onto the spindle
- Positive spline engagement without binding

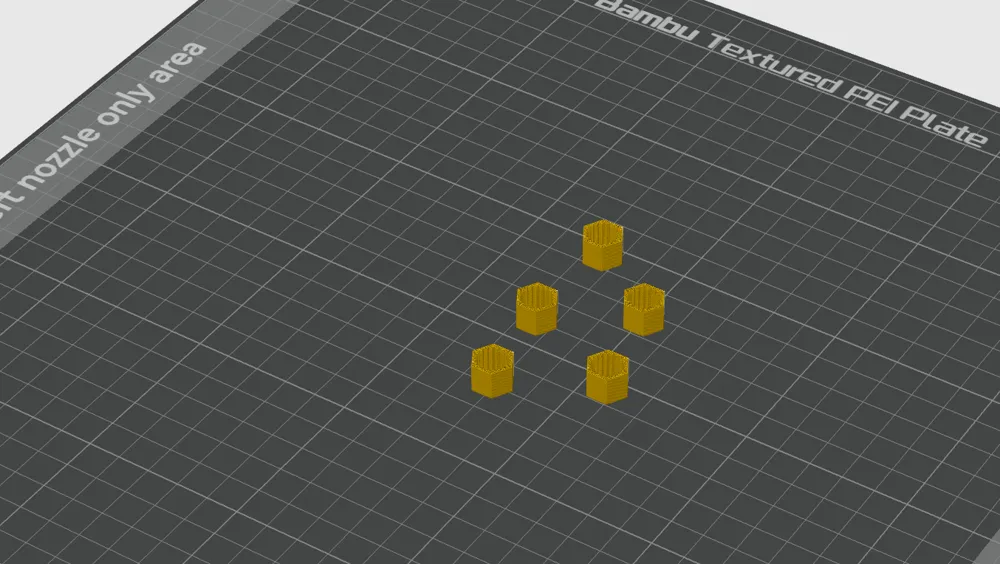

This version is optimised for FDM 3D printing and works reliably with Bambu Lab printers.
✅ Key Features
- ✔️ 20-tooth internal spline
- ✔️ Tuned internal clearance (no forcing required)
- ✔️ Slightly aggressive tooth profile for firm engagement
- ✔️ External size adjusted for real-world tolerances
- ✔️ Lead-in taper for easy installation
- ✔️ Watertight, manifold STL
Dimensions
| Feature | Size |
|---|---|
| Height | 9 mm |
| External across flats | 11.5 mm |
| Internal spline | 20 teeth |
| Internal minor Ø | ~8.35 mm |
| Tooth depth | ~0.78 mm |
