Desktop smartstand
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
1.6 h
1 plate
Open in Bambu Studio
Boost
0
3
0
0
0
0
Released
Description

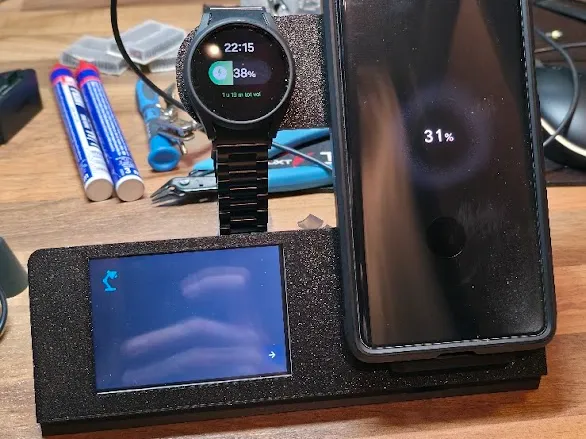

I made this little desktop stand to eliminate the three seperate usb devices and clear space on my desk.
It includes a wireless charger for my phone, a hole to put in a Galaxy watch charger, a hole for a 3.5inch Nextion screen and mounting holes for an arduino.

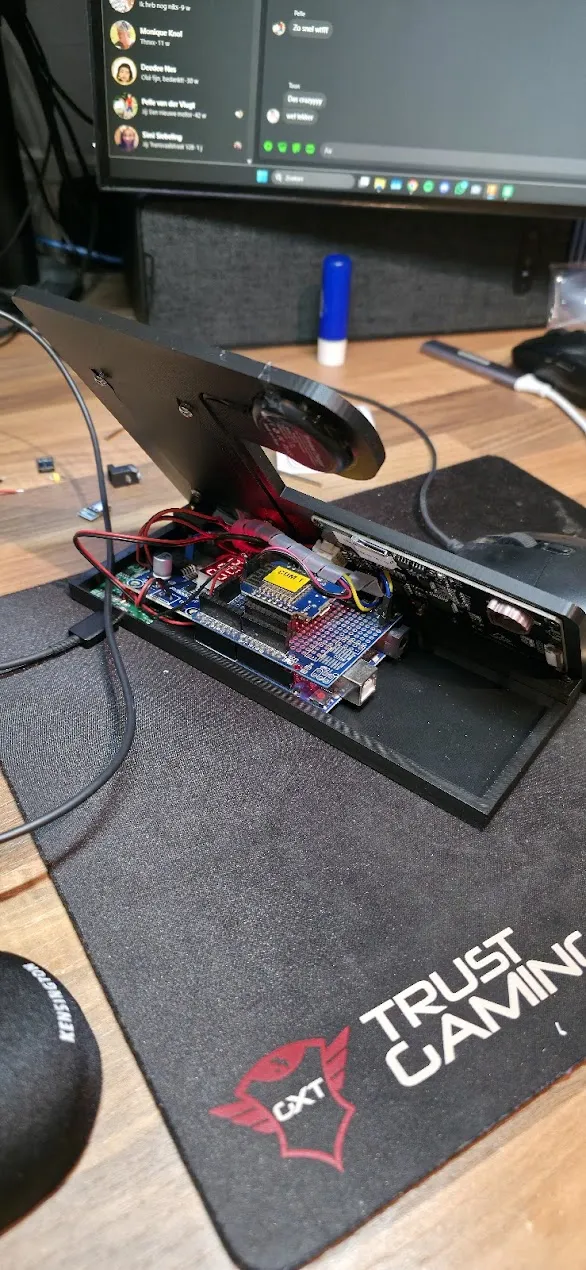

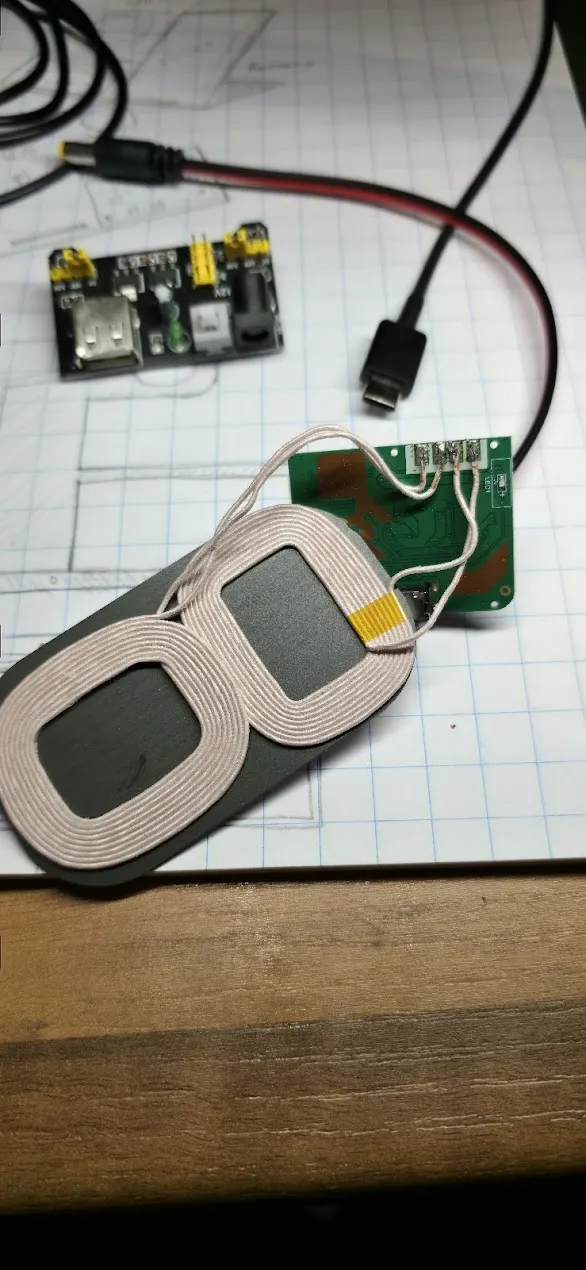

I used a Fresh ‘n Rebel wireless charger, tapped off the usb input to a DC voltage converter (from 9V to 5V) to power the watch charger, Arduino and Nextion. I used the NX4832K035_011 enhanced Nextion and there’s a Wemos D1 mini on an arduino shield on the Arduino connected to my Home Assistant.
Printed with a P1S.
