ELECROW 7 Inch HDMI Display 10 Inch Rack Mount 3U
Print Profile(1)
Description

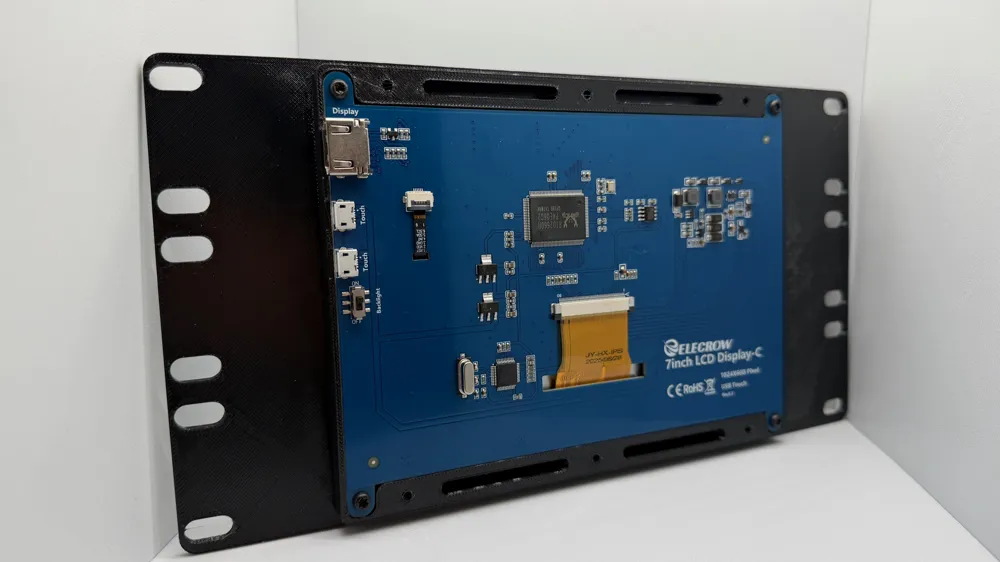

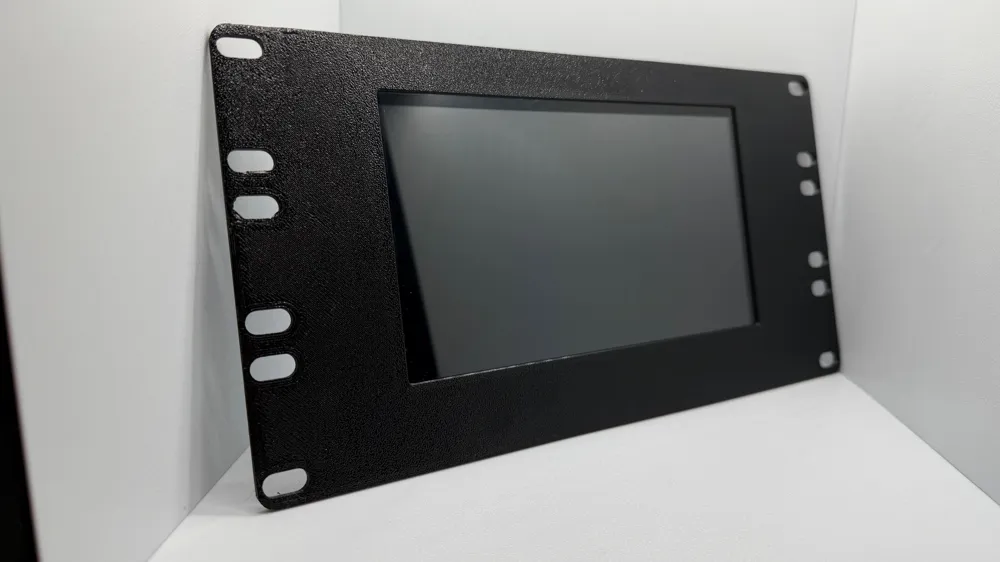

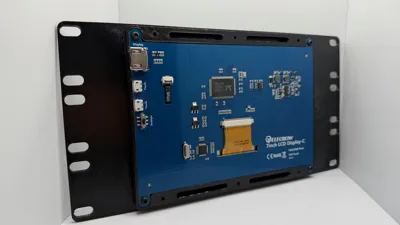

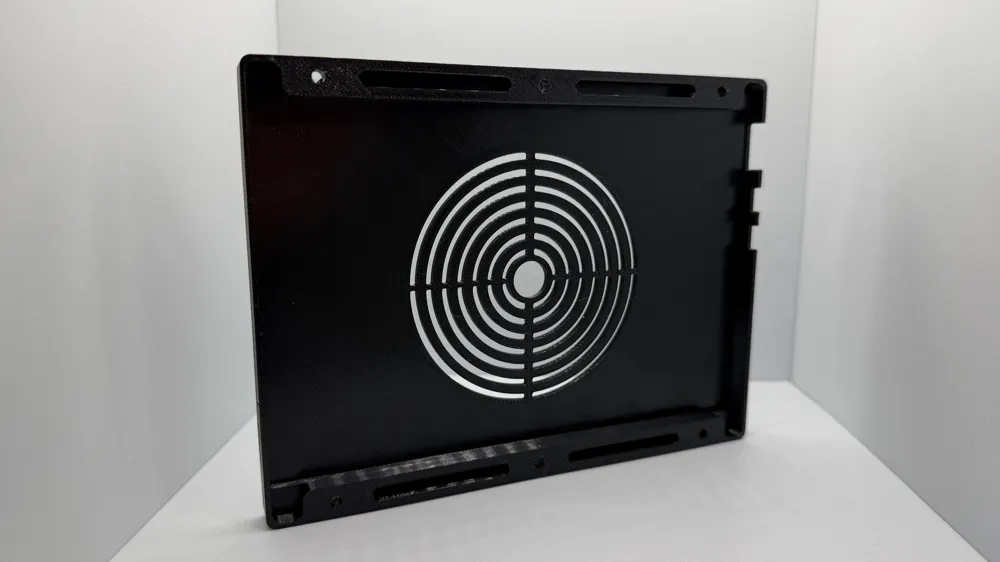

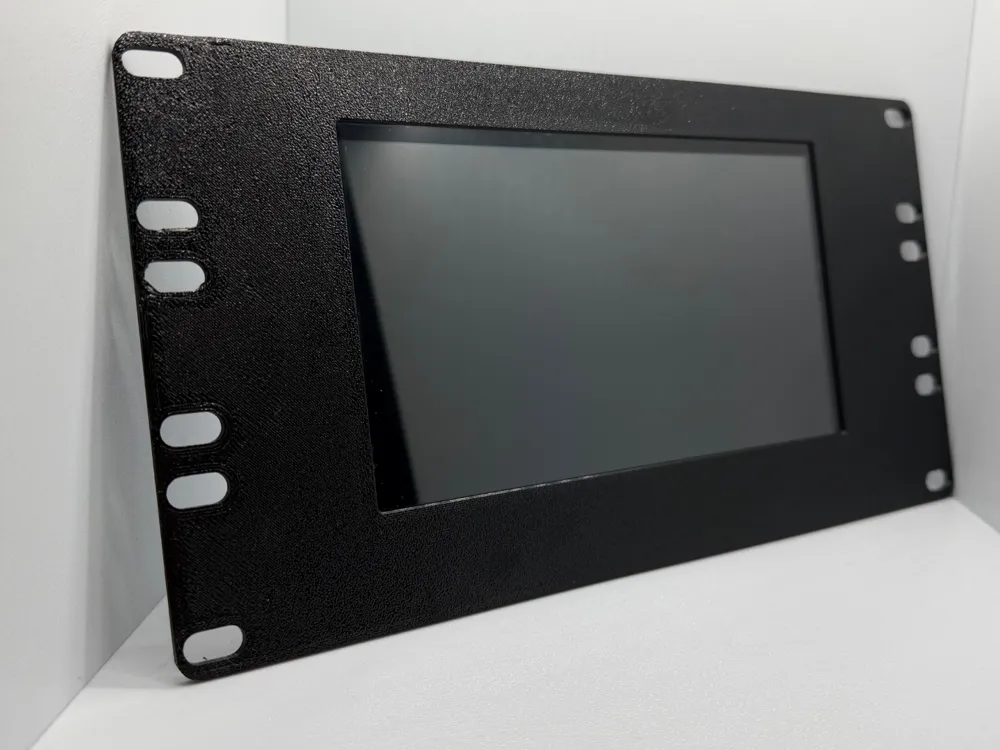

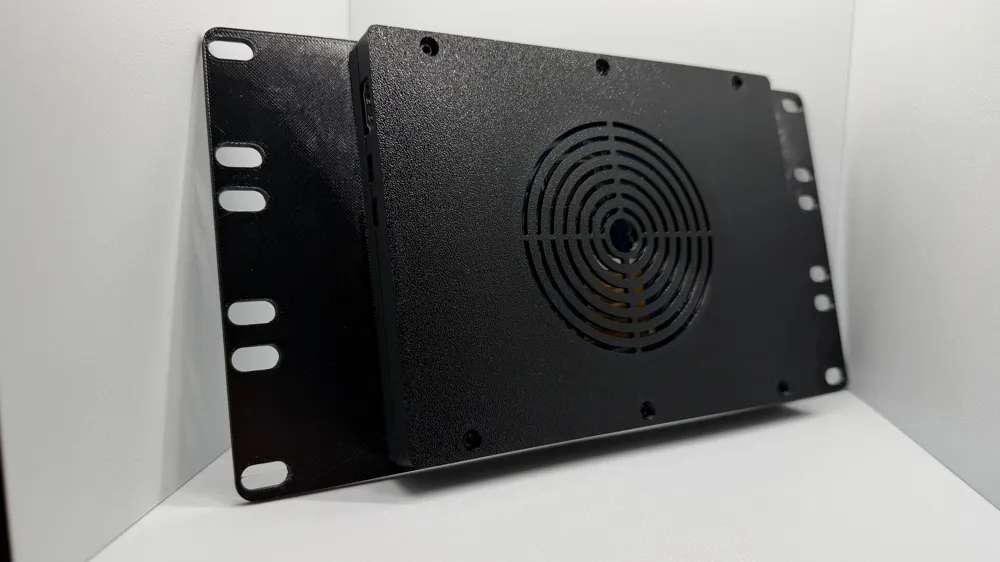

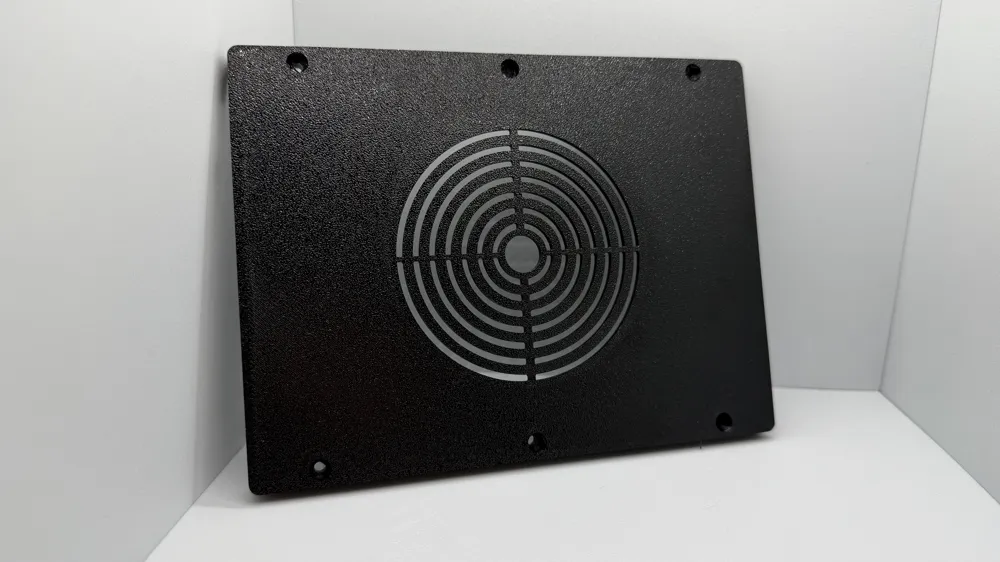

I liked 3d_droide's model from Thingiverse, but I wanted it to be rack mounted in the LabRax i'm currently building. I only modified theirs slightly. The front plate was simply attached to a 3U blank. The back plate i removed the mount points i did not need, and adjusted the ventilation to more my liking. If you would prefer the original back plate, you can print it from 3d_droide's stl, as it should line up perfectly.
Print settings:
- Layer height: 0.2mm
- Wall loops: 4
- Infill: 20% Gyroid
Materials:
- Elegoo Rapid PTEG Black
- https://www.amazon.com/dp/B01GDMDFZA?ref=ppx_yo2ov_dt_b_fed_asin_title
- Others may fit, but I have read comments on other designs saying that even between revisions, the screw holes don't line up. My specific model is display-c revision 3.3. The kicker is though, they don't tell you which one you are getting.
- 4x M3x6
- 6x M3x12
This remix is based on
