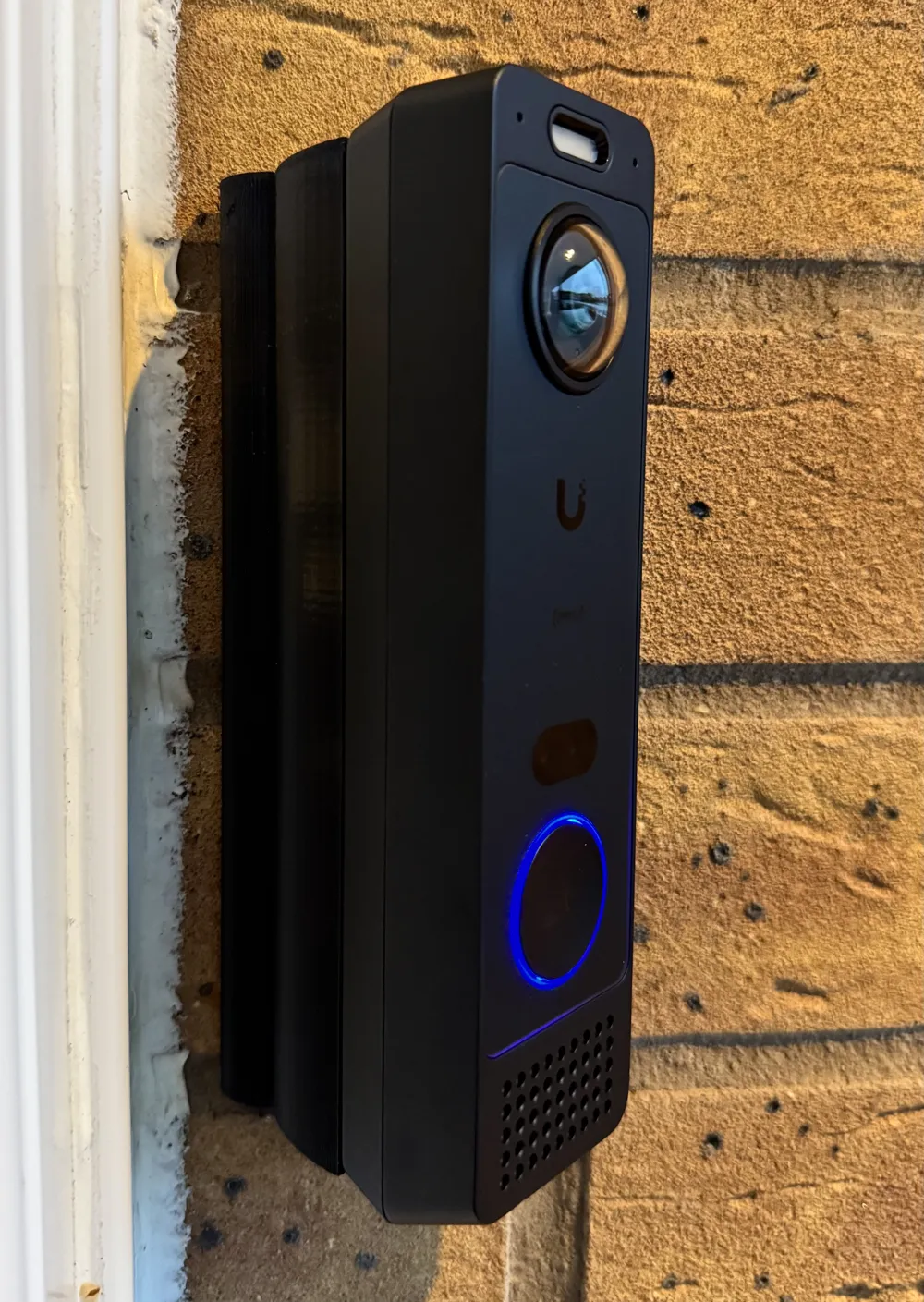

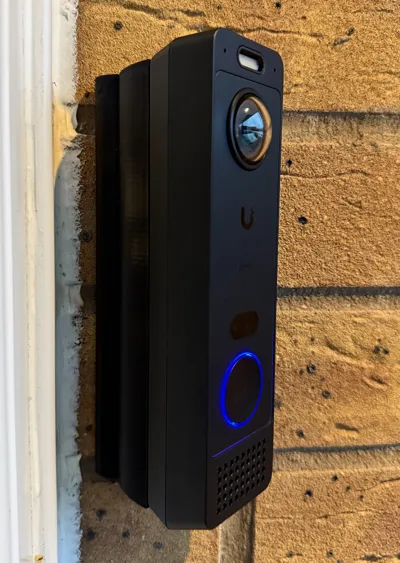

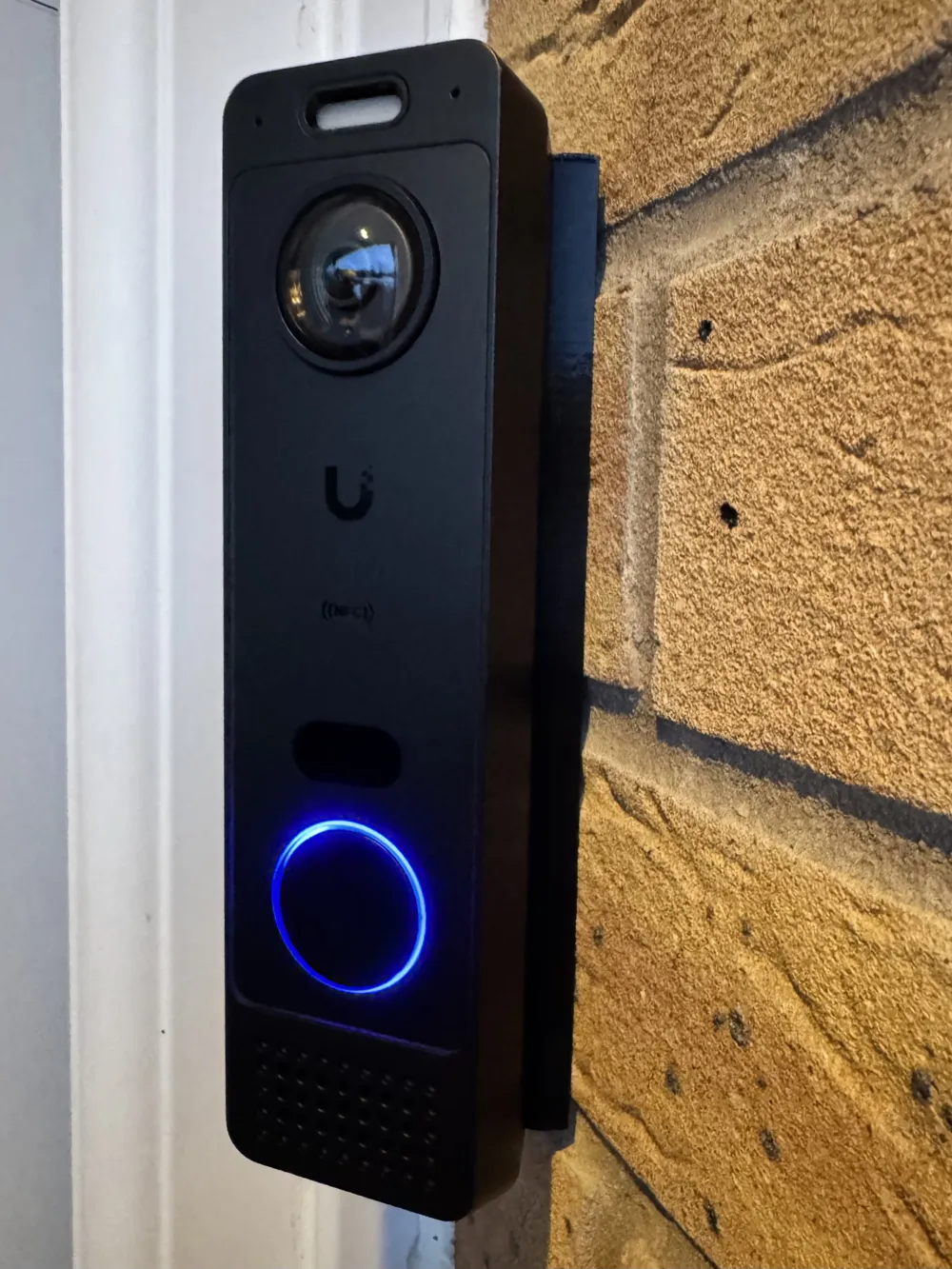

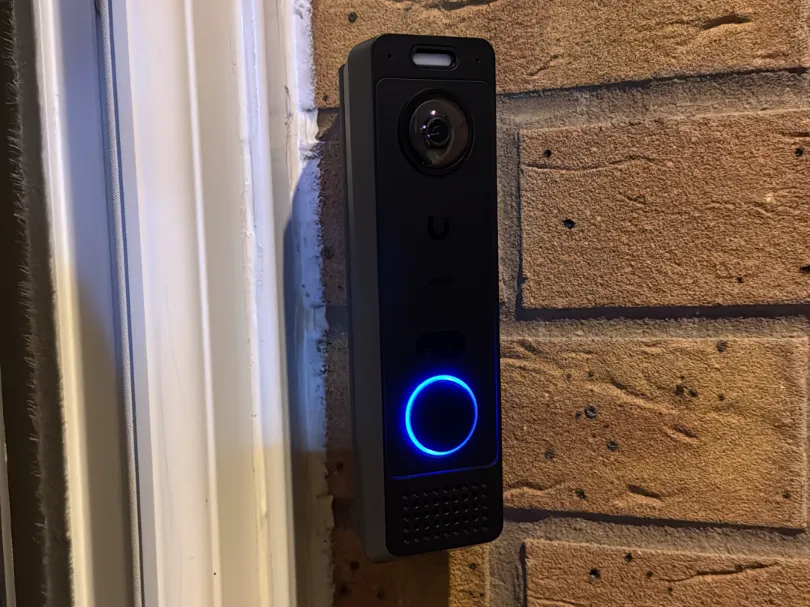

Ubiquiti G6 Entry Doorbell Wedge 25 to 50 degrees

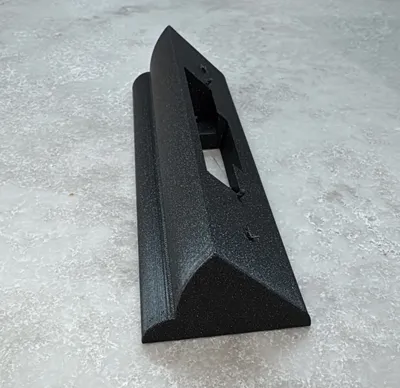

Various angled wedges for the new Ubqiuti G6 Entry doorbell camera.

Each plate includes a different angle. On my P2S it's roughly 1.2hour print time per wedge

I'm still learning modelling but i've managed to adapt this design quite easily into various angles. Choose which you need.

Included here are 25, 30, 35, 40, 45 and 50 degree wedges with or without the extra parts  (only included to cover some extra holes i had in my wall)

You will need 2x self tapping screws for the Ubiquiti metal bracket to screw to the wedge. Or if you have them you can sink in some threaded inserts into the outer locating pins and use the included m2/3 machine screws.

Use some flush cutters to cut off the locating pins which are used for the screws (outer 2) These are only present on the model to give a visual reference to locate the screw infil modifers.

These files are different to the original 45 degree wedge i uploaded but i've tested them and work the same. Enjoy.
