NEW SINGLE SPRING SLIDE ACTION PEN

 Thank you for checking out this pen! Please share your pictures, rate it, and if you like it give it a “Thumbs up.”

Pen that slides to engage and uses the clip to disengage.  Works great and is easy to print and assemble.  Made from only 4 printed parts.  Has a similar rounded shape like the Slide-Action G2. More subtle.

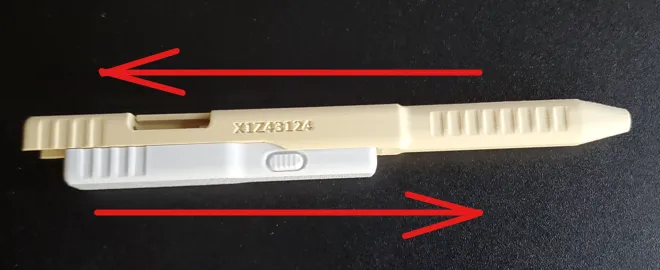

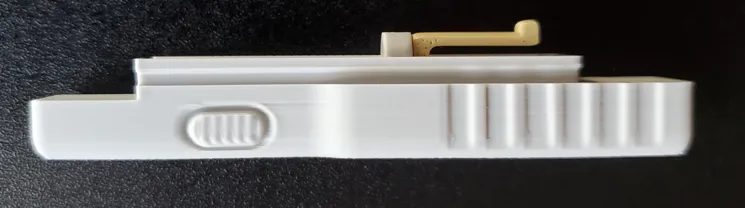

Two versions.  Regular Lower-Slide and Knurled front Lower-Slide. (see pics)

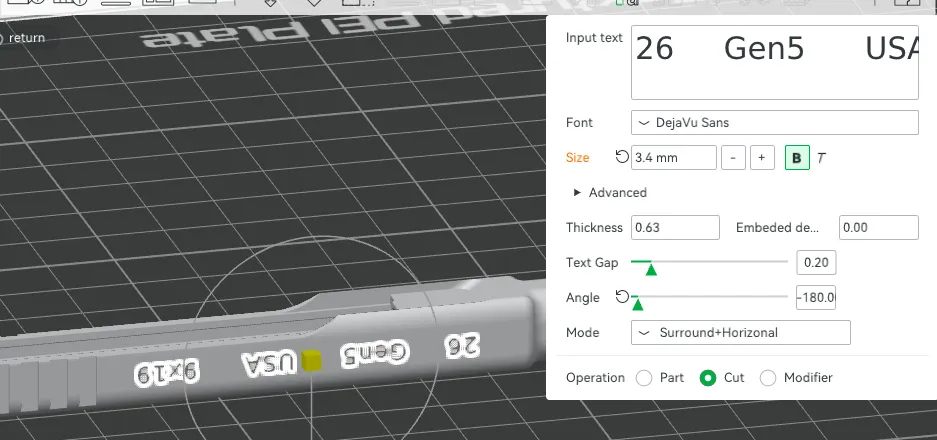

All the Text can be changed in the Bambu Slicer Software.  Just double click on the text and a dialog box will open up to make changes.  Or you can delete the text for a school-friendly Si-Fi looking version.

Parts needed: Just one ink-core and spring from one of these pens.

• Pilot G2 pen. (Best)
• Sharpie S-Gel (2nd Best)
• Mr. Pen
• Amazon Basics Gel Pens, retractable
• Pentel EnerGel

Print Settings: (super easy print)

• Super important that these long slender parts print flat, and that they don't come off the plate while printing.  I used Bambu liquid glue on my older plates, otherwise the Lower-Slide would peel from the plate and not slide well.
• 0.16 Layer height, 2 walls, 10% gyroid infill.
• Normal (manual) support, Style Snug. (There is just a little bit for the pen tip.)

• Filaments tested Successfully:  PLA basic & Matte, ABS or ABS GF, Petg HF & CF, ASA CF.

  (I print most of mine out of ABS so I can leave them in the car.)

After Printing:

Remove the support and brim material: (use a tool or strong fingernail.)

Before

After:

Before                                                    After:

Remove brims from the Lever-Spring.

Assembly:

1. SUPER IMPORTANT STEP (especially with PLA MATTE and CF)!  Insert the Lower-slide into the Upper-slide.  Vigorously slide them back and forth until they slide smoothly. Then separated both parts, and blow on the rails of them.  Set the Upper aside.

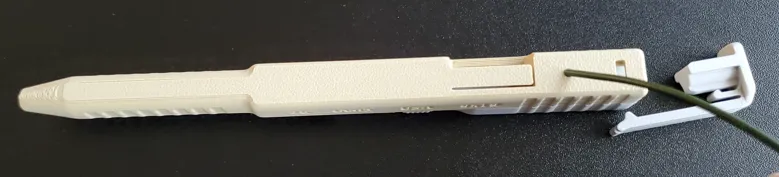

2. Insert the Lever-spring into the groove of the Lower-slide.  Use a hard surface (table) to press the Lever-spring all the way down into the groove. (Do not try to use your thumb, or you may get pinched. It hurts trust me.)

                                   Should look like this below.

3. Insert the ink-core and spring into the Upper-slide.

4. Insert the Lower-slide into the Upper-slide.

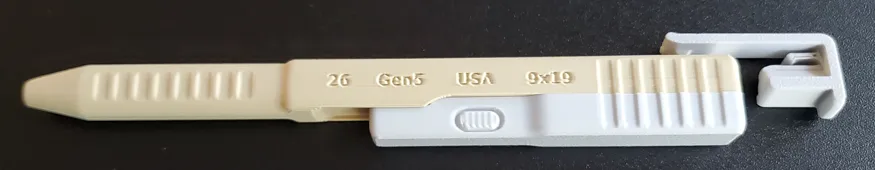

5. Test the pen mechanism a few times.  Move the Lower-slide to the left till it clicks in place, then push on the dot shown below.

If it didn’t work and you need to trouble shoot.  1st, disengage the pen as shown above.  Then, push something into the hole shown below, and Slide the Lower-Slide out at the same time.

6. Press on the clip.  (Not easy to disassemble, so be sure it works before pressing on the clip.)  You’re done.

Disassembly:

1. Use your thumb or the edge of a table to push the clip out.

2. Disengage the pen by pressing on the red dot.  Push something into the hole and Slide the Lower-Slide out at the same time.

3. The ink-core and spring should then slide out when tilted.

---------------------------------------LINKs to Others Pens/Case----------------------------------------------

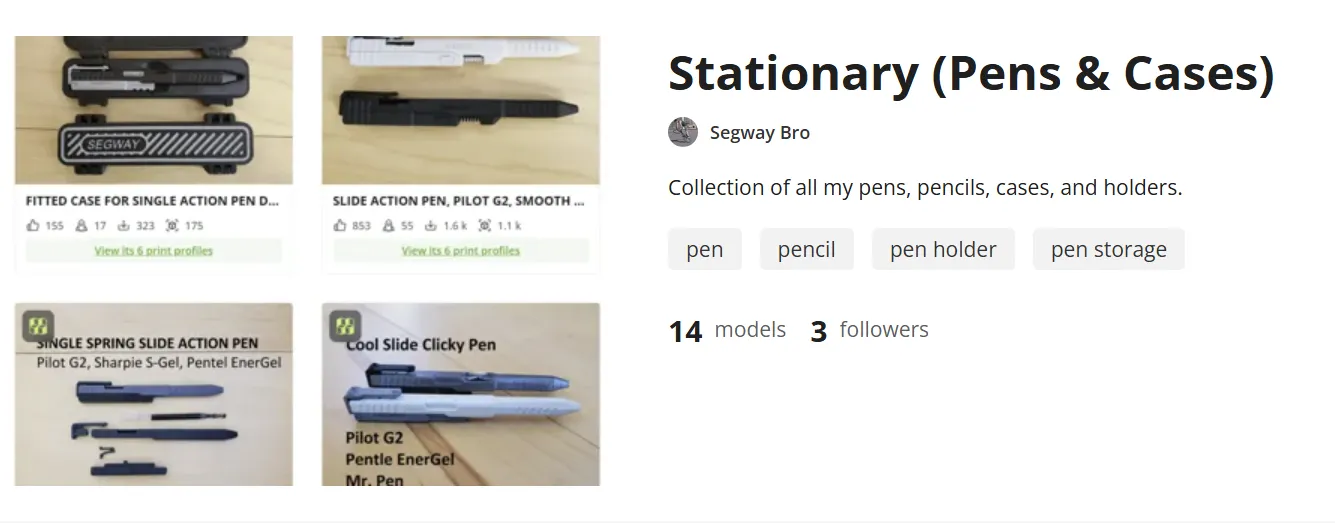

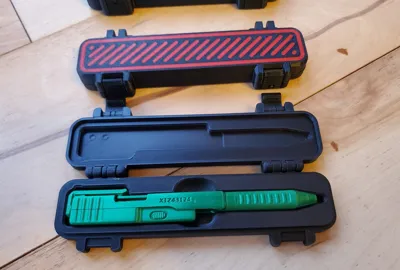

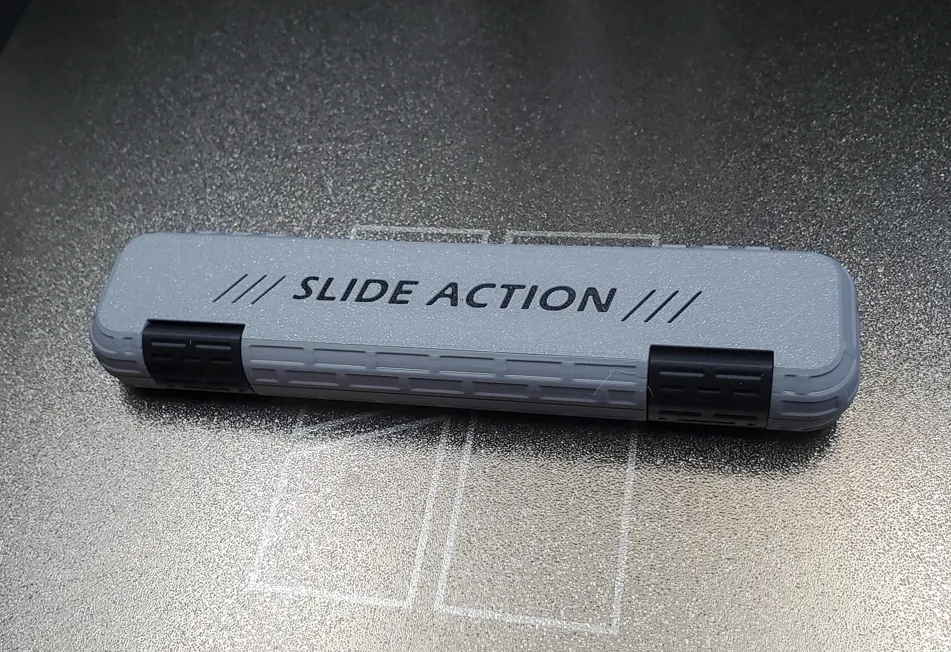

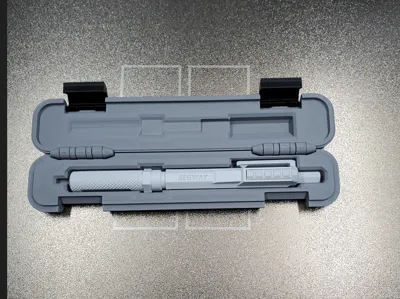

Link to new Case.
