Description
Content has been automatically translated.

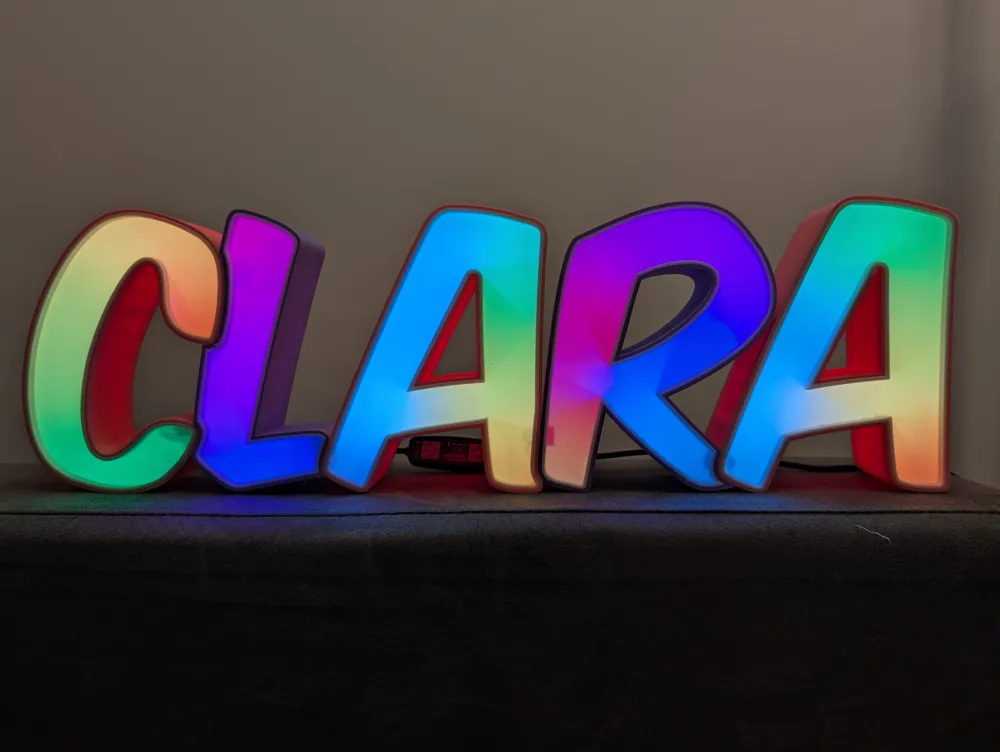

CLARA LED illuminated name

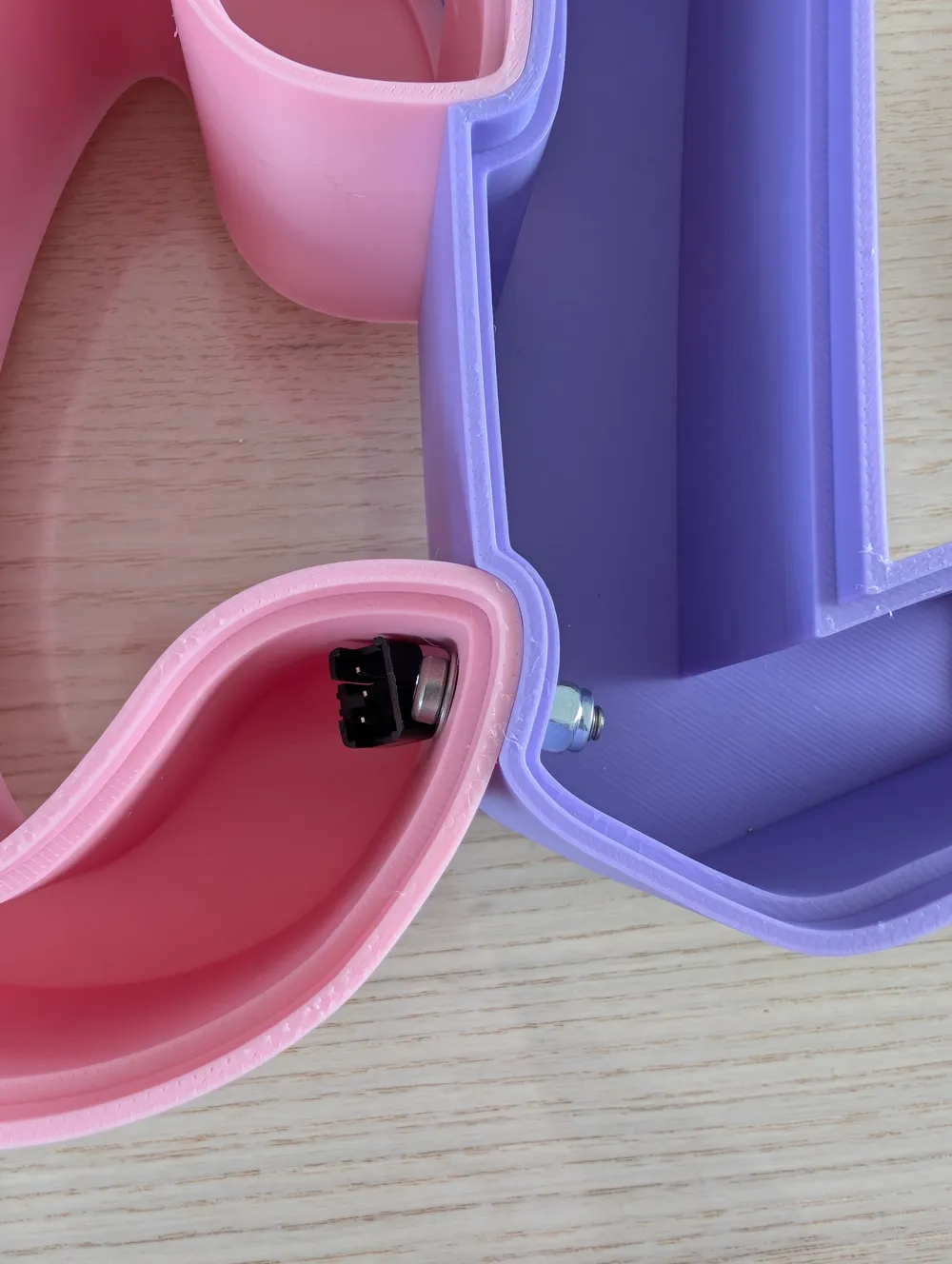

The letters can be glued together and/or fixed with M4x16 screws and nuts
A 5mm hole is provided for the cable to enter between the letters C and L
Assembly:
- Glue and/or screw the letters together (remember to pass the power cable before assembling E and L)

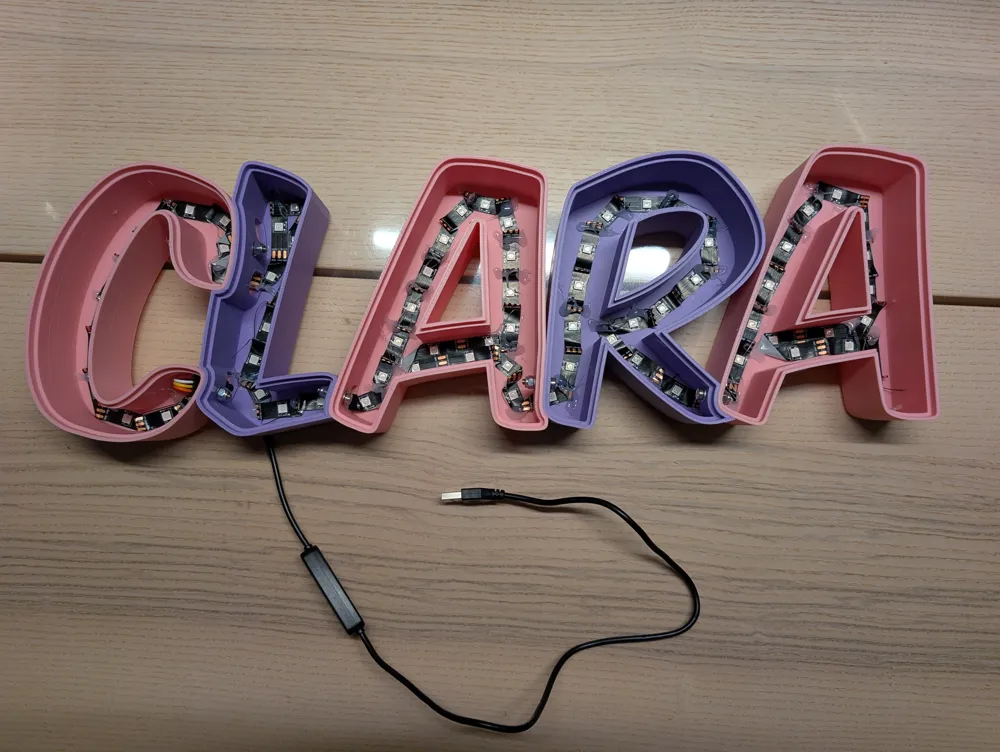

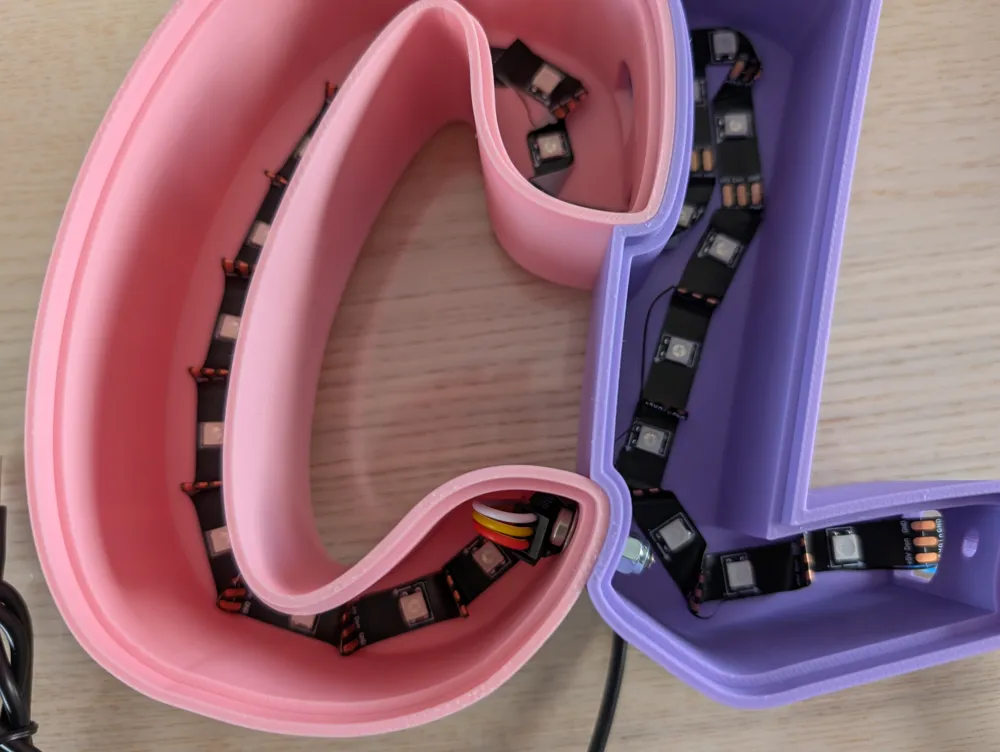

- Glue the LED strip as you go and pass it through the holes between the letters. Personally, I tightened the letters a bit by bending the strip, and put hot glue to hold it firmly at critical points (I find the adhesive strip doesn't hold very well)
Material list:

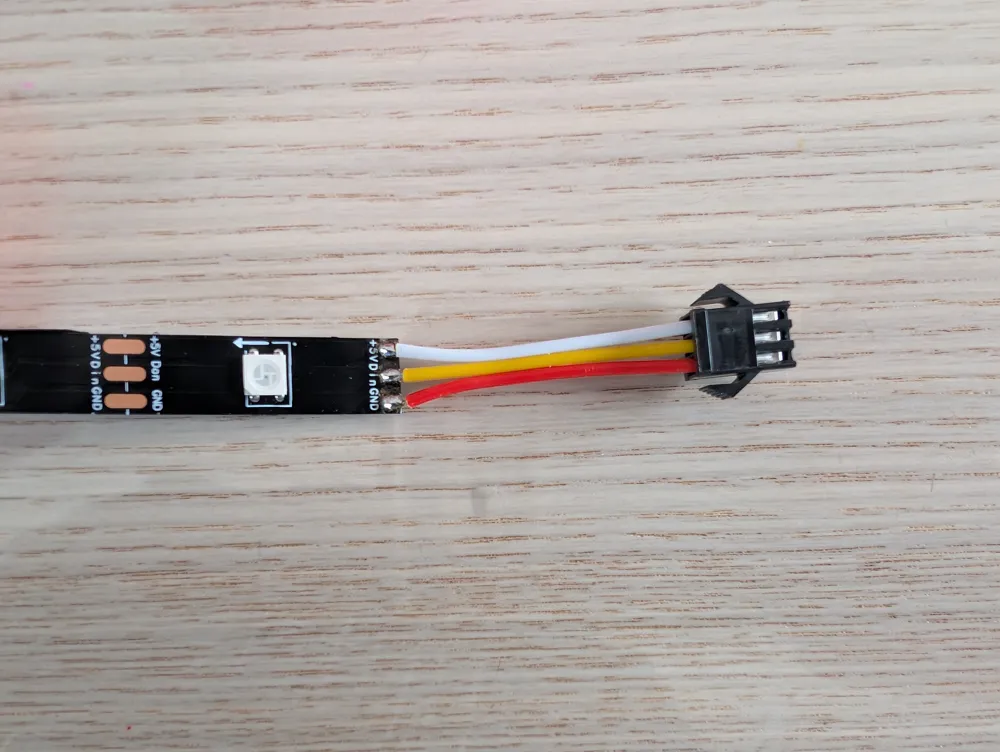

- 2.5m LED strip: https://www.aliexpress.com/item/1005009321343937.html?spm=a2g0o.order_list.order_list_main.35.4e995e5bjNgLTF (select model “WS2812B DC5V, Black PCB, IP30 30LEDs, 2.5M”)

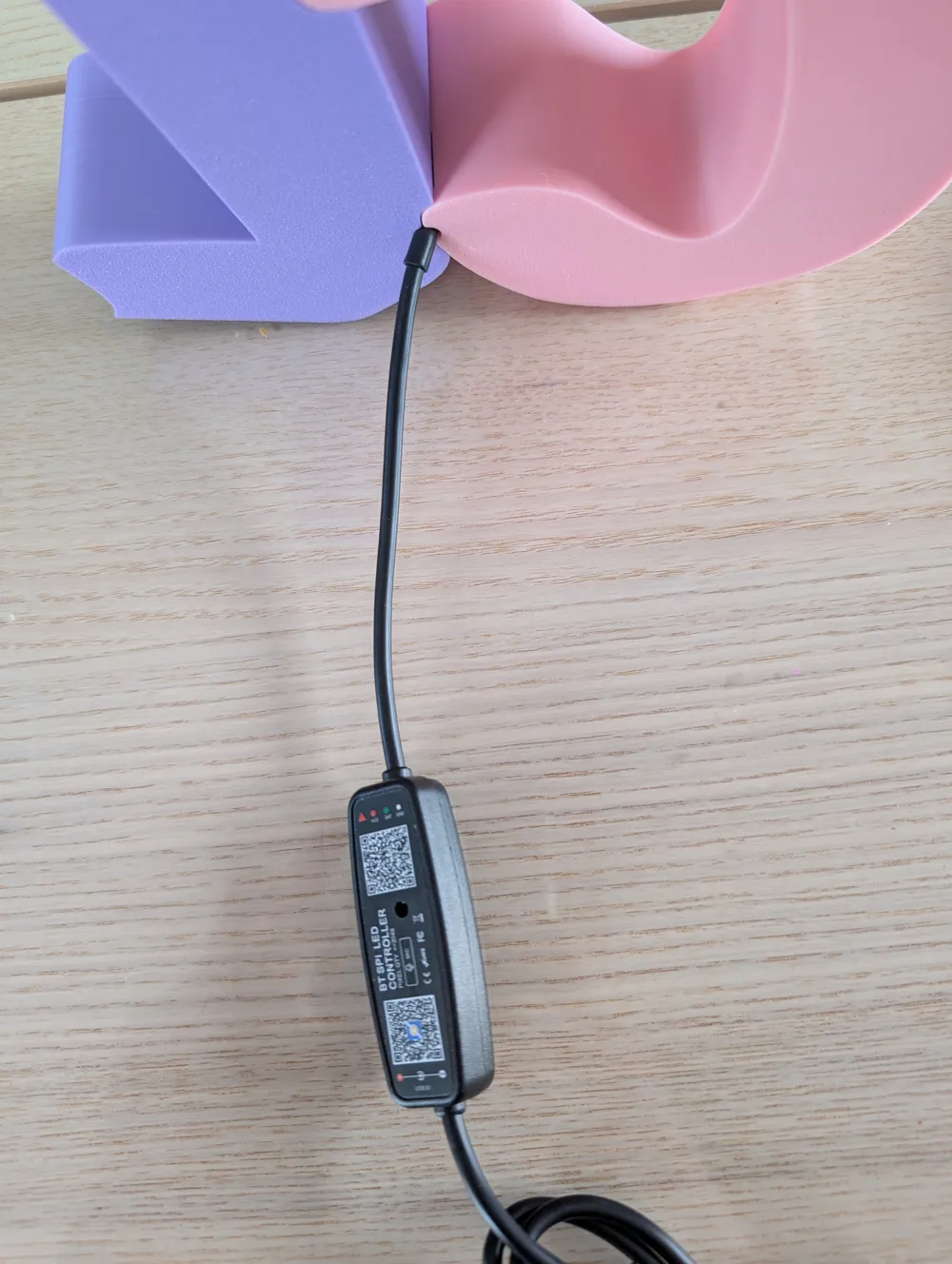

- Remote control + Bluetooth receiver: https://www.aliexpress.com/item/1005010137479570.html?spm=a2g0o.order_list.order_list_main.23.4e995e5bjNgLTF (select model "USB With remote")
- 5 x M4x16 screws + nut (optional but recommended for good hold)
