Bluelab Guardian Magnetic Mount
Print Profile(1)
Description

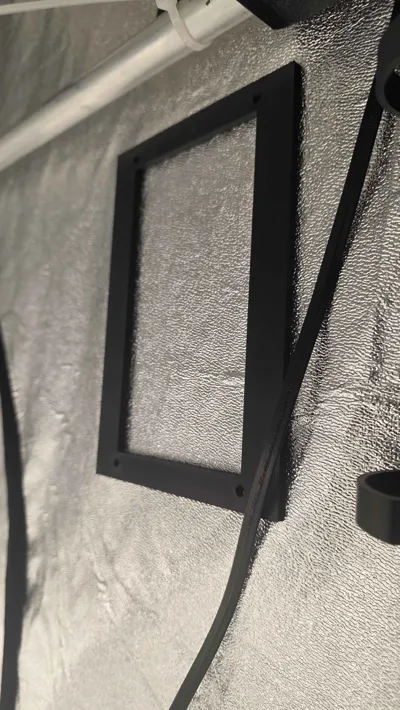

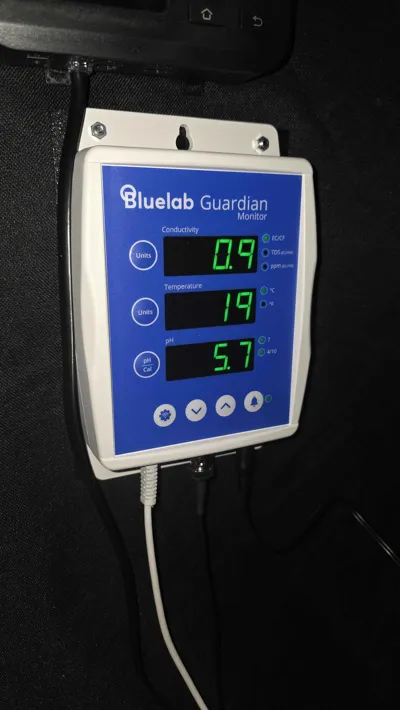

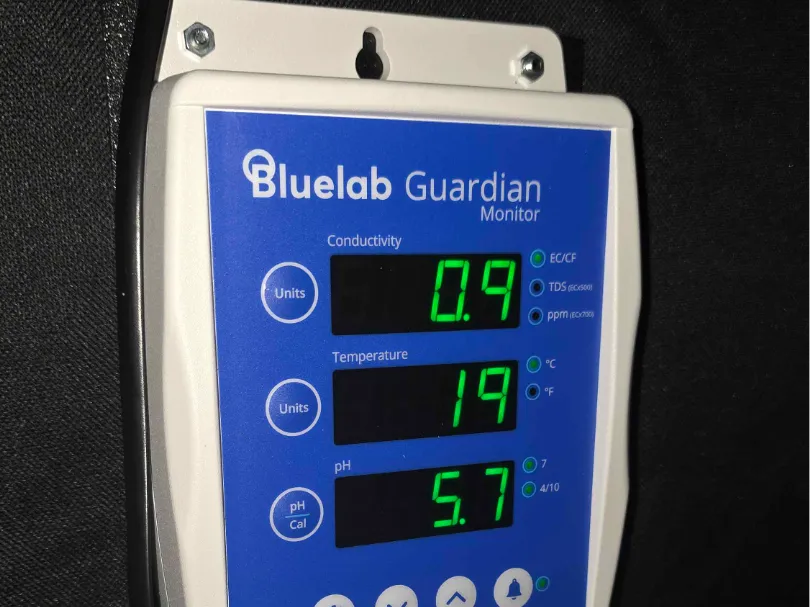

I designed a magnetic holder for the Bluelab Guardian that can be attached to the tent wall.
The file needs to be printed twice. Each part requires 18 magnets (10x2mm diameter).
A pause is integrated at layer height 17 to insert the magnets.
Make sure all magnets are oriented correctly, otherwise they will repel each other.
It would probably also work with fewer magnets, but I wanted to be sure that it really wouldn't slip. It holds rock-solid.
Additionally, 4 screws + nuts are needed (I used M4x10 pan head screws) to attach the device to the Bluelab.
The holder has small recesses for the screw heads so that both elements lie flat against each other and adhere seamlessly to the tent wall.
