Camber Gauge Tool [RC Car]
Print Profile(1)
Bill of Materials
Description
New Camber Gauge Tool V2
This camber gauge tool has been superseded by a new version developed according to community feedback. The new V2 features:
- More precise markings (0.5° increments)
- Realistic camber range of -4° to +4°
- Reduced print time and simplified printing (everything fits on a single build plate)
- Screw travel optimized to reach the full range of motion
This V1 version is deprecated and kept here for reference.

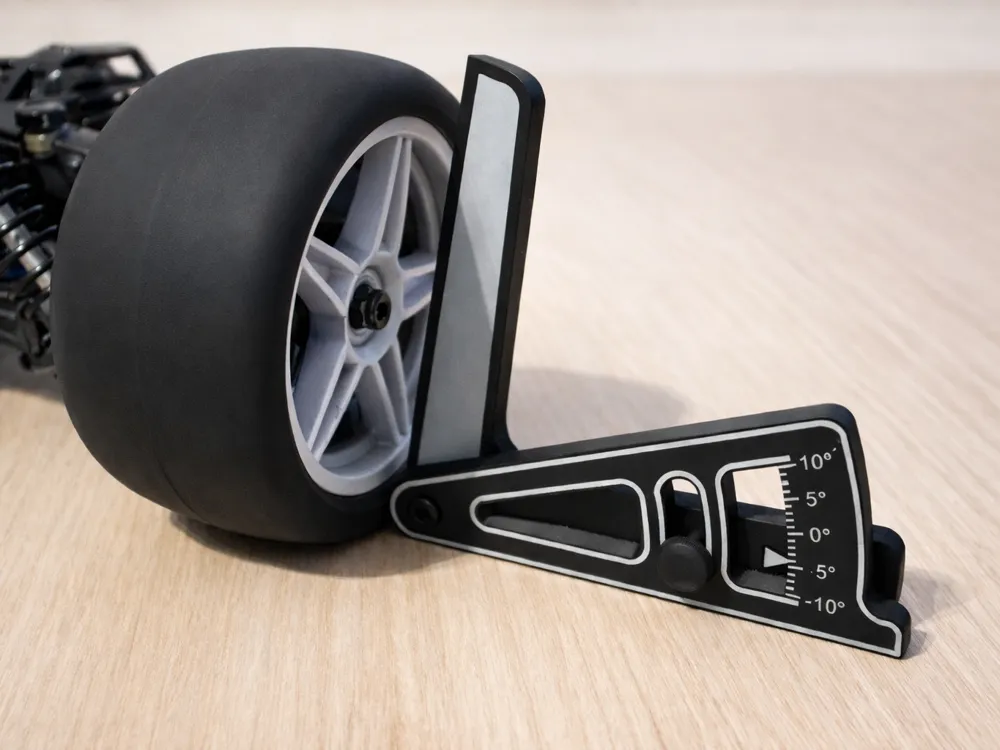

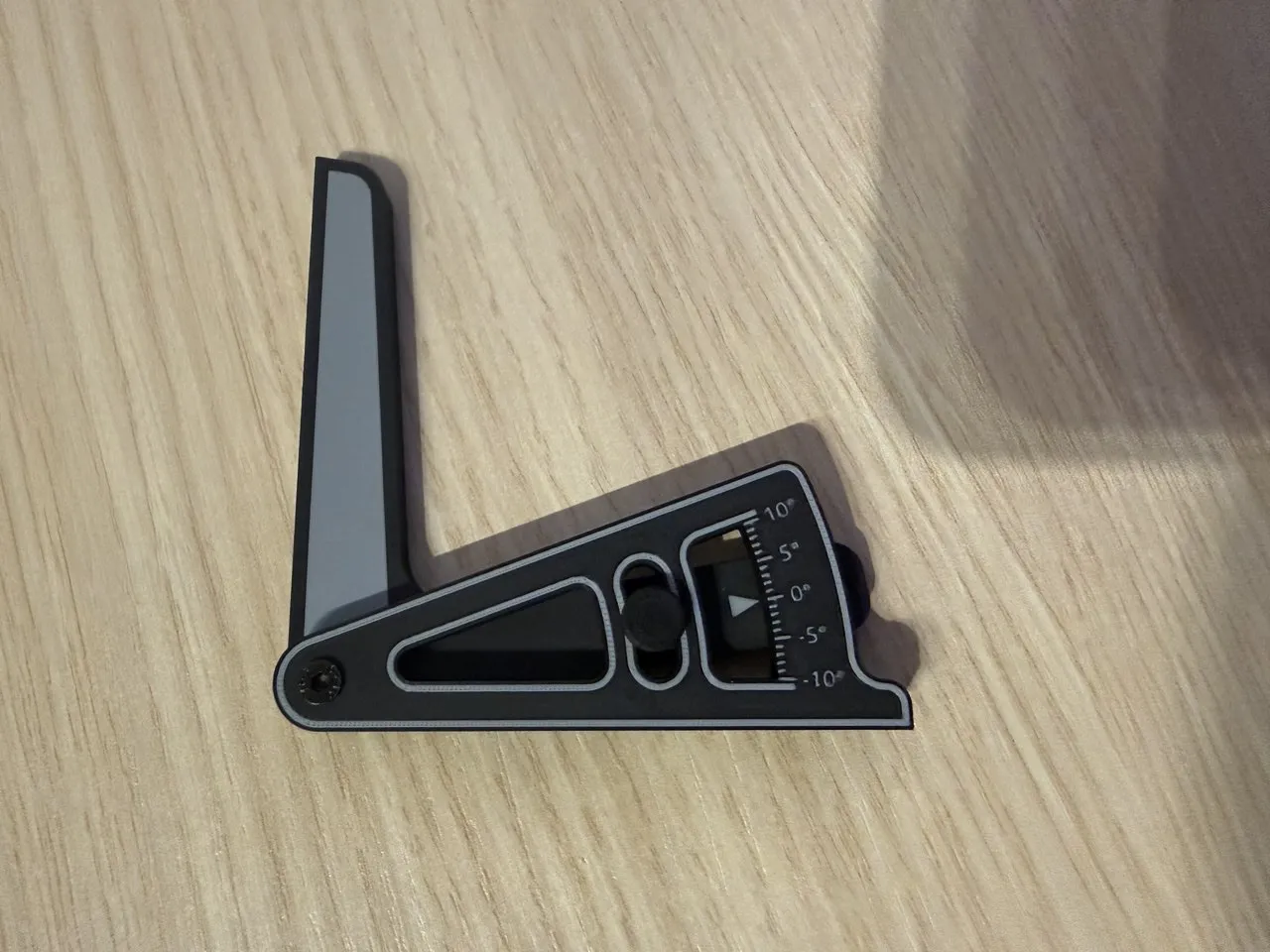

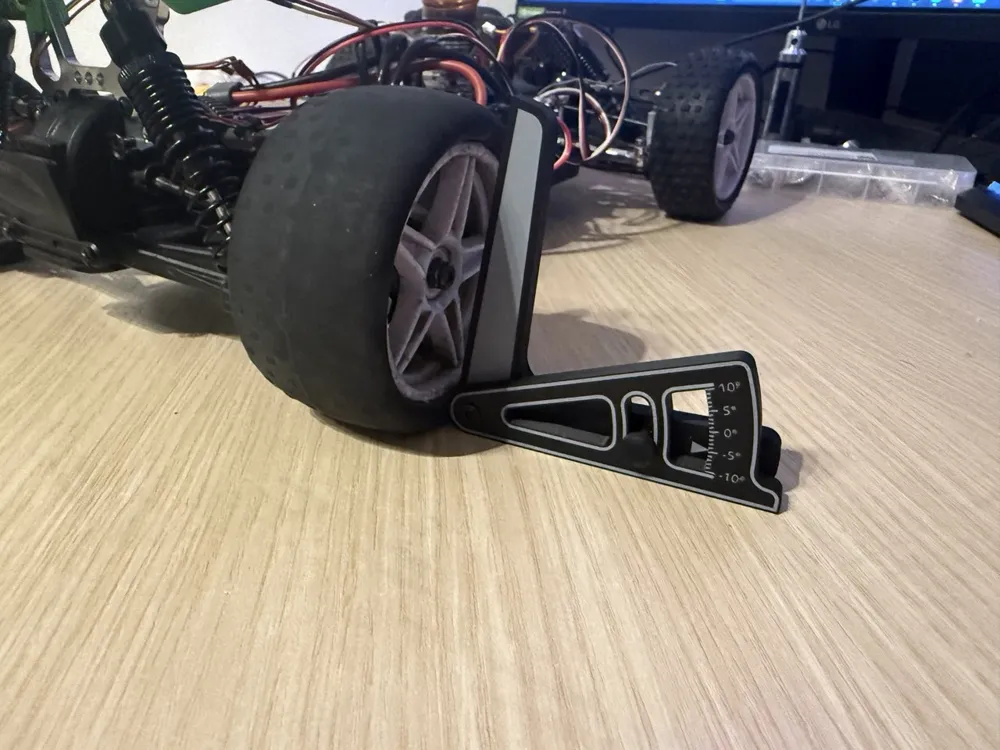

This camber gauge tool is designed to accurately measure and set the camber angle of RC cars, helping improve handling, stability, and overall performance.
It was originally designed for 1/10 scale RC cars, but thanks to its 8 cm arm length, it can also be used on larger scale models, as long as the wheel size allows proper contact.
The tool features a camber measurement range from -8° to +8°, covering most common RC setups.
Requirements
- One M3 screw (minimum 6 mm length) is required and used as the pivot pin. No additional hardware is needed.
Printing Requirement
- A 0.2 mm nozzle is required to correctly print the engraved markings and angle scale.
Printing with a larger nozzle will result in unreadable or inaccurate markings.
Key Features
- 🏎️ Designed for 1/10 scale RC cars
- 📐 Camber angle range: -8° to +8°
- 📏 Arm length: 8 cm
- 🔧 Simple, precise, and easy to use
- 🖨️ Designed for high-detail 3D printing
A practical setup tool for RC enthusiasts who want precise and repeatable camber adjustments.
