1:160 N Scale Covered Model Train Bridge
Print Profile(3)
Description
1:160 Covered Bridge for N Scale, will work with Kato Unitrack
Note: I reduced the roof overhangs on each end for the A1 Mini profile, as the roof was too large to fit flat on the A1 mini bed.

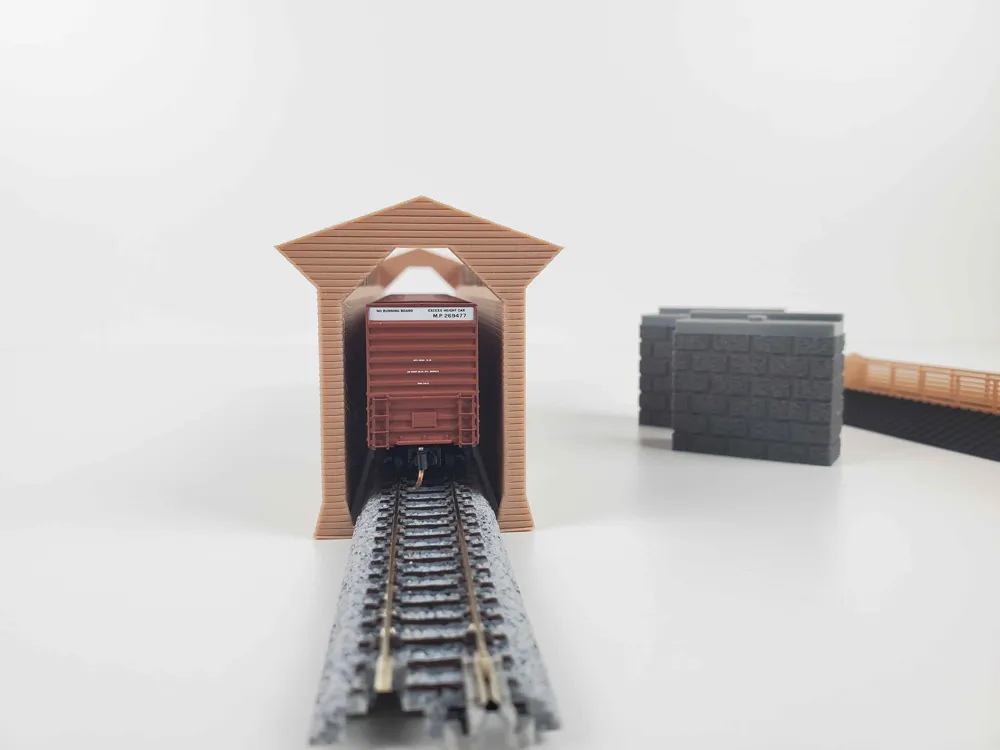

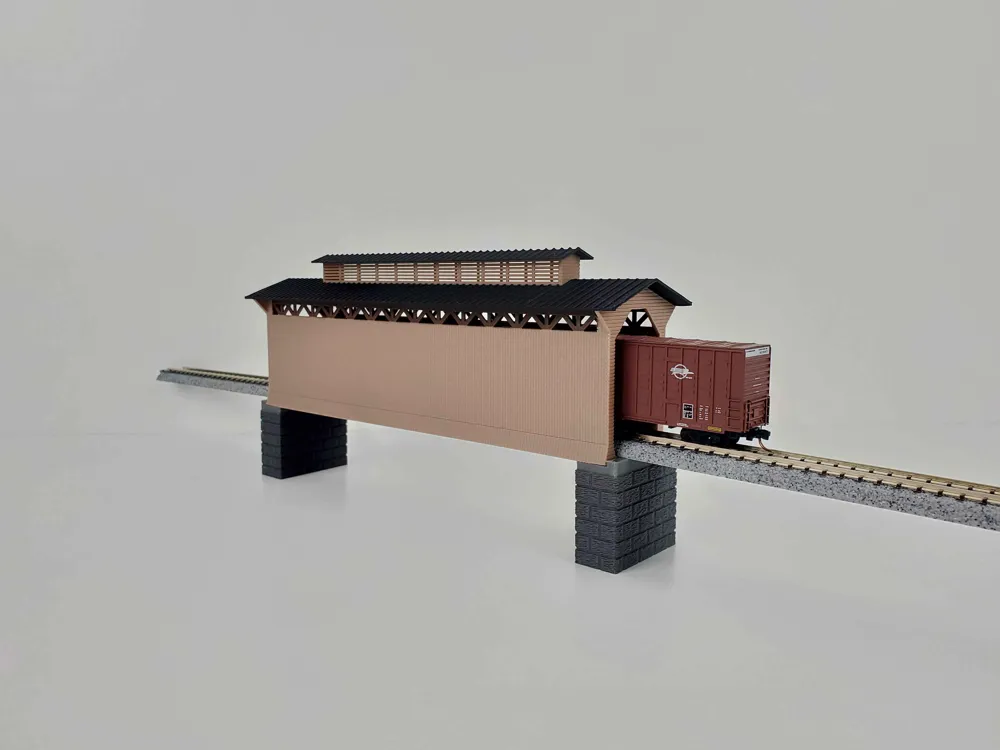

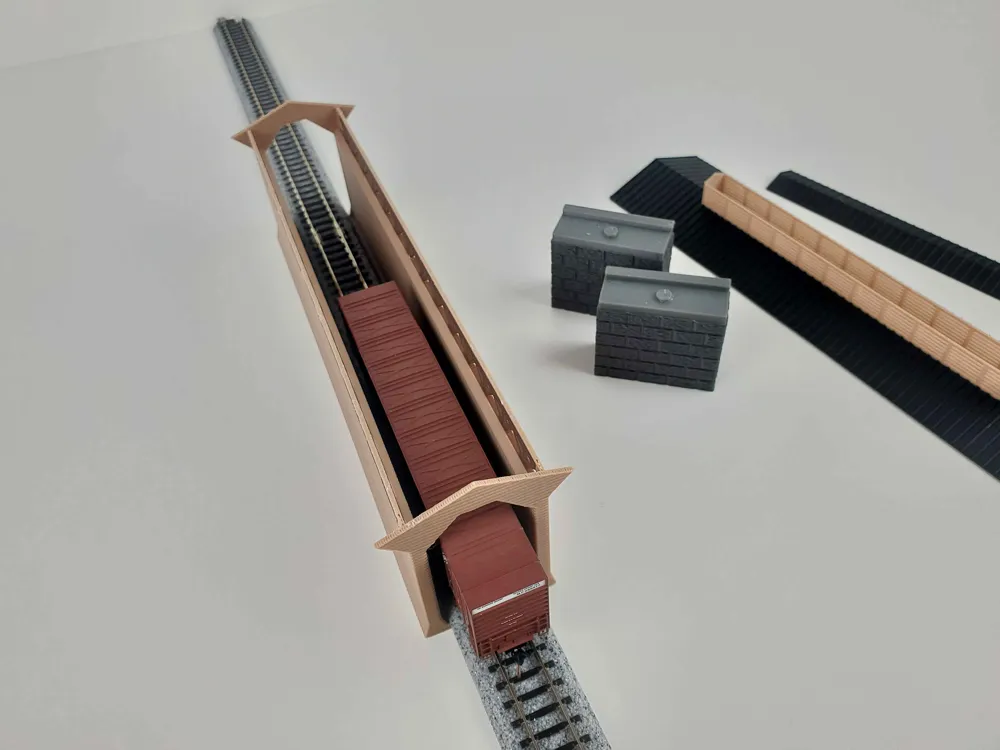

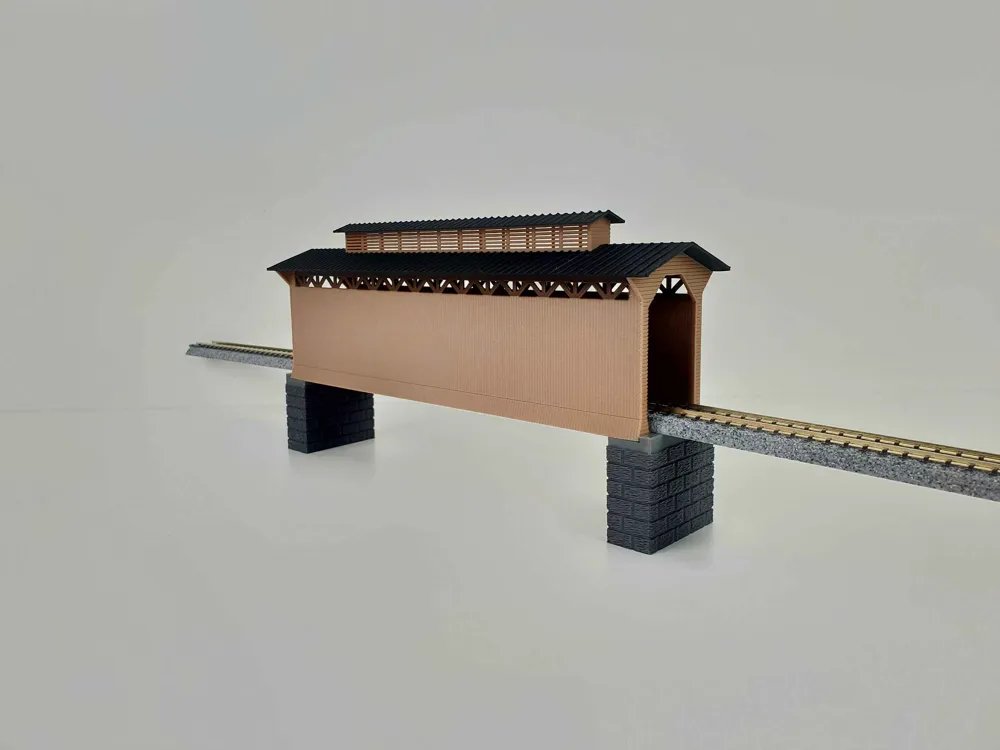

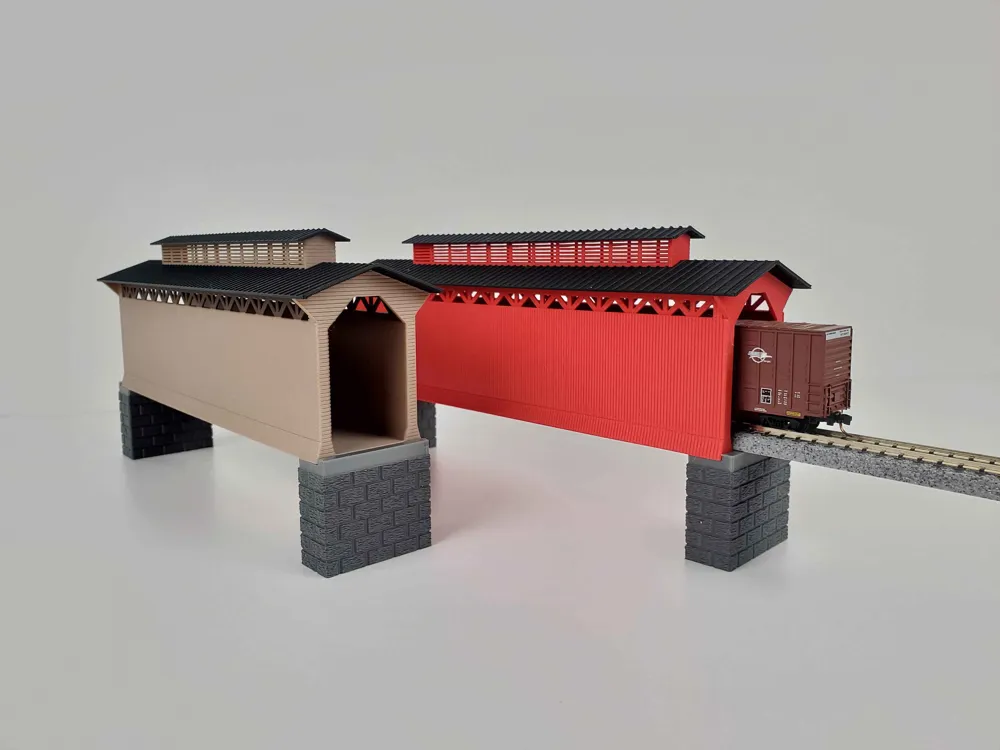

This bridge is inspired by the Fisher Covered Railroad Bridge in Wolcott, Vermont. It's not a perfect replica, but the general dimensions should be close to scale. It's 193.3mm long, which translates to about 103.5 feet. The opening is large enough to accommodate most freight cars/locos (I have a hi-cube box car pictured for reference). It may not be tall enough for double stacked intermodals or Autoracks.
Other notes:

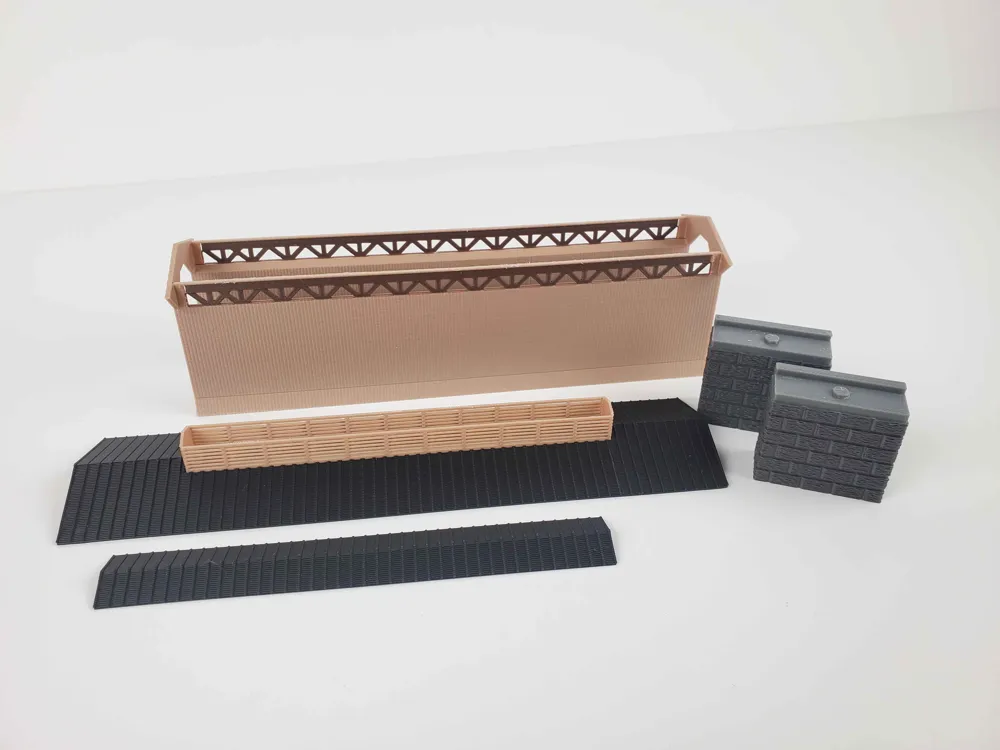

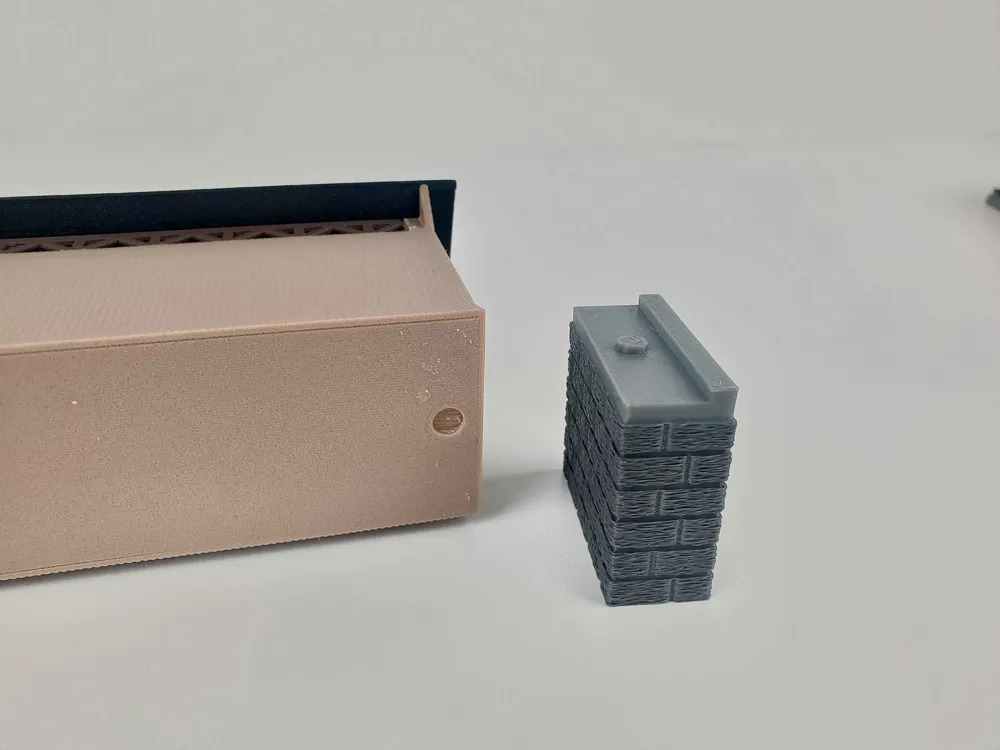

Assembly is straight forward & quick. There's an alignment pin on the piers, and groves built into the roofs for alignment. You may want to add some adhesive.
This print does require some bridging. If your printer has poor part cooling, or you're using a filament that doesn't bridge well, it could cause some problems. Most PLAs should work well.
Supports are turned on for the roof overhangs.
I plan to make more N & HO scale models, follow for more. Any support is greatly appreciated!
