Description

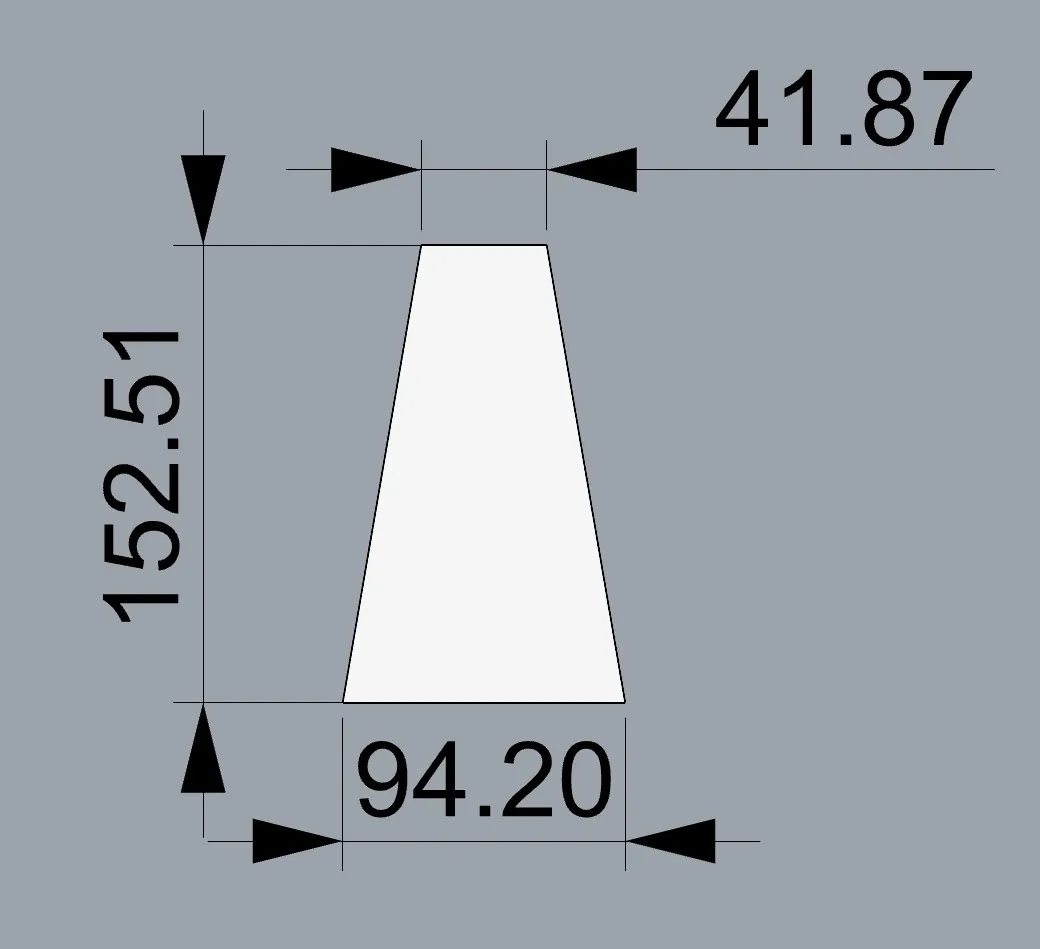

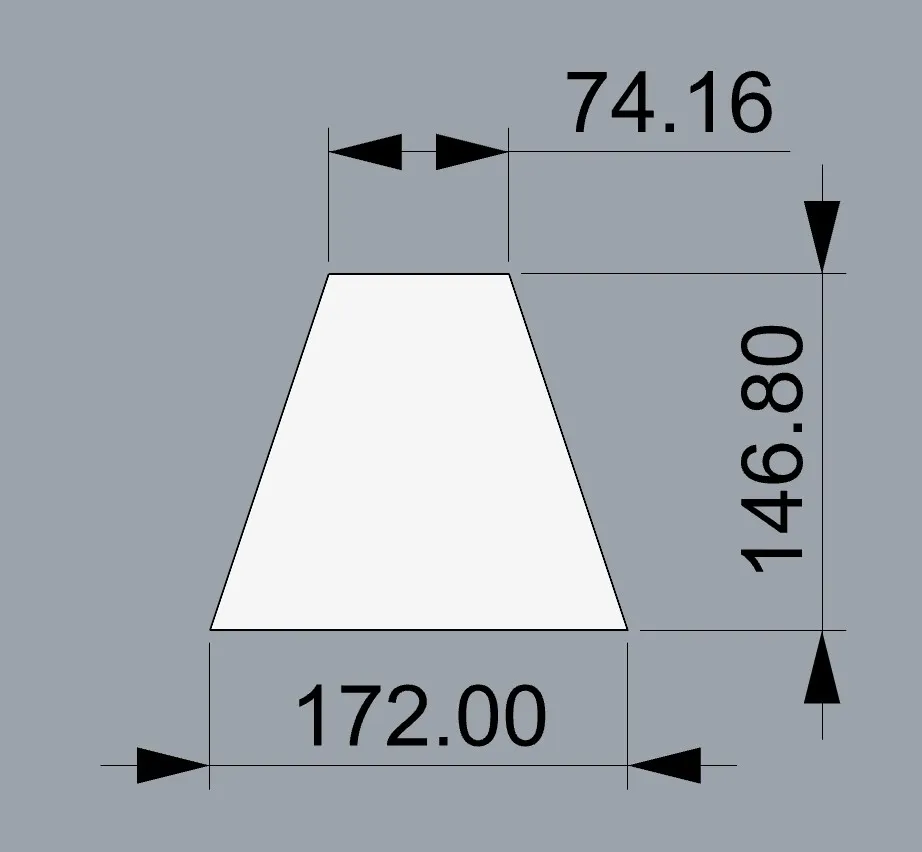

Backlit book nook, customizable by replacing the internal panels, with the following measurements and a thickness of 1.1 mm
To assemble, follow these steps:

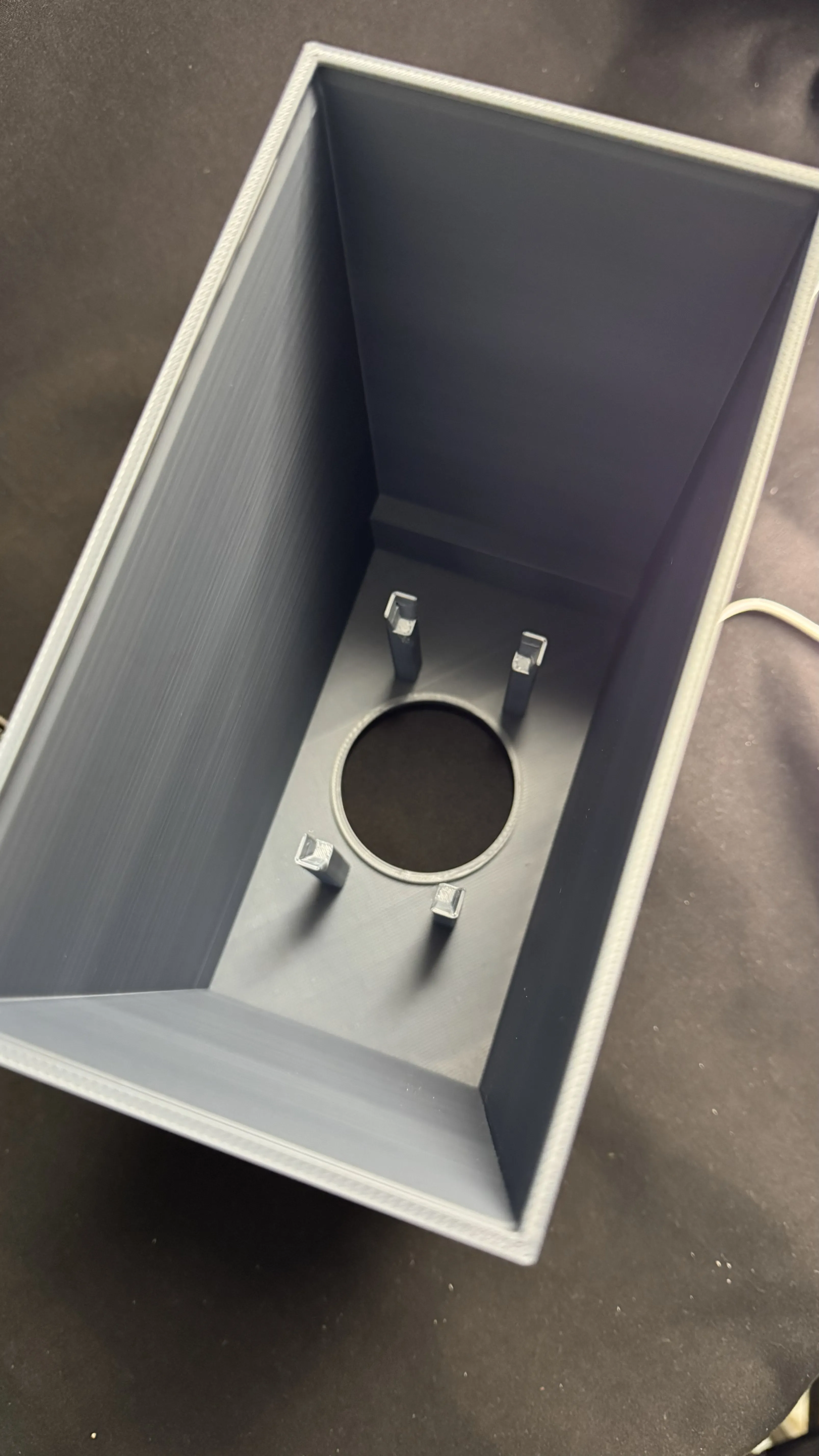

place the container on the back
2. place the back panel on the 4 supports
3. fit the bottom and top panels into the front grooves and rest them on the back panel
4. fit the side panels into the front grooves and rest them on the back panel
5. fit the frame so that it holds all panels in place

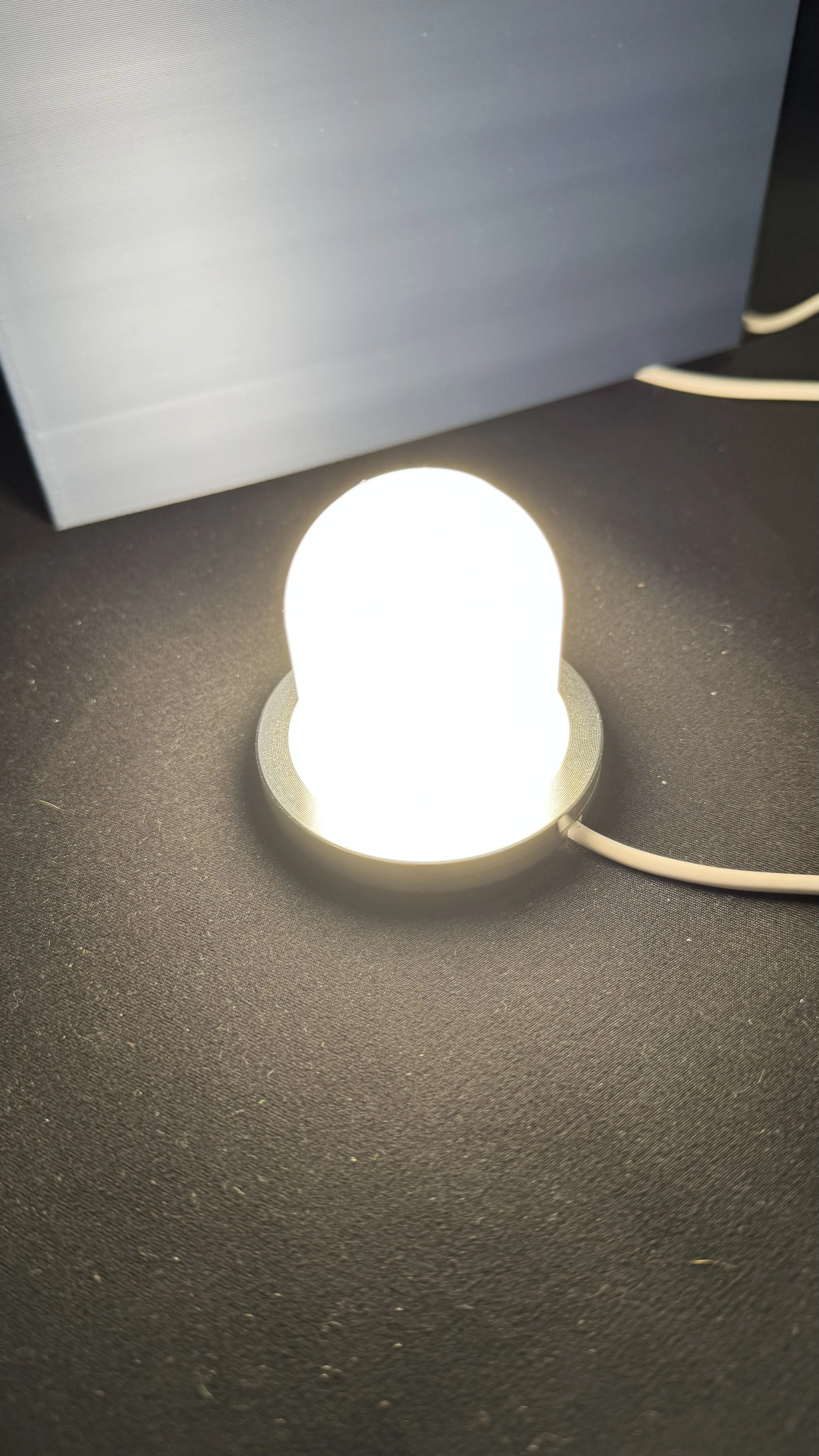

6. replace the original diffuser in led kit001 or similar with the printed dome

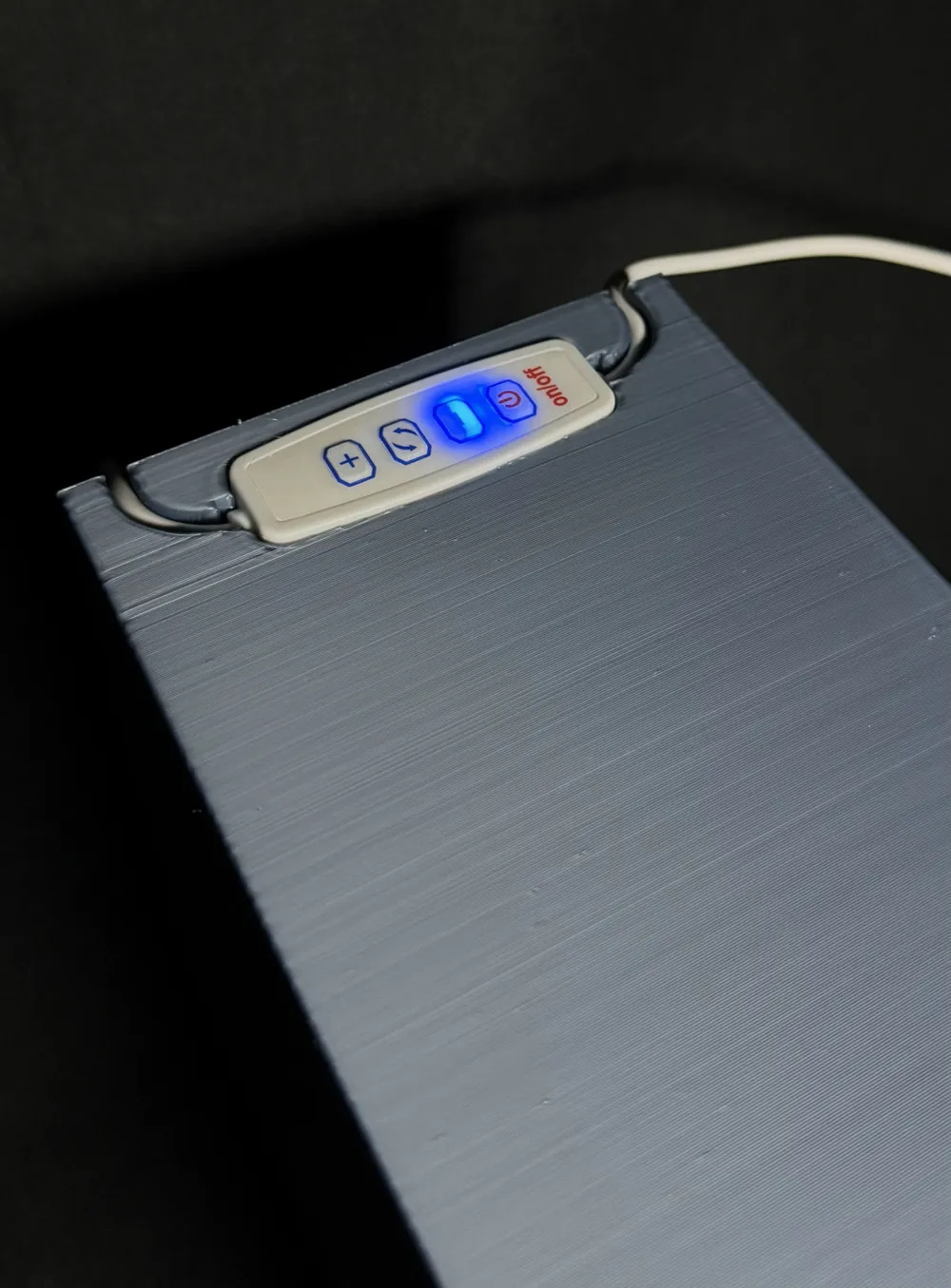

fit the LED into the rear hole and the switch into its housing

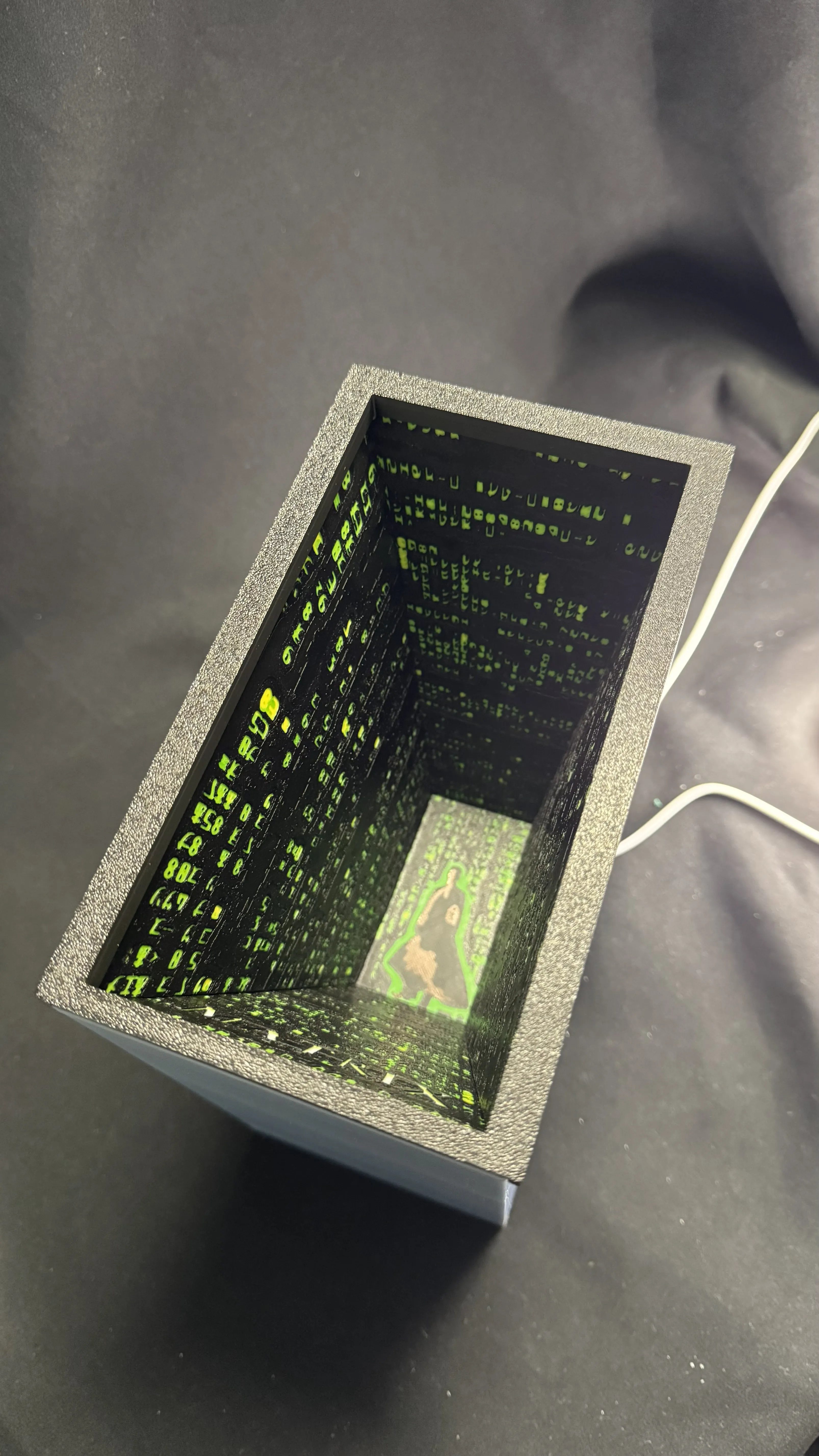

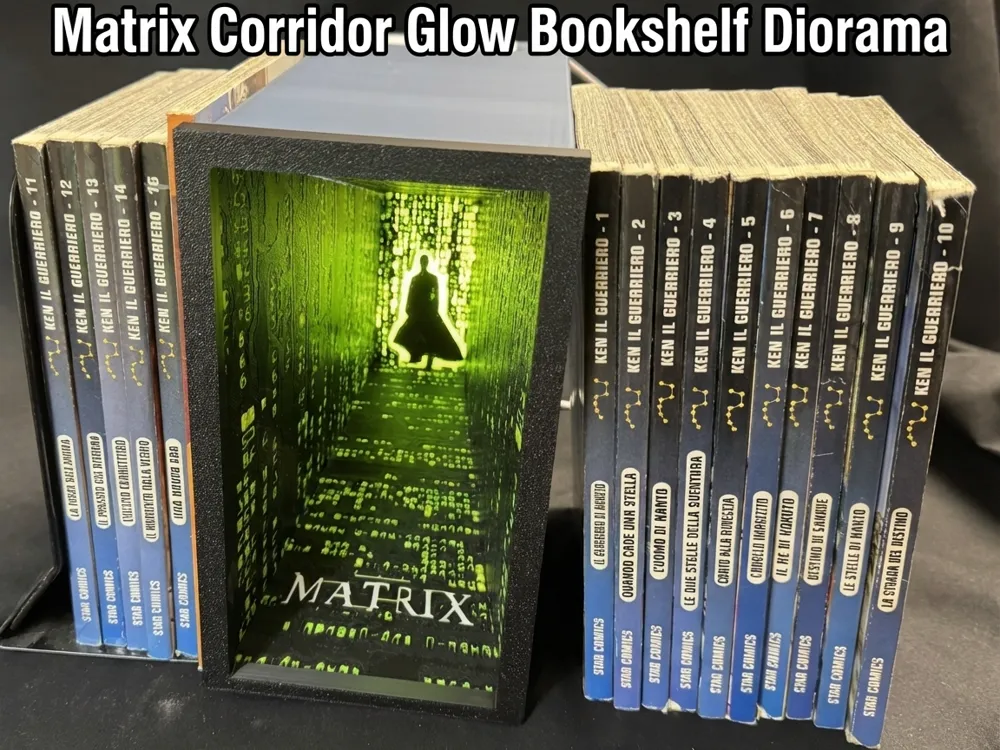

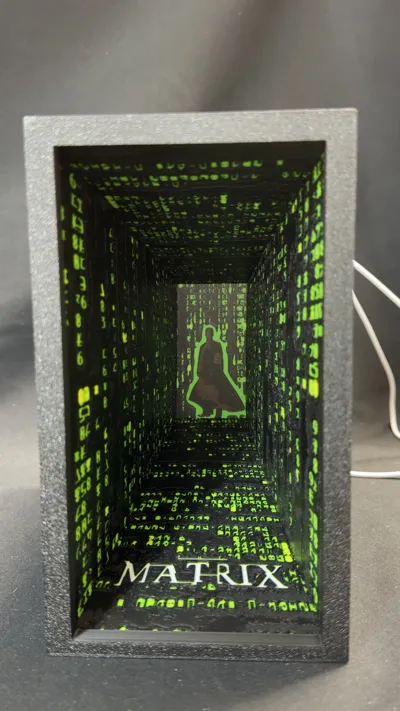

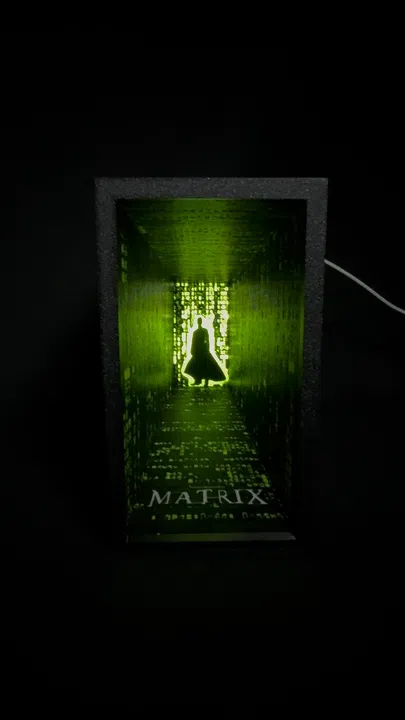

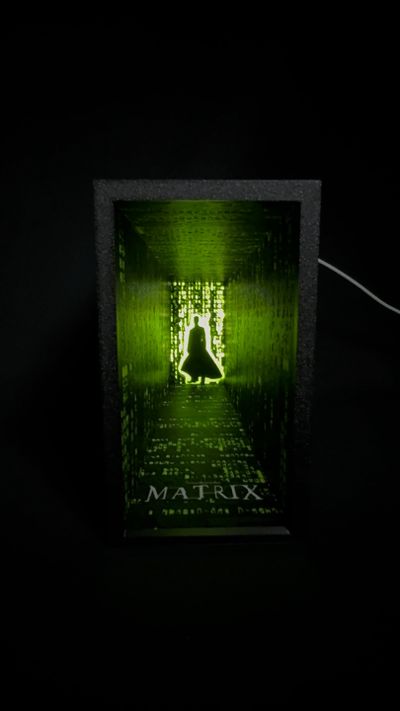

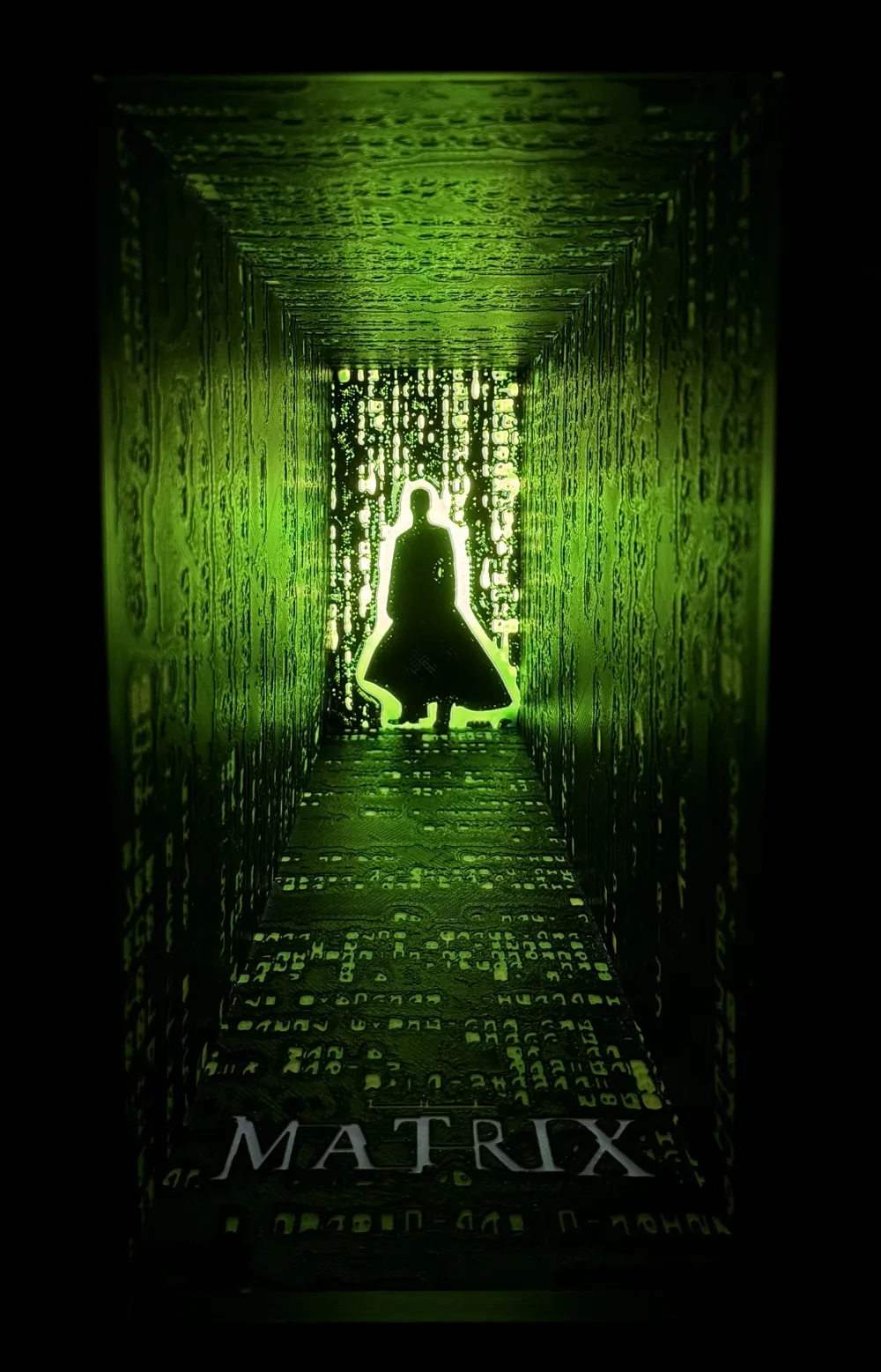

For now, I have recreated a The Matrix-themed backdrop, in the future I will definitely add more
