Description

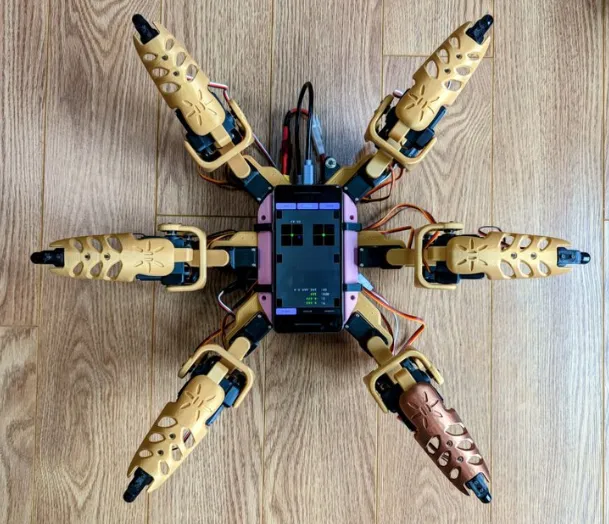

This page contains STL files for CHIPO hexapod created by MAKE YOUR PET.

The CHIPO is an open-source, 3D-printed, upcycling old android phone.

You need :

3D printed parts
18 x MG996r
6 x microswitch
1 x servo 2040 piromoni or Pololu Maestro
1 x 5V Relay Switch
1 x Battery 6V
1 x Switch
1 x Cheap Android Phone
M2 x 7mm screw
M1.6 screw

(a) = accent color part

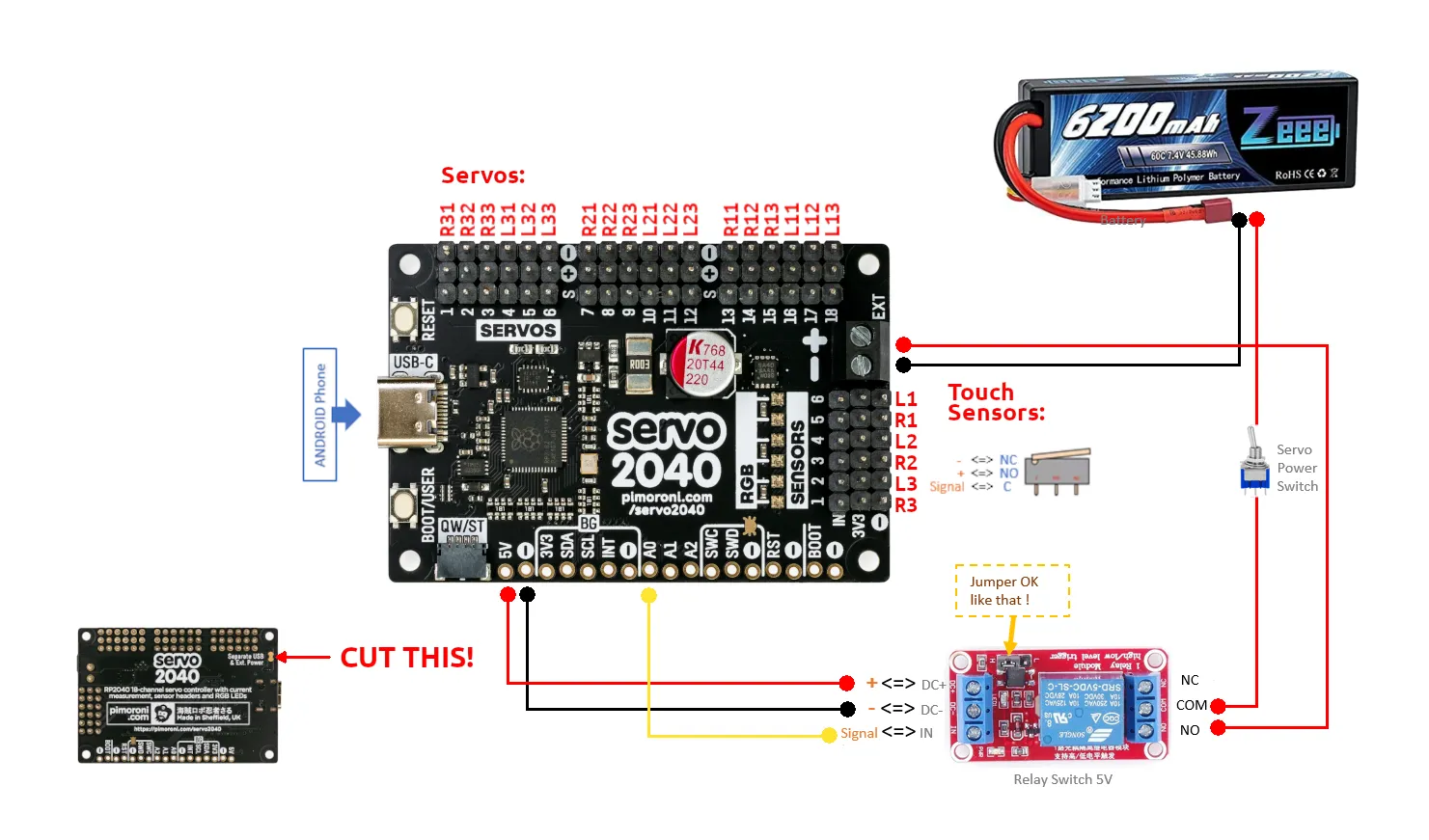

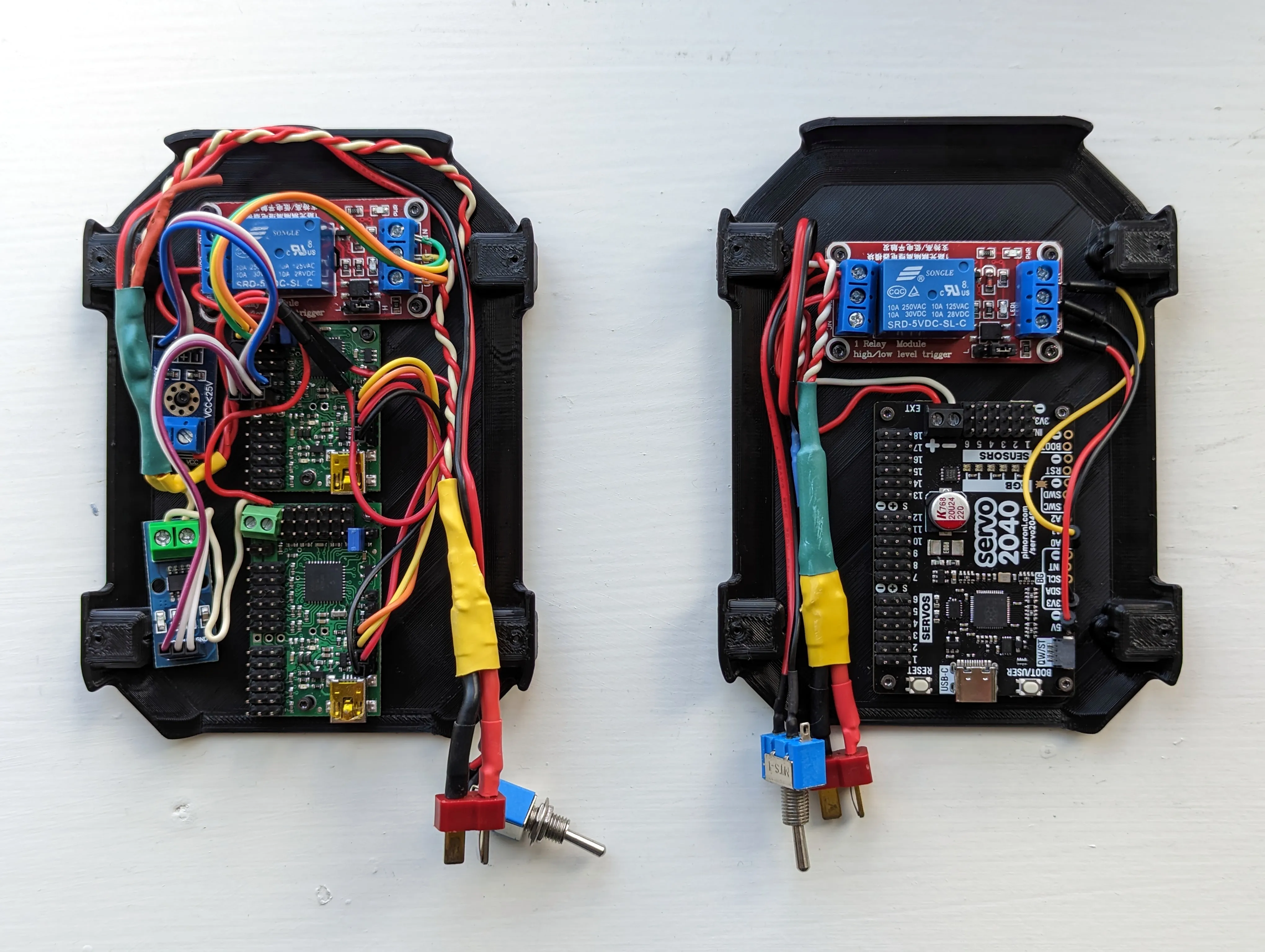

Pimoroni Servo2040 (The newer, simpler, cheaper and recommended option):

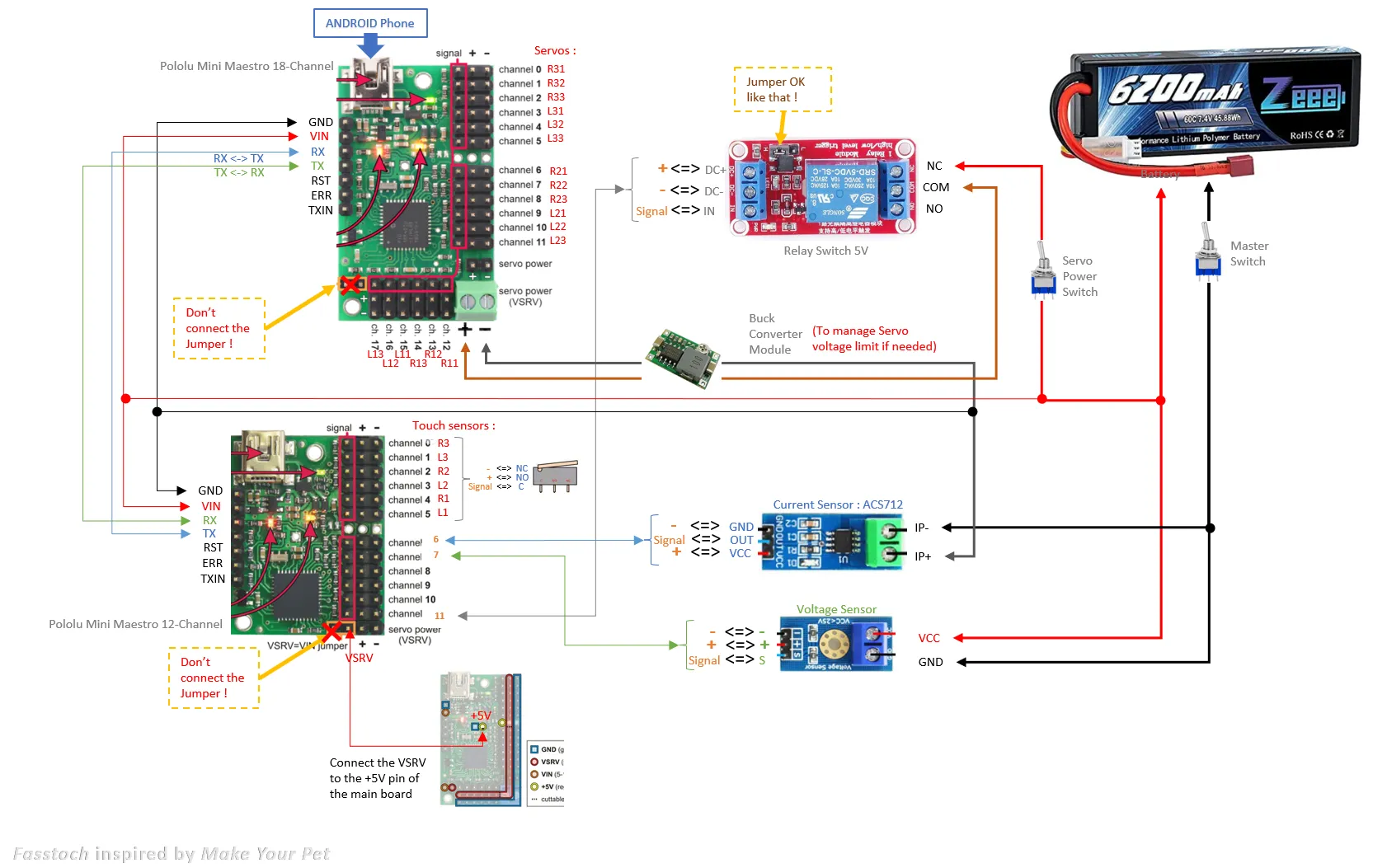

Pololu Maestro (The original, complicated, expensive and legacy option):

If you are interested but don't have a printer, contact me via discord Porteaie#2117 and we can sort something out.

Join the MYP discord server to be part of the development and provide feedback.

Website here.

Github source for STL and STEP files here.

All files are licensed under MIT License.

Documentation (2)

Other Files (2)

chipo-config-2040.txt

chipo-config-pololu.txt

Comment & Rating (9)

@muskyzin

I enjoyed a lot making this project, thank you for sharing!

@user_683083086

@KingAce46

anyone know where can I find the apps to download,I've messaged the creator on his YouTube video and sent an email but he has never replied,I've searched everywhere but can't find them, thanks

(Edited)

The designer has replied

@MaisonDuMaker

On google Playstore is not available on appstore

@DelUK

Yes android only .... on google playsrore.. Chica server and chica client are both required. One in the hand held phone for a remote control, the other that sits on the actual hexapod. Note - if building this now get the pirimoni 2040 servo controller board... it will work out a lot cheaper, easier doing the wiring and neater than the maestro board.

@user_67453911

that’s bad but can you ask the creator to make this cat? it is soooooooooooooooooooooooooo cute

@HTD2026

where can I find leg shields like the image above

@user_1565900434

Is there an alternative for servo 2040 piromoni board without any change in programming/pins?

@DelUK

I didnt find the decorative bits on the leg files on your STL downloads. These are in the github, but yours look different and more decorative. I think they are called leg shields. The details and software are on the github https://github.com/MakeYourPet/hexapod.git as given in the link above. The youtube links on there also show the builds and the rest of the project on how to set this up. The required apps for your android phone (note it is android only). Apps from the google playstore required are chica client and chica server. Important information on setting things up is also given in the linked you tubes and it is helpful on the Discord server. I am sorry but I didnt find anything unique about this post on Makerworld all of the information, almost word for word, is on the originators site. Having said that it is a nice Project, but I know where I will get the latest information and required details from.
